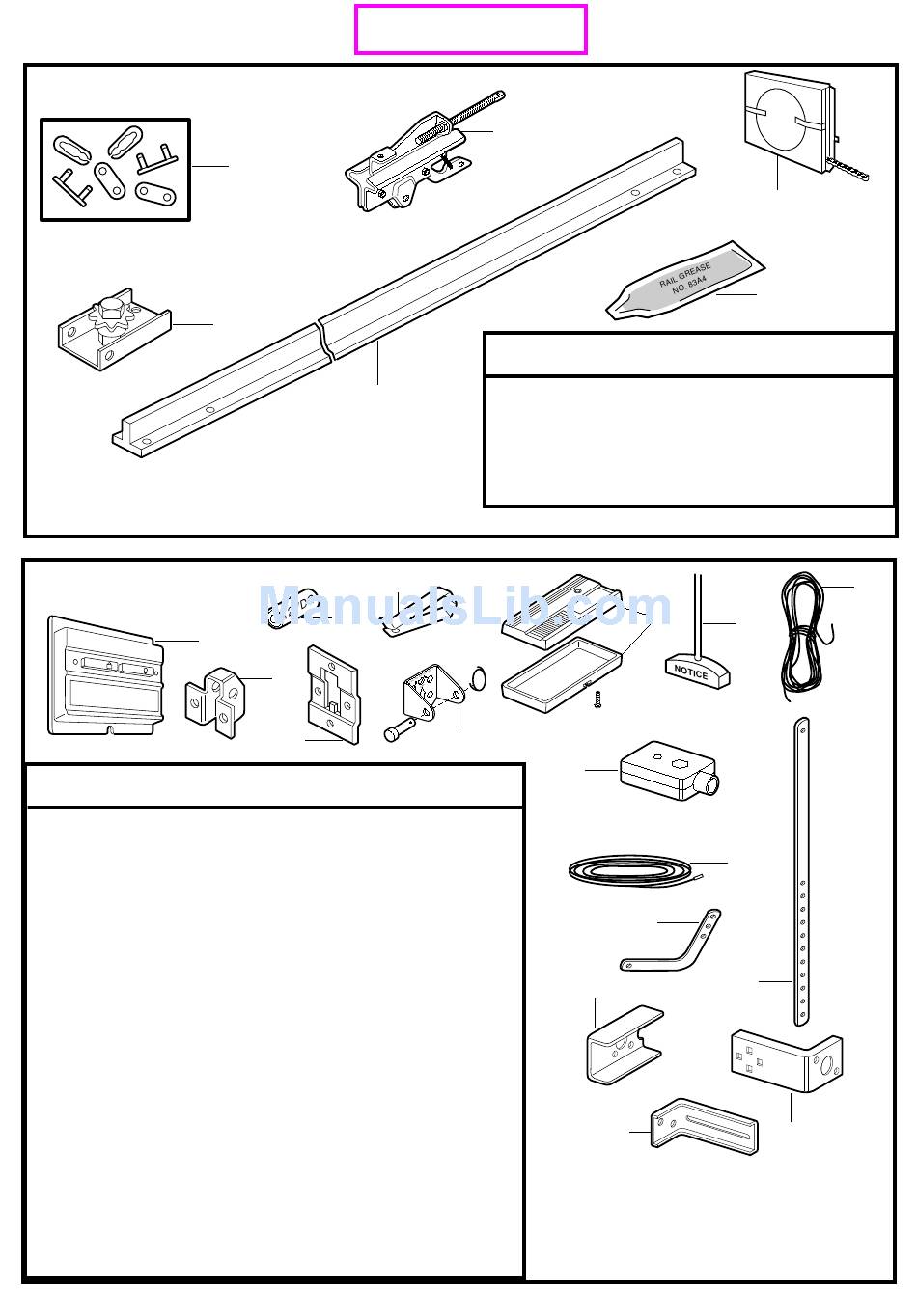

Rail Assembly Parts

Installation Parts

1
LO CK
LIG HT
KEY PART
NO. NO. DESCRIPTION
1 41A4202-3A Multi-function door control panel
2 10A14 12V battery
3 29C128 Remote control visor clip
4 41A3608-1 Remote control housing & screw only
(no circuit board)
5 41A2828 Manual release rope & handle assembly.
6 217A238 2-Conductor bell wire - white & white/red
7 12B374 Door bracket
8 12B380 Door bracket plate
9 41A4353 Header bracket w/clevis pin & fastener
10 41A4373 Safety sensor kit (receiving and sending
eyes only)
11 41B4115 2-Conductor bell wire with connector
white & white/black (2 rolls)
12 178B35 Curved door arm section
13 178B34 Straight door arm section
14 12B483 C-wrap bracket
15 12B484 Square hole bracket
16 12B485 Slotted bracket
NOT SHOWN
41A4116 Safety Sensor Hardware
41A2770 Installation hardware bag (includes
hardware listed on page 5).
114A1828 Owner's Manual
Repair Parts
1
2
4
3
2
7
8
3
KEY PART
NO. NO.
1 1A995
2 41A2780
3 41A3489
4 183B99
5 41D3484
6 83A4
9
10
14
16
32
5
6
DESCRIPTION
Master link kit
Chain pulley bracket
Complete trolley assembly
One-piece T-rail
Full chain assembly
Rail Grease
4
5
11
12
13
15
6
