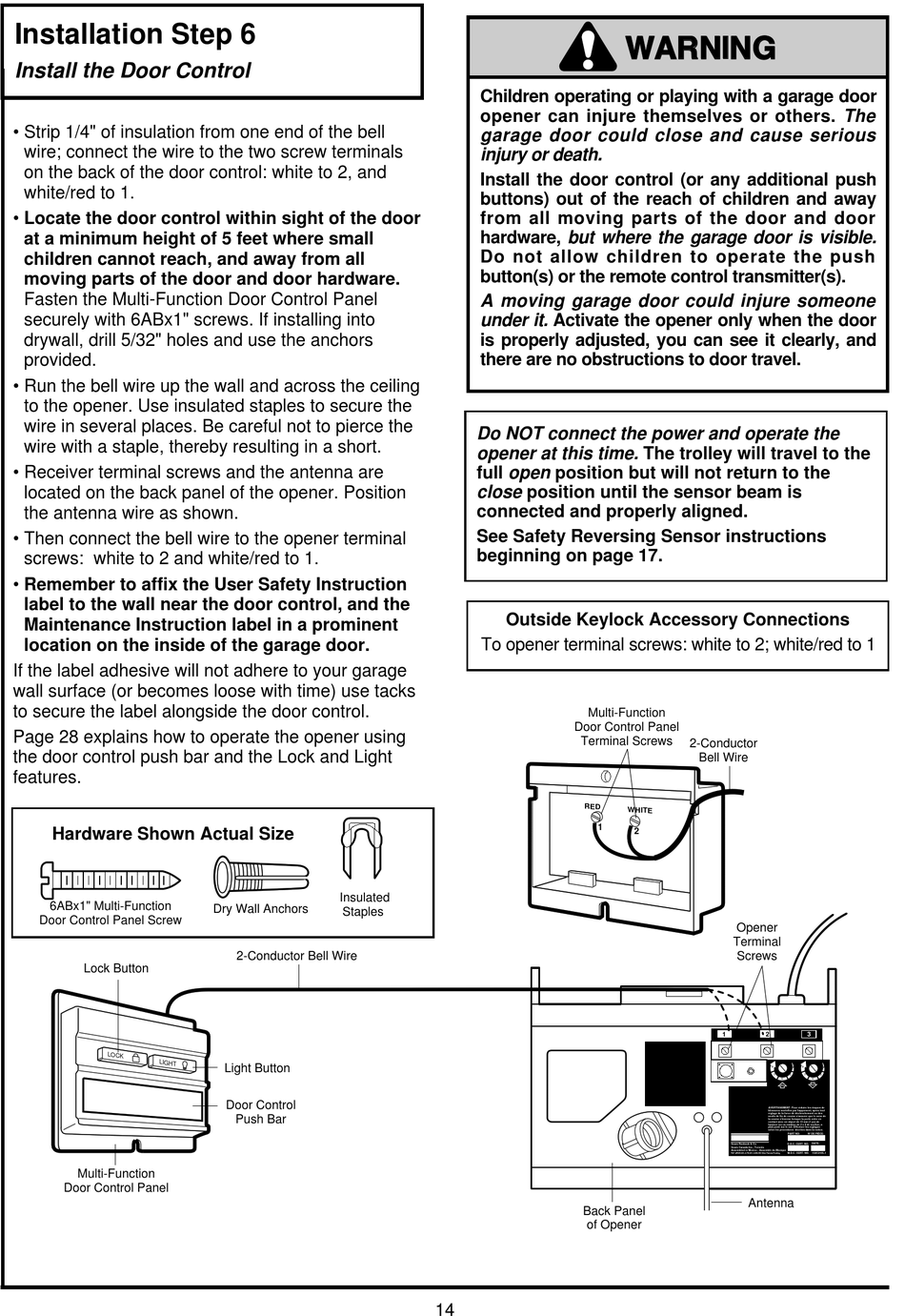

Install the Door Control

• Strip 1/4" of insulation from one end of the bell
wire; connect the wire to the two screw terminals
on the back of the door control: white to 2, and
white/red to 1.
• Locate the door control within sight of the door
at a minimum height of 5 feet where small
children cannot reach, and away from all
moving parts of the door and door hardware.
Fasten the Multi-Function Door Control Panel
securely with 6ABx1" screws. If installing into
drywall, drill 5/32" holes and use the anchors
The Chamberlain Group, Inc
provided.
Step 6 Install Lighted Door Control Button
• Run the bell wire up the wall and across the ceiling
to the opener. Use insulated staples to secure the
CGI Multifunction/Pushbutton
wire in several places. Be careful not to pierce the
10/8/91 - 5/2/92 - 5/4/92 - 5/26/92
wire with a staple, thereby resulting in a short.
• Receiver terminal screws and the antenna are
located on the back panel of the opener. Position
the antenna wire as shown.
• Then connect the bell wire to the opener terminal
screws: white to 2 and white/red to 1.
• Remember to affix the User Safety Instruction
label to the wall near the door control, and the
Maintenance Instruction label in a prominent
location on the inside of the garage door.
If the label adhesive will not adhere to your garage
wall surface (or becomes loose with time) use tacks
to secure the label alongside the door control.
Page 28 explains how to operate the opener using
the door control push bar and the Lock and Light
features.
Hardware Shown Actual Size
6ABx1" Multi-Function
Door Control Panel Screw
Lock Button
LO C K
Multi-Function
Door Control Panel
2-Conductor
Bell Wire
Dry Wall Anchors
2-Conductor Bell Wire
LI G H T
Light Button
Door Control
Push Bar
Children operating or playing with a garage door
opener can injure themselves or others. The
garage door could close and cause serious
injury or death.
Install the door control (or any additional push
buttons) out of the reach of children and away
from all moving parts of the door and door
hardware, but where the garage door is visible.
Do not allow children to operate the push
button(s) or the remote control transmitter(s).
A moving garage door could injure someone
under it. Activate the opener only when the door
is properly adjusted, you can see it clearly, and
there are no obstructions to door travel.
Do NOT connect the power and operate the
opener at this time. The trolley will travel to the
full open position but will not return to the
close position until the sensor beam is
connected and properly aligned.
See Safety Reversing Sensor instructions
beginning on page 17.
Outside Keylock Accessory Connections
To opener terminal screws: white to 2; white/red to 1
Door
Control
Terminal
Screws
Insulated
Staples
14
WARNING
Multi-Function
Door Control Panel
Terminal Screws
2-Conductor
Bell Wire
RE D
WH ITE
1
2
Opener
Terminal
Screws
1
