Receiver and Remote Control Programming
NOTICE: To comply with FCC rules, adjustment or modification of this
receiver and/or transmitter are prohibited, except for changing the code
setting or replacing the transmitter battery. THERE ARE NO OTHER
USER SERVICEABLE PARTS.
The 2-Channel Remote Control has two push
buttons (for Channel 1 and Channel 2), each
activated by its own set of code switches. Refer to
the illustration below. Channel 1 push button, with a
smooth surface, is set to operate the garage door
opener. The other button can operate an entry way,
light product or another door opener.
MATCH/CHANGE THE CODE IN REMOTE CONTROL(S)
Acess the code switches for channel 1 push button by sliding back the battery compartment cover. To access
the code switches for channel 2, remove the battery compartment cover and the cover screw. Then depress
the tab in edge of case (alongside battery). The remote control case back will lift off.

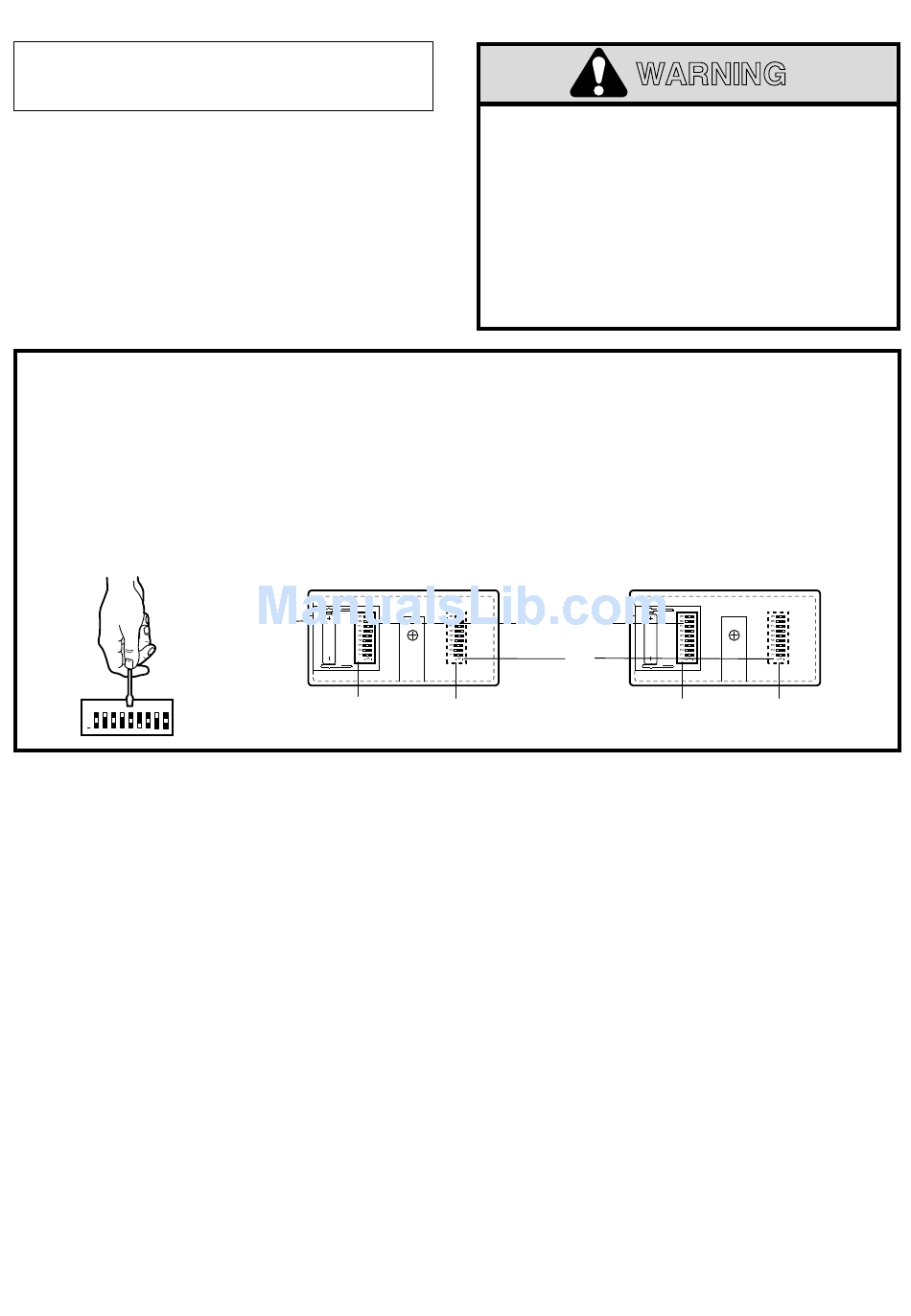

Place remotes side by side as shown. Set the selected channel code switches to the same positions as in the
original remote. Use a screwdriver or pen to slide the switches.
The remaining set of code switches in your new remote can be used to operate a second garage door opener
or light product.
1 2 3 4 5 6 7 8 9
+
0
Set Receiver to Match Remote Control's Code
Make sure all remote control code switches are set to
matching positions as described above
1. Press and hold the selected remote push button.
See Figure 1.
2. Press and release the green "Smart" button on the
back panel of the opener, Figure 2. The opener
lights on the panel will flash once.
3. Release the remote push button.
Now the opener will operate when the remote control
push button is pressed.
If you release the remote control push button
before the opener lights flash, the opener will not
accept the code.
To Erase All Remote Control Codes
• Press and hold the green "Smart" button on the
opener panel until the indicator light turns off (about
6 seconds). All the codes the opener has learned
will be erased.
• To reprogram, repeat Steps 1 – 3 for each remote
control in use.
Set Code Switches in all Remotes to Matching Positions
Tab
Channel 1
Code Switches (1-9)
Children operating or playing with a garage
door opener can injure themselves or others.
The garage door could close and cause
serious injury or death. Do not allow children
to operate the door control(s) or remote
control transmitter(s).
A moving garage door could injure or kill
someone under it. Activate the opener only
when you can see the door clearly, it is free of
obstructions, and is properly adjusted.
Match Code
Switches (1-9)
OR
Channel 2
Code Switches (1-9)
Figure 1
Figure 2
Code programming instructions are also located on
the opener panel.
