Installation Step 10

Install the Safety Reversing Sensor

(Receiving and Sending Eyes)

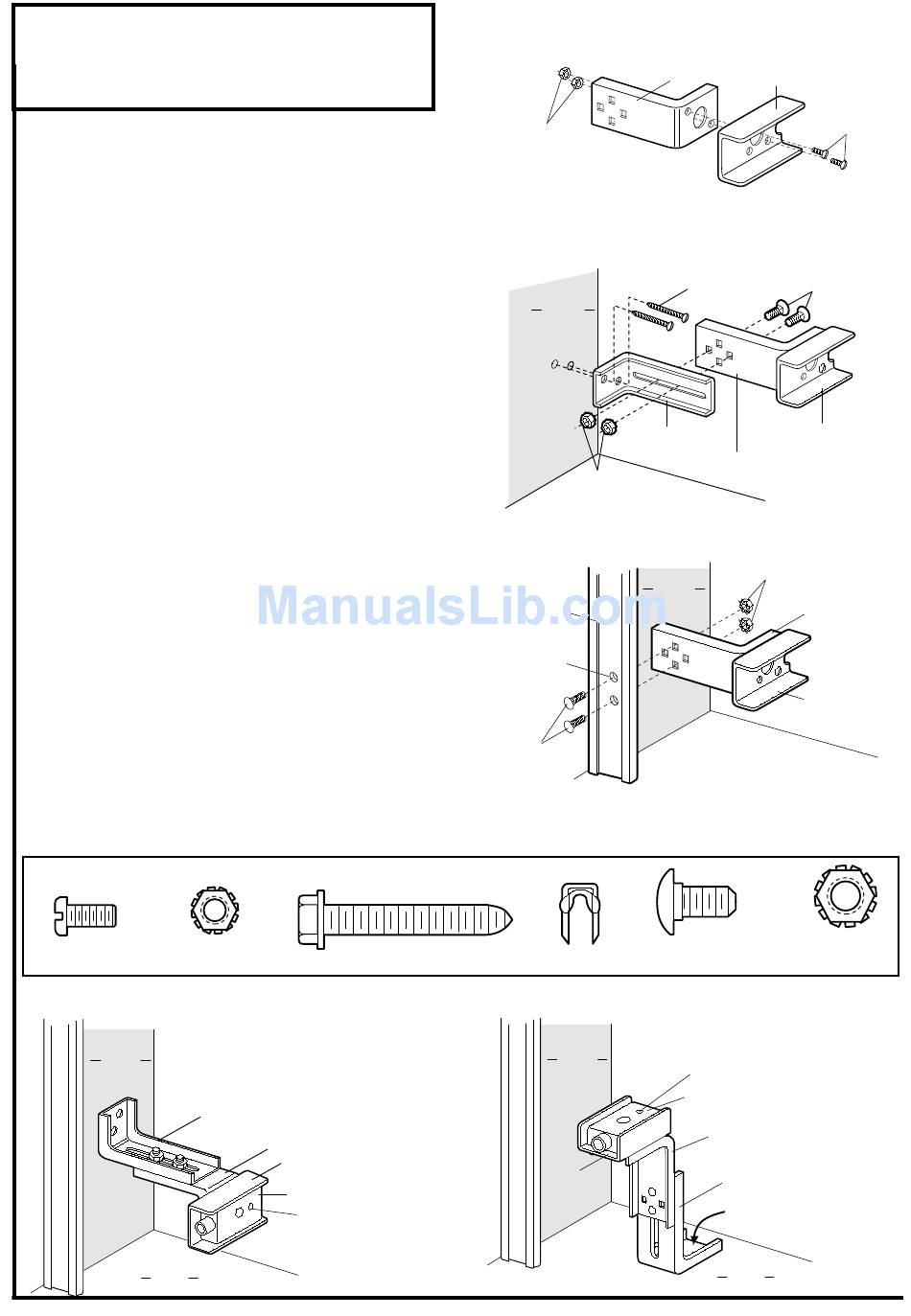

Figures 2 , 3 and 4 show recommended assembly
of bracket(s) and "C" wrap based on the wall
installation of the sensors on each side of the garage
door as shown on page 17, or on the garage door
tracks themselves.
Figures 5 and 6 are variations which may fit your
installation requirements better. Make sure the
wraps and brackets are aligned so the sensors
will face each other across the garage door.
Garage Wall or Door Track Installation Procedure
• Fasten the "C" wraps to the mounting brackets
having square holes, using the hardware shown in
Figure 2.
Garage Wall Installation Procedure
• Connect each assembly to a slotted bracket, using
the hardware shown in Figure 3. Note alignment
of brackets for left and right sides of the door.
• Finger tighten the lock nuts.
• Use bracket mounting holes as a template to locate
and drill (2) 3/16" diameter pilot holes on both sides
of the garage door, 4"-6" above the floor but not
exceeding 6". (See warning on page 17.)
• Attach bracket assemblies with 1/4"x1-1/2" lag
screws as shown in Figure 3.
• Adjust right and left side bracket assemblies to the
same distance out from mounting surface. Make
sure all door hardware obstructions are cleared.
Tighten the nuts securely.
Garage Door Track Installation Procedure
Discard slotted bracket. Drill 3/8" holes in each track
and fasten securely with hardware as shown in
Figure 4.
