Chapter4 Installation and accessory parts

4-1.Key points in installation

Please install and adjust the machine according to the requirement of the mannual.
It is very important to your security and correct operating the machine.

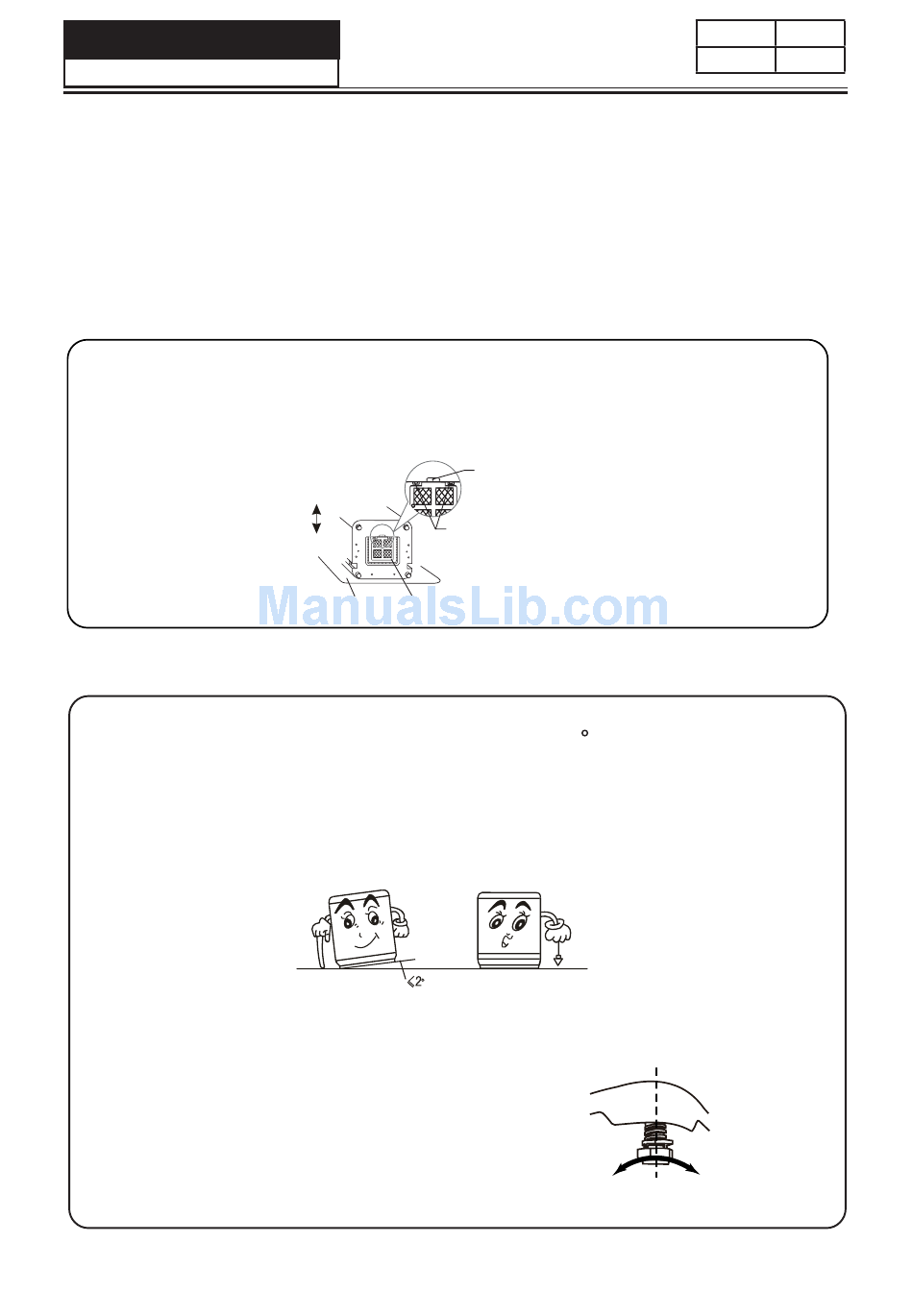

4-2. Install the bottom plate
Insert the bottom plate to the pedestal from the front to the back and the tow
fasteners to the opposite holes, then install the bottom plate to the pedestal with
the screw by a cross screwdriver . See to the figure : (Please firse pull off the
power plug from the receptacle before installing.)

4-3 Adjustment of the installation position

The washing machine away from wall should be overrun 20mm. The largest
allowable slope of the shank base of the machine is 2 The slanting or rough
ground will result in unstable running or stoppage of the machine. Please adjust
it with following methods:
Confirm it's horizontal:
Hang the lead line to check if it is horizontal.
Adjust the adjustable leg:
Please lift up the side of the leg slightly,
twist the adjustable leg, make sure to keep the
washing machine in balance
Front
Two fasteners
Back
Carpet
Bottom plate
8
Screw
High
Adjustable leg
Issue
Rev.
low
