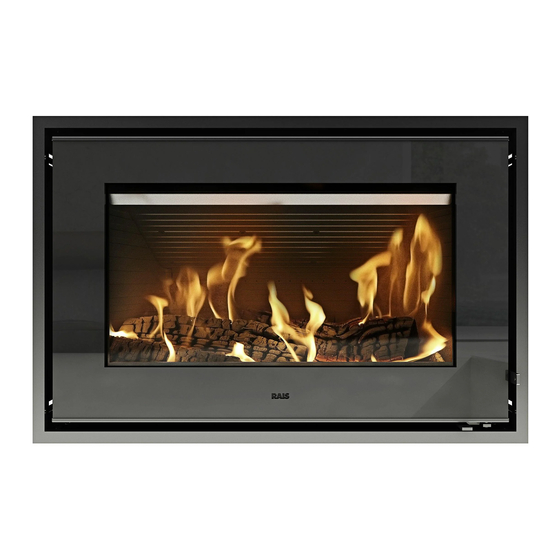

- Page 1 ENGLISH RAIS - manual for RAIS 700 U s e r m a n u a l M a n u e l d ’ u t i l i s a t e u r G e b r u i k e r s h a n d l e i d i n g...
- Page 2 FR: BOIS Foyer à durèe de combustion limitèe, homologué pour cheminée à connexions multiples. Utiliser seulement les combustibles recommandés. Hergestellt für /Produced for: ATTIKA FEUER AG, Brunnmatt 16, CH-6330 Cham / RAIS A/S, Industrivej 20, DK-9900 Frederikshavn 15a B-VG VKF-NR: XXXXX...
- Page 3 Position 1 Position 2 Position 3 Position 1 Position 2 Position 3 Stand 1 Stand 2 Stand 3...
- Page 4 FIRE ENVIRONMENTALLY FRIENDLY! 5 Eco-friendly advices for sensible heating - common sense both environmentally and economically. 1. Effective lighting. Use dry brushwood, kindling and possible a piece of news paper. Open the air damper, so plenty of air is fed to the stove and the gases from the heated wood can burn rapidly.
-
Page 5: Table Of Contents
ENGLISH RAIS - manual for RAIS 700 Rais 700 Revision: Dato 24-10-2018 INTRODUCTION ......................4 WARRANTY ........................4 SPECIFICATIONS ......................5 INSTALLATIONS INSTRUCTIONS..................6 CONVECTION .......................7 CHIMNEY ........................7-8 VENTILATION .........................9 INSTALLATION .......................10-11 INSTALLATION DISTANCE ..................12-17 FUEL ........................18-19 REGULATION OF COMBUSTION AIR ................19 USING THE WOOD BURNING STOVE ................20 ADJUSTMENT OF AIR DAMPER ...................20... -
Page 6: Introduction
These appliances have been approved by HETAS Ltd as intermittent operating appliances for burning wood logs only. A RAIS wood burning stove is more than just a heat source: it also shows that you care about design and quality in your home. -
Page 7: Specifications
ENGLISH RAIS - manual for RAIS 700 Specifications RAIS 700 Nominell output (kW): Min./Max. output(kW): Heating area (m ca. 60-105 Stove’s width/depth/height (mm): 825-485-535 Combustion champer’s width/depth/height (mm): 562-289-300 Recommended amount of wood when fuelling (kg): (Distributed on 2-3 logs of wood approx. 25 cm) Min. -
Page 8: Installations Instructions
ENGLISH RAIS - manual for RAIS 700 Installation instructions The following pages give instructions for the safe and proper installation of this heating appliance in the UK. These instructions cover the basic principles of installation, although detail may need slight modification to suit particular local site conditions. In all cases the installation must comply with current UK Building Regulations, Local Authority Byelaws and other specifications or regulations as they affect the installation of the stove. -
Page 9: Convection
RAIS - manual for RAIS 700 Convection RAIS stoves are convection stoves. This means that the stove’s back and side panels are not over-heated. Convection means that there is a circulation of air, which ensures that the heat is distributed more evenly throughout the entire room. The cold air is sucked in at the base of the stove up through the convection channel, which runs along the stove’s... - Page 10 ENGLISH RAIS - manual for RAIS 700 A single wall metal fluepipe is suitable for connecting the stove to the chimney but is not suitable for using for the complete chimney. The chimney and connecting fluepipe must have a minimum diameter of 150 mm and its dimension should be not less than the size of the outlet socket of the stove which is 150 mm in diameter.
-
Page 11: Ventilation
ENGLISH RAIS - manual for RAIS 700 Ventilation - make the best possible use of the inserts. The stove is equipped with four convection air outlet, which may be connected with suit- able air ducts to other rooms. -
Page 12: Installation
When you choose where to set up your RAIS wood burning stove, you should consider the heat distribution to the other rooms. This will enable you to get the best use out of your stove. - Page 13 RAIS - manual for RAIS 700 Lift the stove from the pallet to the place of installation on a suitable floor protection. The stove can be mounted with rack and adjustable leg (buy accessories at your local RAIS dealer) The stove is aligned by adjusting screws, so the lower edge of the glass door is in horizon- tal position and the surface of the door is vertical when the door is closed.
- Page 14 ENGLISH RAIS - manual for RAIS 700 Mounting distance for panelled wall – combustible material Insulation ability such Aqua panel (coefficient of thermal conductivity 0,36 W/mk) or better. Min. convection area above the stove: 800 cm² (may be distributed) NB!!
- Page 15 ENGLISH RAIS - manual for RAIS 700 Mounting distance - super isol Min. convection area above the stove : 800 cm² (may be distributed) NB!! Insulated chimney down to the smoke connector. Distance to furniture Min convection area min. below the stove: 530 cm²...
- Page 16 ENGLISH RAIS - manual for RAIS 700 Mounting distance for brick wall / firewall Min. convection area above the stove 800 cm² (may be distributed) 110 mm Distance to furniture Min. convection area below the stove min. 700 mm 400 cm² (may be distributed)
- Page 17 ENGLISH RAIS - manual for RAIS 700 Mounting distance - (height x width) 545 x 840 A wood burner insert should never fit tightly. Steel expands when heated. Aqua panel Super isol Min. Min. Note! For reasons of adjustment options for adjusting screws must be the foundation level for min.
- Page 18 ENGLISH RAIS - manual for RAIS 700...
-
Page 19: Installation Distance
ENGLISH RAIS - manual for RAIS 700 Installation distance in case of combustible wall To find out whether the wall next to where the stove is going to be installed is flammable, you should contact your building contractor or the local building authorities. -
Page 20: Fuel
ENGLISH RAIS - manual for RAIS 700 Operating instructions Please note that HETAS Ltd Appliance Approval only covers the use of dry sea- soned wood logs on this appliance. HETAS Ltd Approval does not cover the use of other fuels either alone or mixed with the wood logs, nor does it cover instruc-... -
Page 21: Regulation Of Combustion Air
2-3 days before you need it. Regulating the combustion air All RAIS stoves are equipped with a one-handed operating lever for regulating the damp- er. The stove-specific regulating mechanisms can be seen on the diagrams. Primary air is the combustion air added to the primary combustion zone, i.e. the bed of glowing embers. -
Page 22: Using The Wood Burning Stove
ENGLISH RAIS - manual for RAIS 700 Using the wood burning stove Adjustment of the air damper - the damper has 3 settings Position 1 The damper is almost closed meaning that there is a minimal air intake. Position 2 Pull the lever until first click. -
Page 23: Important - Warning Note
ENGLISH RAIS - manual for RAIS 700 IMPORTANT - Warning Note! Properly installed, operated and maintained this appliance will not emit fumes into the dwelling. Occasional fumes from de-ashing and re-fuelling may occur. However, persistent fume emission is potentially dangerous and must not be tolerated. If fume emission does persist, the following immediate actions should be taken: (a) Open doors and windows to ventilate room. - Page 24 Hvis brændet kun ulmer eller ryger, og der tilføres for lidt luft, udvikles der Hvis brændet kun ulmer eller ryger, og der tilføres for lidt luft, udvikles der ENGLISH RAIS - manual for RAIS 700 Hvis brændet kun ulmer eller ryger, og der tilføres for lidt luft, udvikles der Warning!! uforbrændte røggasser.
-
Page 25: Lighting And Fuelling
ENGLISH RAIS - manual for RAIS 700 Lighting and fuelling To light the stove, use alcohol briquettes or similar, as well as approx. 2 kg of firewood, split into kindling sticks. Set the air damper to the fully open position. -
Page 26: Cleaning And Care
- Moisten a piece of paper or newspaper, dip it in the ash, and rub the sooty glass with - Now rub with a piece of paper and the glass will become clean. - As an alternative you can use glass polish, which you can buy from you RAIS distributor. Clean the exterior with a dry sponge. -
Page 27: Cleaning Of The Flue Ways
ENGLISH RAIS - manual for RAIS 700 Cleaning of the flue ways The flue ways are consist of a baffle plate and a smoke conductor above. This parts are screwed together. Both parts are made of vermaculit. Handle these parts carefully. -
Page 28: Interruption Of Operation
- unclean smoke channels - leaky chimney - leakage between chimney and flue If your stove continues to malfunction, we recommend that you contact your RAIS dis- tributor or chimney sweep. IMPORTANT!! To ensure safe burning there must be clear yellow flames or clear embers at all times. -
Page 29: Accessories And Spare Parts
ENGLISH RAIS - manual for RAIS 700 Accessories and spare parts If spare parts other than those recommended by RAIS are used, the warranty is voided. 7090501MON Rack 7090506 Telescopic support 7101790 Air-system 7091301SV Special adapter 70914Spec Special cover All replaceable parts can be bought as spare parts from your RAIS distributor. - Page 30 RAIS A/S Industrivej 20 DK-9900 Frederikshavn www.rais.dk...
