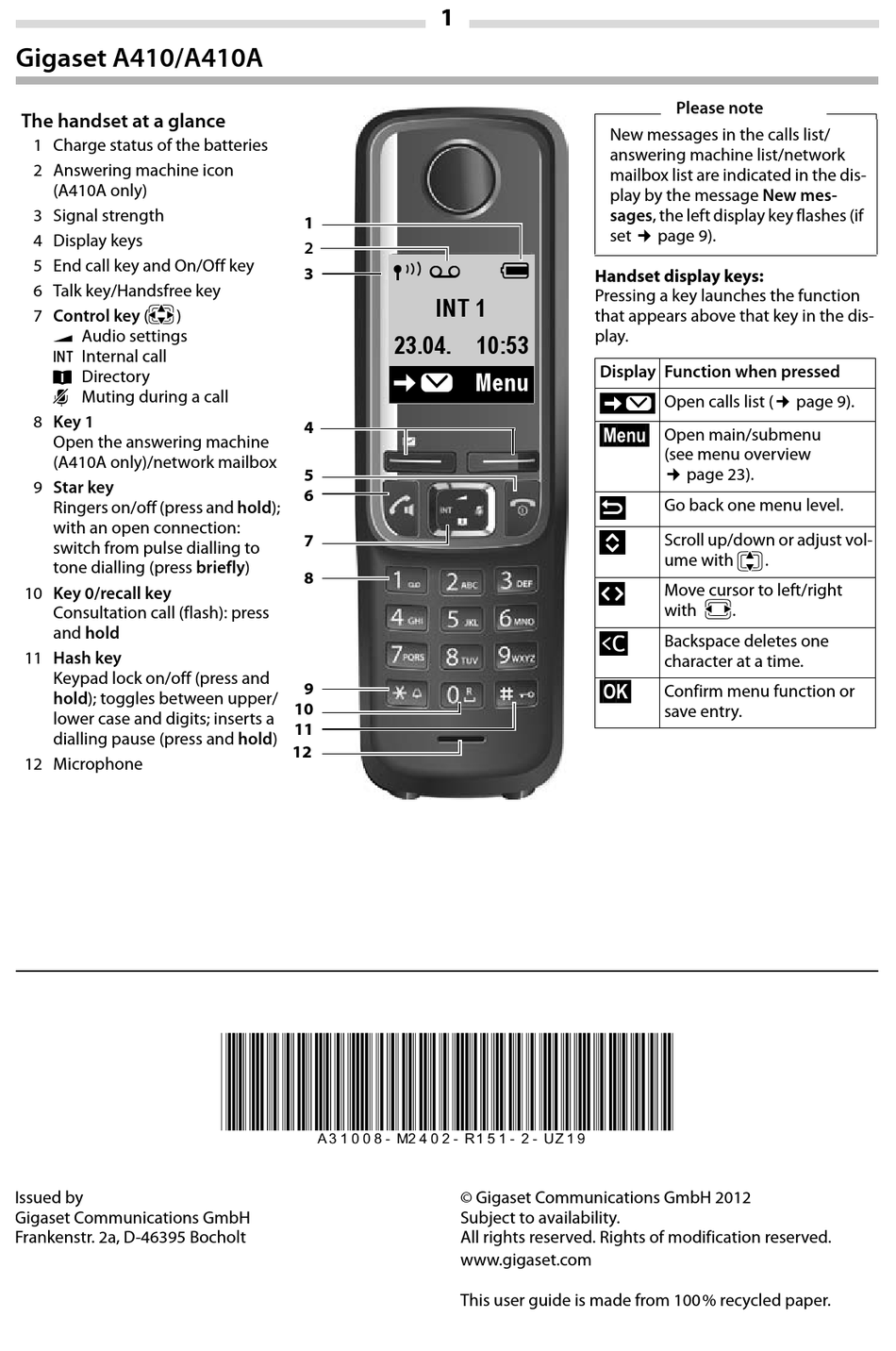

Gigaset A410/A410A

The handset at a glance

1 Charge status of the batteries

2 Answering machine icon

(A410A only)

3 Signal strength

4 Display keys

5 End call key and On/Off key

6 Talk key/Handsfree key

7 Control key (

)

Audio settings

INT

Internal call

Directory

Muting during a call

8 Key 1 

Open the answering machine

(A410A only)/network mailbox

9 Star key 

Ringers on/off (press and hold);

with an open connection:

switch from pulse dialling to

tone dialling (press briefly)

10 Key 0/recall key

Consultation call (flash): press

and hold

11 Hash key

Keypad lock on/off (press and

hold); toggles between upper/

lower case and digits; inserts a

dialling pause (press and hold)

12 Microphone

Issued by

Gigaset Communications GmbH

Frankenstr. 2a, D-46395 Bocholt

INT 1

23.04. 10:53

' Menu

Subject to availability. 

www.gigaset.com



This user guide is made from 100 % recycled paper.

New messages in the calls list/

answering machine list/network

mailbox list are indicated in the dis-

play by the message New mes-

sages, the left display key flashes (if

set

page 9).

Handset display keys:

Pressing a key launches the function

that appears above that key in the dis-

play.

Display Function when pressed

Open calls list (

§Menu§

Open main/submenu

(see menu overview

Go back one menu level.

Scroll up/down or adjust vol-

ume with

Move cursor to left/right

with

Backspace deletes one

character at a time.

§OK§

Confirm menu function or

save entry.

Please note

page 9).

page 23).

Table of Contents

Need help?

Do you have a question about the A410 and is the answer not in the manual?

Questions and answers

Summary of Contents for Gigaset A410

Page 1 Gigaset A410/A410A Please note The handset at a glance New messages in the calls list/ 1 Charge status of the batteries answering machine list/network 2 Answering machine icon mailbox list are indicated in the dis- (A410A only) play by the message New mes-...
Page 2: Eco Dect
(press briefly). Lights up: answering machine is activated.  Flashes: at least one new message is present or message is played Basis A410 back or being recorded. Flashes very quickly: memory is full. During message playback: 4 Skip to the start of the current message (press once) or go to the pre- vious message (press twice).
Page 3: Safety Precautions
Safety precautions Warning Read the safety precautions and the user guide before use. Explain their content and the potential hazards associated with using the device to your children. Use only the power adapter indicated on the device. Use only rechargeable batteries that correspond to the specification (see "Technical Data"). Never use a con- ventional (non-rechargeable) battery or other battery types as this could result in significant health risks and personal injury.
Page 4: First Steps
First steps Check the package contents Base station and handset package: One Gigaset handset, one Gigaset A410/A410A base station, one mains adapter, one phone cord, two batteries, one battery cover, one user guide. Handset and charging cradle package: One Gigaset handset, one charging cradle with mains adapter, two batteries, one battery cover, one user guide.
Page 5: Setting Up The Handset For Use
Setting up the handset for use The display is protected by a plastic film. Please remove the protective film! Inserting the batteries and closing the battery cover Warning ¢ Use only the rechargeable batteries recommended by Gigaset Communications GmbH ( page 16), i.e., never use conventional (non-rechargeable) batteries as this could result in significant health risks and personal injury.
Page 6: Activating/Deactivating The Handset
Changing the display language Change the display language if you do not understand the language currently set: ‰ ¤ q ¤ ¤ §Menu§ §OK§ (press the keys one after the other) (select language) = current language) ¤ Press and hold the end call key to return to idle status.
Page 7: Making Calls
Submenus The functions in the submenu are indicated by name. Selecting a function: ¤ You can scroll between functions using the control key . The function is shown in the display. ¤ §OK§ Press the display key to select the displayed function. This opens the corresponding submenu and the first entry is displayed.
Page 8: Using The Directory And Lists
In the "Without Presel." list, enter any exceptions to the "With Preselect" list. Example: Phone number Dialled number Presel. Number 0999 All numbers that start with 08, except ¤ 07112345678 07112345678 With Preselect for 081 and 084, are dialled with the ¤...
Page 9: Last Number Redial List
Sending the directory to another handset Prerequisites: ◆ The sending and receiving handsets must both be registered to the same base station. ◆ The other handset and the base station can send and receive directory entries. s ¤ q ¤ q ¤...
Page 10: Activating/Deactivating The Answering Machine
Open the calls list ’ ¤ q CallsList The calls list is displayed as follows:  Number of new entries + number of old, read entries CallsList 01+02 §OK§ Press to open the list. The last incoming call is displayed. If necessary, use to select another entry.
Page 11: Additional Functions During Message Playback
¤ Fast access to the answering machine: To access the answering machine, simply press and hold the key. The integrated answering machine has already been preset at the factory. However, if you have set the network mailbox for fast access, you can change this setting ¢...
Page 12: Locating A Handset ("Paging")
Operating when on the move (remote operation) You can check your answering machine from any other telephone (hotel, pay phone etc.). Prerequisites: ¢ ◆ You have set a system PIN other than 0000 ( page 24). ◆ The phone you are using for remote operation has tone dialling (DTMF) i. e., you hear different tones when you press the keys.
Page 13: De-Registering Handsets
De-registering handsets You can de-register all other registered handsets from each of the registered Gigaset handsets. ¤ q ¤ q ¤ q ¤ q ¤ ¤ §Menu§ §OK§ §OK§ Settings Handset De-register HS Select the internal party you wish to de- ¤...
Page 14: Phone Settings
Phone settings ¢ For details on activating/deactivating advisory tones and battery low tones, see menu tree ( page 23). ¢ For details on setting the display contrast and large dialling numbers, see menu tree ( page 24). ¢ For details on how to set the system PIN on the base station, see the menu overview ( page 24).
Page 15: Activating/Deactivating Music On Hold
Activating/deactivating the ringer Ú Deactivating/reactivating the ringer permanently In idle status, press and hold the star key . If the ringer is deactivated, the icon appears in the display. Deactivating the ringer for the current call ¤ ¤ §Menu§ §OK§ Silent Setting ring tones of the base station (A410A only) Set the Ringer Volume, Ringer Melody and the Time Control for the base station:...
Page 16: Entering Letters/Characters
Due to the constant progression in battery development, the list of recommended batteries in the FAQ section of the Gigaset Customer Care pages is regularly updated: www.gigaset.com/service Base station power consumption A410 A410A In standby mode – Handset in base station...
Page 17: General Specifications
General specifications DECT standard is supported GAP standard is supported Range up to 300 m outdoors, up to 50 m indoors Base station power supply 230 V ~/50 Hz Environmental conditions in operation +5 °C to +45 °C, 20% to 75% relative humidity Questions and answers If you have any queries about the use of your telephone, visit our website at www.gigaset.com/service ...
Page 18: Customer Service & Assistance
Customer Service & Assistance Do you have any questions? As a Gigaset customer, you can find help quickly in this User Manual and in the service sec- tion of our Gigaset online portal www.gigaset.com/service. In our constantly updated online service you can find: ◆...
Page 19 Customer Service & Assistance Australia..... . . 1300 780 878 verso la rete di altri operatori fissi o mobili con- sultate le tariffe del vostro operatore) Austria .
Page 20 Manufacturer warranty (Middle East) On the purchase of your new Gigaset product, we guarantee that this equipment is a genuie manufacturer’s product and extend the following warranty: We guarantee this product against manufacturing defects for two full years from the date of purchase, unless specified otherwise.
Page 21: Service Centres (Midde East)
Service Centres (Midde East) Saudi Arabian Service Centers: Customer Service Hotline UAE Ahmed Abdulwahed Trading Co. TEL: 00971-4-4458255 / 00971-4-4458254 Jeddah Service Center Service Collection Point Al-Amal Plaza, Hail Street, www.technocare-prodigy.com Jeddeh, Saudi Arabia, KARAMA Tel: 02-6500282 Ext. 209 Sea Shell Electronics Riyadh Service Center Opp.
Page 22: Environmental Management System
Environment Our environmental statement We at Gigaset Communications GmbH are aware of our social responsibility. That is why we actively take steps to create a better world. In all areas of our business – from product planning and production to sales and waste of disposal – fol- lowing our environmental conscience in everything we do is of utmost importance to us.
Page 23: Menu Overview
Menu overview Your phone has an extensive range of features. These are offered in the form of menus. §Menu§ To select a function while the phone is in idle status, press (open menu), use the control key to scroll to the §OK§...
Page 24 ç Settings ¢ Date/Time page 6 ¢ Handset Language page 14 Big Dial Font Set bigger digits for dialling. Contrast Set the display contrast to 9 levels. ¢ Time Control Activation/Settings page 14 ¢ An.Call Silent page 14 ¢ Auto Answer Activate/deactivate auto answer page 7.
