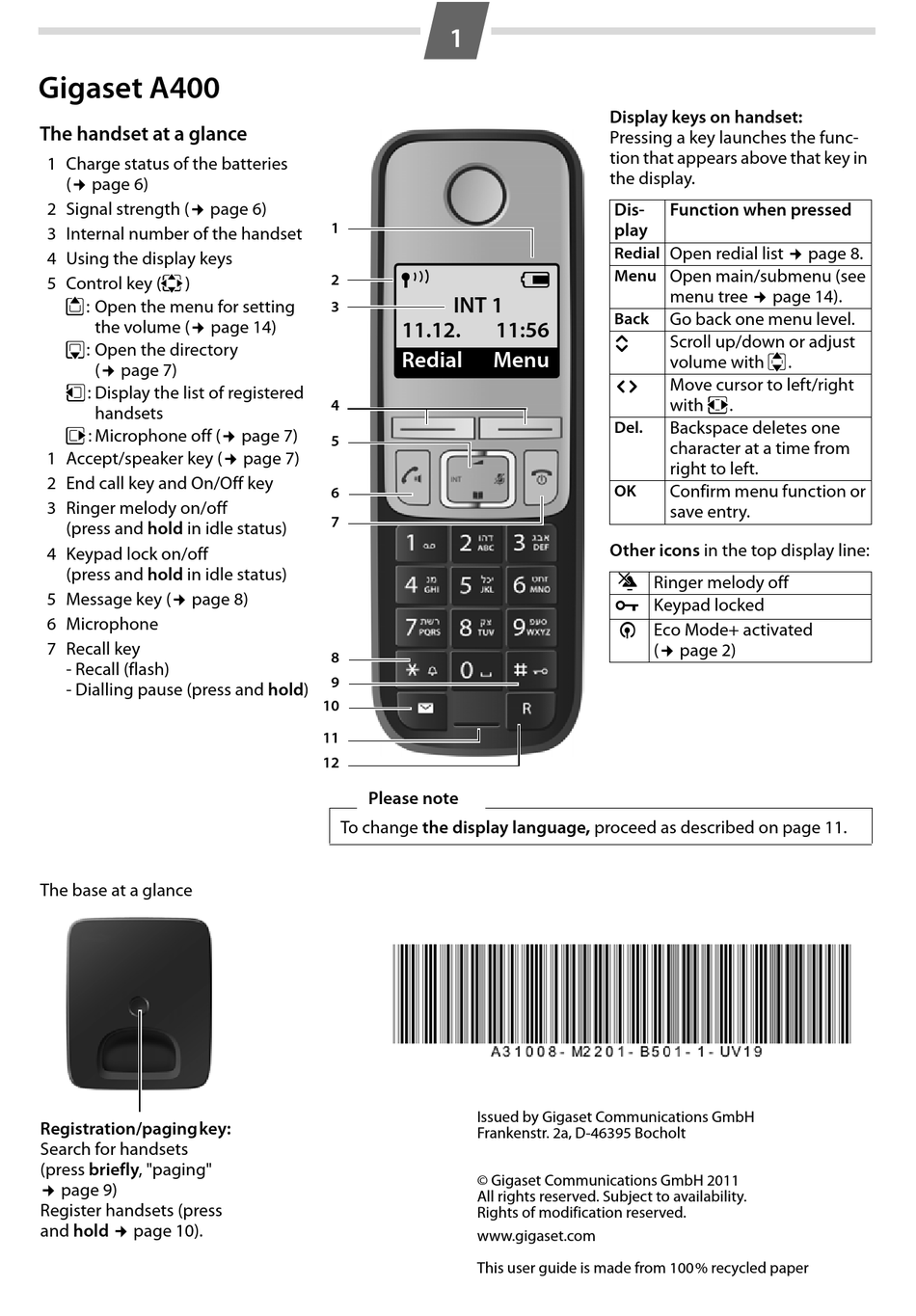

Gigaset A400
The handset at a glance
1 Charge status of the batteries
(¢ page 6)
2 Signal strength (¢ page 6)
3 Internal number of the handset
4 Using the display keys
5 Control key (p)
t: Open the menu for setting
the volume (¢ page 14)
s: Open the directory
(¢ page 7)
u: Display the list of registered
handsets
v: Microphone off (¢ page 7)
1 Accept/speaker key (¢ page 7)
2 End call key and On/Off key
3 Ringer melody on/off 
(press and hold in idle status)
4 Keypad lock on/off
(press and hold in idle status)
5 Message key (¢ page 8)
6 Microphone
7 Recall key
- Recall (flash)
- Dialling pause (press and hold)
The base at a glance
Registration/paging key: 
Search for handsets
(press briefly, "paging"
¢ page 9)
Register handsets (press
and hold ¢ page 10).
1
1
Ð
2
INT 1
3
11.12.
Redial
Menu
4
5
6
7
8
9
10
11
12
Please note
To change the display language, proceed as described on page 11.
Issued by Gigaset Communications GmbH
Frankenstr. 2a, D-46395 Bocholt
© Gigaset Communications GmbH 2011
All rights reserved. Subject to availability.
Rights of modification reserved.
www.gigaset.com
This user guide is made from 100 % recycled paper
Display keys on handset:
Pressing a key launches the func-
tion that appears above that key in
the display.
Dis-
play
Redial
V
Menu
Back
11:56
U
T
Del.
OK
Other icons in the top display line:
Ú
Ringer melody off
Ø
Keypad locked
½
Eco Mode+ activated
(¢ page 2)
Function when pressed
Open redial list ¢ page 8.
Open main/submenu (see
menu tree ¢ page 14).
Go back one menu level.
Scroll up/down or adjust
volume with q.
Move cursor to left/right
with r.
Backspace deletes one
character at a time from
right to left.
Confirm menu function or
save entry.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A400 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gigaset A400

Summary of Contents for Gigaset A400

  • Page 1 - Dialling pause (press and hold) Please note To change the display language, proceed as described on page 11. The base at a glance Issued by Gigaset Communications GmbH Registration/paging key:  Frankenstr. 2a, D-46395 Bocholt Search for handsets ...

  • Page 2: Safety Precautions

    Reducing energy consumption Your telephone has a power-saving adapter plug ƒ If you give your Gigaset to a third party, make sure you also give them the user guide. and uses less power. Reduced transmission power...

  • Page 3: First Steps

    Please note: u Never expose the telephone to the influence of heat sources, direct sunlight or other elec- trical devices. u Protect your Gigaset from moisture, dust, corrosive liquids and fumes. Connecting the base ¤ First, connect the telephone jack and insert the cables into the cable ducts.

  • Page 4: Connecting The Charger (If Included)

    Inserting the batteries and closing the battery cover Warning Only use rechargeable batteries (¢ page 12) recommended by Gigaset Communications GmbH, i. e. never use a conventional (non-rechargeable) battery, as this could result in sig- nificant health risks and personal injury. For example, the outer casing of the batteries could be damaged or the batteries could explode.
  • Page 5 ¤ Charge the handset in the base for 6 hours. Please note The handset must only be placed in the designated Gigaset A400 base or the correspond- ing charging cradle. ¤ After charging, remove the handset from the base and only replace it when the batteries are fully discharged.

  • Page 6: Activating/Deactivating The Handset

    Setting the date and time Set the date and time so that the correct date and time can be assigned to incoming calls, and so that the alarm clock can be used. Menu ¤ Settings ¤ OK ¤ Date/Time ¤ OK ¤...

  • Page 7: Making Calls

    Notes on calling line display (CLIP) Using the directory and lists By default, the number of the caller is shown in the display of your Gigaset telephone. You do not have to Directory make any other settings on your Gigaset telephone.

  • Page 8: Dialling With The Directory

    Saving the first number in the directory Transferring the directory to another handset ¤ Dir. empty New Entry? ¤ OK Prerequisites: ¤ ¤ OK u The sending and receiving handsets must both be Enter number) ¤ ¤ OK Enter name) registered to the same base.

  • Page 9: Disabling/Enabling Message Key Flashing

    Disabling/enabling message key flashing List entry You can select whether the message key flashes Example of list entries: (default setting) or does not flash when new mes- New Call sages arrive. Please do the following: 1234567890 ¤ Press the key sequence: P#Q5#M Menu ¤...

  • Page 10: De-Registering Handsets

    Registering handsets Internal consultation call/connecting a call You can register up to four handsets on your base. Each additional handset must be registered with the You are in conversation with an external participant. base for it to work properly! Press the control key and call one or all handsets.

  • Page 11: Phone Settings

    Phone settings Repeater mode For details on performing audio settings and activat- With a repeater you can increase the range of your ing/deactivating warning and advisory tones and key base. You will need to activate repeater mode tones, see menu tree ¢ page 14. ¢...

  • Page 12: Entering Letters/Characters

    Is supported GAP standard Is supported L m n o 6 ö ñ ó ò ô õ (The Gigaset handset is only fully M p q r s 7 ß functional on Gigaset bases) Up to 300 m outdoors ...

  • Page 13: Questions And Answers

    3-4 Please note that if the Gigaset product is not sold by tions. assignment of tele- authorised dealers in the national territory the prod- phone leads/EURO uct may not be fully compatible with the national CTR37.

  • Page 14: Alarm Clock

    Menu tree Your phone has an extensive range of features. These control key to scroll to the function you are offered in the form of menus. require and press to confirm. To select a function while the phone is in idle status, To return to idle status: press and hold the key.
