10 List of spare parts
EN
SK 3366.xxx
SK 3377.xxx

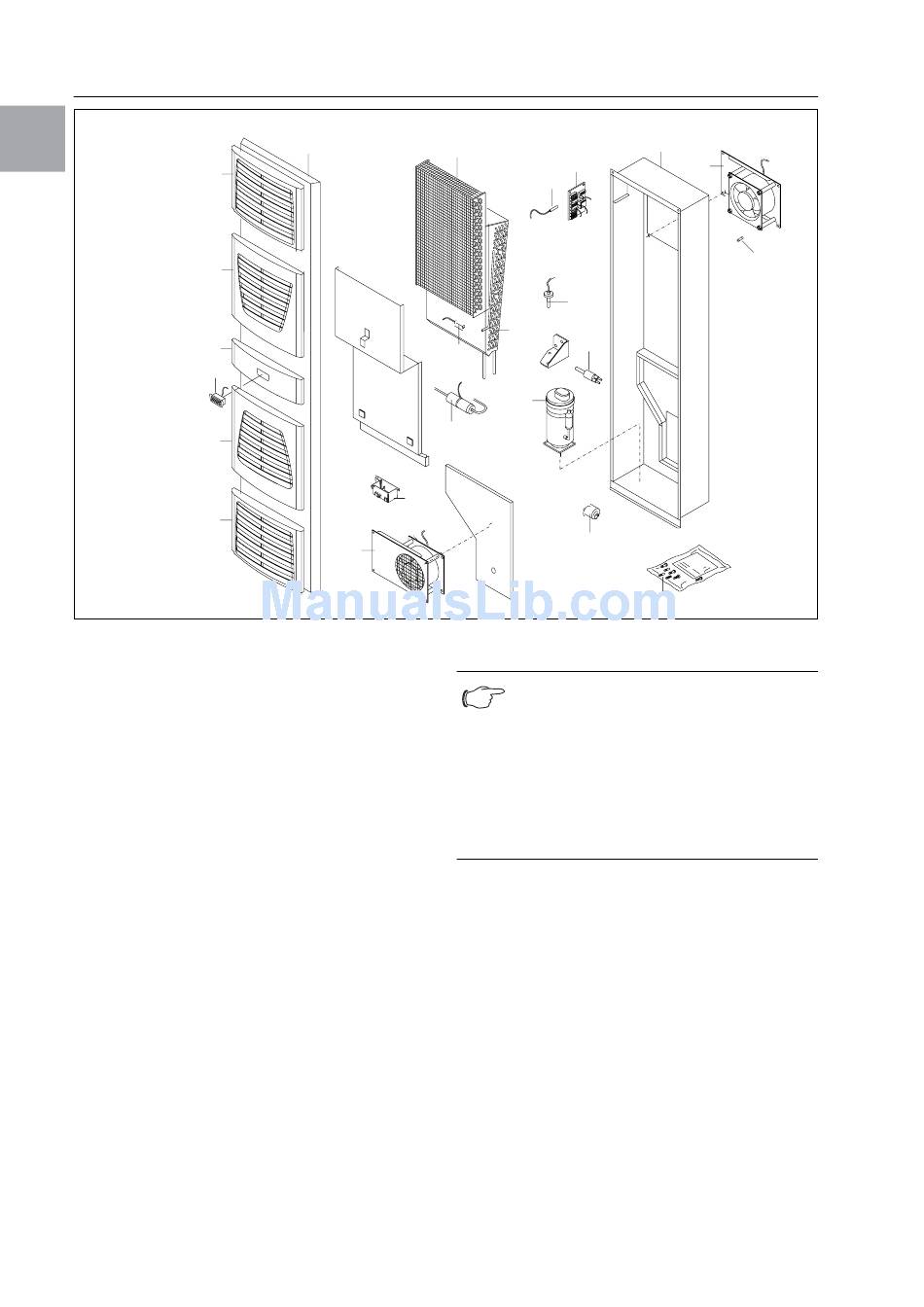

Fig. 91: Spare parts for SK 3366.xxx, SK 3377.xxx
Legend
1 Compressor
5 Condenser fan
10 Evaporator fan
15 Dispatch bag
20 Expansion valve
25 Filter dryer
H
30 PSA pressure-operated switch
40 Controller board
45 Louvred grille 1
46 Louvred grille 2
50 Infill panel
55 Display
71 Temperature sensor
75 Enclosure tray
80 Transformer
90 Evaporator coil
100 Condenser
101 Condensate evaporator
102 Miniature fuse, condensate evaporator
(T4A; 6.3 x 32 mm)
48
75
46
45
50
55
45
46
5
100
40
71
20
90
71
1
25
101
Note:
As well as the spare part number, when
ordering spare parts the following informa-
tion must be provided:
– Unit model
– Fabrication number
– Date of manufacture
This information may be found
on the rating plate.
RITTAL cooling unit assembly and operating instructions
75
10
102
30
80
15
