7 Inspection and maintenance
EN

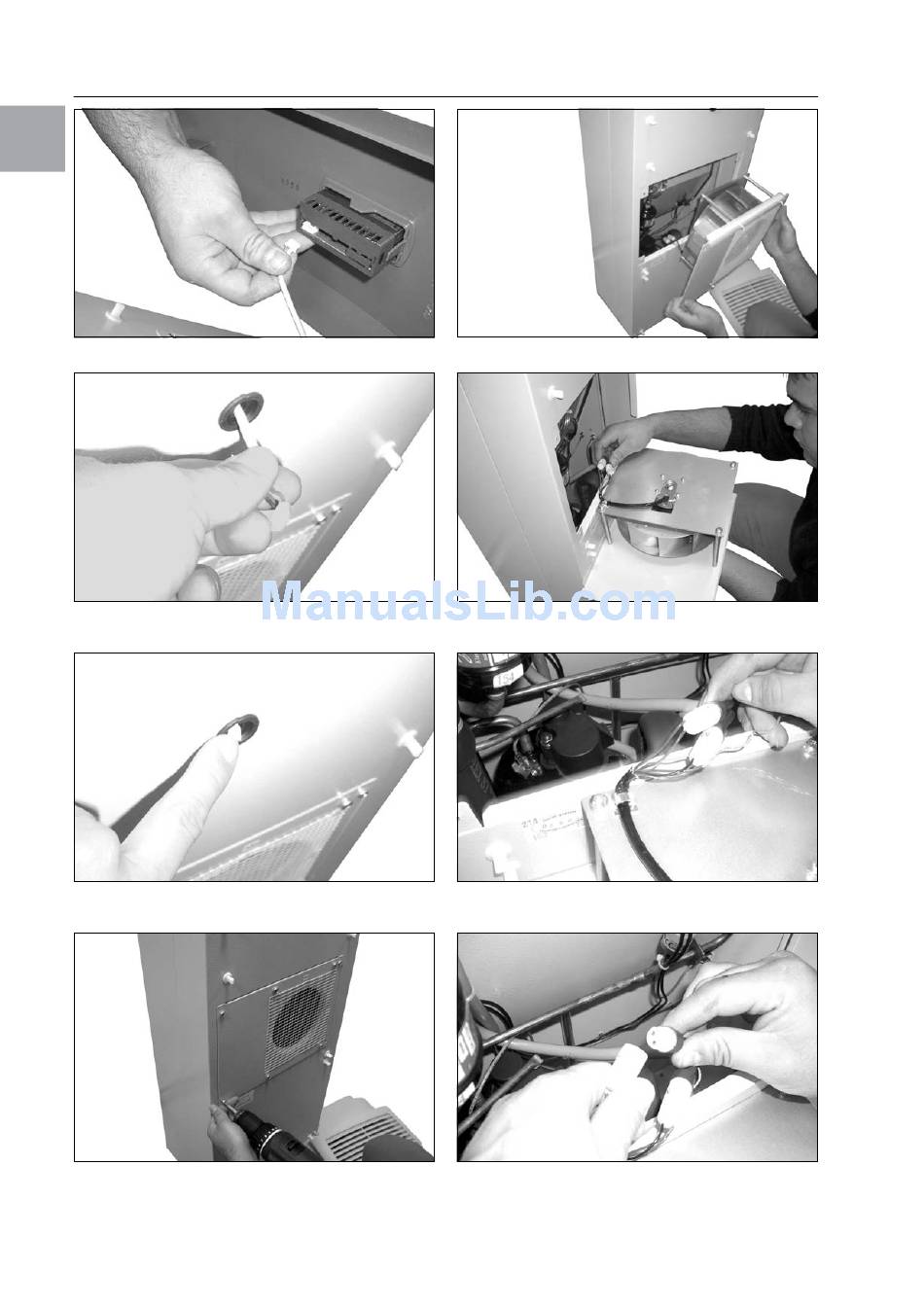

Fig. 67: Disconnect the display cable
Fig. 68: Push back the display cable and press it through
the cable gland (1)
Fig. 69: Push back the display cable and press it through
the cable gland (2)
Fig. 70: Loosen the four screws of the external circuit fan
38
Fig. 71: Remove the external circuit fan
Fig. 72: Disconnect the fan connectors (1)
Fig. 73: Disconnect the fan connectors (2)
Fig. 74: Disconnect the fan connectors (3)
