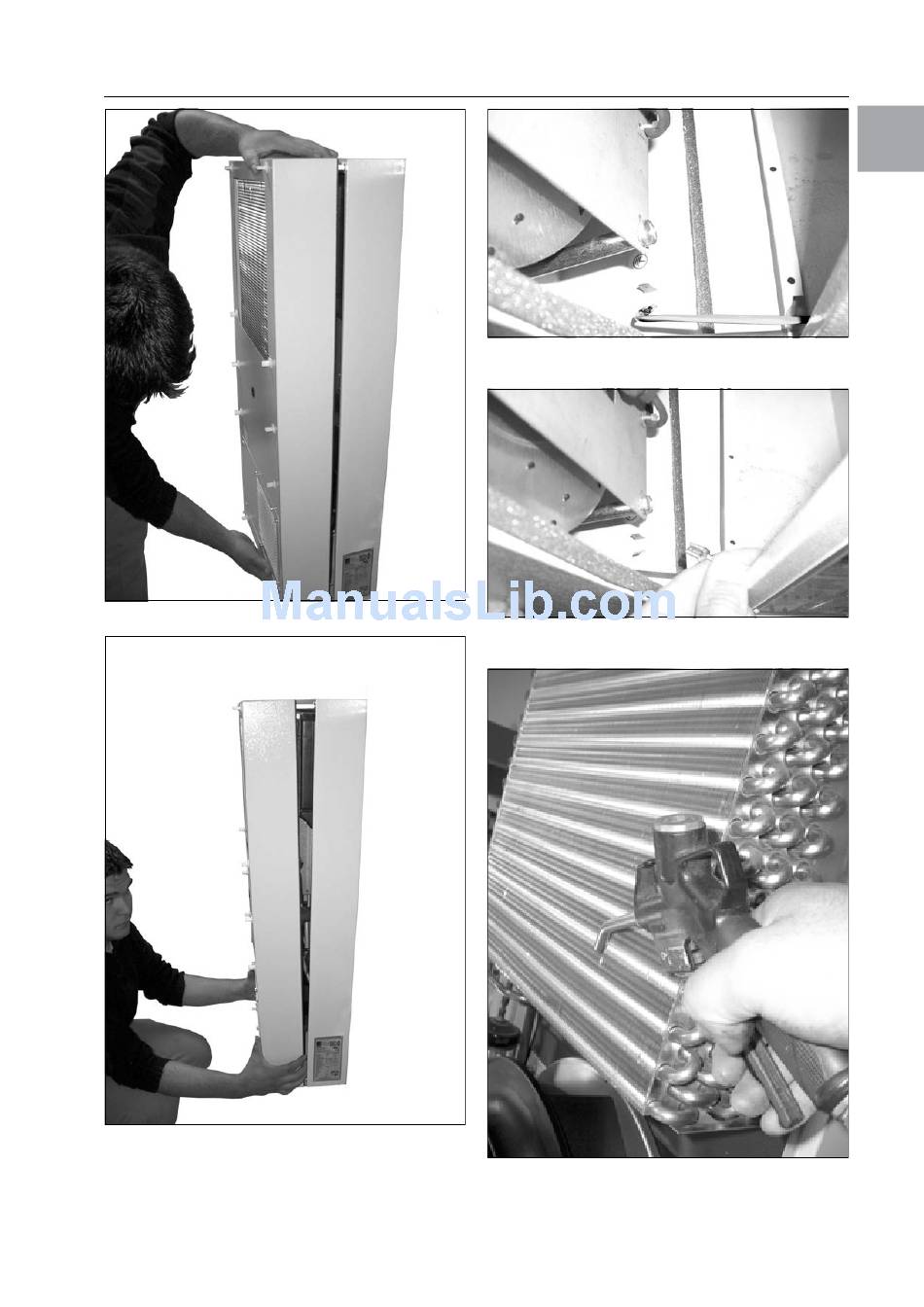

Fig. 54:
Remove the cover (1)
Fig. 55:
Remove the cover (2)
RITTAL cooling unit assembly and operating instructions
7 Inspection and maintenance
Fig. 56:
Loosen the earthing cable between the cover
and the chassis (1)
Fig. 57:
Loosen the earthing cable between the cover
and the chassis (2)
Fig. 58:
Clean out the heat exchanger coil and compressor
chamber using compressed air (1)
EN
35
