7 Inspection and maintenance
EN

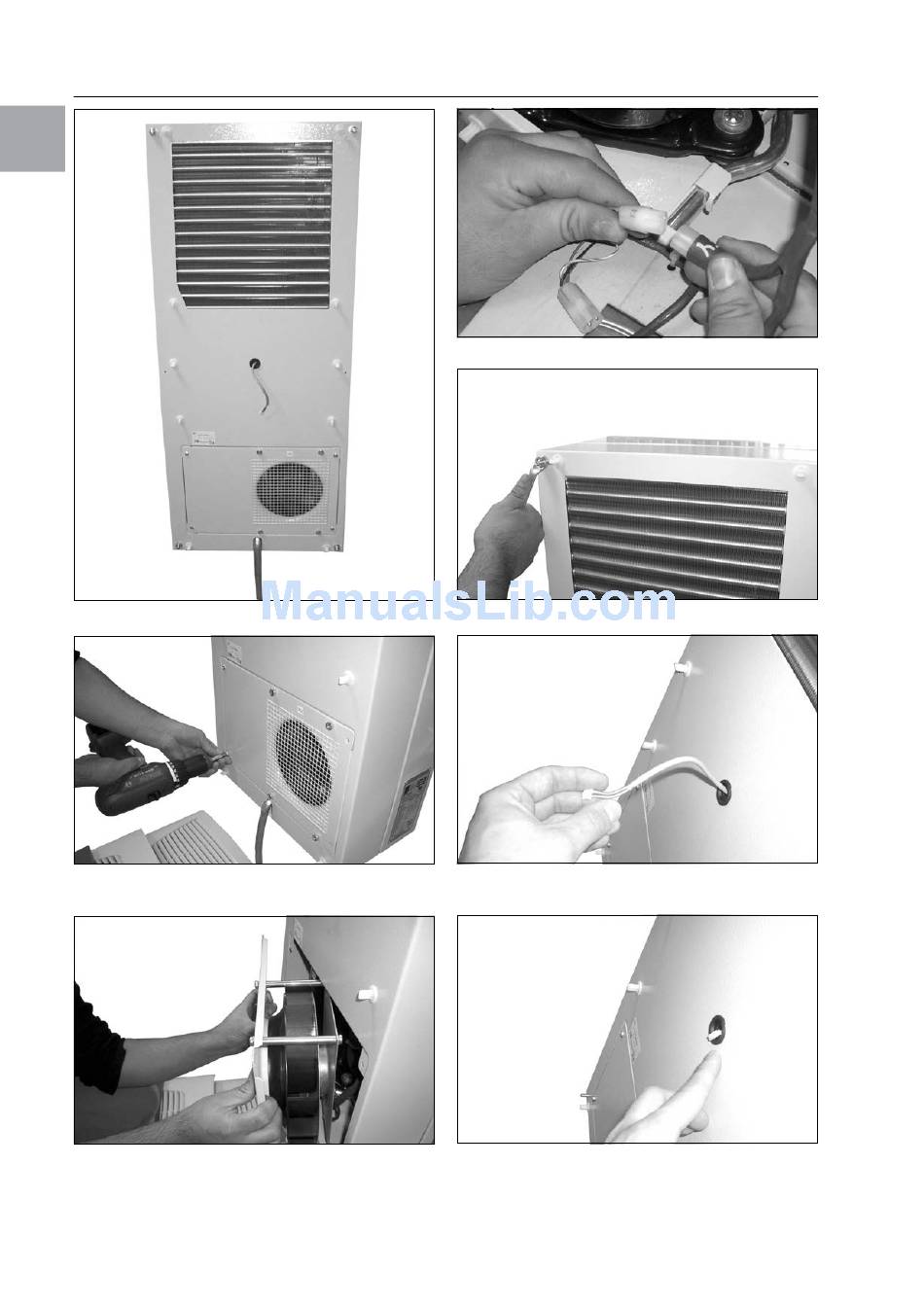

Fig. 47:
Cooling unit without grille
Fig. 48:
Remove the external circuit fan
(loosen the four screws)
Fig. 49:
Remove the fan
34
Fig. 50:
Disconnect the fan connectors
Fig. 51:
Remove the cover (loosen the four screws)
Fig. 52:
Push back the display cable
Fig. 53:
Push the display cable through the cable gland
RITTAL cooling unit assembly and operating instructions
