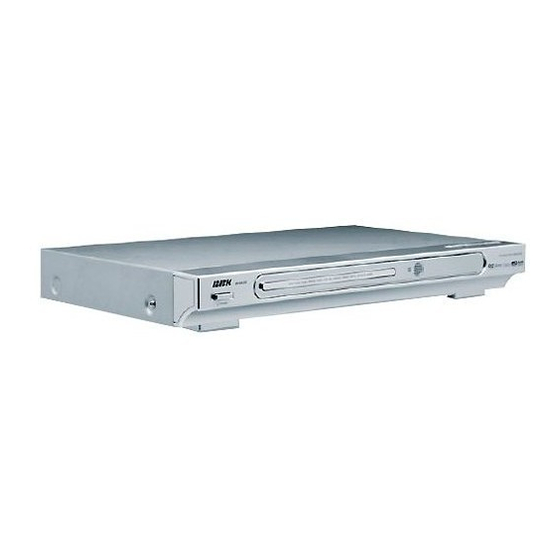

BBK DV962S Service Manual

Bbk dvd player service manual
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SERVICE MANUAL
DV962S

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DV962S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BBK DV962S

Summary of Contents for BBK DV962S

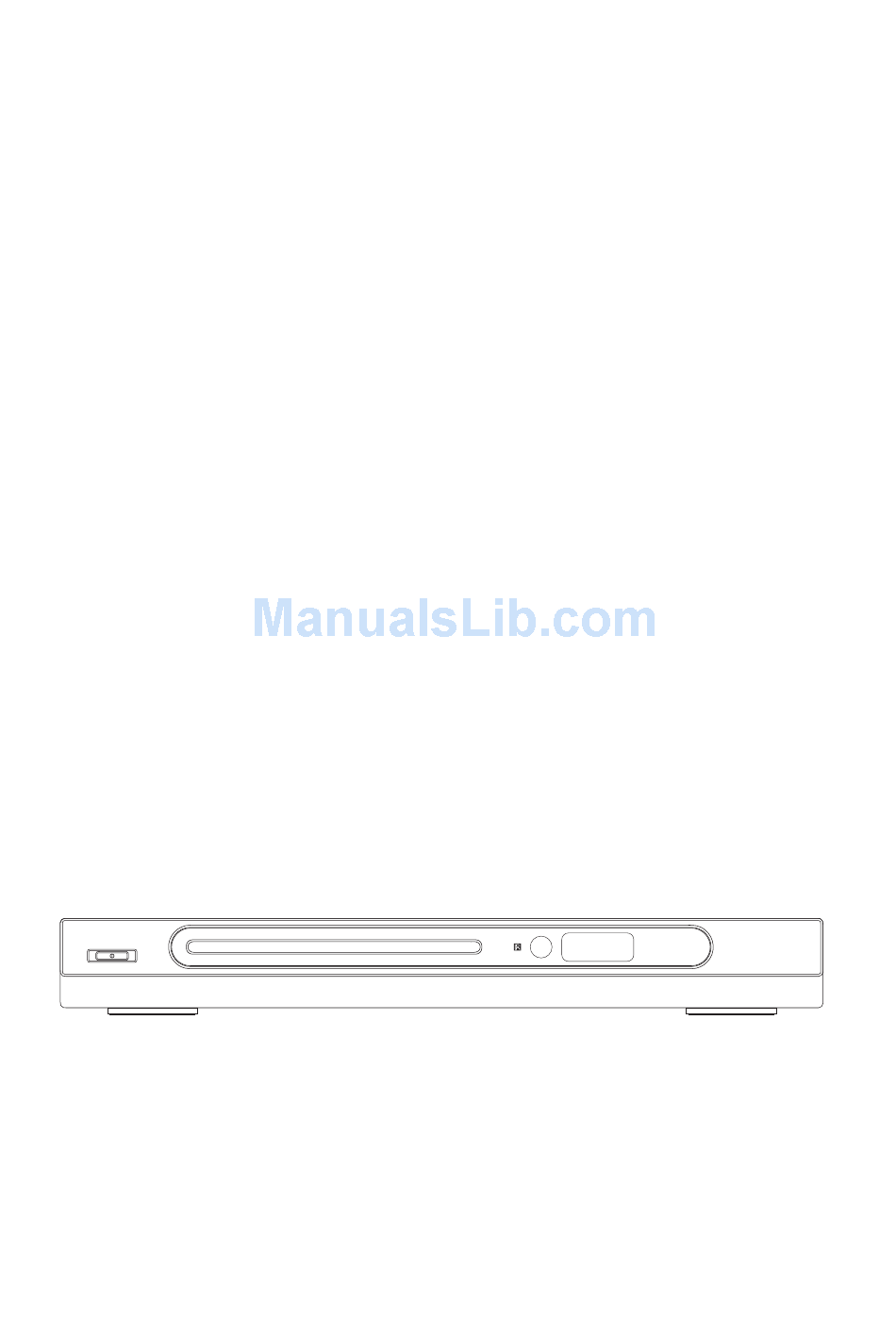

  • Page 1 SERVICE MANUAL DV962S...

  • Page 3: Safety Preautions

    1. SAFETY PREAUTIONS 1.1 GENERAL GUIDELINES 1. When servicing, observe the original lead dress. if a short circuit is found, replace all parts which have been overheated or damaged by the short circuit. 2. After servicing, see to it that all the protective devices such as insulation barrier, insulation papers shields are properly installed.

  • Page 4: Open/Close Button

    Front Panel Illustration POWER switch button PLAY/ PAUSE Disc tray STOP button IR SENSOR button MIC VOLUME knob MIC jack Display window OPEN/CLOSE button...

  • Page 5: Prevention Of Static Electricity Discharge

    4.PREVENTION OF STATIC ELECTRICITY DISCHARGE The laser diode in the traverse unit (optical pickup)may brake down due to static electricity of clothes or human body. Use due caution to electrostatic breakdown when servicing and handling the laser diode. 4.1.Grounding for electrostatic breakdown prevention Some devices such as the DVD player use the optical pickup(laser diode)and the optical pickup will be damaged by static electricity in the working environment.Proceed servicing works under the working environment where grounding works is completed.

  • Page 6: Assembling And Disassembling The Mechanism Unit

    5. Assembling and disassembling the mechanism unit 5.1 Optical pickup Unit Explosed View and Part List Pic (1)
  • Page 7 Materials to Pic (1) PARTS CODE PARTS NAME Q ty 14692200 SF-HD60 1EA0311A06300 ASSY, CHASSIS, COMPLETE 1EA0M10A15500 ASSY, MOTOR, SLED 1EA0M10A15501 ASSY, MOTOR, SLED 1EA2451A24700 HOLDER, SHAFT 1EA2511A29100 GEAR, RACK 1EA2511A29200 GEAR, DRIVE 1EA2511A29300 GEAR, MIDDLE, A 1EA2511A29400 GEAR, MIDDLE, B 1EA2744A03000 SHAFT, SLIDE 1EA2744A03100...

  • Page 8: Bracket Explosed View And Part List

    5.2 Bracket Explosed View and Part List Pic (2) Materials to Pic(2) 1.bracket 14. front silicon rubber 2.belt 15. Back silicon rubber 3.screw 16. Pick-up 4.belt wheel 17. Pick-up 5.gearwheel 18. switch 6.iron chip 19. Five-pin flat plug 7. Immobility mechanism equipment 20.
  • Page 9 5.3 MISCELLANEOUS 5.3.1 Protection of the LD(Laser diode) Short the parts of LD circuit pattern by soldering. 5.3.2 Cautions on assembly and adjustment Make sure that the workbenches,jigs,tips,tips of soldering irons and measuring instruments are grounded,and that personnel wear wrist straps for ground. Open the LD short lands quickly with a soldering iron after a circuit is connected.

  • Page 10: Electrical Confirmation

    6.Electrical Confirmation 6.1. Video Output (Luminance Signal) Confirmation DO this confirmation after replacing a P.C.B. Measurement point Mode Disc Color bar 75% DVDT-S15 Video output terminal PLAY(Title 46):DVDT-S15 PLAY(Title 12):DVDT-S01 DVDT-S01 Measuring equipment,tools Confirmation value 200mV/dir,10 sec/dir 1000mVp-p±30mV Purpose:To maintain video signal output compatibility. 1.Connect the oscilloscope to the video output terminal and terminate at 75 ohms.
  • Page 11 6.2 Video Output(Chrominance Signal) Confirmation Do the confirmation after replacing P.C.B. Measurement point Mode Disc Color bar 75% DVDT-S15 Video output terminal PLAY(Title 46):DVDT-S15 PLAY(Title 12):DVDT-S01 DVDT-S01 Measuring equipment,tools Confirmation value Screwdriver,Oscilloscope 200mV/dir,10 sec/dir 621mVp-p±30mV Purpose:To maintain video signal output compatibility. 1.Connect the oscilloscope to the video output terminal and terminate at 75 ohme.

  • Page 12: Mpeg Board Check Waveform

    7.MPEG BOARD CHECK WAVEFORM 7.1 27MHz WAVEFORM DIAGRAM 7.2 IC VIPER22 PIN.5 WAVEFORM DIAGRAM...
  • Page 13 8. Am29LV160D 16 Megabit (2 M x 8-Bit/1 M x 16-Bit) CMOS 3.0 Volt-only Boot Sector Flash Memory DISTINCTIVE CHARACTERISTICS Single power supply operation Embedded Algorithms — Full voltage range: 2.7 to 3.6 volt read and write — Embedded Erase algorithm automatically operations for battery-powered applications preprograms and erases the entire chip or any combination of designated sectors...

  • Page 14: Product Selector Guide

    PRODUCT SELECTOR GUIDE Family Part Number Am29LV160D Speed Option Voltage Range: V = 2.7–3.6 V -120 Max access time, ns (t Max CE# access time, ns (t Max OE# access time, ns (t Note: See “AC Characteristics” for full specifications. BLOCK DIAGRAM –...
  • Page 15 CONNECTION DIAGRAMS BYTE# DQ15/A-1 DQ14 DQ13 DQ12 Standard TSOP RESET# DQ11 RY/BY# DQ10 BYTE# DQ15/A-1 DQ14 DQ13 DQ12 RESET# Reverse TSOP DQ11 RY/BY# DQ10...
  • Page 16 CONNECTION DIAGRAMS RESET# BYTE# DQ15/A-1 DQ14 DQ13 DQ10 DQ12 DQ11 FBGA Top View, Balls Facing Down BYTE# DQ15/A-1 DQ14 DQ13 RESET# DQ12 RY/BY# DQ10 DQ11 Special Handling Instructions Flash memory devices in FBGA packages may be damaged if exposed to ultrasonic cleaning methods. Special handling is required for Flash Memory products The package and/or data integrity may be compromised in FBGA packages.

  • Page 17: Pin Configuration

    PIN CONFIGURATION LOGIC SYMBOL A0–A19 = 20 addresses DQ0–DQ14 = 15 data inputs/outputs A0–A19 16 or 8 DQ15/A-1 = DQ15 (data input/output, word mode), DQ0–DQ15 A-1 (LSB address input, byte mode) (A-1) BYTE# = Selects 8-bit or 16-bit mode = Chip enable = Output enable = Write enable RESET#...

  • Page 18: General Description

    SDRAM 16Mb H-die(x16) CMOS SDRAM 512K x 16Bit x 2 Banks SDRAM FEATURES • 3.3V power supply • LVTTL compatible with multiplexed address • two banks operation • MRS cycle with address key programs -. CAS Latency ( 2 & 3) -.

  • Page 19: Pin Configuration (Top View)

    SDRAM 16Mb H-die(x16) CMOS SDRAM PIN CONFIGURATION (TOP VIEW) DQ15 DQ14 DQ13 DQ12 DQ11 DQ10 LDQM N.C/RFU UDQM A10/AP 50PIN TSOP (II) (400mil x 825mil) (0.8 mm PIN PITCH) PIN FUNCTION DESCRIPTION Name Input Function System Clock Active on the positive going edge to sample all inputs. Disables or enables device operation by masking or enabling all inputs except Chip Select CLK, CKE and L(U)DQM...

  • Page 20: Functional Block Diagram

    SDRAM 16Mb H-die(x16) CMOS SDRAM FUNCTIONAL BLOCK DIAGRAM Data Input Register LDQM Bank Select 512K x 16 512K x 16 Column Decoder Latency & Burst Length LCKE Programming Register LRAS LCBR LCAS LWCBR LDQM Timing Register L(U)DQM * Samsung Electronics reserves the right to change products or specification without notice. Rev.

  • Page 21: Key Features

    8.2 MT1389 MT1389 Progressive-Scan DVD Player SOC Specifications are subject to change without notice MediaTek MT1389 is a DVD player system-on-chip (SOC) which incorporates advanced features like high quality TV encoder and state-of-art de-interlace processing. The MT1389 enables consumer electronics manufacturers to build high quality, cost-effective DVD players, portable DVD players or any other home entertainment audio/video devices.
  • Page 22 MT1389 PRELIMINARY, SUBJECT TO CHANGE WITHOUT NOTICE MTK CONFIDENTIAL, NO DISCLOSURE General Feature List 1024-bytes on-chip RAM Super Integration DVD player single chip Up to 4M bytes FLASH-programming interface High performance analog RF amplifier Supports 5/3.3-Volt. FLASH interface Servo controller and data channel processing Supports power-down mode MPEG-1/MPEG-2/JPEG video Supports additional serial port...
  • Page 23 MT1389 PRELIMINARY, SUBJECT TO CHANGE WITHOUT NOTICE MTK CONFIDENTIAL, NO DISCLOSURE Audio Effect Processing TV Encoder Dolby Digital (AC-3)/EX decoding Six 108MHz/12bit DACs DTS/DTS-ES decoding Support NTSC, PAL-BDGHINM, PAL-60 MLP decoding for DVD-Audio Support 525p, 625p progressive TV format MPEG-1 layer 1/layer 2 audio decoding Automatically turn off unconnected channels MPEG-2 layer1/layer2 2-channel audio Support PC monitor (VGA)
  • Page 24 9. SCHEMATIC & PCB WIRING DIAGRAM FRONT SCHEMATIC DIAGRAM...

  • Page 25: Front Schematic Diagram

    FRONT SCHEMATIC DIAGRAM...

  • Page 26: Power Board Schematic Diagram

    POWER BOARD SCHEMATIC DIAGRAM...
  • Page 27 POWER BOARD SCHEMATIC DIAGRAM...
  • Page 28 OK SCHEMATIC DIAGRAM...
  • Page 29 OK SCHEMATIC DIAGRAM...
  • Page 30 OUTPUT BOARD SCHEMATIC DIAGRAM...
  • Page 31 OUTPUT BOARD SCHEMATIC DIAGRAM...
  • Page 32 MIAN SCHEMATIC DIAGRAM...
  • Page 33 MIAN SCHEMATIC DIAGRAM...
  • Page 34 MIAN SCHEMATIC DIAGRAM...
  • Page 35 MIAN SCHEMATIC DIAGRAM...

  • Page 36: Spare Parts List

    10. SPARE PARTS LIST DV962S-2 MATERIAL LIST 1. MAIN FRONT PANEL MATERIAL CODE MATERIAL NAME SPECIFICATIONS UNIT QUANTITY LOCATION 5233123 SOFT SPONGE SPACER 10×10×13 DOUBLE-FACED, HARD 1PC FOR IR SENSOR 2PCS FOR LED AND 5233021 SOFT SPONGE SPACER 13×8×13.5 DOUBLE-FACED, HARD...
  • Page 37 PORCELAIN 0200223 1000V 101 +80%-20% 7.5mm C503 CAPACITOR PORCELAIN 0200228 1000V 101 ±10% 7.5mm C503 CAPACITOR 0210049 TERYLENE CAPACITOR 50V 473 ±10% 6mm C506 0260559 CD11T 50V47u±20%6×12 2.5 TC502,TC512 0260563 KM 400V47U±20%18×20 7.5 TC501 0260557 CD11T 16V100u±20%6×12 2.5 TC513 0260594 CD11T 25V220U±20%8×12 3.5 TC503,TC504 0260560...
  • Page 38 CARBON FILM 0000118 1/6W10¦ ¸ ±5% SHAPED 7.5 R632,R633 RESISTOR CARBON FILM 0000338 1/6W15K±5% SHAPED 7.5 R614,R618 RESISTOR CARBON FILM 0000341 1/6W18K±5% SHAPED 7.5 R615 RESISTOR CARBON FILM 0000144 1/6W47K±5% SHAPED 7.5 R608 RESISTOR CARBON FILM 0000141 1/6W27K±5% SHAPED 7.5 R629 RESISTOR CARBON FILM...
  • Page 39 PORCELAIN 0200125 50V 102 +80%-20% 5mm C705,C706 CAPACITOR PORCELAIN 0200139 50V 104 +80%-20% 5mm C707,C710,C711,C716 CAPACITOR PORCELAIN 0200237 50V 224 ±10% 5mm C715 CAPACITOR PORCELAIN 0200298 50V 224±20% 5mm C715 CAPACITOR 0090001 SMD RESISTOR 1/16W 0Ω ±5% 0603 R714~R719 0780050 TRIODE S8050D V701~V703...
  • Page 40 0090021 SMD RESISTOR 1/16W 6.8K ±5% 0603 R2136,R2148 R208,R229,R252,R309,R3 0090023 SMD RESISTOR 1/16W 10K ±5% 0603 11,R313,R314,R329,R330, R339,R2164,R2106 0090024 SMD RESISTOR 1/16W 15K ±5% 0603 R209,R223 R211,R312,R315,R316,R2 0090025 SMD RESISTOR 1/16W 20K ±5% 0603 129,R2133 0090255 SMD RESISTOR 1/16W24K±5% 0603 R2132,R2156 0090188 SMD RESISTOR...
  • Page 41 0310201 SMD CAPACITOR 50V 153 ±10% 0603 C210 0310055 SMD CAPACITOR 16V 333 ±10% 0603 C225 0310056 SMD CAPACITOR 16V 473 ±10% 0603 C219,C220 0310362 SMD CAPACITOR 16V474 +80%-20% 0603 C218 0390044 SMD INDUCTOR 10UH ±10% 2012 L303,L306 0390096 SMD INDUCTOR 1.8UH ±10% 1608 L243~L248 L205,L217,L220,L221,L2...
