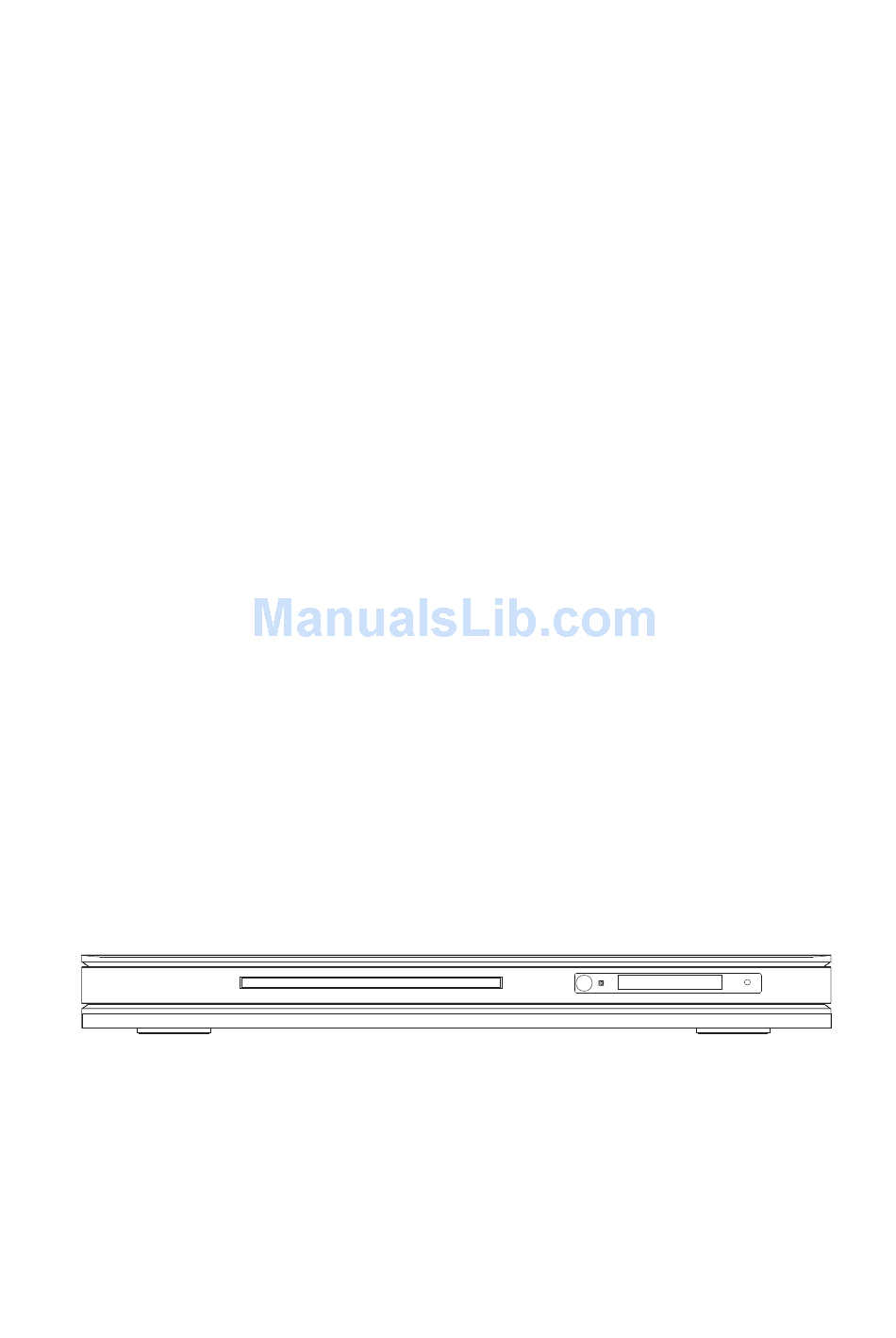

  • Page 1 SERVICE MANUAL DV967S...
  • Page 2 8.1 HY57V641620HG...

  • Page 3: Safety Preautions

    1. SAFETY PREAUTIONS 1.1 GENERAL GUIDELINES 1. When servicing, observe the original lead dress. if a short circuit is found, replace all parts which have been overheated or damaged by the short circuit. 2. After servicing, see to it that all the protective devices such as insulation barrier, insulation papers shields are properly installed.

  • Page 5: Prevention Of Static Electricity Discharge

    4.PREVENTION OF STATIC ELECTRICITY DISCHARGE The laser diode in the traverse unit (optical pickup)may brake down due to static electricity of clothes or human body. Use due caution to electrostatic breakdown when servicing and handling the laser diode. 4.1.Grounding for electrostatic breakdown prevention Some devices such as the DVD player use the optical pickup(laser diode)and the optical pickup will be damaged by static electricity in the working environment.Proceed servicing works under the working environment where grounding works is completed.

  • Page 6: Assembling And Disassembling The Mechanism Unit

    5. Assembling and disassembling the mechanism unit 5.1 Optical pickup Unit Explosed View and Part List Pic (1)
  • Page 7 Materials to Pic (1) PARTS CODE PARTS NAME Q ty 14692200 SF-HD60 1EA0311A06300 ASSY, CHASSIS, COMPLETE 1EA0M10A15500 ASSY, MOTOR, SLED 1EA0M10A15501 ASSY, MOTOR, SLED 1EA2451A24700 HOLDER, SHAFT 1EA2511A29100 GEAR, RACK 1EA2511A29200 GEAR, DRIVE 1EA2511A29300 GEAR, MIDDLE, A 1EA2511A29400 GEAR, MIDDLE, B 1EA2744A03000 SHAFT, SLIDE 1EA2744A03100...

  • Page 8: Bracket Explosed View And Part List

    5.2 Bracket Explosed View and Part List Pic (2) Materials to Pic(2) 1.bracket 14. front silicon rubber 2.belt 15. Back silicon rubber 3.screw 16. Pick-up 4.belt wheel 17. Pick-up 5.gearwheel 18. switch 6.iron chip 19. Five-pin flat plug 7. Immobility mechanism equipment 20.
  • Page 9 5.3 MISCELLANEOUS 5.3.1 Protection of the LD(Laser diode) Short the parts of LD circuit pattern by soldering. 5.3.2 Cautions on assembly and adjustment Make sure that the workbenches,jigs,tips,tips of soldering irons and measuring instruments are grounded,and that personnel wear wrist straps for ground. Open the LD short lands quickly with a soldering iron after a circuit is connected.

  • Page 10: Electrical Confirmation

    6.Electrical Confirmation 6.1. Video Output (Luminance Signal) Confirmation DO this confirmation after replacing a P.C.B. Measurement point Mode Disc Color bar 75% DVDT-S15 Video output terminal PLAY(Title 46):DVDT-S15 PLAY(Title 12):DVDT-S01 DVDT-S01 Measuring equipment,tools Confirmation value 200mV/dir,10 sec/dir 1000mVp-p±30mV Purpose:To maintain video signal output compatibility. 1.Connect the oscilloscope to the video output terminal and terminate at 75 ohms.

  • Page 11: Video Output(Chrominance Signal) Confirmation

    6.2 Video Output(Chrominance Signal) Confirmation Do the confirmation after replacing P.C.B. Measurement point Mode Disc Color bar 75% DVDT-S15 Video output terminal PLAY(Title 46):DVDT-S15 PLAY(Title 12):DVDT-S01 DVDT-S01 Measuring equipment,tools Confirmation value Screwdriver,Oscilloscope 200mV/dir,10 sec/dir 621mVp-p±30mV Purpose:To maintain video signal output compatibility. 1.Connect the oscilloscope to the video output terminal and terminate at 75 ohme.

  • Page 12: Mpeg Board Check Waveform

    7.MPEG BOARD CHECK WAVEFORM 7.1 27MHz WAVEFORM DIAGRAM 7.2 IC NCP1200 PIN.5 WAVEFORM DIAGRAM...
  • Page 13 8. Am29LV160D 16 Megabit (2 M x 8-Bit/1 M x 16-Bit) CMOS 3.0 Volt-only Boot Sector Flash Memory DISTINCTIVE CHARACTERISTICS Single power supply operation Embedded Algorithms — Full voltage range: 2.7 to 3.6 volt read and write — Embedded Erase algorithm automatically operations for battery-powered applications preprograms and erases the entire chip or any combination of designated sectors...

  • Page 14: Product Selector Guide

    PRODUCT SELECTOR GUIDE Family Part Number Am29LV160D Speed Option Voltage Range: V = 2.7–3.6 V -120 Max access time, ns (t Max CE# access time, ns (t Max OE# access time, ns (t Note: See “AC Characteristics” for full specifications. BLOCK DIAGRAM –...
  • Page 15 CONNECTION DIAGRAMS BYTE# DQ15/A-1 DQ14 DQ13 DQ12 Standard TSOP RESET# DQ11 RY/BY# DQ10 BYTE# DQ15/A-1 DQ14 DQ13 DQ12 RESET# Reverse TSOP DQ11 RY/BY# DQ10...
  • Page 16 CONNECTION DIAGRAMS RESET# BYTE# DQ15/A-1 DQ14 DQ13 DQ10 DQ12 DQ11 FBGA Top View, Balls Facing Down BYTE# DQ15/A-1 DQ14 DQ13 RESET# DQ12 RY/BY# DQ10 DQ11 Special Handling Instructions Flash memory devices in FBGA packages may be damaged if exposed to ultrasonic cleaning methods. Special handling is required for Flash Memory products The package and/or data integrity may be compromised in FBGA packages.

  • Page 17: Pin Configuration

    PIN CONFIGURATION LOGIC SYMBOL A0–A19 = 20 addresses DQ0–DQ14 = 15 data inputs/outputs A0–A19 16 or 8 DQ15/A-1 = DQ15 (data input/output, word mode), DQ0–DQ15 A-1 (LSB address input, byte mode) (A-1) BYTE# = Selects 8-bit or 16-bit mode = Chip enable = Output enable = Write enable RESET#...
  • Page 18 HY57V641620HG 4 Banks x 1M x 16Bit Synchronous DRAM 8.1 HY57V641620HG DESCRIPTION The Hyundai HY57V641620HG is a 67,108,864-bit CMOS Synchronous DRAM, ideally suited for the main memory applications which require large memory density and high bandwidth. HY57V641620HG is organized as 4banks of 1,048,576x16. HY57V641620HG is offering fully synchronous operation referenced to a positive edge of the clock.

  • Page 19: Pin Description

    HY57V641620HG PIN CONFIGURATION DQ15 DQ14 DQ13 DQ12 DQ11 DQ10 54pin TSOP II 400mil x 875mil 0.8mm pin pitch LDQM UDQM /CAS /RAS A10/AP PIN DESCRIPTION PIN NAME DESCRIPTION The system clock input. All other inputs are registered to the SDRAM on the Clock rising edge of CLK Controls internal clock signal and when deactivated, the SDRAM will be one...

  • Page 20: Functional Block Diagram

    HY57V641620HG FUNCTIONAL BLOCK DIAGRAM 1Mbit x 4banks x 16 I/O Synchronous DRAM Self refresh logic Internal Row & timer counter 1Mx16 Bank 3 1Mx16 Bank 2 Row active Decoders 1Mx16 Bank 1 1Mx16 Bank 0 Memory refresh Cell Array Column Column Active UDQM...

  • Page 21: Key Features

    8.2 MT1389 MT1389 Progressive-Scan DVD Player SOC Specifications are subject to change without notice MediaTek MT1389 is a DVD player system-on-chip (SOC) which incorporates advanced features like high quality TV encoder and state-of-art de-interlace processing. The MT1389 enables consumer electronics manufacturers to build high quality, cost-effective DVD players, portable DVD players or any other home entertainment audio/video devices.

  • Page 22: General Feature List

    MT1389 PRELIMINARY, SUBJECT TO CHANGE WITHOUT NOTICE MTK CONFIDENTIAL, NO DISCLOSURE General Feature List 1024-bytes on-chip RAM Super Integration DVD player single chip Up to 4M bytes FLASH-programming interface High performance analog RF amplifier Supports 5/3.3-Volt. FLASH interface Servo controller and data channel processing Supports power-down mode MPEG-1/MPEG-2/JPEG video Supports additional serial port...
  • Page 23 MT1389 PRELIMINARY, SUBJECT TO CHANGE WITHOUT NOTICE MTK CONFIDENTIAL, NO DISCLOSURE Audio Effect Processing TV Encoder Dolby Digital (AC-3)/EX decoding Six 108MHz/12bit DACs DTS/DTS-ES decoding Support NTSC, PAL-BDGHINM, PAL-60 MLP decoding for DVD-Audio Support 525p, 625p progressive TV format MPEG-1 layer 1/layer 2 audio decoding Automatically turn off unconnected channels MPEG-2 layer1/layer2 2-channel audio Support PC monitor (VGA)
  • Page 24 9. SCHEMATIC & PCB WIRING DIAGRAM FRONT SCHEMATIC DIAGRAM...

  • Page 25: Front Schematic Diagram

    FRONT SCHEMATIC DIAGRAM...

  • Page 26: Power Board Schematic Diagram

    POWER BOARD SCHEMATIC DIAGRAM...
  • Page 27 POWER BOARD SCHEMATIC DIAGRAM...
  • Page 28 OK SCHEMATIC DIAGRAM...
  • Page 29 OK SCHEMATIC DIAGRAM...
  • Page 30 OUTPUT BOARD SCHEMATIC DIAGRAM...
  • Page 31 OUTPUT BOARD SCHEMATIC DIAGRAM...
  • Page 32 MIAN SCHEMATIC DIAGRAM...
  • Page 33 MIAN SCHEMATIC DIAGRAM...
  • Page 34 MIAN SCHEMATIC DIAGRAM...
  • Page 35 MIAN SCHEMATIC DIAGRAM...

  • Page 36: Spare Parts List

    10. SPARE PARTS LIST DV967S MATERIAL LIST 1. MAIN PANEL QUANTIT MATERIAL SPECIFICATIONS/PART NUMBER LOCATION CONNECT VFD DISPLAY SOFT SPONGE 15×7×13.5 DOUBLE-FACED, HARD SCREEN WITH FRONT PANEL PCB CONNECT IR SENSOR SOFT SPONGE 8×8×14.5 DOUBLE-FACED, HARD WITH FRONT PANEL PCB...
  • Page 37 METAL OXIDE FILM RESISTO 1W 220¦¸ ±5£¥ SHAPED R 15×8 R511 METAL OXIDE FILM RESISTO 2W68K±5% SHAPED FLAT 15×7 R503 HIGH VOLTAGE RESISTOR 1/2W680K±5% R501 CARBON FILM RESISTOR 1/4W300¦¸ ±5% SHAPED 10 R515 METAL OXIDE FILM RESISTO 1W720K±5% SHAPED FLAT 15×7 R517 MAGNETIC BEADS INDUCTORH354708 L503...
  • Page 38 GROUND CHIP OF POWER AB903 G503 BOARD LM7805 GOLD SEALED TO-220 U504 5967F-1 SOCKET 13P 2.0mm CN501 3. OUTPUT BOARD QUANTIT MATERIAL SPECIFICATIONS/PART NUMBER LOCATION SMD RESISTOR 1/16W 100Ω ±5% 0603 R702 SMD RESISTOR 1/16W 2.2Ω ±5% 0603 R706 SMD CAPACITOR 50V 102 ±10% 0603 C701~C706,C716,C723~C728 SMD CAPACITOR...
  • Page 39 SMD RESISTOR 1/16W 330Ω ±5% 0603 R616 SMD RESISTOR 1/16W 560Ω ±5% 0603 R604 R608,R611,R619,R637,R638, SMD RESISTOR 1/16W 1K ±5% 0603 R623,R625 R606,R620,R618,R633,R634, SMD RESISTOR 1/16W 10K ±5% 0603 R642 SMD RESISTOR 1/16W 22K ±5% 0603 R602,R610 SMD RESISTOR 1/16W 100K ±5% 0603 R615,R617 SMD CAPACITOR 50V 47P ±5% NPO 0603...
  • Page 40 R231,R232,R256,R263~R267, SMD RESISTOR 1/16W 33Ω ±5% 0603 R291~R296,R2162 ,L202 SMD RESISTOR 1/16W 150Ω ±5% 0603 R2109,R2180 SMD RESISTOR 1/16W 330Ω ±5% 0603 R2105 SMD RESISTOR 1/16W 470Ω ±5% 0603 R325,R327 SMD RESISTOR 1/16W 680Ω ±5% 0603 R259,R260 L225,R213,R215,R2101~R21 SMD RESISTOR 1/16W 1K ±5% 0603 04,R2117,R2118~R2128 ,R254...
  • Page 41 C207,C211,C214,C216,C217, C224,C226~C231,C234~C239 ,C241~C254,C256~C259,C26 7~C274,C279,C2170,C2171,C 38.1 SMD CAPACITOR 25V 104 +80%-20% 0603 301~C303,C305,C309,C311,C 312,C2138~C2143,C2153~C2 157,C2161,C2163,C2166,C21 74,C2175,C2169,C2168,C284, C287 C201~C204,C221,C240 SMD CAPACITOR 16V 105 +80%-20% 0603 ,C285,C286 C2112,C2115,C288,C2118,C2 SMD CAPACITOR 50V 102 ±10% 0603 121,C2124,C2127,C223,C278 C2122,C2129,C2130,C2133,C SMD CAPACITOR 50V 122 ±10% 0603 2135,C2136 SMD CAPACITOR 50V 152 ±10% 0603 C215...
  • Page 42 2937K-5 SOCKET 5P 2.0mm XS302 SOCKET 6P 2.0mm XS303 SOCKET 7P 2.0mm XS201 SOCKET 13P 2.5mm XS203 CABLE SOCKET 24P 0.5mm SMD WITH CLASP XS301...
