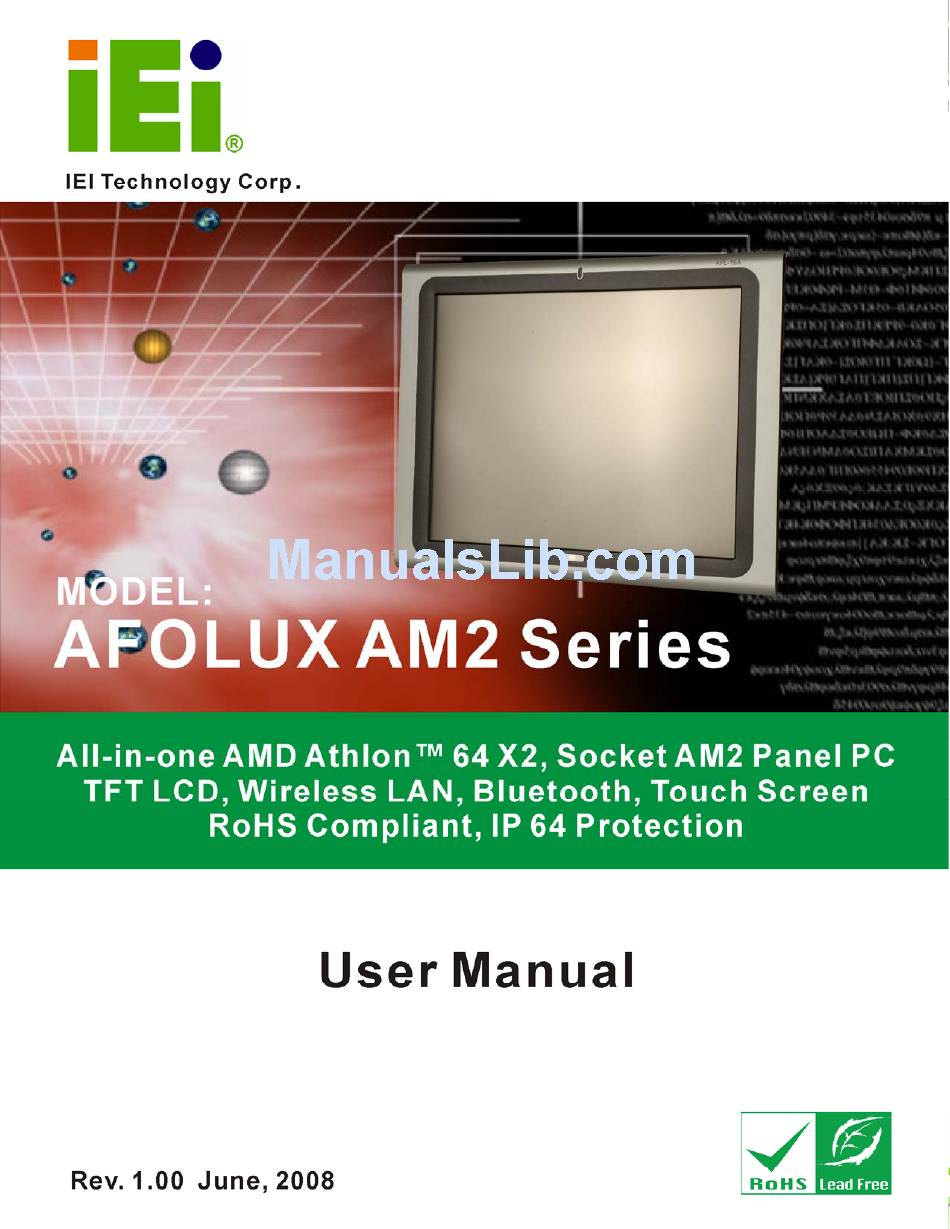

  • Page 1 AFL-AM2 Panel PC Page i...
  • Page 2 AFL-AM2 Panel PC Revision Date Version Changes June, 2008 1.00 Initial release Page ii...
  • Page 3 AFL-AM2 Panel PC Copyright COPYRIGHT NOTICE The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.
  • Page 4 AFL-AM2 Panel PC Manual Conventions WARNING! Warnings appear where overlooked details may cause damage to the equipment or result in personal injury. Warnings should be taken seriously. Warnings are easy to recognize. The word “warning” is written as “WARNING,” both capitalized and bold and is followed by text.
  • Page 5 AFL-AM2 Panel PC NOTE: These messages inform the reader of essential but non-critical information. These messages should be read carefully as any directions or instructions contained therein can help avoid making mistakes. Notes are easy to recognize. The word “note” is written as “NOTE,”...

  • Page 6: Packing List

    AFL-AM2 Panel PC Packing List NOTE: If any of the components listed in the checklist below are missing, please do not proceed with the installation. Contact the IEI reseller or vendor you purchased the AFL-AM2 from or contact an IEI sales representative directly.

  • Page 7: Table Of Contents

    AFL-AM2 Panel PC Table of Contents 1 INTRODUCTION......................1 1.1 G ....................2 ENERAL VERVIEW 1.1.1 Model Variations ....................2 1.1.2 Applications ....................... 3 1.1.3 Standard Features ....................4 1.2 E ....................4 XTERNAL VERVIEW 1.2.1 Front Panel ......................5 1.2.2 Rear Panel ......................
  • Page 8 AFL-AM2 Panel PC 2.11 W LAN...................... 24 IRELESS 2.12 G ....................24 IGABIT THERNET 2.13 F ......................25 RONT ANEL 2.13.1 Flat Screen ..................... 25 2.13.2 Touch Screen ....................25 2.14 OEM O ....................... 26 PTIONS 3 INSTALLATION ......................27 3.1 I ...................
  • Page 9 AFL-AM2 Panel PC 4.4.1 Heatsink Removal .................... 53 4.4.2 Socket AM2 CPU Installation ................55 4.5 M ................57 EMORY ODULE EPLACEMENT 4.6 S ....................58 ERIAL ETUP 4.7 J ....................59 UMPER ETTINGS 4.7.1 AT/ATX Power Selection Jumper (J13) ............60 4.7.2 Clear CMOS Jumper (J7) ................
  • Page 10 AFL-AM2 Panel PC 5.3.7.1 USB Mass Storage Device Configuration..........90 5.4 PCI/P P ........................93 5.5 B ........................95 5.5.1 Boot Settings Configuration................96 5.5.2 Boot Device Priority ..................98 5.5.3 Hard Disk Drives ..................... 98 5.5.4 Removable Drives .................... 99 5.6 S .......................
  • Page 11 AFL-AM2 Panel PC C TERMINOLOGY ..................... 141 D SOFTWARE DRIVERS ................... 145 D.1 R ................146 EMOTE ANAGEMENT D.2 T ..................146 OUCH ANEL RIVER D.2.1 Introduction....................146 D.2.2 Driver Installation..................146 D.2.3 Touch Panel Driver Configuration ............... 150 E WATCHDOG TIMER....................151 F HAZARDOUS MATERIALS DISCLOSURE............
  • Page 12 AFL-AM2 Panel PC List of Figures Figure 1-1: AFL-AM2........................2 Figure 1-2: Front View ........................5 Figure 1-3: Rear View ........................6 Figure 1-4: External Peripheral Connectors ................7 Figure 1-5: Internal Overview ......................8 Figure 2-1: AFL-15B-AM2 Front Dimensions (units in mm) .............12 Figure 2-2: AFL-15B-AM2 Rear Dimensions (units in mm) ............13 Figure 2-3: AFL-17B-AM2 Front Dimensions (units in mm) .............14 Figure 2-4: AFL-17B-AM2 Rear Dimensions (units in mm) ............15 Figure 2-5: AFL-19B-AM2 Front Dimensions (units in mm) .............16...
  • Page 13 AFL-AM2 Panel PC Figure 3-13: AFL-15B-AM2 Cutout Dimensions (units in mm)..........41 Figure 3-14: AFL-17B-AM2 Cutout Dimensions (units in mm)..........41 Figure 3-15: AFL-19B-AM2 Cutout Dimensions (units in mm)..........42 Figure 3-16: Tighten the Panel Mounting Clamp Screws ............43 Figure 3-17: Arm Mounting Retention Screw Holes..............44 Figure 3-18: The Rack/Cabinet Bracket..................45 Figure 3-19: Secure the Rack/Cabinet Bracket................46 Figure 3-20: Install into a Rack/Cabinet ..................46...
  • Page 14 AFL-AM2 Panel PC Figure 6-16: Search for Suitable Driver ................... 125 Figure 6-17: Locate Driver Files ....................126 Figure 6-18: Location Browsing Window ................126 Figure 6-19: Select the Audio CODEC ..................128 Figure 6-20: Locate the Setup Program Icon................129 Figure 6-21: Preparing Setup Screen ..................
  • Page 15 AFL-AM2 Panel PC List of Tables Table 1-1: Model Variations ......................3 Table 2-1: AFL-AM2 System Specifications................11 Table 4-1: Serial Port Pinouts......................58 Table 4-2: AT/ATX Power Selection Jumper................60 Table 4-3: Clear CMOS Jumper Settings..................60 Table 4-4: CompactFlash® Master/Slave Setup ................61 Table 4-5: COM1 and COM3 RI and Voltage Settings ...............61 Table 4-6: COM2 RI and Voltage Selection ................61 Table 4-7: COM3 RS-232/422/485 Selection ................62 Table 4-8: COM3 RS-422/485 Selection Jumper ................62...
  • Page 16 AFL-AM2 Panel PC BIOS Menus BIOS Menu 1: Main ........................68 BIOS Menu 2: Advanced ......................70 BIOS Menu 3: CPU Configuration ....................71 BIOS Menu 4: IDE Configuration....................72 BIOS Menu 5: IDE Master and IDE Slave Configuration ............74 BIOS Menu 6: Super IO Configuration..................79 BIOS Menu 7: Hardware Health Configuration ................81 BIOS Menu 8: ACPI Configuration ....................85 BIOS Menu 9: Remote Access Configuration [Advanced] ............86...

  • Page 17: Introduction

    AFL-AM2 Panel PC Chapter Introduction Page 1...

  • Page 18: General Overview

    AFL-AM2 Panel PC 1.1 General Overview Figure 1-1: AFL-AM2 The AFL-AM2 flat panel PC is a flexible, multi-functional and powerful flat panel PC that can be applied in diverse operational environments and implemented in multi-faceted applications. The AFL-AM2 comes fully kitted with a high-performance motherboard and a host of other peripheral interface connectors.

  • Page 19: Applications

    AFL-AM2 Panel PC AFL-15B-AM2 AFL-17B-AM2 AFL-19B-AM2 1.0 GB DDR2 Memory Wireless Bluetooth Touchscreen Optional HSDPA Table 1-1: Model Variations 1.1.2 Applications The AFL-AM2 all-in-one panel PC is designed for multiple applications. Its durability and strength makes it an ideal choice for public access computers. Some possible applications include: Vehicle Interior device Truck PC...

  • Page 20: Standard Features

    AFL-AM2 Panel PC 1.1.3 Standard Features Some of the standard features of the AFL-AM2 flat panel PC include: Rugged mechanism design with ABS/PC case IP 64 dustproof and waterproof front panel 1.0 GB DDR2 memory Bluetooth connectivity Wireless LAN eSATA port Dual 10/100/1000 Mb/s Ethernet support Simplified installation process RoHS compliance...

  • Page 21: Front Panel

    AFL-AM2 Panel PC 1.2.1 Front Panel The front side of the AFL-AM2 is a flat panel TFT LCD screen surrounded by an ABS/PC plastic frame. Figure 1-2: Front View Page 5...

  • Page 22: Rear Panel

    AFL-AM2 Panel PC 1.2.2 Rear Panel The rear panel provides access to retention screw holes that support the wall mounting. Refer to Figure 1-3. Figure 1-3: Rear View 1.2.3 Bottom Panel The bottom panel of the AFL-AM2 has the following I/O interfaces (Figure 1-4): 1 x External SATA port 1 x RS-232 serial port connector 1 x RS-232/422/485 serial port connector...

  • Page 23: Internal Overview

    AFL-AM2 Panel PC Figure 1-4: External Peripheral Connectors 1.3 Internal Overview The AFL-AM2 includes the following parts inside the aluminum internal cover. AMD Athlon™ 64 X2 dual-core processor 1.0 GB DDR2 SO-DIMM Antennas Backlight inverter Bluetooth module CompactFlash® disk (optional) HSDPA module (optional) Hard drive (optional) Two speakers...

  • Page 24: Figure 1-5: Internal Overview

    AFL-AM2 Panel PC Figure 1-5: Internal Overview Page 8...

  • Page 25: Specifications

    AFL-AM2 Panel PC Chapter Specifications Page 9...

  • Page 26: Introduction

    AFL-AM2 Panel PC 2.1 Introduction The AFL-AM2 flat panel PC has the following preinstalled components: 1 x Motherboard 1 x TFT LCD screen 1 x Touch screen panel 1 x Inverter 1 x Wireless LAN module 1 x DDR2 memory module 1 x Bluetooth module 1 x AT/ATX switch 2 x Speakers...

  • Page 27: Figure 1-1: Afl-Am2

    AFL-AM2 Panel PC SPECIFICATION 15 inch 17 inch 19 inch I/O Ports 1 x Audio port 1 x eSATA port 1 x RS-232 1 x RS-232/422/485 2 x RJ-45 4 x USB 2.0 1 x Power switch 1 x Reset button 1 x VGA port Storage 1 x 2.5”...

  • Page 28: Dimensions

    AFL-AM2 Panel PC 2.3 Dimensions 2.3.1 AFL-15B-AM2 Dimensions The dimensions of the AFL-15B-AM2 flat panel PC are shown in Figure 2-1 below. Figure 2-1: AFL-15B-AM2 Front Dimensions (units in mm) Page 12...

  • Page 29: Figure 2-2: Afl-15B-Am2 Rear Dimensions (Units In Mm)

    AFL-AM2 Panel PC Figure 2-2: AFL-15B-AM2 Rear Dimensions (units in mm) Page 13...

  • Page 30: Afl-17B-Am2 Dimensions

    AFL-AM2 Panel PC 2.3.2 AFL-17B-AM2 Dimensions The dimensions of the AFL-17B-AM2 flat panel PC are shown in Figure 2-3 below. Figure 2-3: AFL-17B-AM2 Front Dimensions (units in mm) Page 14...

  • Page 31: Figure 2-4: Afl-17B-Am2 Rear Dimensions (Units In Mm)

    AFL-AM2 Panel PC Figure 2-4: AFL-17B-AM2 Rear Dimensions (units in mm) Page 15...

  • Page 32: Afl-19B-Am2 Dimensions

    AFL-AM2 Panel PC 2.3.3 AFL-19B-AM2 Dimensions The dimensions of the AFL-19B-AM2 flat panel PC are shown in Figure 2-3 below. Figure 2-5: AFL-19B-AM2 Front Dimensions (units in mm) Page 16...

  • Page 33: Cpu Support

    AFL-AM2 Panel PC Figure 2-6: AFL-19B-AM2 Rear Dimensions (units in mm) 2.4 CPU Support The AFLMB-690EAM2-R10 motherboard comes with a socket AM2 CPU socket and supports AMD Athlon™ 64 X2 Dual-Core processors up to 5200+. Some of the specifications of these processors are listed below: Two processing cores True multitasking, allowing quick switching of programs Cool’n’Quiet™...

  • Page 34: System Chipsets

    AFL-AM2 Panel PC AMD Athlon™ 64 processor AMD Athlon™ 64 X2 processor 2.5 System Chipsets The AFLMB-690EAM2-R10 motherboard is comprised of an ATi M690T Northbridge chipset and an ATi SB600 Southbridge chipset. 2.5.1 ATi M690T Overview The M690T features an Integrated Graphics Processor (IGP) incorporated into the Northbridge.

  • Page 35: Ati Sb600 Overview

    AFL-AM2 Panel PC 2.5.2 ATi SB600 Overview The ATi SB600 Southbridge is connected to the Northbridge through the 1/2/4-lane A-Link Xpress II interface which features high data transfer bandwidth. Some of the main features of the SB600 are listed below: Supports PCI rev 2.3 specifications 5 OHCI and 1 EHCI host controllers to support 10 USB ports (4 implemented) SATA II AHCI controller with RAID 0, 1 and 10 support for 3.0 Gb/s SATA...

  • Page 36: Lvds Support

    AFL-AM2 Panel PC 2.6.2 LVDS Support The LVDS connector drives the built-in LCD panel. The 30-pin LVDS crimp connector is connected to the Chrontel CH7308A chipset, which is connected to the M690T through the SDVO interface. 18/24-bit outputs Up to 140 megapixels per second 2.7 Memory All processors supported by the AFL-AM2 have their own internal DDR2 memory controller.

  • Page 37: Compactflash

    AFL-AM2 Panel PC ® 2.8.1 CompactFlash CompactFlash® socket supports standard CompactFlash® Type CompactFlash® Type II cards. The chipset flash interface is multiplexed with an IDE interface and can be connected to an array of industry standard NAND Flash or NOR Flash devices.

  • Page 38: Bluetooth Module

    AFL-AM2 Panel PC Figure 2-9: SATA Hard Drive Slot 2.9 Bluetooth Module The AFL-AM2 are all integrated with a Bluetooth module. The Bluetooth module enables the transmission between various peripheral devices through a Bluetooth network. Figure 2-10: Bluetooth Module Bluetooth enabled peripheral devices include: Headsets Barcode readers PDAs...

  • Page 39: Hsdpa Module (Optional)

    AFL-AM2 Panel PC Uses 2.402 GHz – 2.480 GHz unlicensed ISM band Class 2 output power (under 4 dBm) USB 2.0 interface 2.10 HSDPA Module (Optional) The HSDPA module is one of the OEM options for the AFL-AM2. Figure 2-11: HSDPA Module The HSDPA module connects to 3G and 3.5G cellular networks.

  • Page 40: Wireless Lan

    AFL-AM2 Panel PC 2.11 Wireless LAN The IEEE 802.11a/b/g compliant wireless module is pre-installed in the system and provides wireless connectivity at up to 54 Mb/s. The wireless module is interfaced to the system chipset through the USB interface in the PCIe Mini slot. Figure 2-12: Wireless LAN Module Some of the features of the wireless module are listed below.

  • Page 41: Front Panel

    AFL-AM2 Panel PC Integrated 10/100/1000BASE-T transceiver Automatic MDI crossover function PCIe v1.0a 10/100/1000BASE-T full/half-duplex MAC Wake on LAN support meeting the ACPI requirements Statistics for SNMP MIB II, Ethernet-like MIB, and Ethernet MIB (802.3z, clause 30) Serial EEPROM or serial flash support JTAG support 2.13 Front Panel The front panel of the AFL-AM2 consists of an LCD monitor and a touch screen panel.

  • Page 42: Oem Options

    AFL-AM2 Panel PC 2.14 OEM Options Some of the peripheral device connectors are not connected to any devices. These connectors are reserved for OEM customizations. For a customized option, please contact the vendor, reseller, or IEI sales representative. Page 26...

  • Page 43: Installation

    AFL-AM2 Panel PC Chapter Installation Page 27...

  • Page 44: Installation Precautions

    AFL-AM2 Panel PC 3.1 Installation Precautions When installing the flat panel PC, please follow the precautions listed below: Power turned off: When installing the flat panel PC, make sure the power is off. Failing to turn off the power may cause severe injury to the body and/or damage to the system.

  • Page 45: Installation And Configuration Steps

    AFL-AM2 Panel PC 3.3 Installation and Configuration Steps The following installation steps must be followed. Unpack the flat panel PC Step 1: Install the CompactFlash® card (optional) Step 2: Install the HSDPA module (optional) Step 3: Install the hard drive (optional) Step 4: Mount the flat panel PC Step 5:...

  • Page 46: Packing List

    AFL-AM2 Panel PC Remove both polystyrene ends, one from each side. Step 5: Pull the plastic cover off the flat panel PC. Step 6: Make sure all the components listed in the packing list are present. Step 7: 3.4.1 Packing List The AFL-AM2 flat panel PC is shipped with the following components: Quantity Item...

  • Page 47: Compactflash Card Installation

    AFL-AM2 Panel PC Quantity Item Image Optional 128MB CompactFlash® card with Windows CE 5.0 pre-installed and SDK 1GB CompactFlash® card with Windows XPE pre-installed If any of these items are missing or damaged, contact the distributor or sales representative immediately. ®...

  • Page 48: Hsdpa Module Installation

    AFL-AM2 Panel PC Locate the CF slot. Align the CF card with the guides on the slot. Insert a CF Step 2: card into the slot (Figure 3-2). Figure 3-2: CF Card Location Replace the plastic back cover and fasten the retention screws. Step 3: Step 0: 3.6 HSDPA Module Installation...

  • Page 49: Hdd Installation

    AFL-AM2 Panel PC Figure 3-3: Insert HSDPA module Open the antenna on the HSDPA module. Step 5: Figure 3-4: HSDPA Antenna Replace the plastic black cover.S t e p 0 : Step 6: Software drivers for the HSDPA module are included with the HSDPA module. 3.7 HDD Installation To install the hard drive, please follow the steps below: Disconnect the system power cable.

  • Page 50: Figure 3-5: Aluminum Back Cover Retention Screws

    AFL-AM2 Panel PC Figure 3-5: Aluminum Back Cover Retention Screws Lift the aluminum cover to remove. Step 4: Remove the four HDD bracket retention screws (Figure 3-6) and lift the HDD Step 5: bracket off the panel PC. Figure 3-6: AFL-AM2 Hard Drive Bracket Retention Screws Attach the hard drive to the hard drive bracket.

  • Page 51: Figure 3-7: Hard Drive Retention Screws

    AFL-AM2 Panel PC Fasten four flat head retention screws to secure the hard drive to the bracket (Figure 3-7). Figure 3-7: Hard Drive Retention Screws Reinstall the hard drive bracket. Slide the hard drive bracket into its original Step 7: position, making sure the SATA connectors on the hard drive connect with the SATA connectors on the motherboard.

  • Page 52: At/Atx Mode Selection

    AFL-AM2 Panel PC Replace the aluminum back cover to the chassis. Step 9: Replace the plastic back cover.Step 0: Step 10: 3.8 AT/ATX Mode Selection AT and ATX power modes can both be used on the AFL-AM2. The selection is made through an AT/ATX switch on the aluminum chassis inside the plastic back cover (Figure 3-9).

  • Page 53: Atx Power Mode

    AFL-AM2 Panel PC Self-service kiosk Plant environment monitoring system Factory automation platform Manufacturing shop flow 3.8.2 ATX Power Mode With the ATX mode selected, the AFL-AM2 panel PC goes in a standby mode when it is turned off. The panel PC can be easily turned on via network or a power switch in standby mode.

  • Page 54: Wall Mounting

    AFL-AM2 Panel PC 3.9.1 Wall Mounting To mount the flat panel PC onto the wall, please follow the steps below. Select the location on the wall for the wall-mounting bracket. Step 1: Carefully mark the locations of the four brackets screw holes on the wall. Step 2: Drill four pilot holes at the marked locations on the wall for the bracket retention Step 3:...

  • Page 55: Figure 3-11: Chassis Support Screws

    AFL-AM2 Panel PC Carefully insert the screws through the holes and gently pull the monitor Step 8: downwards until the monitor rests securely in the slotted holes (Figure 3-11). Ensure that all four of the mounting screws fit snuggly into their respective slotted holes.

  • Page 56: Panel Mounting

    AFL-AM2 Panel PC Figure 3-12: Secure the Panel PC 3.9.2 Panel Mounting To mount the AFL-AM2 flat panel PC into a panel, please follow the steps below. Select the position on the panel to mount the flat panel PC. Step 1: Cut out a section from the panel that corresponds to the rear panel dimensions Step 2: of the flat panel PC.

  • Page 57: Figure 3-13: Afl-15B-Am2 Cutout Dimensions (Units In Mm)

    AFL-AM2 Panel PC Figure 3-13: AFL-15B-AM2 Cutout Dimensions (units in mm) Figure 3-14: AFL-17B-AM2 Cutout Dimensions (units in mm) Page 41...

  • Page 58: Figure 3-15: Afl-19B-Am2 Cutout Dimensions (Units In Mm)

    AFL-AM2 Panel PC Figure 3-15: AFL-19B-AM2 Cutout Dimensions (units in mm) Slide the flat panel PC through the hole until the aluminum frame is flush against Step 3: the panel. Insert the panel mounting clamps into the pre-formed holes along the edges of Step 4: the chassis, behind the aluminum frame.

  • Page 59: Arm Mounting

    AFL-AM2 Panel PC Figure 3-16: Tighten the Panel Mounting Clamp Screws 3.9.3 Arm Mounting The AFL-AM2 is VESA (Video Electronics Standards Association) compliant and can be mounted on an arm with a 100mm interface pad. To mount the AFL-AM2 on an arm, please follow the steps below.

  • Page 60: Cabinet And Rack Installation

    AFL-AM2 Panel PC Once the mounting arm has been firmly attached to the surface, lift the flat panel Step 2: PC onto the interface pad of the mounting arm. Align the retention screw holes on the mounting arm interface with those in the Step 3: flat panel PC, as shown in Figure 3-17.

  • Page 61: Figure 3-18: The Rack/Cabinet Bracket

    AFL-AM2 Panel PC NOTE: When purchasing the cabinet/rack installation bracket, make sure it is compatible with both the AFL-AM2 flat panel PC and the rack/cabinet into which the AFL-AM2 is installed. Slide the rear of the AFL-AM2 flat panel PC through the rack/cabinet bracket Step 1: until the aluminum frame is flush against the front of the bracket (Figure 3-18).

  • Page 62: Figure 3-19: Secure The Rack/Cabinet Bracket

    AFL-AM2 Panel PC Figure 3-19: Secure the Rack/Cabinet Bracket Slide the flat panel PC with the attached rack/cabinet bracket into a rack or Step 4: cabinet (Figure 3-20). Figure 3-20: Install into a Rack/Cabinet Page 46...

  • Page 63: Bottom Panel Connectors

    AFL-AM2 Panel PC Once the flat panel PC with the attached rack/cabinet bracket has been properly Step 5: inserted into the rack or cabinet, secure the front of the rack/cabinet bracket to the front of the rack or cabinet (Figure 3-20).Step 0: 3.10 Bottom Panel Connectors All the external peripheral interface connectors are located at the bottom of the rear panel...

  • Page 64: Serial Device Connection

    AFL-AM2 Panel PC Insert the LAN cable RJ-45 connector. Once aligned, gently insert the LAN Step 3: cable RJ-45 connector into the onboard RJ-45 connector. Step 0: 3.10.2 Serial Device Connection The AFL-AM2 has two single female DB-9 connectors on the bottom panel for a serial device.

  • Page 65: Usb Device Connection

    AFL-AM2 Panel PC 3.10.3 USB Device Connection There are four external USB 2.0 connectors. All connectors are perpendicular to the AFL-AM2. To connect a USB 2.0 or USB 1.1 device, please follow the instructions below. Locate the USB connectors. The locations of the USB connectors are shown Step 1: in Chapter 2.

  • Page 66: Vga Monitor Connection

    AFL-AM2 Panel PC 3.10.4 VGA Monitor Connection The AFL-AM2 has a single female DB-15 connector on the external peripheral interface panel. The DB-15 connector is connected to a CRT or VGA monitor. To connect a monitor to the AFL-AM2, please follow the instructions below. Locate the female DB-15 connector.

  • Page 67: System Maintenance

    AFL-AM2 Panel PC Chapter System Maintenance Page 51...

  • Page 68: Introduction

    AFL-AM2 Panel PC 4.1 Introduction If the components of the AFL-AM2 fail they must be replaced, such as the wireless LAN module or the motherboard. Please contact the system reseller or vendor to purchase the replacement parts. Back cover removal instructions and jumper settings for the AFL-AM2 are described below.

  • Page 69: Cpu Replacement

    AFL-AM2 Panel PC The internal aluminum back cover of the AFL-AM2 must be removed. To remove the aluminum back cover, remove the retention screws indicated in the sections below. Remove the following screws: 5 x Flat head screws 11 x Round head screws Screw positions are indicated below (Figure 4-1).

  • Page 70: Figure 4-2: System Fan Removal

    AFL-AM2 Panel PC Figure 4-2: System Fan Removal Unclip the CPU fan cable and unscrew the CPU heatsink screws. Locate the Step 2: CPU fan power cable and detach it from the fan power wafer on the motherboard. Unscrew the four retaining screws holding the CPU heatsink in place.

  • Page 71: Socket Am2 Cpu Installation

    AFL-AM2 Panel PC Remove the heatsink from the motherboard. The figure below shows the Step 3: heatsink after removal. The CPU fan is still attached. S t e p 0 : Figure 4-4: CPU Heatsink 4.4.2 Socket AM2 CPU Installation WARNING: CPUs are expensive and sensitive components.

  • Page 72: Figure 4-5: Install The Cpu

    AFL-AM2 Panel PC WARNING: When handling the CPU, only hold it on the sides. DO NOT touch the pins at the bottom of the CPU. Inspect the CPU socket. Make sure there are no bent pins and make sure the Step 1: socket contacts are free of foreign material.

  • Page 73: Memory Module Replacement

    AFL-AM2 Panel PC Close the CPU socket. Re-engage the load lever by pushing it back to its Step 6: original position. Secure the load lever under the retention tab on the side of CPU socket. S t e p 0 : 4.5 Memory Module Replacement The flat panel PC is preinstalled with a 1.0 GB DDR2 memory module.

  • Page 74: Serial Port Setup

    AFL-AM2 Panel PC Figure 4-7: DDR2 SO-DIMM Module Installation 4.6 Serial Port Setup CN Label: COM1 – RS-232 COM3 – RS-232/422/485 DB9 connectors CN Type: See Table 4-1 and Figure 4-8 CN Pinouts: COM1 supports RS-232. COM3 supports RS-232, RS-422 and RS-485. Pinouts for RS-232, RS-422 and RS-485 are shown below (these apply to all serial ports).

  • Page 75: Jumper Settings

    AFL-AM2 Panel PC Figure 4-8: Serial Port Pin Location 4.7 Jumper Settings WARNING: System damage can occur if the jumper settings are changed. The jumpers should not be changed under normal conditions. NOTE: A jumper is a metal bridge that is used to close an electrical circuit.

  • Page 76: At/Atx Power Selection Jumper (J13)

    AFL-AM2 Panel PC 4.7.4 COM1 and COM3 RI and Voltage Selection (J12) ....... 61 4.7.5 COM2 RI and voltage selection (J3) ..........61 4.7.6 COM3 RS-232/422/485 Selection (J8) ......... 61 4.7.7 COM3 RS-422/485 Selection (J5) ..........62 4.7.8 COM3 Terminator Setting (J10, J14) ..........62 4.7.9 COM3 Mode Selection Jumper (J11)..........

  • Page 77: Com1 And Com3 Ri And Voltage Selection (J12)

    AFL-AM2 Panel PC Description Open Slave Closed Master Table 4-4: CompactFlash® Master/Slave Setup 4.7.4 COM1 and COM3 RI and Voltage Selection (J12) The COM1 and COM2 pin-9 signal can be selected as 12V, 5V or Ring. Description COM1 as 12 V COM2 as 12 V COM1 as 5 V COM2 as 5 V...

  • Page 78: Com3 Rs-422/485 Selection (J5)

    AFL-AM2 Panel PC Description RS-232 RS-422 RS-485 Table 4-7: COM3 RS-232/422/485 Selection 4.7.7 COM3 RS-422/485 Selection (J5) The COM3 RS-422/485 selection jumper sets serial port COM3 as RS-422 or RS-485. Description 1-3, 2-4 RS-422 3-5, 4-6 RS-485 Table 4-8: COM3 RS-422/485 Selection Jumper 4.7.8 COM3 Terminator Setting (J10, J14) The COM3 terminator jumpers are for terminating an RS-422 or RS-485 setup.

  • Page 79: Lcd Type Selection (Pa_Id1)

    AFL-AM2 Panel PC 4.7.10 LCD Type Selection (PA_ID1) This jumper should not be changed from factory settings. The LCD type jumper selects what kind of LCD screen is being used in the system. This jumper is preset to match the specifications of the built-in screen. PA_ID1 Description 1-2, 9-10...

  • Page 80: Table 4-13: Lcd Type Selection

    AFL-AM2 Panel PC Description SENSE Table 4-13: LCD Type Selection Page 64...

  • Page 81: Bios Setup

    AFL-AM2 Panel PC Chapter BIOS Setup Page 65...

  • Page 82: Introduction

    AFL-AM2 Panel PC 5.1 Introduction A licensed copy of AMI BIOS is preprogrammed into the ROM BIOS. The BIOS setup program allows users to modify the basic system configuration. This chapter describes how to access the BIOS setup program and the configuration options that may be changed.

  • Page 83: Getting Help

    AFL-AM2 Panel PC Function F1 key General help, only for Status Page Setup Menu and Option Page Setup Menu F2 /F3 key Change color from total 16 colors. F2 to select color forward. F10 key Save all the CMOS changes, only for Main Menu Table 5-1: BIOS Navigation Keys 5.1.3 Getting Help When F1 is pressed a small help window describing the appropriate keys to use and the...

  • Page 84: Main

    AFL-AM2 Panel PC 5.2 Main The Main BIOS menu (BIOS Menu 1) appears when the BIOS Setup program is entered. The Main menu gives an overview of the basic system information. BIOS Menu 1: Main System Overview The System Overview lists a brief summary of different system components. The fields in System Overview cannot be changed.

  • Page 85: Advanced

    AFL-AM2 Panel PC System Memory: Displays the auto-detected system memory. Lists memory size Size: The System Overview field also has two user configurable fields: System Time [hh:mm:ss] Use the System Time option to set the system time. Manually enter the hours, minutes and seconds.

  • Page 86: Bios Menu 2: Advanced

    AFL-AM2 Panel PC BIOS Menu 2: Advanced Page 70...

  • Page 87: Cpu Configuration

    AFL-AM2 Panel PC 5.3.1 CPU Configuration Use the CPU Configuration menu (BIOS Menu 3) to view detailed CPU specifications and configure the CPU. BIOS Menu 3: CPU Configuration The CPU Configuration menu (BIOS Menu 3) lists the following CPU details: Revision: Lists the CPU revision number Cache L1: Lists the CPU L1 cache size Cache L2: Lists the CPU L2 cache size...

  • Page 88: Ide Configuration

    AFL-AM2 Panel PC 5.3.2 IDE Configuration Use the IDE Configuration menu (BIOS Menu 4) to change and/or set the configuration of the IDE devices installed in the system. BIOS Menu 4: IDE Configuration OnBoard PCI IDE Controller [Primary] The OnBoard PCI IDE Controller BIOS option specifies the IDE channels used by the onboard PCI IDE controller.
  • Page 89 AFL-AM2 Panel PC IDE Master and IDE Slave When entering setup, BIOS auto detects the presence of IDE devices. BIOS displays the status of the auto detected IDE devices. The following IDE devices are detected and are shown in the IDE Configuration menu: Primary IDE Master Primary IDE Slave Secondary IDE Master...

  • Page 90: Ide Master, Ide Slave

    AFL-AM2 Panel PC 5.3.2.1 IDE Master, IDE Slave Use the IDE Master and IDE Slave configuration menu to view both primary and secondary IDE device details and configure the IDE devices connected to the system. BIOS Menu 5: IDE Master and IDE Slave Configuration Auto-Detected Drive Parameters The “grayed-out”...
  • Page 91 AFL-AM2 Panel PC Block Mode: Block mode boosts IDE drive performance by increasing the amount of data transferred. Only 512 bytes of data can be transferred per interrupt if block mode is not used. Block mode allows transfers of up to 64 KB per interrupt.
  • Page 92 AFL-AM2 Panel PC LBA/Large Mode [Auto] Use the LBA/Large Mode option to disable or enable BIOS to auto detects LBA (Logical Block Addressing). LBA is a method of addressing data on a disk drive. In LBA mode, the maximum drive capacity is 137 GB. BIOS is prevented from using the LBA mode control on Disabled the specified channel.
  • Page 93 AFL-AM2 Panel PC PIO mode 3 selected with a maximum transfer rate of 11.1 MB/s PIO mode 4 selected with a maximum transfer rate of 16.6 MB/s (This setting generally works with all hard disk drives manufactured after 1999. For other disk drives, such as IDE CD-ROM drives, check the specifications of the drive.) DMA Mode [Auto] Use the DMA Mode BIOS selection to adjust the DMA mode options.
  • Page 94 AFL-AM2 Panel PC Ultra DMA mode 3 selected with a maximum data transfer UDMA3 rate of 44 MB/s (To use this mode, it is required that an 80-conductor ATA cable is used.) Ultra DMA mode 4 selected with a maximum data transfer UDMA4 rate of 66.6 MB/s (To use this mode, it is required that an 80-conductor ATA cable is used.)

  • Page 95: Super Io Configuration

    AFL-AM2 Panel PC 5.3.3 Super IO Configuration Use the Super IO Configuration menu (BIOS Menu 6) to set or change the configurations for the FDD controllers, parallel ports and serial ports. BIOS Menu 6: Super IO Configuration Serial Port1 Address [3F8/IRQ4] Use the Serial Port1 Address option to select the Serial Port 1 base address.
  • Page 96 AFL-AM2 Panel PC Serial Port2 Address [2F8/IRQ3] Use the Serial Port2 Address option to select the Serial Port 2 base address. No base address is assigned to Serial Port 2 Disabled Serial Port 2 I/O port address is 3F8 and the interrupt 2F8/IRQ3 EFAULT address is IRQ3...

  • Page 97: Hardware Health Configuration

    AFL-AM2 Panel PC No base address is assigned to Serial Port 4 Disabled Serial Port 4 I/O port address is 3E8 Serial Port 4 I/O port address is 2E8 EFAULT Serial Port 4 I/O port address is 338 Serial Port 4 I/O port address is 238 5.3.4 Hardware Health Configuration The Hardware Health Configuration menu (BIOS Menu 7) shows the operating temperature, fan speeds and system voltages.
  • Page 98 AFL-AM2 Panel PC FAN x Mode Setting [Automatic Mode] Use the FAN x Mode Setting option to configure FAN x. Fan is on at full speed all the time Full On Mode Fan is off when the temperature is low Automatic mode EFAULT enough.
  • Page 99 AFL-AM2 Panel PC Minimum Value: 0°C Maximum Value: 127°C Temperature x Limit of Start [063] WARNING: Setting this value too high may cause the fan to start only when the CPU is at a high temperature and therefore cause the system to be damaged.
  • Page 100 AFL-AM2 Panel PC Slope PWM x [1 PWM] The Slope PWM x option can only be set if the FAN x Mode Setting option is set to Automatic Mode. Use the Slope PWM x option to select the linear rate at which the PWM mode increases with respect to an increase in temperature.

  • Page 101: Acpi Configuration

    AFL-AM2 Panel PC 5.3.5 ACPI Configuration Use the General ACPI Configuration menu (BIOS Menu 8) to select the ACPI state when the system is suspended. BIOS Menu 8: ACPI Configuration Suspend Mode [S1(POS)] Use the Suspend Mode option to specify the sleep state the system enters when it is not being used.

  • Page 102: Remote Access Configuration

    AFL-AM2 Panel PC Suspend mode puts the system into an S3 sleep state. A S3 (STR) system in S3 sleep state appears off (the monitor is off), the CPU cache is flushed to system memory, and power to the CPU is stopped. This mode saves more power than higher sleep states, but takes longer to wake up.
  • Page 103 AFL-AM2 Panel PC Remote access is disabled. Disabled EFAULT Remote access configuration options shown below Enabled appear: Serial Port Number Serial Port Mode Flow Control Redirection after BIOS POST Terminal Type VT-UTF8 Combo Key Support Sredir Memory Display Delay These configuration options are discussed below. Serial Port Number [COM1] Use the Serial Port Number option to select the serial port used for remote access.
  • Page 104 AFL-AM2 Panel PC 19200 8,n,1 09600 8,n,1 NOTE: Identical baud rate setting musts be set on the host (a management computer running a terminal software) and the slave Redirection After BIOS POST [Always] Use the Redirection After BIOS POST option to specify when console redirection should occur.

  • Page 105: Usb Configuration

    AFL-AM2 Panel PC 5.3.7 USB Configuration Use the USB Configuration menu (BIOS Menu 10) to read USB configuration information and configure the USB settings. BIOS Menu 10: USB Configuration USB 1.1 OHCI Controller [Enabled] The USB 1.1 OHCI Controller BIOS option enables or disables the USB 1.1 controller USB 1.1 function disabled Disabled (Default)

  • Page 106: Usb Mass Storage Device Configuration

    AFL-AM2 Panel PC (Default) USB function enabled Enabled Legacy USB Support [Enabled] Use the Legacy USB Support BIOS option to enable USB mouse and USB keyboard support. Normally if this option is not enabled, any attached USB mouse or USB keyboard does not become available until a USB compatible operating system is fully booted with all USB drivers loaded.

  • Page 107: Bios Menu 11: Usb Mass Storage Device Configuration

    AFL-AM2 Panel PC BIOS Menu 11: USB Mass Storage Device Configuration USB Mass Storage Reset Delay [20 Sec] Use the USB Mass Storage Reset Delay option to set the number of seconds POST waits for the USB mass storage device after the start unit command. POST waits 10 seconds for the USB mass storage 10 Sec device after the start unit command.
  • Page 108 AFL-AM2 Panel PC Device ## The Device## field lists the USB devices that are connected to the system. Emulation Type [Auto] Use the Emulation Type BIOS option to specify the type of emulation BIOS has to provide for the USB device. NOTE: Please note that the device’s formatted type and the emulation type provided by the BIOS must match for a device to boot properly.

  • Page 109: Pci/Pnp

    AFL-AM2 Panel PC 5.4 PCI/PnP Use the PCI/PnP menu (BIOS Menu 12) to configure advanced PCI and PnP settings. WARNING: Setting wrong values for the BIOS selections in the PCIPnP BIOS menu may cause the system to malfunction. BIOS Menu 12: PCI/PnP Configuration IRQ# [Available] Use the IRQ# address to specify what IRQs can be assigned to a particular peripheral device.
  • Page 110 AFL-AM2 Panel PC The specified IRQ is reserved for use by Legacy ISA Reserved devices Available IRQ addresses are: IRQ3 IRQ4 IRQ5 IRQ7 IRQ9 IRQ10 IRQ 11 IRQ 14 IRQ 15 DMA Channel# [Available] Use the DMA Channel# option to assign a specific DMA channel to a particular PCI/PnP device.

  • Page 111: Boot

    AFL-AM2 Panel PC Reserved Memory Size [Disabled] Use the Reserved Memory Size BIOS option to specify the amount of memory that should be reserved for legacy ISA devices. No memory block reserved for legacy ISA devices Disabled EFAULT 16KB reserved for legacy ISA devices 32KB reserved for legacy ISA devices 64KB reserved for legacy ISA devices 5.5 Boot...

  • Page 112: Boot Settings Configuration

    AFL-AM2 Panel PC 5.5.1 Boot Settings Configuration Use the Boot Settings Configuration menu (BIOS Menu 14) to configure advanced system boot options. BIOS Menu 14: Boot Settings Configuration Quick Boot [Enabled] Use the Quick Boot BIOS option to make the computer speed up the boot process. No POST procedures are skipped Disabled Some POST procedures are skipped to decrease...
  • Page 113 AFL-AM2 Panel PC OEM Logo displayed instead of POST messages Enabled AddOn ROM Display Mode [Force BIOS] Use the AddOn ROM Display Mode option adjusts PS/2 mouse support capabilities. The system forces third party BIOS to display Force BIOS EFAULT during system boot.

  • Page 114: Boot Device Priority

    AFL-AM2 Panel PC Can be booted from a remote system through the Enabled 5.5.2 Boot Device Priority Use the Boot Device Priority menu (BIOS Menu 15) to specify the boot sequence from the available devices. The following options are available: Boot Device Boot Device BIOS Menu 15: Boot Device Priority Settings...

  • Page 115: Removable Drives

    AFL-AM2 Panel PC 4th Drive [HDD: SS-(part number)] NOTE: Only the drives connected to the system are shown. For example, if only two HDDs are connected only “1st Drive” and “2nd Drive” are listed. The boot sequence from the available devices is selected. If the “1st Drive” option is selected a list of available HDDs is shown.

  • Page 116: Bios Menu 17: Removable Drives

    AFL-AM2 Panel PC 1st Drive [USB] 2nd Drive [FLOPPY DRIVE] NOTE: Only the drives connected to the system are shown. For example, if only one FDD or USB is connected only “1st Drive” is listed. The boot sequence from the available devices is selected. If the “1st Drive” option is selected a list of available FDDs and USB devices is shown.

  • Page 117: Security

    AFL-AM2 Panel PC 5.6 Security Use the Security menu (BIOS Menu 18) to set system and user passwords. BIOS Menu 18: Security Change Supervisor Password Use the Change Supervisor Password to set or change a supervisor password. The default for this option is Not Installed. If a supervisor password must be installed, select this field and enter the password.

  • Page 118: Chipset

    AFL-AM2 Panel PC 5.7 Chipset Use the Chipset menu to access the Northbridge and Southbridge configuration menus WARNING! Setting the wrong values for the Chipset BIOS selections in the Chipset BIOS menu may cause the system to malfunction. BIOS Menu 19: Chipset Page 102...

  • Page 119: Northbridge Chipset Configuration

    AFL-AM2 Panel PC 5.7.1 Northbridge Chipset Configuration Use the Northbridge Chipset Configuration menu (BIOS Menu 20) to check the Northbridge chipset settings. BIOS Menu 20:Northbridge Chipset Configuration The Northbridge Chipset Configuration menu has no configurable options. The Northbridge Chipset configuration menu shows the following Northbridge chipset settings: Memory CLK: Shows the speed of the memory controller CAS (Latency): Specifies the Column Address Strobe (CAS) delay time RAS/CAS Delay(Trcd): Specifies the number of clock cycles that must elapse...

  • Page 120: Ecc Configuration

    AFL-AM2 Panel PC RAS/RAS Delay(Trrd): Row Cycle (Trc): Asynchronous Latency: 5.7.2 ECC Configuration Use the ECC Configuration menu (BIOS Menu 21) to set the ECC parameters. BIOS Menu 21: ECC Configuration Chipset Configuration DRAM ECC Enable [Enabled] Use the DRAM ECC Enable option to enable the hardware to report and correct memory errors and thereby automatically maintain the system.
  • Page 121 AFL-AM2 Panel PC 4-Bit ECC Mode Use the 4-Bit ECC Mode to enable or disable the 4-Bit ECC mode (a.k.a. CHIPKILL ECC MODE) 4-Bit ECC mode disabled Disabled (Default) 4-Bit ECC mode enabled Enabled DRAM SCRUB REDIRECT [Disabled] Use the DRAM SCRUB REDIRECT option to enable the system to immediately correct DRAM ECC errors when they occur, even when background scrubbing is on.

  • Page 122: Internal Graphics Configuration

    AFL-AM2 Panel PC L2 cache cannot be corrected when the system is idle. Enabled L1 Cache BG Scrub [Disabled] Use the L1 Cache BG Scrub option to enable the system to correct the L1 Data cache when idle. (Default) L1 cache can be corrected when the system is idle. Disabled L1 cache cannot be corrected when the system is idle.
  • Page 123 AFL-AM2 Panel PC Internal Graphics Mode [UMA] Use the Internal Graphic Mode Select option to how the internal graphics accesses the memory. The internal graphics mode is disabled. Disabled The integrated graphics can only access a dynamically EFAULT allocated partition of system memory. UMA Buffer Size [Auto] Use the UMA Buffer Size option to specify the memory to be reserved for the integrated graphics.

  • Page 124: Southbridge Configuration

    AFL-AM2 Panel PC 5.7.4 Southbridge Configuration The Southbridge Configuration menu (BIOS Menu 23) allows the Southbridge chipset to be configured. BIOS Menu 23:Southbridge Chipset Configuration AC’97 Audio Device [Disabled] Use the AC’97 Audio Device option to enable or disable the AC’97 CODEC. The onboard audio is turned on Auto EFAULT...
  • Page 125 AFL-AM2 Panel PC The PCIe Mini card is enabled, enabling the wireless Enabled EFAULT LAN card The PCIe Mini card is disabled, disabling the wireless Disabled LAN card OnChip SATA Channel [Enabled] Use the OnChip SATA option to enable or disable the SATA controller on the Southbridge.

  • Page 126: Power

    AFL-AM2 Panel PC 5.8 Power The Power menu (BIOS Menu 24) allows the advanced power management options to be configured. BIOS Menu 24:Power AT/ATX Power [ATX] Use the AT/ATX Power BIOS option to select the power supply that is connected to the system.
  • Page 127 AFL-AM2 Panel PC When the power button is pressed the system is either On/Off EFAULT turned on or off When the power button is pressed the system goes into Suspend suspend mode Restore on AC Power Loss [Last State] The Restore on AC Power Loss BIOS option specifies what state the system returns to if there is a sudden loss of power to the system.
  • Page 128 AFL-AM2 Panel PC RTC Resume [Disabled] Use the RTC Resume option to specify the time the system should be roused from a suspended state. The real time clock (RTC) cannot generate a wake Disabled EFAULT event If selected, the following appears with values that Enabled can be selected: RTC Alarm Date (Days)

  • Page 129: Exit

    AFL-AM2 Panel PC 5.9 Exit Use the Exit menu (BIOS Menu 25) to load default BIOS values, optimal failsafe values and to save configuration changes. BIOS Menu 25:Exit Save Changes and Exit Use the Save Changes and Exit option to save the changes made to the BIOS options and to exit the BIOS configuration setup program.
  • Page 130 AFL-AM2 Panel PC Load Optimal Defaults Use the Load Optimal Defaults option to load the optimal default values for each of the parameters on the Setup menus. F9 key can be used for this operation. Load Failsafe Defaults Use the Load Failsafe Defaults option to load failsafe default values for each of the parameters on the Setup menus.

  • Page 131: Software Drivers

    AFL-AM2 Panel PC Chapter Software Drivers Page 115...

  • Page 132: Available Software Drivers

    AFL-AM2 Panel PC 6.1 Available Software Drivers NOTE: The content of the CD may vary throughout the life cycle of the product and is subject to change without prior notice. Visit the IEI website or contact technical support for the latest updates. The following drivers can be installed on the system: AMD SB600 chipset driver installation Broadcom LAN driver...

  • Page 133: Figure 6-1: Introduction Screen

    AFL-AM2 Panel PC Figure 6-1: Introduction Screen Click AFL-AM2. Step 3: A new screen with a list of available drivers appears (Figure 6-2). Step 4: Figure 6-2: Available Drivers Select the driver to install from the list in Figure 6-2. Detailed driver installation Step 5: instructions follow below.

  • Page 134: Amd Sb600 Chipset Driver Installation

    AFL-AM2 Panel PC 6.3 AMD SB600 Chipset Driver Installation To install the chipset driver, please follow the steps below. NOTE: The chipset driver control center requires Microsoft .NET Framework prior to installation. The driver control center is an application that allows a user to control the configuration of the AMD product.

  • Page 135: Figure 6-4: Chipset Driver Installation Welcome Screen

    AFL-AM2 Panel PC Figure 6-4: Chipset Driver Installation Welcome Screen Open the SB600 directory. The screen in Figure 6-5 appears. Step 5: Figure 6-5: Chipset Driver Installation License Agreement The screen in Figure 6-6 appears. Select the destination folder. Step 6: Page 119...

  • Page 136: Figure 6-6: Select Destination Folder

    AFL-AM2 Panel PC Figure 6-6: Select Destination Folder Click install to continue. Step 7: The screen in Figure 6-7 appears as the driver starts to install. Step 8: Figure 6-7: Chipset Driver Installing Screen The welcome screen shown in Figure 6-8 appears. Step 9: Page 120...

  • Page 137: Figure 6-8: Welcome Screen

    AFL-AM2 Panel PC Figure 6-8: Welcome Screen Click Y to continue. Step 10: The License agreement file in Figure 6-9 appears. Step 11: Figure 6-9: Chipset Driver Readme File Information Click Y to continue. Step 12: The screen in Figure 6-10 appears. Step 13: Page 121...

  • Page 138: Figure 6-10: Chipset Driver Installation Complete

    AFL-AM2 Panel PC Figure 6-10: Chipset Driver Installation Complete Select the installation type (Express or Custom) then click Next to continue. Step 14: The installer starts to load the display driver. Step 15: Next the WDM Capture drivers load (for VIVO or All-In-Wonder) Step 16: The Catalyst Control Center setup starts shortly after.

  • Page 139: Broadcom Lan Driver (For Gbe Lan) Installation

    AFL-AM2 Panel PC Figure 6-11: Setup Complete To complete the installation, click Finish. Step 20: Step 0: 6.4 Broadcom LAN Driver (for GbE LAN) Installation To install the Broadcom LAN driver, please follow the steps below. Open Windows Control Panel (Figure 6-12). Step 1: Figure 6-12: Windows Control Panel Page 123...

  • Page 140: Figure 6-13: System Icon

    AFL-AM2 Panel PC Double-click the System icon (Figure 6-13). Step 2: Figure 6-13: System Icon Click the Device Manager tab (Figure 6-14). Step 3: Figure 6-14: Device Manager Tab Page 124...

  • Page 141: Figure 6-15: Device Manager List

    AFL-AM2 Panel PC A list of system hardware devices appears (Figure 6-15). Step 4: Figure 6-15: Device Manager List Double-click the listed device that has question marks next to it (this means Step 5: Windows does not recognize the device). The Device Driver Wizard appears (Figure 6-16).

  • Page 142: Figure 6-17: Locate Driver Files

    AFL-AM2 Panel PC Select “Search for a suitable driver for my device (recommended),” and click Step 7: to continue. Select “Specify a Location” in the Locate Driver Files window (Figure 6-17). Step 8: Figure 6-17: Locate Driver Files Click N to continue.

  • Page 143: Hd Audio Kit Driver Installation

    AFL-AM2 Panel PC Select the proper OS folder under the “X:\3-LAN\BROADCOM BCM57xx Step 11: Drivers” directory in the Locate File window, where “X:\” is the system CD drive. Click O and the driver is installed.Step 0: Step 12: 6.5 HD Audio Kit Driver Installation To install the Realtek AC `97 audio driver, please follow the steps below.

  • Page 144: Figure 6-19: Select The Audio Codec

    AFL-AM2 Panel PC Figure 6-19: Select the Audio CODEC Double-click the ALC665 folder. Step 3: Double-click the Setup.exe program icon in Figure 6-20. Step 4: Page 128...

  • Page 145: Figure 6-20: Locate The Setup Program Icon

    AFL-AM2 Panel PC Figure 6-20: Locate the Setup Program Icon The InstallShield Wizard is prepared to guide the user through the rest of the Step 5: process (Figure 6-21). Figure 6-21: Preparing Setup Screen Once initialized, the InstallShield Wizard welcome screen appears Step 6: (Figure 6-22).

  • Page 146: Figure 6-22: Installshield Wizard Welcome Screen

    AFL-AM2 Panel PC Figure 6-22: InstallShield Wizard Welcome Screen Click N to continue the installation. Step 7: InstallShield starts to install the new software as shown in Figure 6-23. Step 8: Figure 6-23: Audio Driver Software Configuration At this stage the Digital Signal Not Found screen shown in Figure 6-24 Step 9: appears.

  • Page 147: Figure 6-24: Audio Driver Digital Signal

    AFL-AM2 Panel PC Figure 6-24: Audio Driver Digital Signal Click Y and the driver installation begins (Figure 6-25). Step 10: Figure 6-25: Audio Driver Installation After the driver installation process is complete, a confirmation screen appears Step 11: (Figure 6-26). Page 131...

  • Page 148: Figure 6-26: Restart The Computer

    AFL-AM2 Panel PC Figure 6-26: Restart the Computer The confirmation screen offers the option of restarting the computer now or later. Step 12: For the settings to take effect, the computer must be restarted. Click F INISH restart the computer. Step 0: Page 132...

  • Page 149: A Safety Precautions

    AFL-AM2 Panel PC Appendix Safety Precautions Page 133...

  • Page 150: Safety Precautions

    AFL-AM2 Panel PC WARNING: The precautions outlined in this chapter should be strictly followed. Failure to follow these precautions may result in permanent damage to the AFL-AM2. A.1 Safety Precautions Please follow the safety precautions outlined in the sections that follow: A.1.1 General Safety Precautions Please ensure the following safety precautions are adhered to at all times.

  • Page 151: Anti-Static Precautions

    AFL-AM2 Panel PC A.1.2 Anti-static Precautions WARNING: Failure to take ESD precautions during the installation of the AFL-AM2 may result in permanent damage to the AFL-AM2 and severe injury to the user. Electrostatic discharge (ESD) can cause serious damage to electronic components, including the AFL-AM2.

  • Page 152: Cleaning Tools

    AFL-AM2 Panel PC The interior of the AFL-AM2 does not require cleaning. Keep fluids away from the AFL-AM2 interior. Be cautious of all small removable components when vacuuming the AFL-AM2. Turn the AFL-AM2 off before cleaning the AFL-AM2. Never drop any objects or liquids through the openings of the AFL-AM2. Be cautious of any possible allergic reactions to solvents or chemicals used when cleaning the AFL-AM2.

  • Page 153: B Bios Configuration Options

    AFL-AM2 Panel PC Appendix BIOS Configuration Options Page 137...
  • Page 154 AFL-AM2 Panel PC B.1 BIOS Configuration Options Below is a list of BIOS configuration options. System Overview .........................68 System Time [hh:mm:ss] ....................69 System Date [dd/mm/yyyy] ....................69 OnBoard PCI IDE Controller [Primary] ................72 IDE Master and IDE Slave....................73 Auto-Detected Drive Parameters..................74 Type [Auto] ...........................75 ZIP............................75 LS-120 ...........................75...
  • Page 155 AFL-AM2 Panel PC Terminal Type [ANSI]......................88 USB 1.1 OHCI Controller [Enabled]..................89 USB 2.0 EHCI Controller [Enabled] ..................89 Legacy USB Support [Enabled]..................90 USB2.0 Controller Mode [HiSpeed]..................90 USB Mass Storage Reset Delay [20 Sec]................91 Device ##..........................92 Emulation Type [Auto]......................92 IRQ# [Available].........................93 DMA Channel# [Available] ....................94 Reserved Memory Size [Disabled] ..................95 Quick Boot [Enabled] ......................96 Quiet Boot [Disabled] ......................96...
  • Page 156 AFL-AM2 Panel PC Resume on Ring [Disabled] ..................... 111 RTC Resume [Disabled] ....................112 Save Changes and Exit ....................113 Discard Changes and Exit....................113 Discard Changes....................... 113 Load Optimal Defaults...................... 114 Load Failsafe Defaults...................... 114 Page 140...

  • Page 157: C Terminology

    AFL-AM2 Panel PC Appendix Terminology Page 141...
  • Page 158 AFL-AM2 Panel PC Audio Codec 97 (AC’97) refers to a codec standard developed by Intel® AC ’97 in 1997. Advanced Configuration and Power Interface (ACPI) is an OS-directed ACPI configuration, power management, and thermal management interface. Advanced Host Controller Interface (AHCI) is a SATA Host controller AHCI register-level interface.
  • Page 159 AFL-AM2 Panel PC Direct Memory Access (DMA) enables some peripheral devices to bypass the system processor and communicate directly with the system memory. Dual Inline Memory Modules are a type of RAM that offer a 64-bit data DIMM bus and have separate electrical contacts on each side of the module. The digital inputs and digital outputs are general control signals that control the on/off circuit of external devices or TTL devices.
  • Page 160 AFL-AM2 Panel PC Liquid crystal display (LCD) is a flat, low-power display device that consists of two polarizing plates with a liquid crystal panel in between. Low-voltage differential signaling (LVDS) is a dual-wire, high-speed LVDS differential electrical signaling system commonly used to connect LCD displays to a computer.

  • Page 161: D Software Drivers

    AFL-AM2 Panel PC Appendix Software Drivers Page 145...

  • Page 162: Remote Management Tool

    AFL-AM2 Panel PC D.1 Remote Management Tool IEI provides optional pre-installed Windows XP Embedded or Windows CE 5.0 turnkey solutions tailored for the AFOLUX series. For information about configuring the operating system, adding remote management tools or additional software and drivers, refer to the software user manuals on IEI AFOLUX series Utility CD that came with the AFOLUX series flat panel PC.
  • Page 163 AFL-AM2 Panel PC Insert the driver CD that came with the AFOLUX series into the CD drive. Step 1: Once the CD drive is installed, the screen in Figure C-1 appears. Step 2: Figure C-1: Driver CD Pop Up Screen Select the operating system installed on the system from the menu on the Step 3: screen.
  • Page 164 AFL-AM2 Panel PC Figure C-2: Welcome Screen The license agreement shown in Figure C-3 appears. Agree to the license by Step 5: selecting “I accept the terms in the license agreement”. Figure C-3: License Agreement Click N and the Installshield Wizard is ready to install the program Step 6: (Figure C-4).
  • Page 165 AFL-AM2 Panel PC Figure C-4: Ready to Install the Program Click I to continue. The Installing PenMount DMC9000 screen appears Step 7: NSTALL as the program is installed (Figure C-5). Figure C-5: Installing PenMount DMC9000 The user is then prompted to select to restart the computer now or later Step 8: (Figure C-6).

  • Page 166: Touch Panel Driver Configuration

    AFL-AM2 Panel PC Figure C-6: Reboot the Computer D.2.3 Touch Panel Driver Configuration To configure the touch panel driver options, refer to the PenMount user manual located on the driver installation CD. Page 150...

  • Page 167: E Watchdog Timer

    AFL-AM2 Panel PC Appendix Watchdog Timer Page 151...
  • Page 168 AFL-AM2 Panel PC NOTE: The following discussion applies to DOS environment. IEI support is contacted or the IEI website visited for specific drivers for more sophisticated operating systems, e.g., Windows and Linux. The Watchdog Timer is provided to ensure that standalone systems can always recover from catastrophic conditions that cause the CPU to crash.

  • Page 169: Example Program

    AFL-AM2 Panel PC NOTE: When exiting a program it is necessary to disable the Watchdog Timer, otherwise the system resets. Example program: ; INITIAL TIMER PERIOD COUNTER W_LOOP: AX, 6F02H ;setting the time-out value BX, 05 ;time-out value is 5 seconds ;...

  • Page 170: F Hazardous Materials Disclosure

    AFL-AM2 Panel PC Appendix Hazardous Materials Disclosure Page 154...

  • Page 171: Hazardous Material Disclosure Table For Ipb Products Certified As Rohs Compliant Under 2002/95/Ec Without Mercury

    AFL-AM2 Panel PC F.1 Hazardous Material Disclosure Table for IPB Products Certified as RoHS Compliant Under 2002/95/EC Without Mercury The details provided in this appendix are to ensure that the product is compliant with the Peoples Republic of China (China) RoHS standards. The table below acknowledges the presences of small quantities of certain materials in the product, and is applicable to China RoHS only.
  • Page 172 AFL-AM2 Panel PC Part Name Toxic or Hazardous Substances and Elements Lead Mercury Cadmium Hexavalent Polybrominated Polybrominated (Pb) (Hg) (Cd) Chromium Biphenyls Diphenyl Ethers (CR(VI)) (PBB) (PBDE) Housing Display Printed Circuit Board Metal Fasteners Cable Assembly Fan Assembly Power Supply Assemblies Battery O: This toxic or hazardous substance is contained in all of the homogeneous materials for the part is below...
  • Page 173 AFL-AM2 Panel PC 此附件旨在确保本产品符合中国 RoHS 标准。以下表格标示此产品中某有毒物质的含量符 合中国 RoHS 标准规定的限量要求。 本产品上会附有”环境友好使用期限”的标签，此期限是估算这些物质”不会有泄漏或突变”的 年限。本产品可能包含有较短的环境友好使用期限的可替换元件，像是电池或灯管，这些元 件将会单独标示出来。 部件名称 有毒有害物质或元素 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (CR(VI)) (PBB) (PBDE) 壳体 显示 印刷电路板 金属螺帽 电缆组装 风扇组装 电力供应组装 电池 O: 表示该有毒有害物质在该部件所有物质材料中的含量均在 SJ/T11363-2006 标准规定的限量要求以下。 X: 表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 SJ/T11363-2006 标准规定的限量要求。 Page 157...
  • Page 174 AFL-AM2 Panel PC Index Page 158...
  • Page 175 AFL-AM2 Panel PC DB-9 connector ..........48 Dimensions ..12, 13, 14, 15, 16, 17, 41, 42 Drivers ABS/PC plastic frame ......5, 45 Broadcom GbE LAN ......123 AC power adapter........6 Realtek AC`97 Audio - ALC665 ..127 ACPI ............85 AMD Socket AM2 CPU installation..........55 anti-static precautions FDD............79...
  • Page 176 AFL-AM2 Panel PC Touch screen..........10 Reset button ..........6 RJ-45 connection........47 USB............. 89, 90 single connector ........47 external USB device connection ...49 RoHS ............4 USB 2.0..........6, 89 USB device connection......49 single connector ........49 Safety Precautions........134 SATA controller..........21 VGA ............50 Serial Device VGA monitor..........50 connection ..........48 connection ..........50...

This manual is also suitable for:

Afolux afl-15b-am2Afolux afl-17b-am2Afolux afl-19b-am2

Table of Contents
