R360-IV
Embedded Ceilling Mount 360° Panomorph Lens / Camera Enclosure

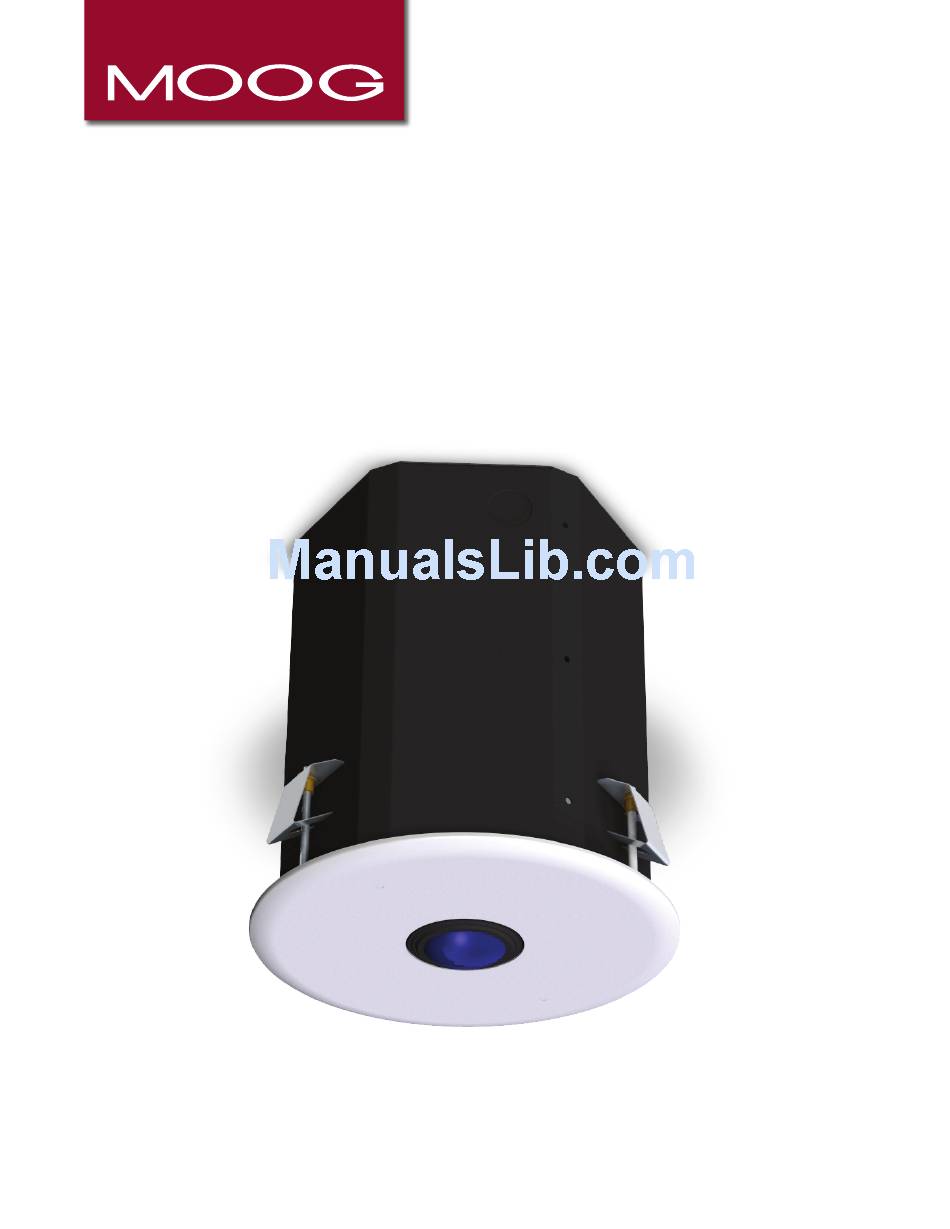

R360-IV..................... The R360-IV indoor ceiling-mount housing features a flush plate that accommodates an ImmerVision Enables® panomorph lens and
qualified box camera. The upper body, made of heavy 20 and 22-gauge steel and a white powder metal trim ring is plenum rated
for fire resistant ceiling applications
© 2013, Moog Inc. All Rights Reserved
Moog Inc.
Sensor and Surveillance Systems
3650 Woodhead Drive Northbrook, IL. USA 60062
+1.847.498.0700 Fax: +1.847.498.1258 www.moogS3.com
Installation and Operation Instructions
Before attempting to connect or operate this product, please
read these instructions completely.
81-IN5502 110513
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Moog R360-IV
Summary of Contents for Moog R360-IV
- Page 1 Embedded Ceilling Mount 360° Panomorph Lens / Camera Enclosure R360-IV..... The R360-IV indoor ceiling-mount housing features a flush plate that accommodates an ImmerVision Enables® panomorph lens and qualified box camera. The upper body, made of heavy 20 and 22-gauge steel and a white powder metal trim ring is plenum rated for fire resistant ceiling applications Moog Inc.
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS SAFETY PRECAUTIONS Read these instructions. Keep these instructions. CAUTION Heed all warnings RISK OF ELECTRIC SHOCK DO NOT OPEN Follow all instructions. Do not use this apparatus near water. CAUTION: TO REDUCE THE RISK OF Clean only with damp cloth. ELECTRIC SHOCK, DO NOT REMOVE COVER ( OR BACK). -
Page 3: Product Warranty Registration
Register Your Products Online www.moogS3.com/technical-support/product-registration Moog values your patronage. We are solely committed to providing you with the highest quality products and superior customer service. With 3-Year and 5-Year warranties (depending on the product purchased) we stand behind every product we sell. - Page 4 ™ During the labor warranty period, to repair the Product, Purchaser will either return the defective product, freight prepaid, or deliver it to Manufacturer at Moog Decatur Operations, 2525 Park Central Boulevard, Decatur, Georgia, 30035. The Product to be repaired is to be returned in either its original carton or a similar package affording an equal degree of protection with a RMA # (Return Materials Authorization number) displayed on the outer box or packing slip.
-
Page 5: Electrical Specifications
Electrical Specifications Contents of Box IRM360-IV Power 24VAC Class 2 Only English Energía 24VAC. Clase 2 solamente Español Puissance 24VAC. Classe 2 seulement Français Energie 24VAC. Kategorie 2 nur Deutsch Poder 24VAC. Classe 2 somente Portuguese Potere 24VAC. Codice categoria 2 soltanto Italiano... - Page 6 7.25” A box cutter or jigsaw can be used for Using the provided template, mark the cutting the circle. ceiling tile for the cutout. • Con la plantilla proporcionada, cortar el azulejo del • Un cortador o un rompecabezas de la caja se techo para el agujero.
- Page 7 Camera and Lens provided by others The beam angle may be adjusted on the I nstall the camera on the fixed bracket and Add the safety wire to the can, connect to bottom of the unit. complete all wiring applications. structural support.
- Page 8 Center the lens/camera in the housing. Tighten the cameras thumb screws. • • Centro de la lente / cámara en la carcasa. Apriete los tornillos de mariposa cámaras. • • Centre de la lentille / caméra dans le boîtier. Serrer les vis de caméras pouce. •...
-
Page 9: Replacement Parts List
• Drücken Sie den Zierring bis die Halterungen einrasten. • Empurre o anel de acabamento até que as abas encaixem no lugar. • Spingere l'anello di chiusura finché le linguette scattano in posizione. Replacement Parts List R360-IV DESCRIPTION REPLACEMENT PARTS NUMBER PRVL4267...
