FDW75F2N
FusionDome

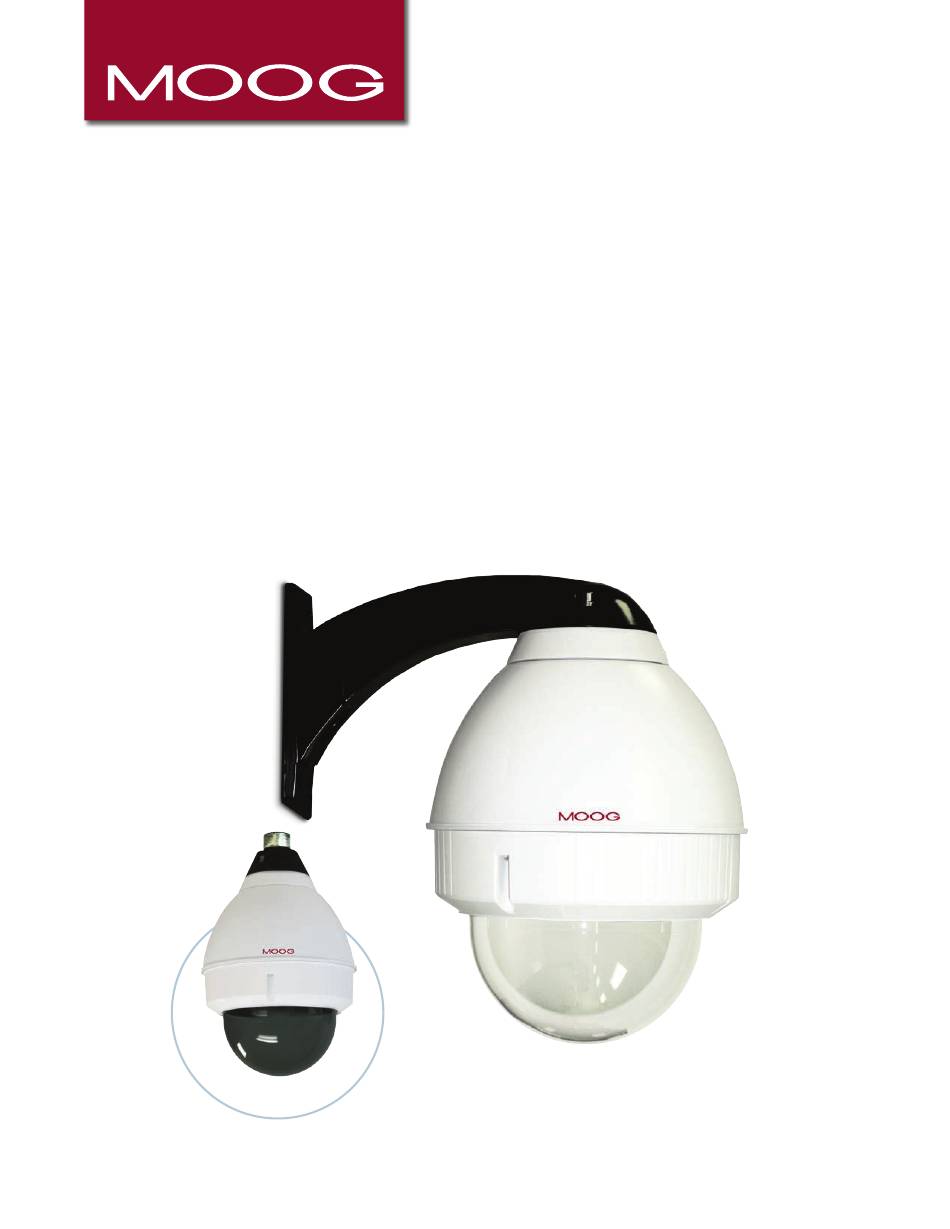

Fixed Indoor Outdoor Wall or Pendant Mounted Camera Enclosure
FDW75CF2N.............. IP Network Ready 7" Outdoor dome housing with wall mount, clear dome, with 24VAC input, heater / blower, for an IP Network fixed
camera, 120 to 24VAC transformer
FDW75TF2N.............. IP Network Ready 7" Outdoor dome housing with wall mount,tinted dome, with 24VAC input, heater / blower, for an IP Network fixed
camera, 120 to 24VAC transformer
IFDP75CF2N.............. IP Network Ready 7" Indoor dome housing with pendent mount, clear dome with 24VAC input, heater / blower, for an IP Network fixed
camera, 120 to 24VAC transformer
FDW75CF2................ Outdoor dome housing with wall mount, clear dome with 24VAC input, heater / blower, fixed camera bracket
IFDW75CF.................. Indoor dome housing with wall mount, clear dome, for an IP network fixed camera, no electronics
IFDP75CF................... Indoor dome housing with pendant mount, clear dome, for an IP network fixed camera, no electronics
Substitute "C" (Clear dome) for "T" (Tinted dome) version or "P" (Pendant mount) for "W" (Wall mount) version
Pendant Mount
© 2013, Moog Inc. All Rights Reserved
Moog Inc.
Sensor and Surveillance Systems
3650 Woodhead Drive Northbrook, IL. USA 60062
+1.847.498.0700 Fax: +1.847.498.1258 www.moogS3.com
Installation and Operation Instructions
Before attempting to connect or operate this product, please
read these instructions completely.
81-IN5359 111313

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FusionDome FDW75F2N and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Moog FusionDome FDW75F2N

  • Page 1 Substitute “C” (Clear dome) for “T” (Tinted dome) version or “P” (Pendant mount) for “W” (Wall mount) version Pendant Mount Moog Inc. Sensor and Surveillance Systems 3650 Woodhead Drive Northbrook, IL. USA 60062 81-IN5359 111313 © 2013, Moog Inc. All Rights Reserved +1.847.498.0700 Fax: +1.847.498.1258 www.moogS3.com...
  • Page 2: Important Safeguards

    IMPORTANT SAFEGUARDS SAFETY PRECAUTIONS Read these instructions. Keep these instructions. CAUTION Heed all warnings RISK OF ELECTRIC SHOCK DO NOT OPEN Follow all instructions. Do not use this apparatus near water. CAUTION: TO REDUCE THE RISK OF Clean only with damp cloth. ELECTRIC SHOCK, DO NOT REMOVE COVER ( OR BACK).
  • Page 3: Product Warranty Registration

    Register Your Products Online www.moogS3.com/technical-support/product-registration Moog values your patronage. We are solely committed to providing you with the highest quality products and superior customer service. With 3-Year and 5-Year warranties (depending on the product purchased) we stand behind every product we sell.
  • Page 4 ™ During the labor warranty period, to repair the Product, Purchaser will either return the defective product, freight prepaid, or deliver it to Manufacturer at Moog Decatur Operations, 2525 Park Central Boulevard, Decatur, Georgia, 30035. The Product to be repaired is to be returned in either its original carton or a similar package affording an equal degree of protection with a RMA # (Return Materials Authorization number) displayed on the outer box or packing slip.
  • Page 5: Electrical Specifications

    Electrical Specifications Contents of Box FDW75F2N Power 24VAC Class 2 Only 24 VAC 26 Watts Accessories: Heater: 25 Watts, Blower: 1 Watt Camera Power: 26 Watts Max Tools Required: .100” Flat Head Screwdriver Phillips Head Screwdriver English 24 VAC 26 vatios Accesorios: Calentador: 25 Vatios, Soplador: 1 vatio Energía De la Cámara fotográfica:...
  • Page 6 WALL MOUNTING 4”-5” Trim incoming control & power wires to 4”- 5”, Bracket is designed for 45° conduit tting (If using the for either wall or pendent bracket. conduit). Run wire into bracket, secure to wall. • El soporte se diseña para la guarnición del conducto 45° (si usa el •...
  • Page 7 WALL MOUNTING Important Gasket Must be in place 26 Watts COAX (coax wire not supplied) Wiring the dome can be completed by Align large arrows. referring to the diagram. • Atar con alambre la bóveda puede ser terminada • Alinee las flechas grandes. refiriendo al diagrama.
  • Page 8 FOR PENDENT/ WALL MOUNTING 4”-5” Trim incoming control and power wires to 4-5” for Secure lanyard to lanyard clip. either wall or pendent bracket. • Ajuste los alambres entrantes del control y de la energía a • Asegure el acollador al clip del acollador. 4-5”...
  • Page 9 Important Gasket Must be in place Align large arrows. To lock, turn clockwise. • Alinee las flechas grandes. • Para trabarse, dar vuelta a la derecha. • Alignez les grandes flèches. • Pour fermer à clef, tourner dans le sens des aiguilles d'une montre.
  • Page 10 RJ45 24VAC POWER Camera Max 40 Watts Camera Orange Heater/Blower Yellow 26 Watts Heater/Blower Green Make the appropriate male and female connections. Indoor model does not include pre-run cables. • Haga las conexiones masculinas y femeninas apropiadas. El modelo de interior no incluye pre-funciona los cables. •...
  • Page 11 Loosen the thumb screws to adjust the Bolt camera to camera bracket as shown. cameras height and tilt angle. • Cámara fotográfica del perno al soporte de la cámara • Afloje los tornillos de pulgar para ajustar la altura de las fotográfica según lo demostrado.
  • Page 12 Fasten down the dome with a Phillips Wipe the dome clean. screwdriver. • Sujete abajo de la bóveda con un destornillador • Limpie la bóveda limpia. Phillips. • Attachez en bas du dôme avec un tournevis • Essuyez le dôme. Phillips.
  • Page 13: Replacement Parts List

    Replacement Parts List FDW75CF2N PART NUMBER DESCRIPTION FD7C CLEAR REPLACEMENT CAPSULE 1A FD7T TINTED REPLACEMENT CAPSULE RPFD7501 LOWER TRIM RING RPFD703 DOME CLAMPING RING RPNET02 NETWORK HGS POWER SUPPLY RPFD072 24V HEATER 5A RPFD072/12 12V HEATER (12VDC MODELS ONLY) RPFD080 BLOWER RP3510 CAMERA BRACKET...
