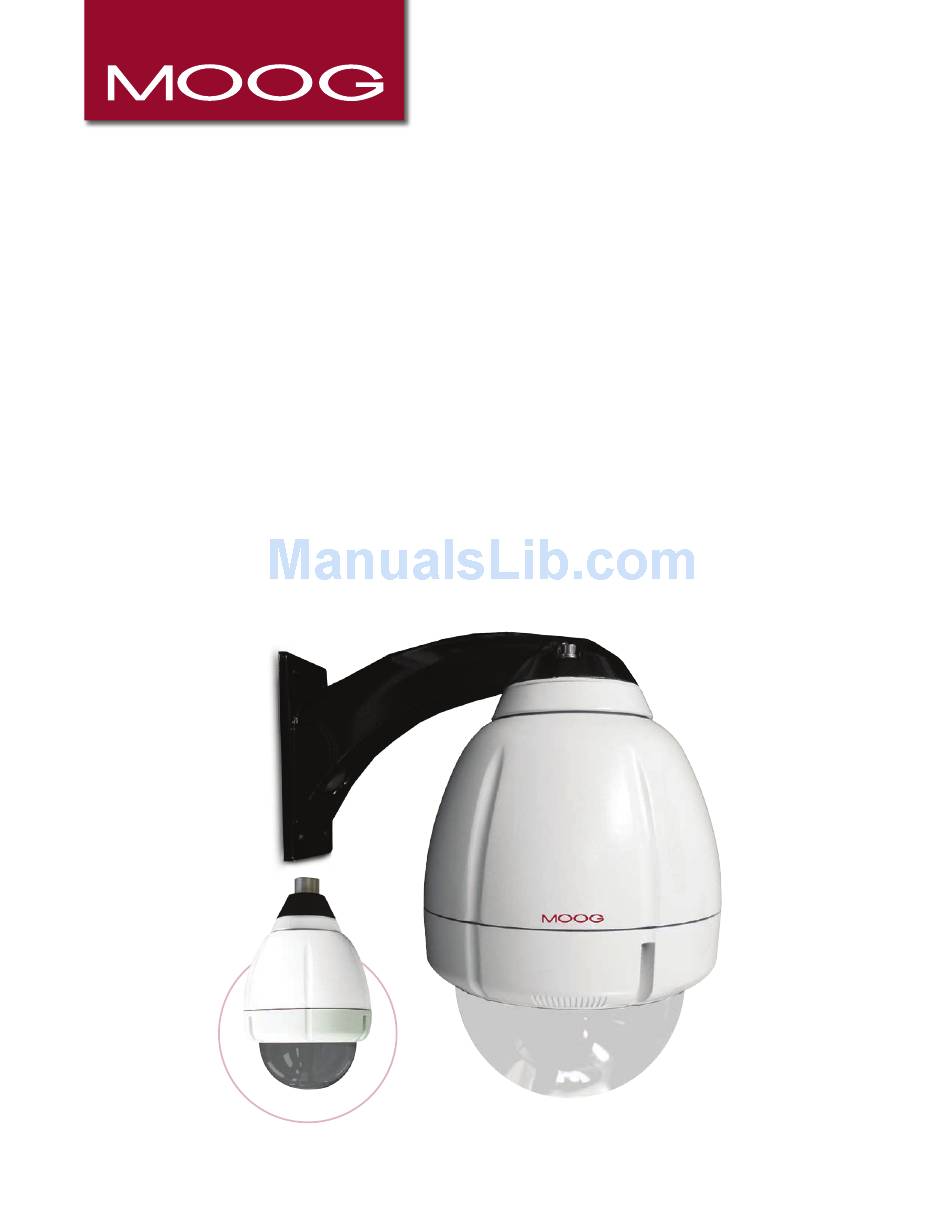

RHW75
Vandal Resistant Rugged Indoor Outdoor Wall or Pendant Mounted Dome Camera Enclosure
RHW75C2N............... IP Network Ready 7" Vandal Resistant Outdoor dome housing with wall mount, rugged cast aluminum top and polycarbonate clear
dome, with 24VAC input, heater / blower, for an IP Network PTZ camera, 120 to 24VAC transformer.
RHP75C2N................ IP Network Ready 7" Vandal Resistant Outdoor dome housing with pendent mount, rugged cast aluminum top and polycarbonate clear
dome, with 24VAC input, heater/blower, for an IP Network PTZ camera, 120 to 24VAC transformer.
IRHW75C2N............... IP Network Ready 7" Vandal Resistant Indoor dome housing with wall mount, rugged cast aluminum top and polycarbonate clear dome.
IRHP75C2N............... IP Network Ready 7" Vandal Resistant Indoor dome housing with pendent mount, rugged cast aluminum top and polycarbonate
clear dome.
IRHW7C..................... Vandal Resistant Indoor dome housing with wall mount, rugged cast aluminum top and polycarbonate clear dome.
RHW75C2NE............. IP Network Ready 7" Vandal Resistant Outdoor dome housing with wall mount, rugged cast aluminum top and polycarbonate clear
dome, with 24VAC input, heater / blower, for an IP Network PTZ camera, 120 to 24VAC transformer. (European Model)
Substitute "C" (Clear dome) for "T" (Tinted dome) version or "P" (Pendant mount) for "W" (Wall mount) version
To be used with the 81-IN5481 Instruction Manual.
© 2013, Moog Inc. All Rights Reserved
Pendant Mount
Sensor and Surveillance Systems
3650 Woodhead Drive Northbrook, IL. USA 60062
+1.847.498.0700 Fax: +1.847.498.1258 www.moogS3.com
Installation and Operation Instructions
Before attempting to connect or operate this product, please
read these instructions completely.
Moog Inc.
81-IN5309 111313
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Moog RHW75C2N
Summary of Contents for Moog RHW75C2N
- Page 1 Vandal Resistant Rugged Indoor Outdoor Wall or Pendant Mounted Dome Camera Enclosure RHW75C2N....IP Network Ready 7” Vandal Resistant Outdoor dome housing with wall mount, rugged cast aluminum top and polycarbonate clear dome, with 24VAC input, heater / blower, for an IP Network PTZ camera, 120 to 24VAC transformer.
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS SAFETY PRECAUTIONS Read these instructions. Keep these instructions. CAUTION Heed all warnings RISK OF ELECTRIC SHOCK DO NOT OPEN Follow all instructions. Do not use this apparatus near water. CAUTION: TO REDUCE THE RISK OF Clean only with damp cloth. ELECTRIC SHOCK, DO NOT REMOVE COVER ( OR BACK). -
Page 3: Product Warranty Registration
Register Your Products Online www.moogS3.com/technical-support/product-registration Moog values your patronage. We are solely committed to providing you with the highest quality products and superior customer service. With 3-Year and 5-Year warranties (depending on the product purchased) we stand behind every product we sell. - Page 4 One (1) Year During the labor warranty period, to repair the Product, Purchaser will either return the defective product, freight prepaid, or deliver it to Manufacturer at Moog Decatur Operations, 2525 Park Central Boulevard, Decatur, Georgia, 30035. The Product to be repaired is to be returned in either its original carton or a similar package affording an equal degree of protection with a RMA # (Return Materials Authorization number) displayed on the outer box or packing slip.
-
Page 5: Electrical Specifications
Electrical Specifications Contents of Box RHW75 Power 24VAC Class 2 Only 24 VAC 92 Watts Accessories: Heater: 50 Watts, Blower: 2 Watt Camera Power: (See Camera Specifications): 40 Watts Max Tools Required: .100” Flat Head Screwdriver Phillips Head Screwdriver English 24 VAC 92 Vatios De Accesorios: Calentador: 50 Watts, Blower: 2 Vatio... - Page 6 WALL MOUNTING 4”-5” Trim incoming control & power wires to 4”- 5”, Bracket is designed for 45° conduit tting (If using the for either wall or pendent bracket. conduit). Run wire into bracket, secure to wall. • El soporte se diseña para la guarnición del conducto 45° (si usa el •...
- Page 7 WALL MOUNTING Important Gasket Must be in place 40 Watts 26 Watts COAX (coax wire not supplied) Wiring the dome can be completed by Align large arrows. referring to the diagram. • Atar con alambre la bóveda puede ser terminada •...
- Page 8 FOR PENDENT/ WALL MOUNTING 4”-5” Trim incoming control and power wires to 4-5” for Secure lanyard to lanyard clip. either wall or pendent bracket. • Ajuste los alambres entrantes del control y de la energía a • Asegure el acollador al clip del acollador. 4-5”...
- Page 9 Important Gasket Must be in place Align large arrows. To lock turn clockwise. • Alinee las flechas grandes. • Alinee las flechas grandes. • Alignez les grandes flèches. • Alignez les grandes flèches. • Richten Sie große Pfeile aus. • Richten Sie große Pfeile aus. •...
- Page 10 RJ45 24VAC POWER Camera Max 40 Watts Camera Orange Heater/Blower Yellow 26 Watts Heater/Blower Green Alarm 1 Blue Alarm 2 Violet Alarm 3 Gray Common White Make the appropriate male and female connections. Indoor model does not include pre-run cables. •...
- Page 11 è completamente esteso all'interno dell'alloggiamento della macchina fotografica di Moog. Per le applicazioni dove il 35x pieno lo zoom ad alta potenza è necessario, prego si mette in contatto con Moog per chiedere una cupola acrilica libera otticamente aumentata gratuita.
- Page 12 PB24 Addendum Additional wires are provided to run power to PB24. Use with connector supplied. Run RJ45 connector through PB24, wall mount, and connect lead from housing. • Los alambres adicionales se proporcionan a la energía funcionada con a PB24. El uso con el conectador proveyó. Funcione con el conectador RJ45 con PB24, emparede el montaje, y conecte el plomo de la cubierta.
-
Page 13: Replacement Parts List
Replacement Parts List RHW75 IRHW75 PART NUMBER DESCRIPTION RC7C CLEAR REPLACEMENT CAPSULE 1A RC7T TINTED REPLACEMENT CAPSULE RPRH752 LOWER TRIM RING RPRH7503 DOME CLAMPING RING RPNET02 NETWORK HGS POWER SUPPLY RPFD072 24V HEATER 5A RPFD072/12 12V HEATER (12VDC MODELS ONLY) RPFD080 BLOWER RP3510...
