© 2009, Videolarm, Inc. All Rights Reserved

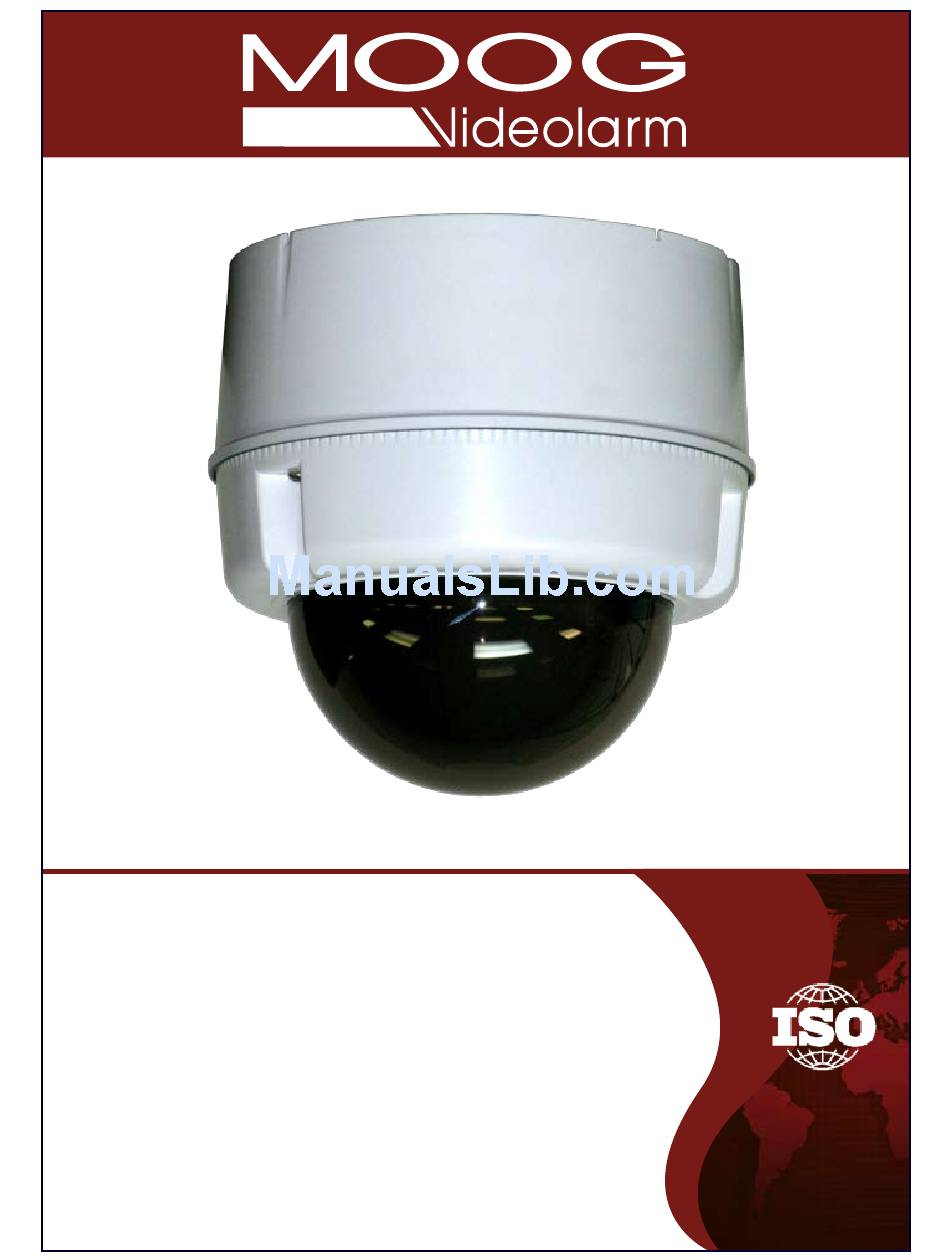

SM5
Compact Vandal-Resistant Surface Mount Dome-5"
Installation and Operation Instructions for the following models:
SM5C2N
Outdoor 5' IP Ready surface mount housing for a small PTZ camera,
conduit input from the side and the top of the housing. 24Vac input,
with heater/blower. Polycarbonate body and dome. IP66. 1" NPT
threads for pendant mount- includes 1.5A 12VDC camera power supply
and wall transformer
SM5CF2
(Fixed camera version of the SM5C2N)
ISM5CN
(Indoor version of the SM5C2N without the heater/blower and 1.5A
12VDC camera power supply and wall transformer)
ISM5CF
(Indoor version of the SM5CF2 without the heater/blowerand 1.5A
12VDC camera power supply and wall transformer)
SM5C24N
(24Vac only version of the SM5C2N)
SM5C24N
(Fixed version of the SM5C24N)
Before attempting to connect or operate this product,
please read these instructions completely.
www.videolarm.com
CERTIFIED
81-IN5431
01-29-2010
Advertisement
Related Manuals for Moog SM5
Summary of Contents for Moog SM5
- Page 1 © 2009, Videolarm, Inc. All Rights Reserved Compact Vandal-Resistant Surface Mount Dome-5” www.videolarm.com Installation and Operation Instructions for the following models: SM5C2N Outdoor 5’ IP Ready surface mount housing for a small PTZ camera, conduit input from the side and the top of the housing. 24Vac input, with heater/blower.
- Page 2 IMPORTANT SAFEGUARDS SAFETY PRECAUTIONS Read these instructions. Keep these instructions. CAUTION Heed all warnings RISK OF ELECTRIC SHOCK DO NOT OPEN Follow all instructions. Do not use this apparatus near water. CAUTION: TO REDUCE THE RISK OF Clean only with damp cloth. ELECTRIC SHOCK, DO NOT REMOVE Do not block any of the ventilation openings.
- Page 3 LIMITED WARRANTY FOR VIDEOLARM INC. PRODUCTS VIDEOLARM INC. warrants this Product to be free from defects in material or workmanship,as follows: PRODUCTCATEGORY PARTS LABOR All Enclosures and Electronics Five (5) Years Five (5) Years Pan/Tilts Three (3) Years **6 months if used in autoscan Three (3) Years **6 months if used in autoscan /tour operation /tour operation...
-
Page 4: Electrical Specifications
Electrical Specifications Contents of Box SM5C2N Power 24VAC Class 2 Only SM5CFN ISM5CN ISM5CF 24 VAC Accessories: Heater/ Blower: 40 Watts Camera Power: SEE CAMERA MANUAL Tools Required: Phillips Head Screwdriver ⅝” Allen Wrench English 24 VAC Accesorios: Calentador: 40 watts, Soplador: 40 Watts Energía De la Cámara fotográfica: SEE CAMERA MANUAL Las Herramientas Requirieron: Destornillador Principal Plano Del ⅝”... - Page 5 For Surface Mounting using side conduit entrance PACKETS (1) Mounting Plate (1) 1/4 x 20 Bolt (1) 1/4 Flat Washer (1) 1/4 Lock Washer (4) M3 6mm Bolt (4) M3 Lock Washers (7) 8 x 32 x 3/8" bolts (2) 8 x 32 Nuts (2) 94-FSCT01 Fixed Etch knockout slightly with utility knife.
- Page 6 For Surface Mounting using side conduit entrance For Surface mount applications Drill out (3) mounting holes as shown for # 10 Mount securely to ceiling or mounting hardware (not supplied) surface using the appropriate hardware • Taladre (3) los agujeros de montaje como se muestra •...
- Page 7 For Pendant or Wall mount applications For Pendant or Wall mount applications Seal pipe threads with teflon tape supplied Thread housing to optional pendent pipe or with outdoor housings wall mount bracket • Hilos de rosca de pipa del sello con la cinta del Teflon •...
- Page 8 For indoor ceiling application with electrical box Housing is designed to mount to 4 11 /16 x 4 11 /16” Drill out appropriate (2) mounting holes electrical box. Mount box securely to ceiling structure • Taladre (2) los agujeros de montaje apropiados •...
- Page 9 Axis M-10 Axis 207 Adding Camera hole Spacers pattern Attach Axis camera mount to camera base plate. Use (4) 1” spacers and attach camera base plate to housing. • Ate el montaje de cámara del eje al embase de la cámara. Utilice (4) los” espaciadores 1 y ate el embase de la cámara a la cubierta.
- Page 10 Axis 216 CAMERA ½" Use this hole pattern 2" Secure camera quick release Tighten hardware and Install (4) .5” + (4) 2.0” mounting plate with #8 hardware complete wiring spacers to center bosses provided • Instale (4) .5” + (4) 2.0” espaciadores para •...
- Page 11 AXIS 215 CAMERA ½" Use this hole pattern 1" Secure camera quick release Install (4) .5” + (4) 1.0” Tighten hardware and mounting plate with #8 spacers to center bosses complete wiring hardware provided • Pletina segura del lanzamiento rápido de la •...
- Page 12 Canon VC-C50iR CAMERA Use this hole 1" pattern 1" Secure camera quick release Install (4) .5” + (4) 1.0” Tighten hardware and mounting plate with #8 spacers to center bosses complete wiring hardware provided • Pletina segura del lanzamiento rápido de la •...
- Page 13 Acti ACM 8201/ ACM 8211 CAMERA Use this hole 1" pattern Secure camera quick release Install (4) 1” spacer to Tighten hardware and mounting plate with #8 hardware center bosses complete wiring provided • Pletina segura del lanzamiento rápido de la cámara •...
- Page 14 Panasonic BB-HCM381 / BBHCM580 / KX-HCM280A CAMERA Use this hole ½" pattern Secure camera quick release Install (4) ½” spacers to Tighten hardware and mounting plate with #8 center bosses complete wiring hardware provided • Instale (4) espaciadores del ½ los” para •...
- Page 15 Panasonic WV-NF284 - WV-NF302 CAMERA 1" Secure camera quick release Install (4) 1” spacer to Secure camera safety screw mounting plate with #8 center bosses hardware provided • Pletina segura del lanzamiento rápido de la • Instale (4) 1” espaciador para centrar los •...
- Page 16 Toshiba IKWB21A CAMERA ½" Secure camera quick release Tighten hardware and Install (4) ½” spacers to mounting plate with #8 hardware complete wiring center bosses provided • Pletina segura del lanzamiento rápido de la cámara • Instale (4) espaciadores del ½ los” para •...
- Page 17 ELMO 401 CAMERA ½" 2" Secure camera quick release Install (4) .5” + (4) 1.0” Tighten hardware and mounting plate with #8 hardware spacers to center bosses complete wiring provided • Instale (4) .5” + (4) 1.0” espaciadores para • Apriete el hardware y termine el cableado •...
- Page 18 Wire Gauge Total vA consumed 1300 36.5 54.9 91.4 1440 27.1 43.0 68.6 19.8 27.4 39.6 68.6 13.4 21.3 34.1 54.6 86.9 10.6 17.1 27.4 43.6 69.5 14.3 22.9 36.2 57.9 91.7 12.2 19.5 31.1 49.7 78.6 24 VAC OUTPUT FOR CAMERA 10.3 16.8...
- Page 19 12VDC Power Connector Locate 12VDC Power Connector Connect power and control wires to camera • Disposición del modelo con la fuente de alimentación • Conecte la energía y controle los alambres a la 12VDC cámara • Disposition de modèle avec l'alimentation de l'énergie •...
-
Page 20: Replacement Parts List
Secure Dome Assembly to housing Clean dome with MILD soap and water ONLY • Asegure la asamblea de la bóveda a la cubierta • Limpie la bóveda con el jabón y agua SUAVES SOLA- MENTE • Fixez l'Assemblée de dôme au logement •... -
Page 21: Product Registration/Warranty
Product Registration/Warranty Thank you for choosing Videolarm. We value your patronage and are solely committed to providing you with only the highest quality products available with unmatched customer service levels that are second-to-none in the security industry. Should a problem arise, rest assure that Videolarm stands behind its products by offering some of the most impressive warranty plans available: 3 Years on all Housings, Poles, Power Supplies, and Accessories and 5 Years on all camera systems (SView, QView, Warriors), and InfraRed Illuminators.
