RM7CF2N

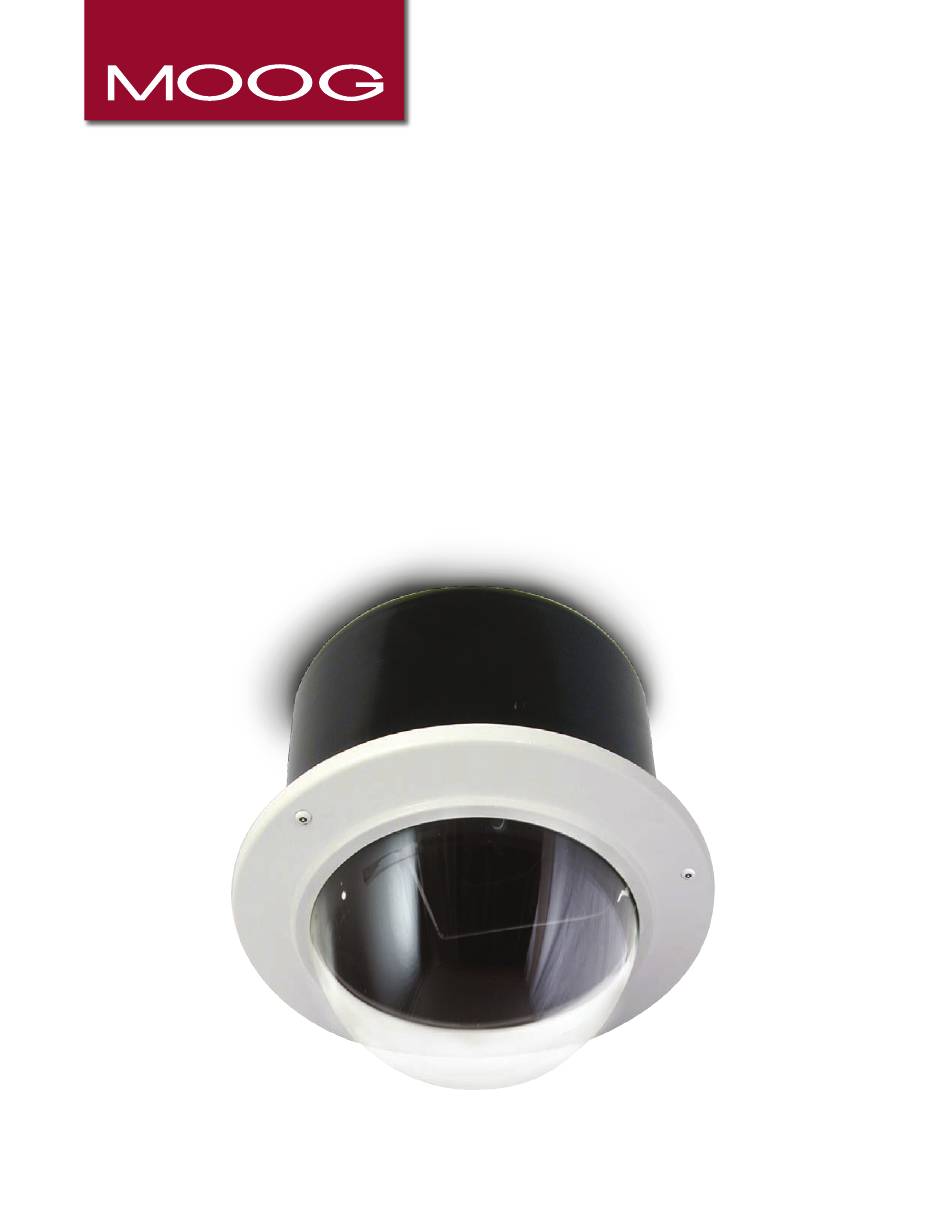

Fixed Vandal Resistant, Recessed Ceiling Mounted Dome Camera Enclosure
RM7CF2.................... Outdoor 24Vac clear Vandal Resistant recessed housing for fixed camera with heater / blower
RM7CF2N.................. Outdoor 24Vac clear Vandal Resistant recessed housing for fixed network (12Vdc) camera with heater / blower
IRM7CF...................... Indoor clear Vandal Resistant recessed housing for fixed camera
IRM7CF2N................. Indoor 24Vac clear Vandal Resistant recessed housing for fixed network (12Vdc) camera with heater / blower
IRM7TF...................... Indoor tinted Vandal Resistant recessed housing for fixed camera
RM7TF2N.................. Outdoor 24Vac tinted Vandal Resistant recessed housing for fixed network (12Vdc) camera with heater / blower
IRM7CF2....................Indoor 24Vac clear Vandal Resistant recessed housing for fixed camera with heater / blower
Substitute "C" (Clear dome) for "T" (Tinted dome) version
© 2013, Moog Inc. All Rights Reserved
Moog Inc.
Sensor and Surveillance Systems
3650 Woodhead Drive Northbrook, IL. USA 60062
+1.847.498.0700 Fax: +1.847.498.1258 www.moogS3.com
Installation and Operation Instructions
Before attempting to connect or operate this product, please
read these instructions completely.
81-IN5395 111313
Advertisement
Table of Contents
Related Manuals for Moog RM7CF2N
Summary of Contents for Moog RM7CF2N
- Page 1 RM7CF2....Outdoor 24Vac clear Vandal Resistant recessed housing for fixed camera with heater / blower RM7CF2N....Outdoor 24Vac clear Vandal Resistant recessed housing for fixed network (12Vdc) camera with heater / blower IRM7CF...... Indoor clear Vandal Resistant recessed housing for fixed camera IRM7CF2N....
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS SAFETY PRECAUTIONS Read these instructions. Keep these instructions. CAUTION Heed all warnings RISK OF ELECTRIC SHOCK DO NOT OPEN Follow all instructions. Do not use this apparatus near water. CAUTION: TO REDUCE THE RISK OF Clean only with damp cloth. ELECTRIC SHOCK, DO NOT REMOVE COVER ( OR BACK). -
Page 3: Product Warranty Registration
Register Your Products Online www.moogS3.com/technical-support/product-registration Moog values your patronage. We are solely committed to providing you with the highest quality products and superior customer service. With 3-Year and 5-Year warranties (depending on the product purchased) we stand behind every product we sell. - Page 4 One (1) Year During the labor warranty period, to repair the Product, Purchaser will either return the defective product, freight prepaid, or deliver it to Manufacturer at Moog Decatur Operations, 2525 Park Central Boulevard, Decatur, Georgia, 30035. The Product to be repaired is to be returned in either its original carton or a similar package affording an equal degree of protection with a RMA # (Return Materials Authorization number) displayed on the outer box or packing slip.
-
Page 5: Electrical Specifications
Contents of Box Electrical Specifications RM7CF2N Power 24VAC RM7CF2 ( OUTDOOR ONLY ) Class 2 Only 24 VAC 2.25 Amps 54 Watts Total Power: 54 Watts Accessories: Heater: 25 Watts/Blower: 1 Watt English Camera Power: 28 Watts Tools Required: .100” Flat Head Screwdriver... - Page 6 10.375” A box cutter or jigsaw can be used for Using the provided template, mark the cutting the circle. ceiling tile for the cutout. • Con la plantilla proporcionada, cortar el azulejo del • Un cortador o un rompecabezas de la caja se techo para el agujero.
- Page 7 Add the safety wire to the flex conduit or The alternate location to attach the safety continue to the next step. wire is on the housing secure tab. • La localización alterna para unir el alambre de seguridad • Agregue el alambre de seguridad al conducto de la está...
- Page 8 WIRING INSIDE HOUSING 12VDC Power leads RM7F2N 12VDC+ 12VDC- Black Camera power supply DC power for camera (red & black wires) The beam angle may be adjusted on the The beam angle may be adjusted on the These are recommended maximum distances I nstall the camera on the fixed bracket and bottom of the unit.
