5.4.2.2. Audio crosspoint

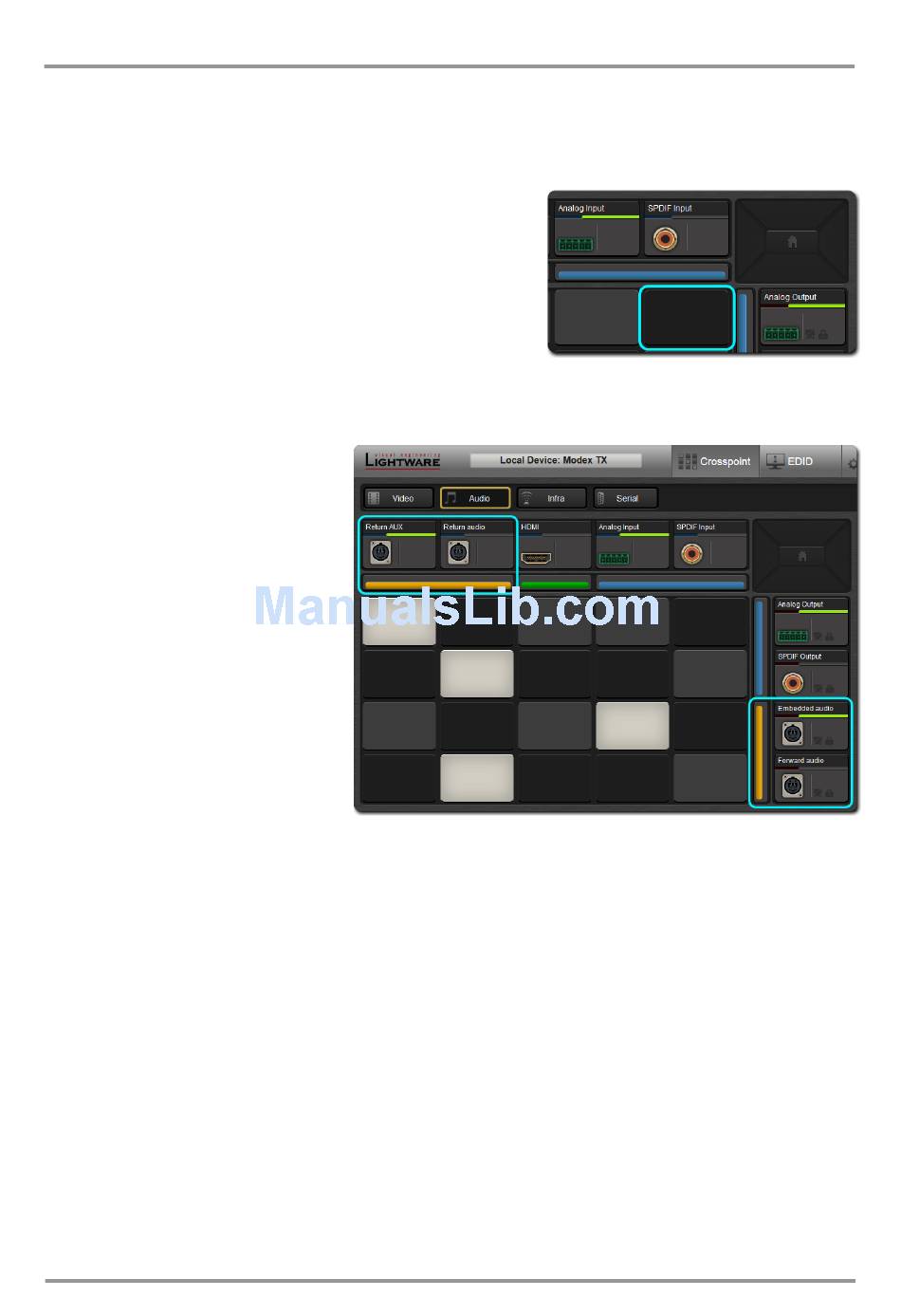

In the main menu left click on the Crosspoint label then left click on Audio label the
audio crosspoint appears. The inputs are at the top row and the outputs are at the right
column. The number of the inputs and the outputs depends on the number, the direction
and the mode settings of the audio modules.
OPTx extenders support two audio groups the
Main audio group and the S/Pdif audio
group. These groups are independent from
each other. In this case there are forbidden
crosspoint connections.
The link can support four audio layers. The
Embedded audio (from Tx to Rx) and the
Return AUX (from Rx to Tx) belongs to the
Main audio group. The Forward Audio (from Tx to Rx) and Return Audio (from Rx to
Tx) belongs to the S/PDIF audio group.
At the transmitter
side the Embedded
audio
Forward
appears
output, the Return
Audio
Return
appears
input.
receiver
direction
opposite.
The input and output settings can be accessed through module and port properties.
Every port is represented with a connector icon, while the modules are represented with a
colored bar. Some modules have multiple ports so the module settings may affect which
ports can be used. Ports settings can be accessed through the Port property icon. The
module settings can be accessed through the Module property bar.
Section 5. Web control – Using the Built-in website
and the
Audio
as an
and the
AUX
as an
At the
side the
is the
