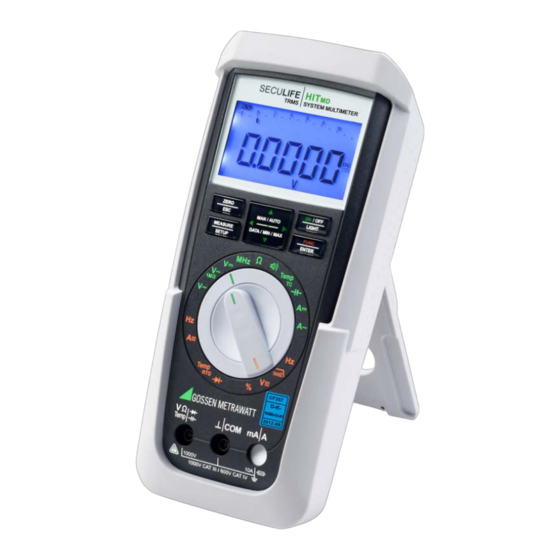

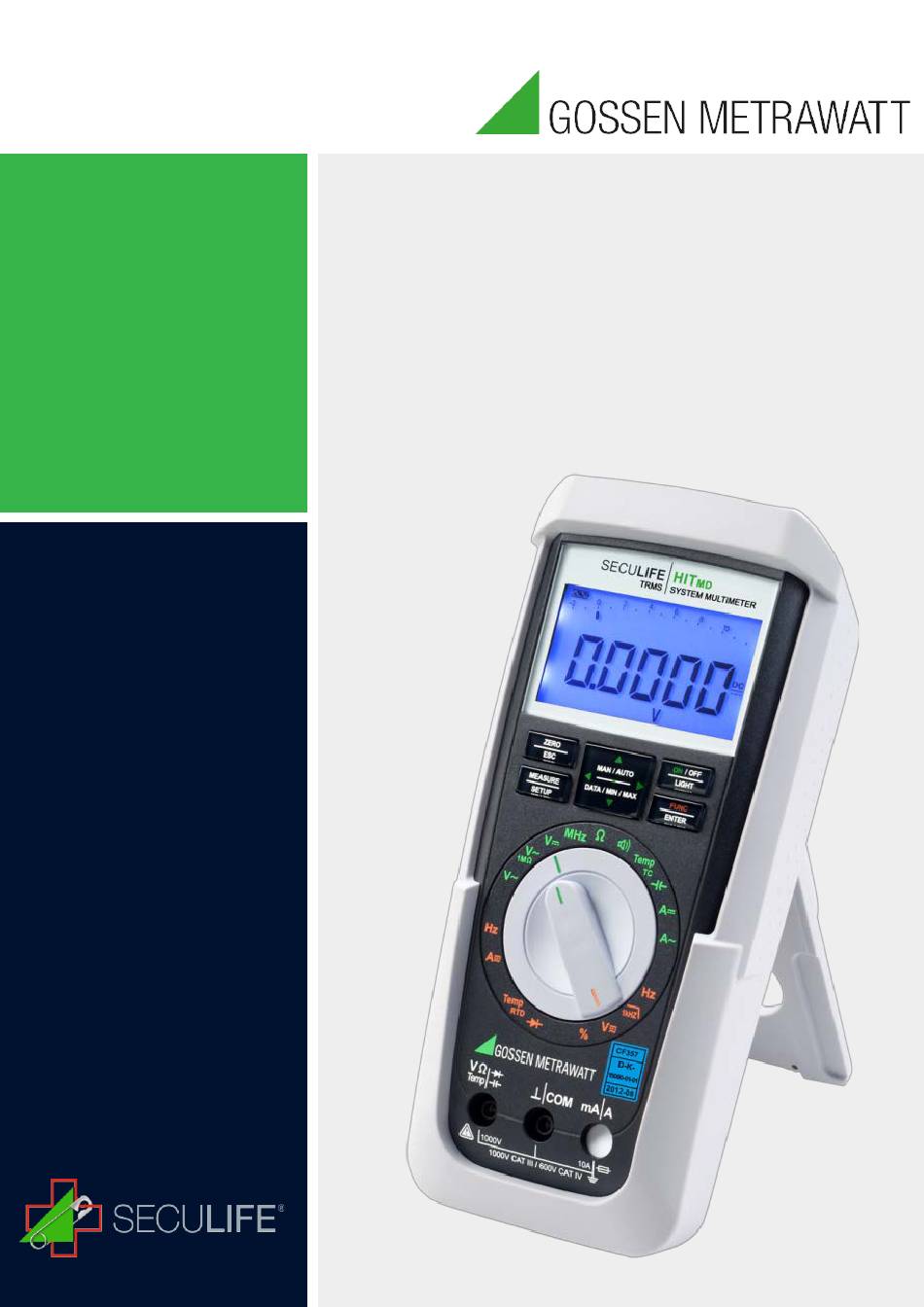

- Page 1 QUICK SETUP GUIDE SECULIFE HIT...
- Page 2 The measurement and testing of measuring equipment in the field of medical technology necessitates absolute reliability and a broad range of applications. The SECULIFE has been custom tailored to fulfill these demands: It’s the ideal device for testing, training and production in the field of medical technology.
- Page 3 • 23 multimeter functions • Voltage measurement • Auto-ranging current measurement from 100 A (resolution: 10 nA) to 1 A (16 A) • Capacitance and resistance measurement, diode and continuity testing • Measuring categories: 600V CAT III and 300V CAT IV •...
-
Page 4: Voltage Measurement
Voltage Measurement In accordance with the voltage to be measured, turn the rotary switch to V= or V~= Connect the measurement cables as shown. The connector jack should be grounded. Make sure that a current measuring range (“A”) has not been activated when the multimeter is connected for voltage measurement! If the fuse’s blowing limits are exceeded as a result of operator error, both the operator and the instrument are in danger! With the rotary switch in the V position, the multimeter is always set to the 1 V measuring range immediately after it is switched on. - Page 5 Alternating Voltage Measurement with 1 MΩLoad Resistance and Frequency Measurement with Selectable Low-Pass Filter In accordance with the voltage to be measured, turn the rotary switch to V~ or 1kHz 1MΩ Connect the measurement cables as shown. The „⊥“ should be gounded Voltage measurement: You can switch back and forth between voltage measurement with and without low-pass filter Press the FUNC | ENTER multifunction key repeatedly until the unit of measure V or.
-
Page 6: Alternating Voltage And Frequency Measurement V Ac And Hz With Selectable Low-Pass Filter
Alternating Voltage and Frequency Measurement V AC and Hz with Selectable Low-Pass Filter In accordance with the voltage or frequency to be measured, turn the rotary switch to V~ or Hz. Connect the measurement cables as shown. The “⊥” connector jack should be grounded Voltage measurement: You can switch back and forth between voltage measurement with and without low-pass filter Press the FUNC | ENTER multifunction key repeatedly until unit of measure V or V/Fil appears at the display... -
Page 7: Continuity Test
Resistance Measurement „Ω“ Disconnect supply power from the electrical circuit of the device to be measured, and discharge all high-voltage capacitors Make sure that the device under test is voltage-free. Interference voltages distort measurement results! Set the rotary switch to „Ω“. Connect the DUT as shown Continuity Test Disconnect supply power from the electrical circuit of the device to be measured, and discharge all high-voltage capacitors... -
Page 8: Temperature Measurement
Temperature Measurement Measurement with Thermocouples, Temp TC: Set the rotary switch to „Temp ” The reference temperature is measured at the internal reference junction Connect the sensor to the two accessible jacks. The instrument displays the measured temperature using the selected unit of measure Measurement with Resistance Thermometers Set the rotary switch to „Temp... -
Page 9: Capacity Measurement
Capacity Measurement Disconnect supply power from the electrical circuit of the device to be measured, and discharge all high-voltage capacitors Make sure that the device under test is voltage-free. Capacitors must always be discharged before measurement is performed. Set the rotary switch to „ “... -
Page 10: Current Measurement
Current Measurement Notes Regarding Current Measurement: • The multimeter may only be operated with installed batteries or rechargeable batteries. Dangerous currents are otherwise not indicated, and the instrument may be damaged • Set up the measuring circuit in a mechanically secure fashion, and secure it against inadvertent breaks. Select conductor cross-sections and lay out connections such that they do not overheat •... - Page 11 Alternating Current and Frequency Measurement, Direct Connection, A AC and Hz First disconnect supply power from the measuring circuit or the power consumer (1), and discharge any capacitors. In accordance with the current or frequency to be measured, turn the rotary switch to A~ or Hz Select the desired measured quantity by briefly pressing the FUNC | ENTER multifunction key.
- Page 12 GMC-I Messtechnik GmbH Südwestpark 15 □ 90449 Nürnberg □ Germany TEL +49 911 8602-111 □ FAX +49 911 8602-777 www.gossenmetrwawatt.com □ info@gossenmetrwawatt.com...
