Specifications - PowerStar SMX2000RMLV2U Operation Manual

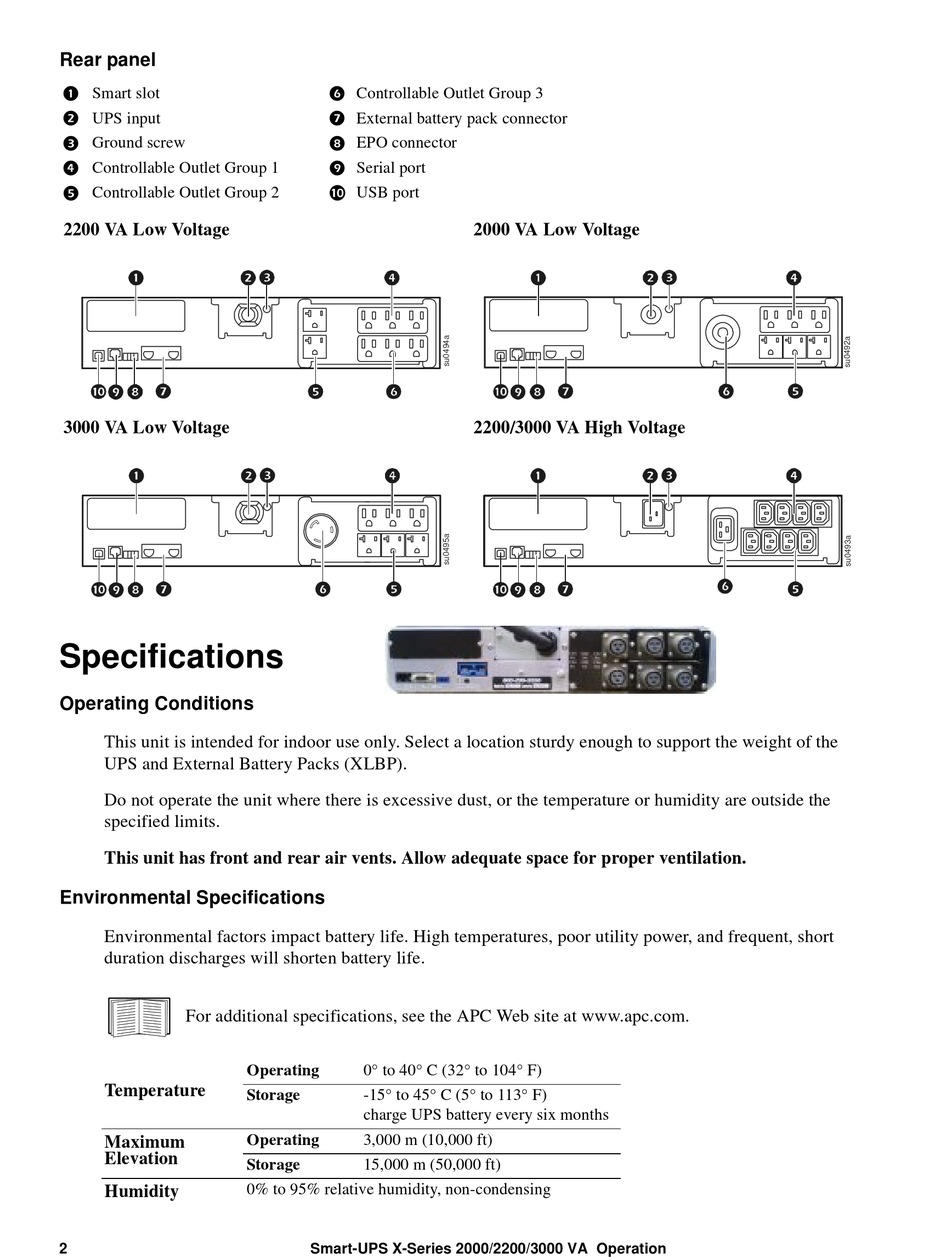

Rear panel
 Smart slot
 UPS input
 Ground screw
 Controllable Outlet Group 1
 Controllable Outlet Group 2
2200 VA Low Voltage
3000 VA Low Voltage

Specifications

Operating Conditions
This unit is intended for indoor use only. Select a location sturdy enough to support the weight of the
UPS and External Battery Packs (XLBP).
Do not operate the unit where there is excessive dust, or the temperature or humidity are outside the
specified limits.
This unit has front and rear air vents. Allow adequate space for proper ventilation.
Environmental Specifications
Environmental factors impact battery life. High temperatures, poor utility power, and frequent, short
duration discharges will shorten battery life.
For additional specifications, see the APC Web site at www.apc.com.
Temperature
Maximum
Elevation
Humidity
2
 Controllable Outlet Group 3
 External battery pack connector
 EPO connector
 Serial port
 USB port
Operating 0° to 40° C (32° to 104° F)
Storage -15° to 45° C (5° to 113° F)
charge UPS battery every six months
Operating 3,000 m (10,000 ft)
Storage 15,000 m (50,000 ft)
0% to 95% relative humidity, non-condensing
Smart-UPS X-Series 2000/2200/3000 VA Operation
2000 VA Low Voltage
2200/3000 VA High Voltage
