PowerStar PS1503 Operation & Maintenance Manual

1500va tower ups
Hide thumbs

Advertisement

Table of Contents

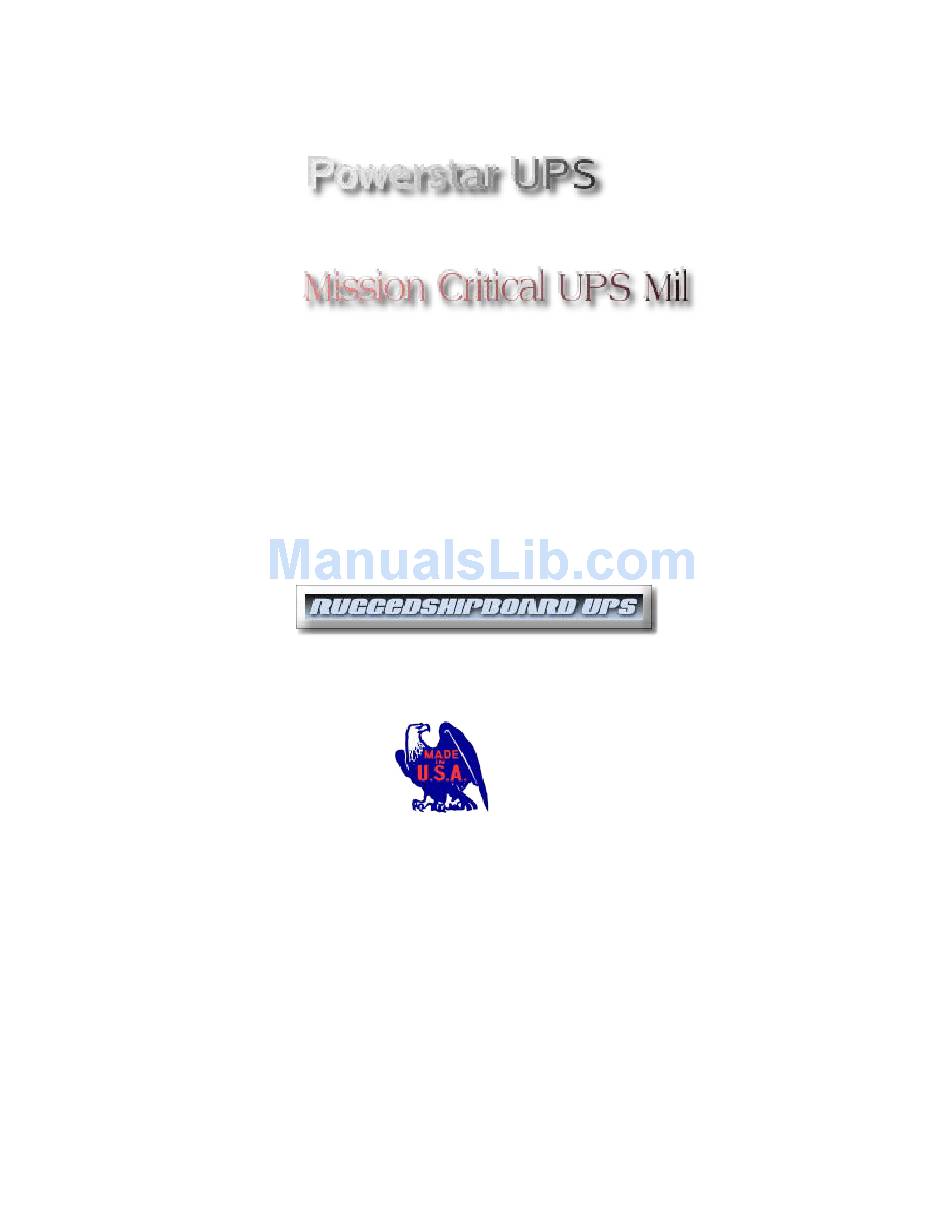

POWERSTAR INC.
Operations / Maintenance Manual
Model: PS1503 1500VA Tower UPS
Powerstar Inc.
dated 2/13 approved
1
by navy

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PS1503 and is the answer not in the manual?

Questions and answers

Related Manuals for PowerStar PS1503

Summary of Contents for PowerStar PS1503

  • Page 1 POWERSTAR INC. Operations / Maintenance Manual Model: PS1503 1500VA Tower UPS Powerstar Inc. dated 2/13 approved by navy...
  • Page 2 Storage and Maintenance Storage Replacing the Battery Module Section 6: Troubleshooting Contacting Regulatory and Warranty Information Regulatory Agency Approvals Radio Frequency Interference Declaration of Conformity Limited Warranty PS1503, and PowerChute are registered trademarks are the property of their respective owners. Powerstar Inc.

  • Page 3: Safety Information

    (fuse or circuit breaker). Connection to any other type of receptacle may result in a shock hazard. In order to maintain compliance with the EMC directive, output cords attached to the UPS should not exceed 10 meters in length. Powerstar Inc.
  • Page 4 Use tools with insulated handles. Replace batteries with the same number and type of batteries or battery packs as originally installed in the equipment. Battery Replacement Contact Powerstar Inc @ www.powerstarinc.com for information on replacement battery sets. NSN approval needed.
  • Page 5 (Make sure connected equipment is switched to the ON position.) The UPS charges its battery when it is connected to utility power. The battery charges fully during the first four hours of normal operation. Do not expect full run time during this initial charge period. Accessories Powerstar Inc.

  • Page 6: Operation

    In the graphic to the left, the load capacity threshold is listed next to the LED (values are not listed on the UPS). The charger maintains battery charge when the UPS is plugged in and utility voltage is present. SELF-TEST Powerstar Inc.
  • Page 7 If no Led’s are lit and the UPS is plugged into a working AC power outlet, the line voltage is extremely low. If all five Led’s are lit, the line voltage is extremely high and should be checked by an electrician. AVR Trim This LED illuminates to indicate the UPS is compensating for a high utility voltage. Powerstar Inc.

  • Page 8: Battery Power

    The UPS repeats the alarm every five hours. Perform the self-test procedure after the battery has charged for 24 hours to confirm the replace battery condition. The alarm stops if the battery passes the self-test. SHUTDOWN MODE (VIA SOFTWARE OR AN ACCESSORY) Powerstar Inc.

  • Page 9: Default Settings

    If both a Serial and USB Computer Interface Port are provided they cannot be used simul- taneously. TVSS Screw ground The UPS features a transient voltage surge-suppression (TVSS) screw for connecting the ground lead on surge suppression devices such as telephone and network line protectors. DEFAULT SETTINGS Voltage Sensitivity Powerstar Inc.

  • Page 10: Fault Indicators

    If the circuit breaker located on the back of the UPS trips, reduce the load on the UPS by unplugging equipment and resetting the circuit breaker. Site Wiring Fault LED: ON DELTA POWER SYSTEMS THIS LED FUNCTION IS DISABLED On-Battery Operation Powerstar Inc.
  • Page 11 Synchronized 0 seconds 60, 120, 180, 240, 300, 360, The UPS will wait the specified time after Turn-on Delay 420 seconds the return of utility power before turn-on (for example, to avoid branch circuit overload). Powerstar Inc.

  • Page 12: Storage And Maintenance

    Once the battery is disconnected, the loads are not protected from power outages. REMOVING THE FRONT BEZEL AND BATTERY MODULE The battery module is accessible from the front of the UPS. This procedure requires a Phillips screwdriver. 1. Remove the two front cover plate screws Powerstar Inc.

  • Page 13: Replacing The Battery Module

    3. Disconnect the battery module connector 0. REPLACING THE BATTERY MODULE 1. Facing the front of the UPS, locate the battery cables and connector jack to the rear of the battery module compartment. Locate the battery cables and connector plug Powerstar Inc.
  • Page 14 2. Replace the front bezel. Align the slots on the bottom of the bezel with the hooks on the bottom, front of the UPS and gently snap the bezel into place. 3. Replace the front cover plate screws removed in Step 1 of Removing the Front Bezel and Battery Module procedure. Powerstar Inc.

  • Page 15: Troubleshooting

    Section 6 Troubleshooting Use the chart below to solve minor UPS installation problems. Contact Powerstar Technical Support 1-800-209-5556 or 3019480713 for advanced assistance. Staff at www.powerstarinc.com Powerstar Inc.
  • Page 16 Weak battery. Replacement battery not Allow the battery to recharge for at least four hours. Then, perform a self-test. If the problem persists after connected properly. recharging, replace the battery. Check that the battery connectors are fully engaged. Powerstar Inc.
  • Page 17 Powerstar Inc warrants its products to be free from defects in materials and workmanship for a period of two years from the date of purchase. Its obligation under this warranty is limited to repairing or replacing, at its own sole option, any such defective products.
  • Page 18 OUT OF THE USE OF THIS PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Specifically, Powerstar is not liable for any costs, such as lost profits or revenue, loss of equipment, loss of use of equipment, loss of software, loss of data, costs of substitutes, claims by third parties, or otherwise.
  • Page 19 Powerstar Inc.
