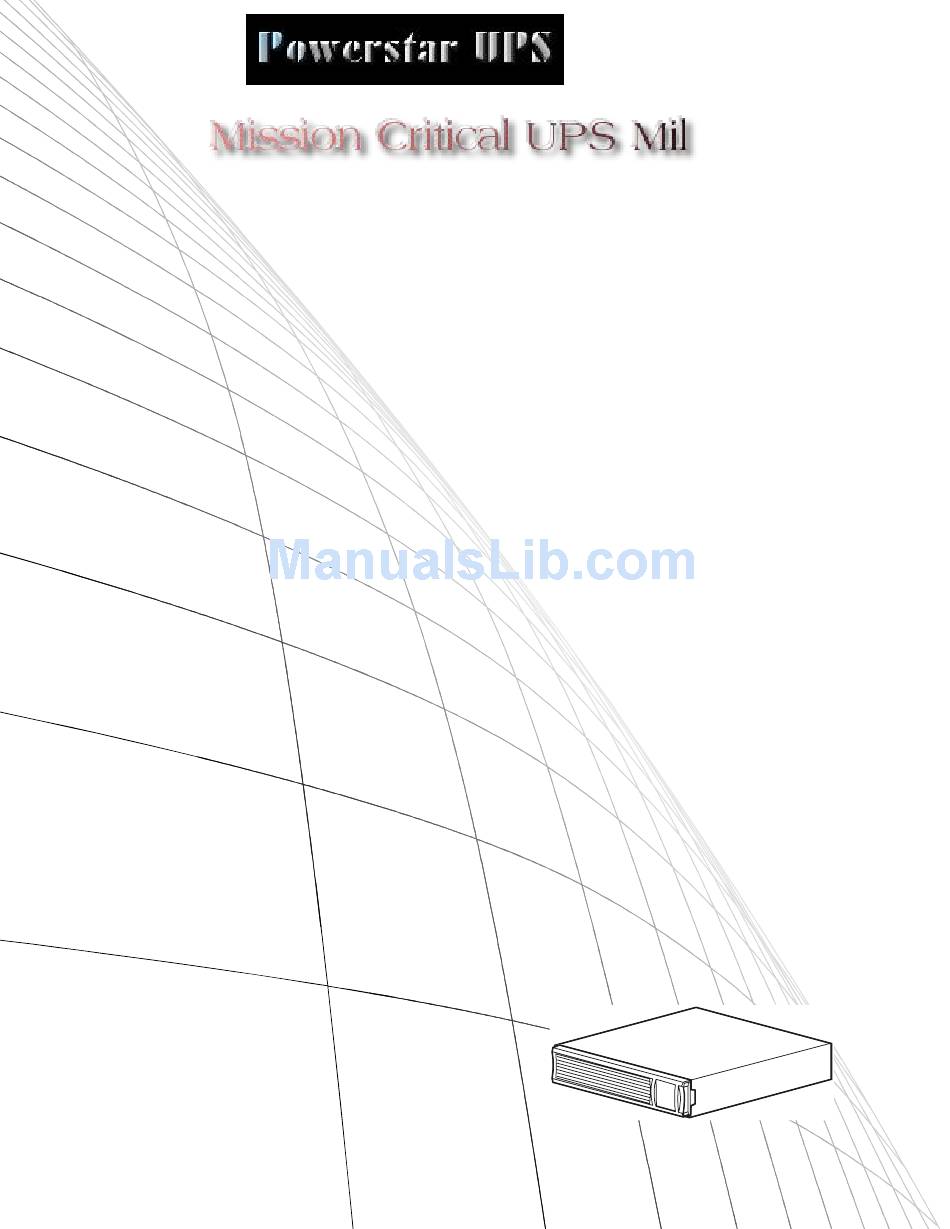

PowerStar SMX2000RMLV2U Operation Manual

Mission critical ups mil smart-ups

Advertisement

PS6003rm2u
Operation
Powerstar Inc CAGE 0ZAP8 800-209-5556
+1301-948-0713 info@powerstarinc.com
www.powerstarinc.com
Shipboard UPS PS6002rm2uXL
Shipboard UPS PS6003rm2uXL
Smart-UPS
shipboard
X UPS
®
Low Voltage (100-127 V)
SMX2000RMLV2U
SMX2200RMLV2U
SMX3000RMLV2U
SMX3000RMLV2UNC
High Voltage (200-240 V)
SMX2200RMHV2U
SMX3000RMHV2U
SMX3000RMHV2UNC

Advertisement

Table of Contents
loading

Summary of Contents for PowerStar SMX2000RMLV2U

  • Page 1 PS6003rm2u shipboard Operation Powerstar Inc CAGE 0ZAP8 800-209-5556 +1301-948-0713 info@powerstarinc.com www.powerstarinc.com Shipboard UPS PS6002rm2uXL Shipboard UPS PS6003rm2uXL Smart-UPS X UPS ® Low Voltage (100-127 V) SMX2000RMLV2U SMX2200RMLV2U SMX3000RMLV2U SMX3000RMLV2UNC High Voltage (200-240 V) SMX2200RMHV2U SMX3000RMHV2U SMX3000RMHV2UNC...
  • Page 2: Table Of Contents

    Contents Overview ................1 About the UPS ..........1 Safety .
  • Page 3: Overview

    The Smart-UPS X UPS has both high voltage (200-240 V) and low voltage (100-127 V) models. High Voltage (200-240 V) Low Voltage (100-127 V) SMX2200RMHV2U SMX2000RMLV2U SMX3000RMHV2U SMX2200RMLV2U SMX3000RMHV2UNC SMX3000RMLV2U...
  • Page 4: Specifications

    Rear panel  Smart slot  Controllable Outlet Group 3  UPS input  External battery pack connector  Ground screw  EPO connector  Controllable Outlet Group 1  Serial port  Controllable Outlet Group 2  USB port 2200 VA Low Voltage 2000 VA Low Voltage 3000 VA Low Voltage...
  • Page 5: Installation

    Installation For UPS installation information, see the Smart-UPS X 2000-3000 VA Quick-Start that is included with the UPS. The guide is also available on the enclosed CD and the APC Web site at www.apc.com. Network Management Card For installation information, see the user manual provided with the Network Management Card (NMC).
  • Page 6: Operation

    Operation Connect Equipment to the UPS Note: The UPS will charge to 90% capacity in the first three hours of normal operation. Do not expect full battery runtime capability during this initial charge period. 1. Connect equipment to the outlets on the rear panel of the UPS. Do not use extension cords, plug equipment directly into the UPS.
  • Page 7: Display Interface

    Display Interface Overview  Online indicator  UPS Output On/Off button  On Battery indicator  Fault indicator  Replace Battery indicator  Display screen  buttons DOWN  NTER button  SCAPE button APC By Schneider Electric Using the display interface Use the to scroll through the main menu options.
  • Page 8 Main Menu Overview Standard Advanced Load meter (kWh) Last transfer to battery power information Battery charge and estimated run time Battery voltage Number of external battery packs Internal battery temperature Run time calibration test results Self-test results Status of the switched outlet group(s): On, Off, Sleep, Reboot, Turning On, Turning Off Smart Slot information (if applicable) Language...
  • Page 9 Main Menu Overview Standard Advanced General information about the UPS, About including: model numbers, output voltage setting, serial number, manufacture date, replacement battery cartridge information, firmware versions, and suggested battery replacement date. Smart Slot card information (if applicable), including IP address PowerChute Business Edition information (if applicable) Smart-UPS X-Series 2000/2200/3000 VA Operation...
  • Page 10: Configuration

    Configuration UPS Settings Start-up Settings Use the display interface to configure these settings at initial start-up. The unit will prompt for a response to each setting, if not response is given, it will use the default setting. Note: The until will not turn on until all of these settings are entered. Function Factory Default Options...
  • Page 11: General Settings

    General Settings ® Configure these settings at any time, using the display interface, APC PowerChute software, or a network management card. Function Factory Default Options Description High Transfer Low Voltage Point 100 V: 110 Vac 110-114 Vac 110 V: 116 Vac 116-125 Vac To avoid unnecessary battery usage, set the 120 V: 127 Vac...
  • Page 12 Function Factory Default Options Description Date of Last Date set at factory Reset this date when the battery module is replaced. Battery Replacement Audible Alarm On On/Off The UPS will never beep if all audible alarms are set to Off or when the display buttons are pressed.
  • Page 13: Switched Outlet Groups

    Switched Outlet Groups Overview The Switched Outlet Groups can be configured to independently turn off, turn on, shut down, put to sleep, and reboot connected equipment. The Switched Outlet Groups can be commanded to do the following: • Turn off: Disconnect from power immediately and restart only with a manual command •...
  • Page 14 Function Factory Default Options Description Turn Off Delay 90 sec Set the value in The amount of time that the Switched Outlet seconds Groups will wait between receiving the command to turn off and the actual shut down. Reboot Duration 8 sec Set the value in The amount of time that the Switched Outlet seconds...
  • Page 15: Emergency Power Off

    Emergency Power Off EPO Overview The Emergency Power Off (EPO) option is a safety feature that will immediately disconnect all connected equipment from utility power. The UPS will immediately shut down and will not switch to battery power. Connect each UPS to the EPO switch, even if the UPS units are used in parallel. The UPS must be manually restarted to reapply power to connected equipment.
  • Page 16: Troubleshooting

    Troubleshooting Problem and Possible Cause Solution The UPS will not turn on or there is no output The unit has not been turned on. Press the button to turn on the UPS. The UPS is not connected to utility Ensure that the power cable is securely connected to the unit and to the utility power.
  • Page 17: Service And Support

    Contact Powerstar for Replacement Battery Packs. Service Your unit may use Powerstar Premium Long Life Cells. If the unit requires service, do not return it to the dealer. Follow these steps: 1. Review the Troubleshooting section of the manual to eliminate common problems.
  • Page 18: Smart-Ups Factory Warranty

    Smart-UPS Factory Warranty LIMITED WARRANTY Powerstar Inc provides the warranty for this unit. contact Powerstar for Repair American Power Conversion (APC) warrants its Smart-UPS (Products) to be free from defects in materials and workmanship for a period of three (3) years, excluding the batteries, which are warranted for two (2) years from date of purchase. APC's obligation under this warranty is limited to repairing or replacing, at its own sole option, any such defective products.
  • Page 19 © 2009 APC by Schneider Electric. APC, the APC logo are owned by Schneider Electric Industries S.A.S., American Power Conversion Corporation, or their affiliated companies. All other trademarks are property of their respective owners. 990-3651 01/2010...
