Tennant T290 Service Manual
  1. Manuals
  2. Brands
  3. Tennant Manuals
  4. Floor Machine
  5. T290
  6. Service manual

Tennant T290 Service Manual

Hide thumbs Also See for T290:

Advertisement

Quick Links

Download this manual

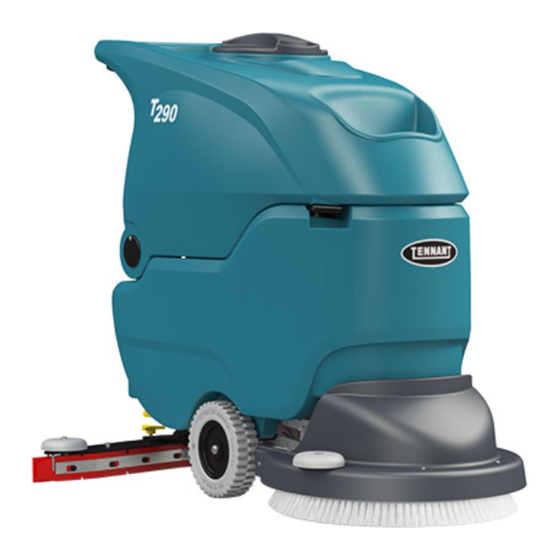

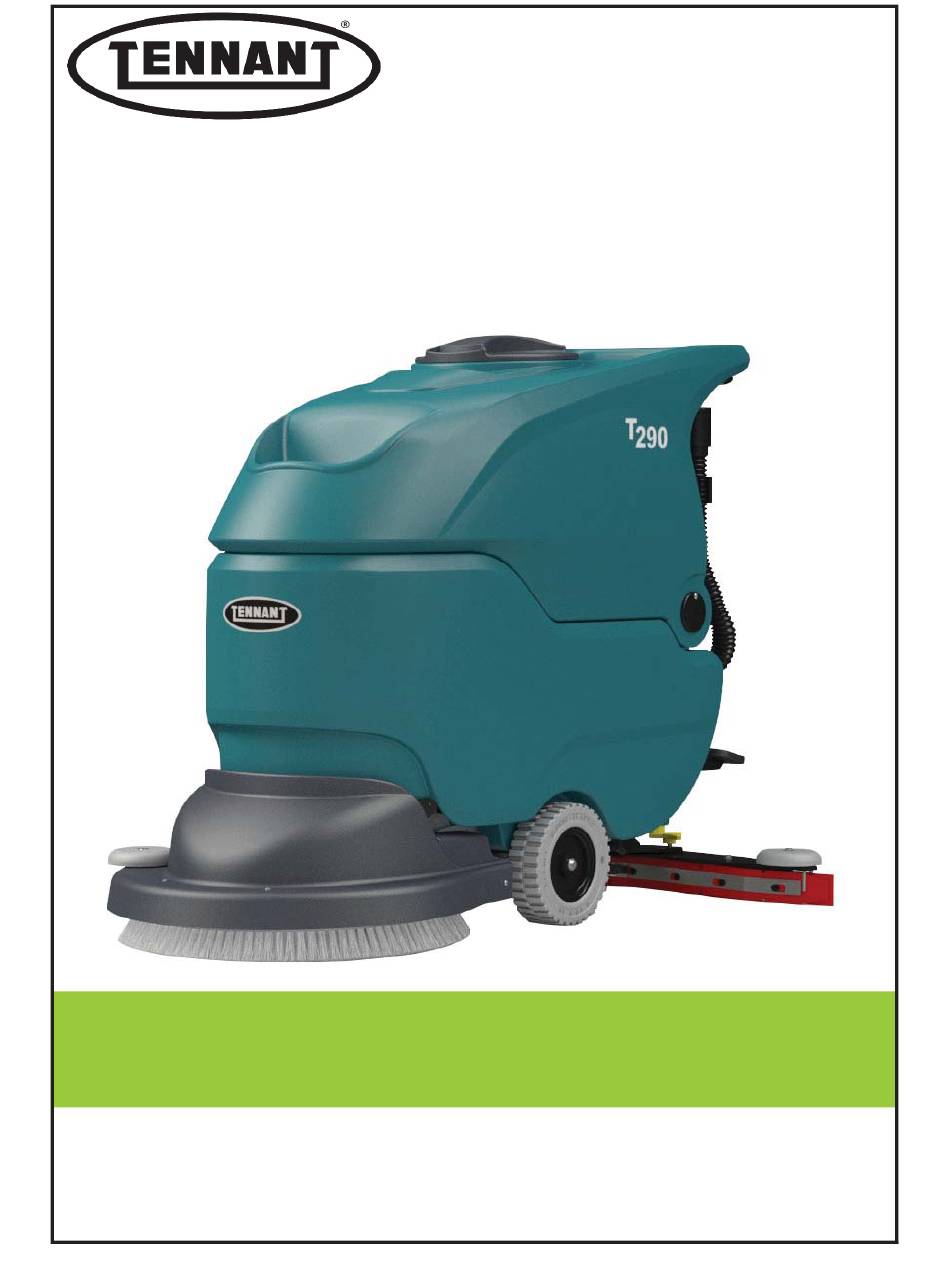

PLDC04452
REVISION DATE
December 23, 2020
DATE
December 23, 2020
TECHNICAL OFFICE
Stavale
T290
T
S
M
ECHNICAL
ERVICE
ANUAL
