Tennant T3 Operator's Manual
Hide thumbs
Also See for T3:
- Operator and parts manual (124 pages) ,
- Operator's manual (105 pages) ,
- Product manual (12 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Tennant T3
Summary of Contents for Tennant T3

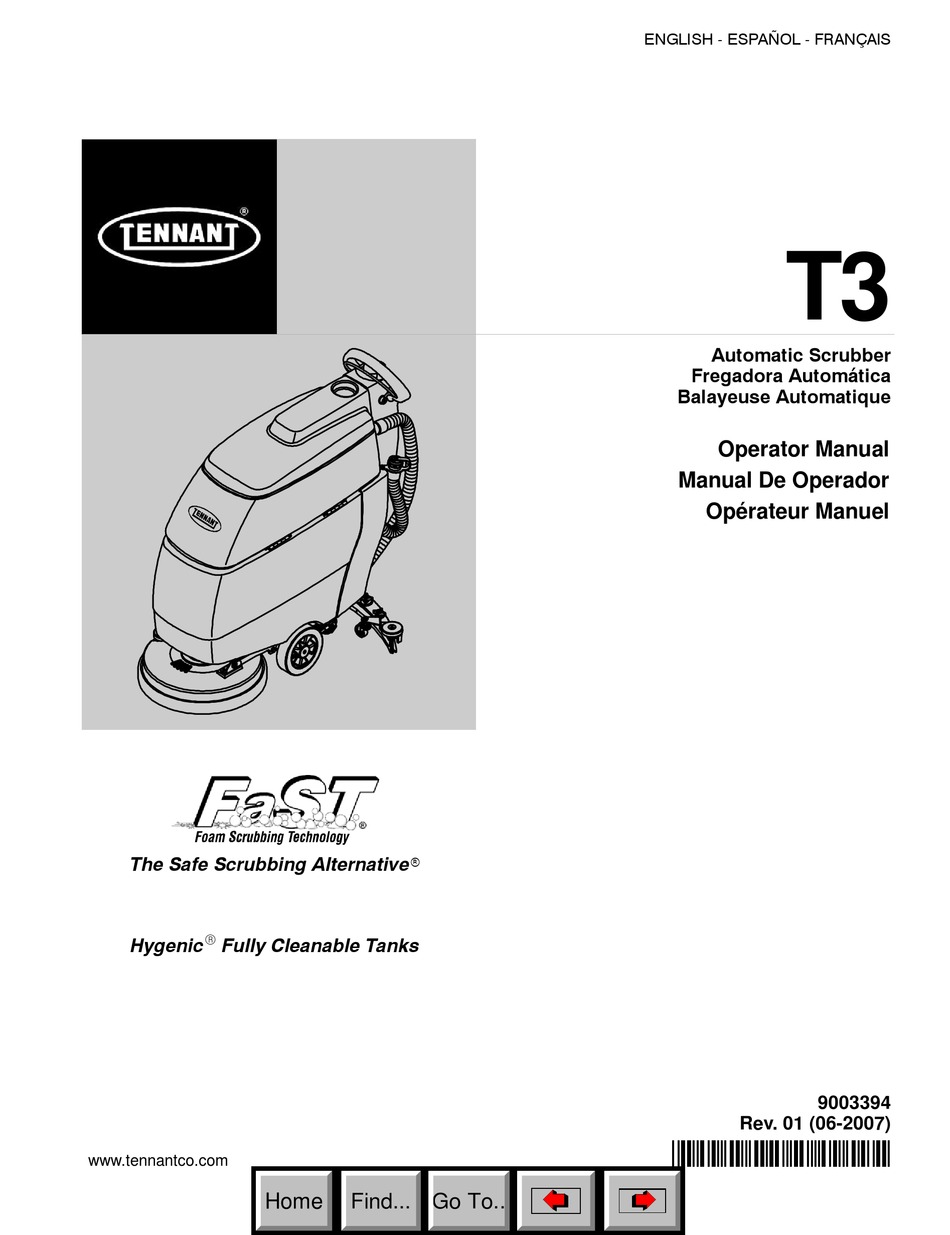

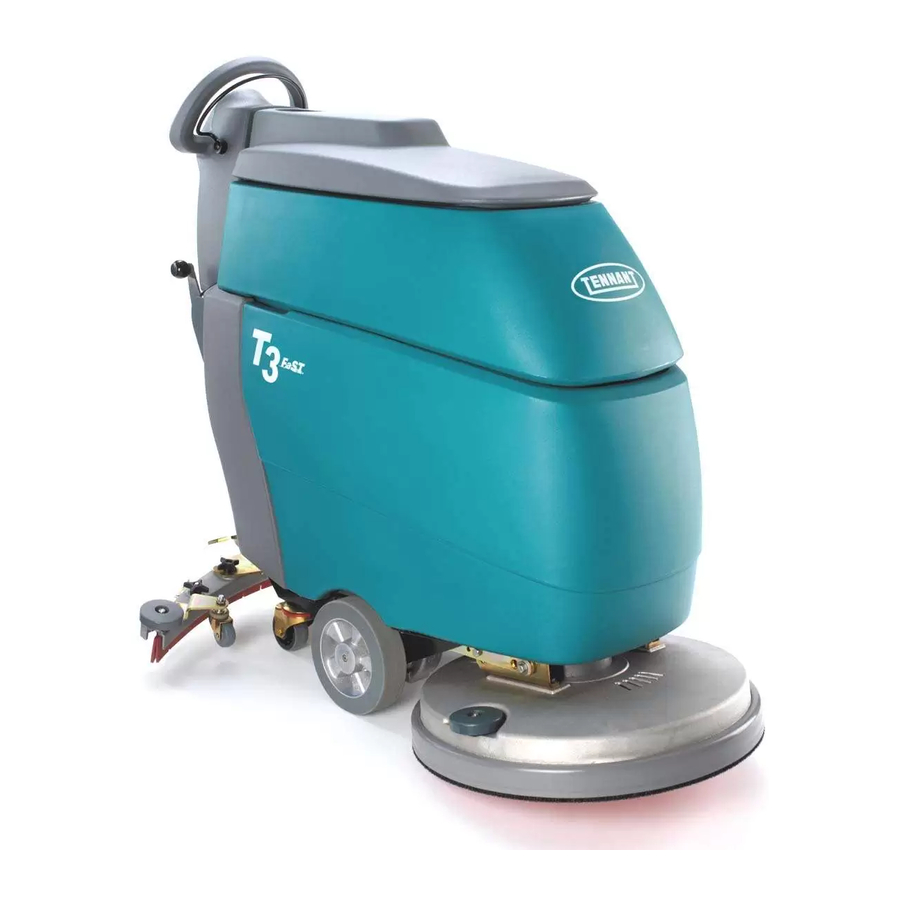

- Page 1 ENGLISH - ESPAÑOL - FRANÇAIS Automatic Scrubber Fregadora Automática Balayeuse Automatique Operator Manual Manual De Operador Opérateur Manuel The Safe Scrubbing Alternativer Hygenic Fully Cleanable Tanks 9003394 Rev. 01 (06-2007) *9003394* www.tennantco.com Home Find... Go To..
- Page 2 FaSK--PAK and 1--STEP are US registered and unregistered trademarks of Tennant Company. Specifications and parts are subject to change without notice. Copyright E 2007 TENNANT COMPANY, Printed in U.S.A. All rights reserved. Tennant T3 (03- -07) Home Find... Go To..
-
Page 3: Table Of Contents
......MACHINE DIMENSIONS ....Tennant T3 (06- -07) Home Find... Go To.. -
Page 4: Safety Precautions
All repairs must be performed by a qualified service person. WARNING: Spinning Brush. Keep Hands Do not modify the machine from its Away. Turn Off Power Before Working On original design. Machine. Tennant T3 (03- -07) Home Find... Go To.. -
Page 5: Safety Labels
Gas. Keep Sparks And Open Flame Away. Keep Battery Compartment Open When Charging. SPINNING BRUSH LABEL - - Located on scrub head WARNING: Spinning Brush. Keep Hands Away. Turn Off Power Before Working On Machine. Tennant T3 (03- -07) Home Find... Go To.. -
Page 6: Machine Components
5% (3°) Maximum Main Power FaST System I/O Switch Machine Climb I/O Key Switch (FaST Model) Solution Flow Brush Motor Slow Speed Control Circuit Breaker Brush Down Pressure Fast Speed Bail Direction Tennant T3 (06- -07) Home Find... Go To.. -
Page 7: Machine Installation
380 mm (15 in) L x 284 mm (11.18 in) H. battery corrosion. 1. Park the machine on a level surface and remove the key. Tennant T3 (06- -07) Home Find... Go To.. -
Page 8: How The Machine Works
(1 million sq. ft.). NOTE: The FaST model can also be operated as a conventional scrubber. However, it’s important that you follow the instructions in this manual to prevent FaST system failure. Tennant T3 (03- -07) Home Find... Go To.. -
Page 9: Machine Setup
(Figure 9). assembly. Loop the hose as shown using the hose clip provided (Figure 6). Spring Clip FIG. 6 FIG. 9 5. Check the squeegee blades for proper adjustment (See SQUEEGEE BLADE ADJUSTMENT). Tennant T3 (06- -07) Home Find... Go To.. -
Page 10: Installing Fast--Pak (Fast Model)
FaST--PAK carton. Do not remove the bag from the carton. Pull the hose connector through the knock--out and remove the orange cap (Figure 12). FOR SAFETY: When using machine, always follow the handling instructions on chemical container. FIG. 14 Tennant T3 (06- -07) Home Find... Go To.. -
Page 11: Filling Solution Tank
( I ) position (Figure 17). NOTE: When using the FaST model for conventional scrubbing DO NOT turn the FaST system switch on. Tennant T3 (06- -07) Home Find... Go To.. - Page 12 8. When more brush pressure is needed for heavily scrubbing (Figure 20). The drive model will soiled areas simply lift the down pressure lever automatically propel forward. To reverse the drive (Figure 23). model, simply push the activation bail forward. Tennant T3 (06- -07) Home Find... Go To..
-
Page 13: While Operating Machine
The battery meter displays the charge level of the batteries. When the batteries are fully charged, all indicator lights are lit. As the batteries discharge, the indicator lights will begin to go out from right to left. Tennant T3 (06- -07) Home Find... Go To.. -
Page 14: Circuit Breaker / Fuses
Use the hour tank. Use a rag to remove any excess dirt meter to determine when to perform recommended (Figure 29). maintenance procedures and to record service history (Figure 27). FIG. 29 FIG. 27 Tennant T3 (03- -07) Home Find... Go To.. -
Page 15: Draining Solution Tank
WARNING: Fire Or Explosion Hazard. Batteries Emit Hydrogen Gas. Keep Sparks And FIG. 32 Open Flame Away. Keep Battery Compartment Open When Charging. 2. Park the machine on a level surface and turn the key off. Tennant T3 (06- -07) Home Find... Go To.. -
Page 16: Machine Maintenance
(Figure 38) cord from the machine’s receptacle when the charger is operating. Arcing may result. If the charger must be interrupted during charging, disconnect the AC power supply cord first. FIG. 38 Tennant T3 (06- -07) Home Find... Go To.. - Page 17 10. FaST Model: Connect the FaST--PAK supply hose to the storage plug when not in use (Figure 45). Remove any dried concentrate from the hose connector by soaking it in warm water. Tennant T3 (06- -07) Home Find... Go To..
-
Page 18: Monthly Maintenance
OPERATION 6. Check the machine for leaks. MOTOR MAINTENANCE Contact an Authorized Tennant Service Center for carbon brush replacement. Carbon Brush Replacement Hours Drive Transaxle Motor Vacuum Motor Brush Motor FIG. 45 WARNING: Electrical Hazard. Disconnect 11. Recharge the batteries after a total of 30 minutes Battery Cables Before Servicing Machine. -
Page 19: Squeegee Blade Replacement
Make sure the notched edge of cover. Repeat step for the other caster. the band is facing downward (Figure 51). 2 mm 1/16” FIG. 51 FIG. 53 Tennant T3 (06- -07) Home Find... Go To.. -
Page 20: Battery Maintenance
2. Clean the batteries to prevent battery corrosion. circulation. Use a scrub brush with a mixture of baking soda and water (Figure 56). ATTENTION: Do not expose machine to rain, store indoors. Tennant T3 (06- -07) Home Find... Go To..
