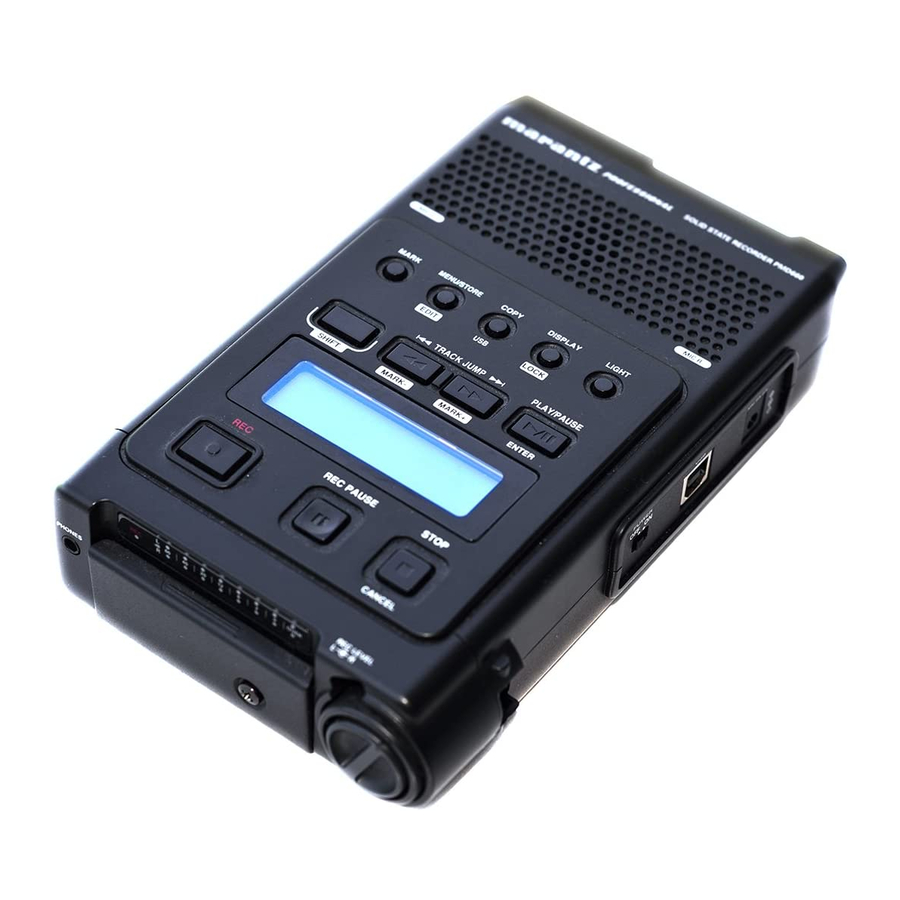

Marantz PMD660 Audio Recorder

Recording

We suggest that you use one of the

recording presets (i.e. Preset 1).

Preset 1 – records with

internal mics, automatic level

control and .mp3 format.

Preset 2 – records with

external mic, manual level

control and .mp3 format.

To select presets, press menu button

once, use left or right track buttons

to navigate to desired preset, press

menu button once again, display

shows "Completed".

To start, pause and stop recording, use the buttons located underneath the recorder's display.

Note: every start/stop cycle creates a new file. Using the pause button does not create a new

file.

There is a wired-remote control for recording. It works well and is highly recommended.

Quick Start Guide

Page 1 Marantz PMD660 Audio Recorder Quick Start Guide Recording We suggest that you use one of the recording presets (i.e. Preset 1). Preset 1 – records with internal mics, automatic level control and .mp3 format. Preset 2 – records with external mic, manual level control and .mp3 format.
Page 2 Transferring files 1. With recorder power off, connect USB cable from recorder to computer and connect DC power cable (AC to power supply, power supply to recorder). 2. Push and hold down the COPY/USB button while you turn on the recorder (USB is shown in recorder display).
Page 3 Tips for using the external microphone • The mic is directional, which means it captures sound best when you point it directly at the sound source (directly at one’s mouth, for instance). • A good distance for recording voice in your interview will be about 1-3 ft. from the source. •...
