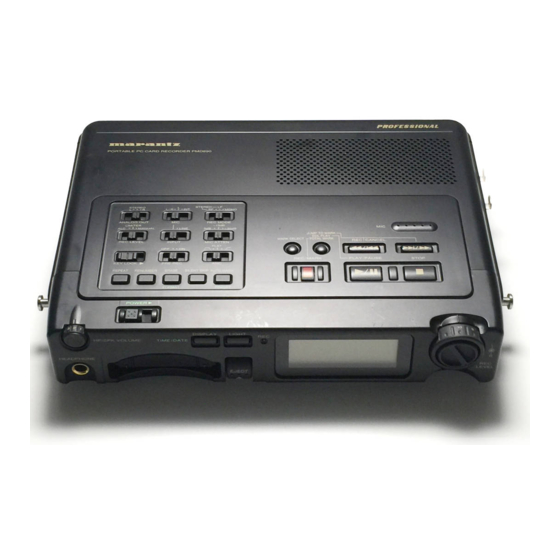

Marantz PMD680 Service Manual
  1. Manuals
  2. Brands
  3. Marantz Manuals
  4. Recording Equipment
  5. PMD680
  6. Service manual

Marantz PMD680 Service Manual

Portable pc card recorder
Hide thumbs Also See for PMD680:

Advertisement

Quick Links

See also: Manual
Service
Manual
SECTION
1. TECHNICAL SPECIFICATIONS .................................................................................................................. 1
2. WIRING DIAGRAM ...................................................................................................................................... 3
3. BLOCK DIAGRAM ....................................................................................................................................... 7
4. SCHEMATIC DIAGRAM............................................................................................................................. 11
5. PARTS LOCATION..................................................................................................................................... 51
6. MICROPROCESSOR AND IC DATA.......................................................................................................... 67
7. EXPLODED VIEW AND PARTS LIST ........................................................................................................ 74
8. ELECTRICAL PARTS LIST ........................................................................................................................ 78
Please use this service manual with referring to the user guide ( D.F.U. ) without fail.

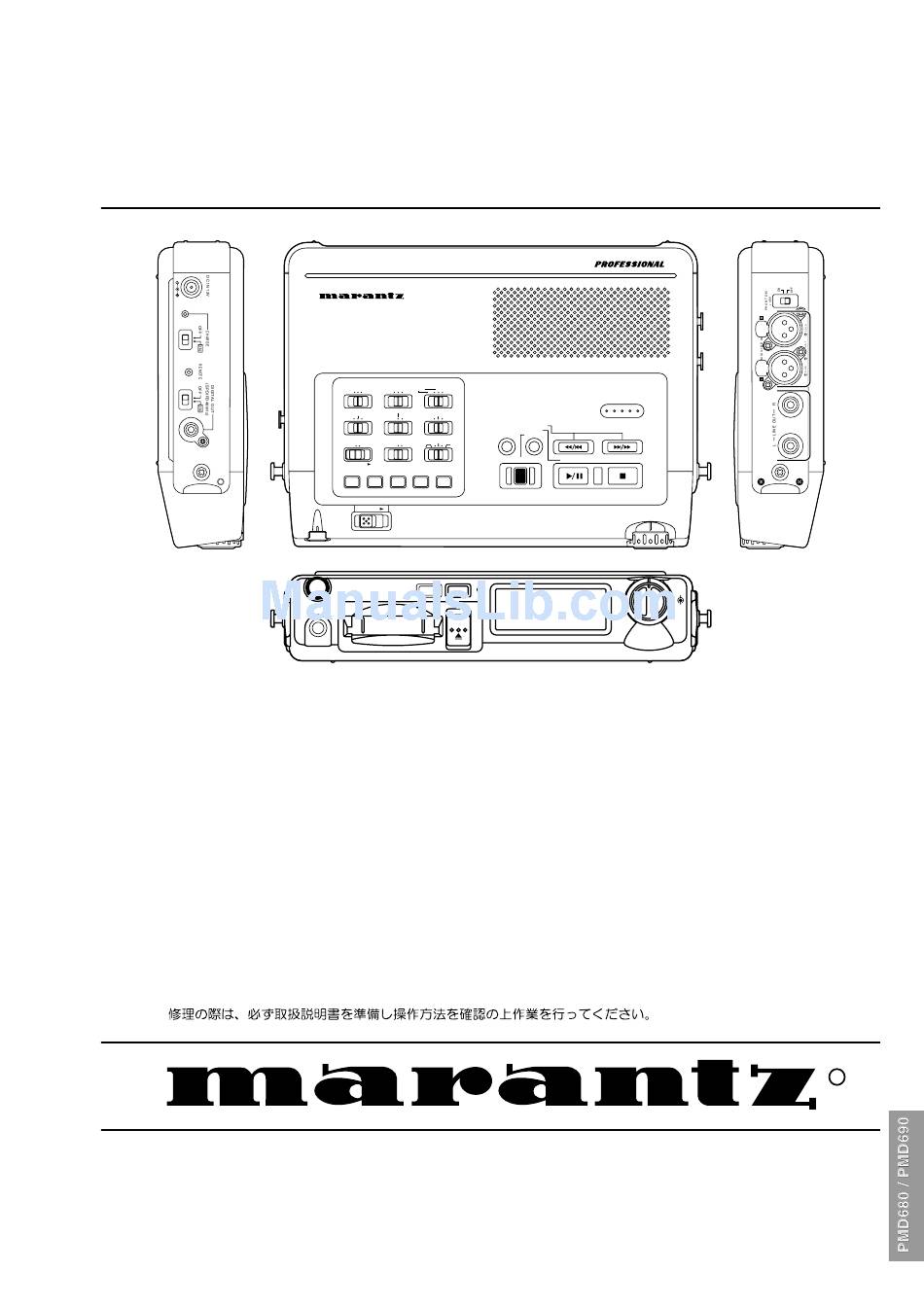

PORTABLE PC CARD RECORDER PMD690
STEREO
L
STEREO
LP
L
R
L/R
INT
SP
MONO
ANALOG OUT
MIC
REC MODE
LIMITER
-15dB
ALC
MANUAL
LINE
0dB
-30dB
REC LEVEL
INPUT
MIC ATTEN
FLAT
OFF
ON
OFF
LOCK
KEY LOCK
PRE REC
ANC
REPEAT
RENUMBER
ERASE
SILENT SKIP
AUTO MARK
FORMAT
PRESET
POWER
DISPLAY
LIGHT
REC
HP/SPK VOLUME
TIME/DATE
HEADPHONE
EJECT

TABLE OF CONTENTS

PMD680 / PMD690
PMD680 /
PMD690 /
Portable PC Card Recorder
MIC
JUMP TO MARK
EDL PLAY
MARK SELECT
TOTAL MARK
REC
CANCEL
REC/MARK
PLAY/PAUSE
STOP
LEVEL
U1B, /W1B
F1B, /U1B, /W1B
L
R
REC
PAGE
R
457S855010 MIT
3120 785 22480
First Issue 2001.06
