M
L
edia
Media Loan Operating Guides are available online at www.evergreen.edu/medialoan/

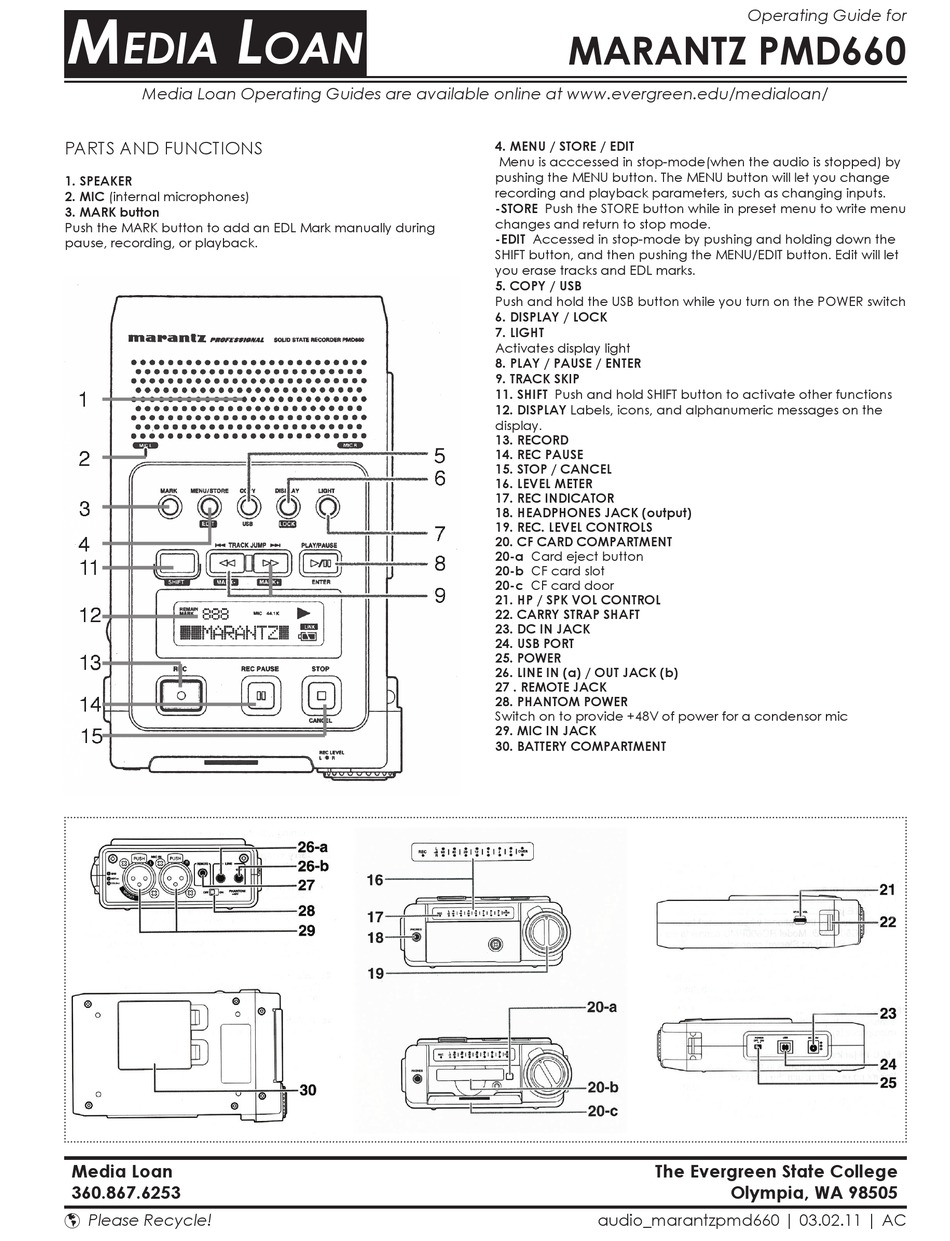

PARTS AND FUNCTIONS
1. SPEAKER
2. MIC (internal microphones)
3. MARK button
Push the MARK button to add an EDL Mark manually during
pause, recording, or playback.
Media Loan
360.867.6253
 Please Recycle!
oan
MARANTZ PMD660
4. MENU / STORE / EDIT
Menu is acccessed in stop-mode(when the audio is stopped) by
pushing the MENU button. The MENU button will let you change
recording and playback parameters, such as changing inputs.
-STORE Push the STORE button while in preset menu to write menu
changes and return to stop mode.
-EDIT Accessed in stop-mode by pushing and holding down the
SHIFT button, and then pushing the MENU/EDIT button. Edit will let
you erase tracks and EDL marks.
5. COPY / USB
Push and hold the USB button while you turn on the POWER switch
6. DISPLAY / LOCK
7. LIGHT
Activates display light
8. PLAY / PAUSE / ENTER
9. TRACK SKIP
11. SHIFT Push and hold SHIFT button to activate other functions
12. DISPLAY Labels, icons, and alphanumeric messages on the
display.
13. RECORD
14. REC PAUSE
15. STOP / CANCEL
16. LEVEL METER
17. REC INDICATOR
18. HEADPHONES JACK (output)
19. REC. LEVEL CONTROLS
20. CF CARD COMPARTMENT
20-a Card eject button
20-b CF card slot
20-c CF card door
21. HP / SPK VOL CONTROL
22. CARRY STRAP SHAFT
23. DC IN JACK
24. USB PORT
25. POWER
26. LINE IN (a) / OUT JACK (b)
27 . REMOTE JACK
28. PHANTOM POWER
Switch on to provide +48V of power for a condensor mic
29. MIC IN JACK
30. BATTERY COMPARTMENT
The Evergreen State College
audio_marantzpmd660 | 03.02.11 | AC
Operating Guide for
Olympia, WA 98505
