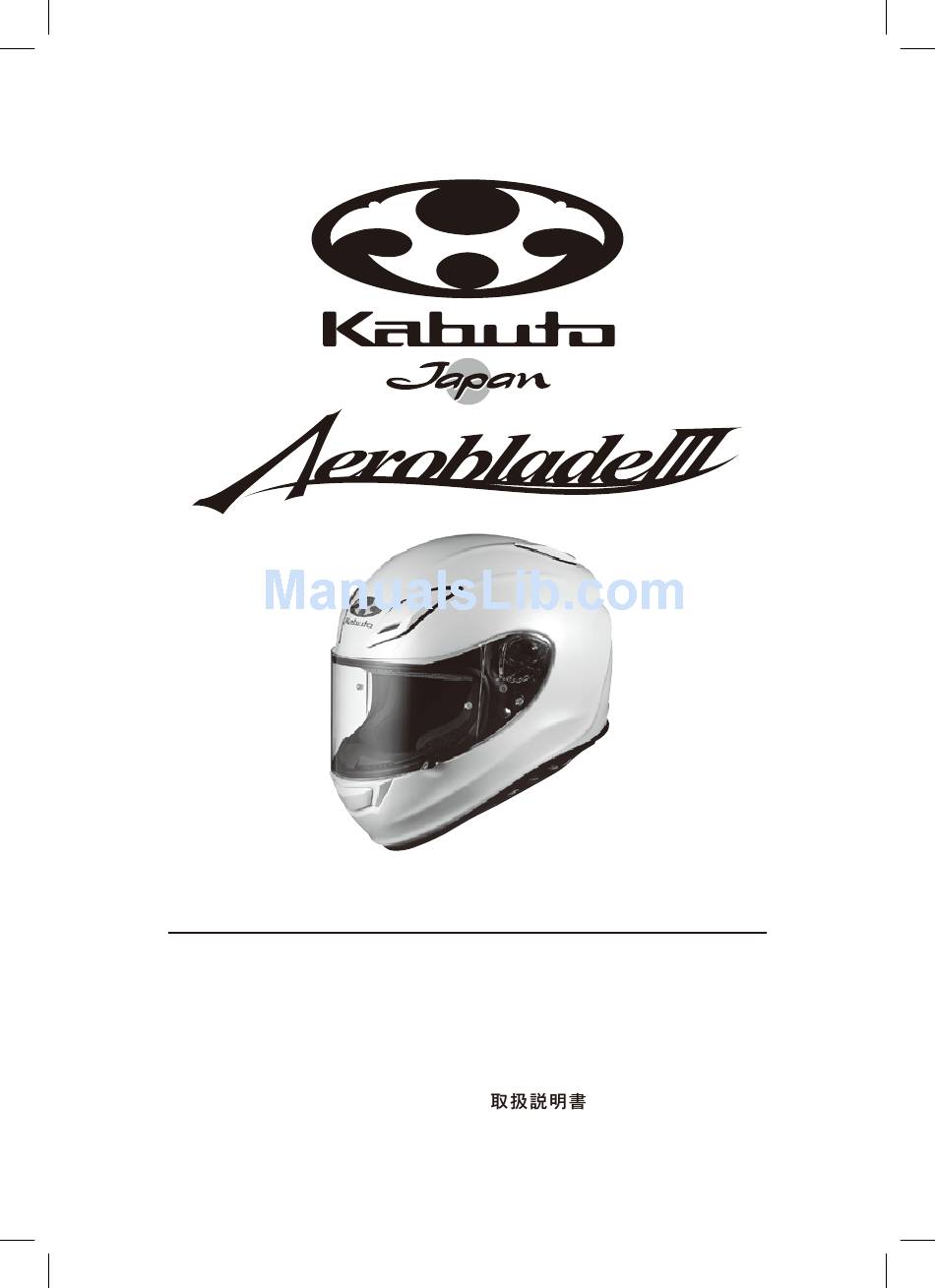

- Page 1 Instruction Manual Manuel d’utilisation / Gebrauchsanweisung Manuale d’istruzioni Indice / Manual de instrucciones Handleiding / Bruksanvisning Instrukcja obsługi / Instruktionsmanual Εγχειρίδιο χρήσης / Manual de instruções Käyttöopas /...
- Page 2 Instruction Manual INDE X English ENG-1 Français FRA-1 Deutsch DEU-1 Italiano ITA-1 Español SPA-1 Nederlands NLD-1 Svenska SWE-1 Polski POL-1 Dansk DAN-1 Ε λ λ ηνι κά GRE-1 Português POR-1 Suomi FIN-1 JPN-1...
-
Page 3: Before Use
Instruction Manual BEFORE USE PRIOR TO USE, READ THIS INSTRUCTION MANUAL THOROUGHLY AND KEEP THIS FOR FUTURE REFERENCE... - Page 4 Cleaning of Inner Pad, Cheek Pads and Chinstrap covers IMPORTANT WIND SHUTTER /BREATH GUARD Remove/Replace Wind Shutter-2 ..P-21 Remove/Replace Breath Guard ..P-22 INQUIRIES/ PARTS LIST Contact for inquiries and request for repair ..P-23 •AEROBLADE-III Series Parts List and Table for Replacement ..P-24 ENG-2...
- Page 5 Helmet Description Helmet Description Shell Rear Ventilation Integrated Wake Stabilizer Head Ventilation Head Ventilation (PATENTED) Shield Shield Ratchet Helmet Interiors Breath Guard ●Chinstraps ●Cheek Pads ●Inner Pads ●Chinstrap Covers Chin Ventilation Wind Shutter-2 (Packaged in) Pins for Pinlock® Original Insert Lens (Eccentric pins) ENG-3...
-
Page 6: Notes Before Use
NOTES BEFORE USE Thank you very much for purchasing a KABUTO helmet. Thank you very much for purchasing a KABUTO helmet. This Instruction Manual describes proper handling, various functions and This Instruction Manual describes proper handling, various functions and remove/replace each part of this helmet. Please read this Instruction Manual remove/replace each part of this helmet. - Page 7 Do not paint or apply solvent Do not paint or apply solvent Any paint, glue, adhesive stickers, etc. (or the use of detergents and solvents other than those Any paint, glue, adhesive stickers, etc. (or the use of detergents and solvents other than those prescribed) may not only reduce the original protective performance of the helmet considerably, prescribed) may not only reduce the original protective performance of the helmet considerably, but may also cause damage to the helmet that cannot be detected by the naked eye.
- Page 8 Remove/Replace Chinstrap covers Remove/Replace Chinstrap covers When the chinstrap covers of AEROBLADE-III helmet become dirty, they may be When the chinstrap covers of AEROBLADE-III helmet become dirty, they may be washed after detaching them from the chinstraps. washed after detaching them from the chinstraps.
- Page 9 Fastening Chinstraps Fastening Chinstraps a Let the strap go through the D ring, Let the strap go through the D ring, and pull the strap to the direction of the and pull the strap to the direction of the arrow to fasten it. arrow to fasten it.
- Page 10 Integrated Wake Stabilizer Integrated Wake Stabilizer PATENTED PATENTED The Wake Stabilizer PATENTED , KABUTO’s The Wake Stabilizer PATENTED , KABUTO’s unique system, is developed by analyzing the unique system, is developed by analyzing the results of wind tunnel experiments at several results of wind tunnel experiments at several angles.
- Page 11 Open/Close Head Ventilation and Rear Open/Close Head Ventilation and Rear Rear Ventilation Head Ventilation Shutter To open –Open/ close Head Ventilation– –Open/ close Head Ventilation– To open To open Slide the shutter Slide the shutter backwards to introduce air Slide the shutter backwards to introduce air backwards from the outside.
- Page 12 ” is the shield replacement system developed PATENTED PATENTED by KABUTO. The system allows quick shield replacement for riding and racing by KABUTO. The system allows quick shield replacement for riding and racing conditions and easy maintenance. conditions and easy maintenance.
- Page 13 –How to attach the shield– –How to attach the shield– Hook on Shield shield Release Button mechanism ❷ ❸ ❶ Cover the Shield Ratchet Shield Ratchet Shield Ratchet Hook of Shield Ratchet First, stop at this position Shield a As shown in 1 and 2 , align the angles of the shield release button and the part A on the Hook on shield Shield Ratchet, and set the mechanical part...
- Page 14 Remove/Replace of Shield Ratchets The “Shield Ratchet” is a part to control the open/close the shield and the function of the “Single Action Shield System PATENTED”. When the shield is completely removed in the procedure mentioned in 6“Single Action Shield System PATENTED”, the Shield Ratchet appears. –How to remove the Shield Ratchet–...
- Page 15 Shield Ratchet Screw Helmet Screw-inserting hole Shield Ratchet b Place the Shield Ratchet in the hollow c Fasten both Shield Ratchet Screws space on the side of the helmet and clockwise securely. Repeat the same align the mounting holes on the shield procedure on the other Shield Ratchet.
- Page 16 Remove/Replace Cheek Pads –How to remove the cheek pads– Hook and loop fastener Remove the cheek pad from hook and loop Cheek pad fastener and the snaps by gripping it firmly then pull it out. (Fig.1) CAUTION When removing the cheek pad, be sure to grip the base of cheek pad where the hook and loop fastener and the snaps are attached.
- Page 17 Remove/Replace Inner pad –How to remove the inner pad– a Undo the snaps at the forehead area by pulling them down as shown in Fig.1 b Undo the 3 snaps at the rear, then the 3 snaps inner pad can be removed. (Fig.2) CAUTION To remove the inner pad, do not pull the interlining and snaps by force but gently pull them out.
- Page 18 –How to attach the inner pad– a Insert the interlining at the temple areas as shown in Fig.1. b Insert the 3 snaps on the front as shown in Fig.2. Snap c Fasten the 3 snaps at the rear to 3 snaps complete attaching the pad.
- Page 19 NOTE Exchangeable Inner Pad, Cheek Pads and Chinstrap covers AEROBLADE-III interiors are exchangeable as shown in the table below. Fine fitting can be achieved by changing only cheek pads etc. AEROBLADE-III Inner pad Shell size Pad size Exchangeable Included in package...
- Page 20 Remove/Replace Wind Shutter-2 The Wind Shutter-2 is included in the package as a standard accessory. This accessory is intended to reduce the introduction of wind from chin area while riding. It can be attached and detached as desired according to seasons and intended applications.
- Page 21 Breath Guard Pro (Optional accessory) In addition to this standard Breath Guard, Breath Guard Pro, a larger size than Breath Guard is available as an optional accessory. Breath Guard Pro is available at authorized dealers or sales stores of KABUTO helmets. ENG-22...
-
Page 22: Request For Repair
COOLMAX® is the registered trade name of INVISTA. Contact for inquiries on the products and request for repair: Contact an authorized dealer of Kabuto helmets about the products and request for repair Request for repair ■Contact the authorized KABUTO dealer for request of repair. - Page 23 AEROBLADE-III Series Parts List and Table for Replacement 2-a(R) 2-a(L) 5(L) 5(R) CAUTION 4(R) ●The following parts cannot be repaired to assure the performance of the helmet. ●Helmet body (Shell) ●Shock absorbing liner ●Chinstraps including D rings ●Contact the authorized KABUTO dealers for detailed 4(L) information on repairing.
- Page 24 ●Check out our website for details about the parts. AEROBLADE-III Series Parts for Repair ●The following parts except some are repaired only at the KABUTO dealers and are not available for direct sales to users in general. ●These parts are repaired at cost to the user except damage attributable to a defect in material and workmanship of KABUTO helmets.
