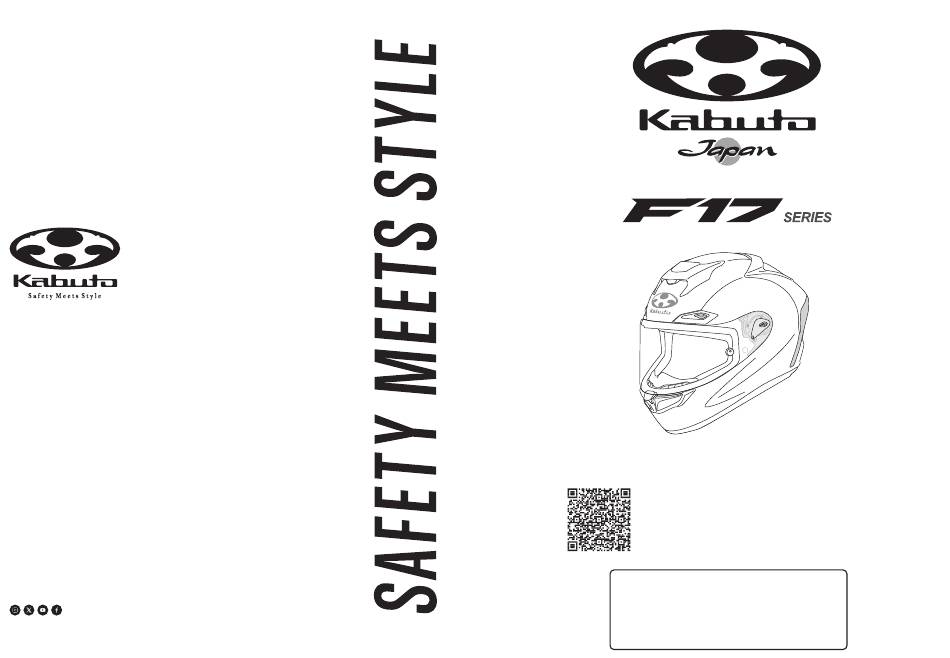

OGK KABUTO CO., LTD.
6-3-4, NAGATANISHI, HIGASHIOSAKA, OSAKA, 577-0016, JAPAN.
TEL:+81-6-6748-7806 FAX:+81-6-6747-8023
Kabuto Global Web Site
www.ogkkabuto.com
No.E-F17-2024-APR/QD1
Instruction Manual
For full descriptions of this
product and other languages.
https://www.ogkkabuto.co.jp/motorcycle/etc/e2206_manu.html
BEFORE USE
PRIOR TO USE, READ THIS INSTRUCTION
MANUAL THOROUGHLY AND KEEP THIS
FOR FUTURE REFERENCE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F17 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Kabuto F17 Series

Summary of Contents for Kabuto F17 Series

  • Page 1 Instruction Manual For full descriptions of this product and other languages. https://www.ogkkabuto.co.jp/motorcycle/etc/e2206_manu.html OGK KABUTO CO., LTD. 6-3-4, NAGATANISHI, HIGASHIOSAKA, OSAKA, 577-0016, JAPAN. BEFORE USE TEL:+81-6-6748-7806 FAX:+81-6-6747-8023 Kabuto Global Web Site PRIOR TO USE, READ THIS INSTRUCTION www.ogkkabuto.com MANUAL THOROUGHLY AND KEEP THIS FOR FUTURE REFERENCE No.E-F17-2024-APR/QD1...

  • Page 2: Table Of Contents

    Instruction Manual • Table of Contents ..... P-1 Table of Contents ..... P-2 Part Descriptions NOTES BEFORE USE..... P-3 –Exterior– Ventilation ..... P-5 Wake Stabilizer / Crest Spoiler ..... P-7 PAT. PAT.P. Shield ..... P-8 Pinlock Original Insert Lens ..... P-12 ®...

  • Page 3: Part Descriptions

    Part Descriptions NOTES BEFORE USE Thank you very much for purchasing the Kabuto helmet. This Instruction Manual describes proper handling, various functions, and removal and replacement of each part of this helmet. Please read this Instruction Manual Crest Spoiler PAT.P.

  • Page 4: Exterior

    –Exterior– Do not paint or apply solvent Any paint, glue, adhesive stickers, etc. (or the use of detergents and solvents other than those prescribed) may not only reduce the original protective performance of the helmet considerably, but Ventilations may also cause damage to the helmet that cannot be detected by the naked eye. Handle your helmet with care Ventilation System Do not toss your helmet over a floor or sit on it.

  • Page 5: Wake Stabilizer

    Wake Stabilizer / Crest Spoiler – Center Ventilation – PAT. PAT.P. Open Close Wake Stabilizer PAT. Kabuto’s unique system, controls the airflow around the helmet and reduces loads while Air-duct riding. – Chin Ventilation – Full-open Half-open Close Air-duct Air-duct CAUTION! Do not lift the helmet with wake stabilizer, or give it a strong impact.

  • Page 6: Shield

    Shield CAUTION! ●Do not push or twist the shield by force when installing it. Such action may – Removal – damage the shield and ratchet system. 1, Fully open the shield (Fig. 1) 2, Pull the shield in the sense of the arrow while pressing down the release button to remove.
  • Page 7 < Shield Ratchets > Screw Shield Ratchet Helmet Shield Ratchet appears when the shield is completely removed. – Removal – Shield Ratchet Screw Shield Turn the Shield Ratchet Screws on Ratchet the Shield Ratchet counterclockwise using a proper size Phillips screwdriver to unscrew.
  • Page 8 Section view Make sure the Pinlock Original Insert Lens ® of shield: to be fit inside the chase. Protective film Correct Wrong Silicon seal Pinlock Original Insert Lens has international patent ® Shield *with no space protection and is a registered brand name of Pinlock systems Silicon seal B.V.

  • Page 9: Pinlock ® Original Insert Lens

    CAUTION! –Interior– •Flex the shield properly when fitting the Pinlock Original Insert Lens. ® Otherwise, eccentric pins may be damaged. Chinstrap •Clean the inside of the shield before applying the Pinlock Original Insert Lens. ® Pay attention not to touch the anti-fogging part of the silicon seal on the When the chinstrap covers are removable and washable.

  • Page 10: Cheek Pads

    < Fastening Chinstraps > Cheek Pads Hook-and-loop fastener – Remove – D-ring Chinstrap Hold the cheek pad firmly, remove the two snaps Let the strap go through the D-rings, and and hook and loop fastener on the back side of pull the strap to the direction of the arrow the cheek pad, and pull it out from the front side Cheek Pads...
  • Page 11 – Attachment – < Kabuto Emergency System > PAT. Front Front By pulling out the sponge inside the cheek pad, in the event of an accident the 1, Check the direction of the cheek pad. rescuer can smoothly remove the helmet.

  • Page 12: Inner Pad

    Inner Pad < KF17 JOINT BASE > – Remove – – Install – Snap Snap Insert the hook and loop fastener into Hooks Hooks Snap Snap the slit on the helmet in the order of A→ B→C. Snap Snap (back side) (back side) –...

  • Page 13: Wind Shutter

    – Remove – Wind Shutter Firmly hold the interlining area around the The Wind Shutter is included as the standard accessory. This accessory is intended to center of the Wind Shutter and pull it up. reduce the introduction of wind from chin area while riding. Wind Sutter Wind Sutter –...
  • Page 14 Contact the address given below for inquiries on the products and request for repair Request for repair ■ Contact a sales store or the authorized Kabuto dealers for request of repair. ■ Before sending back the helmet to us, contact the dealers for detailed information and report on repair in advance.
