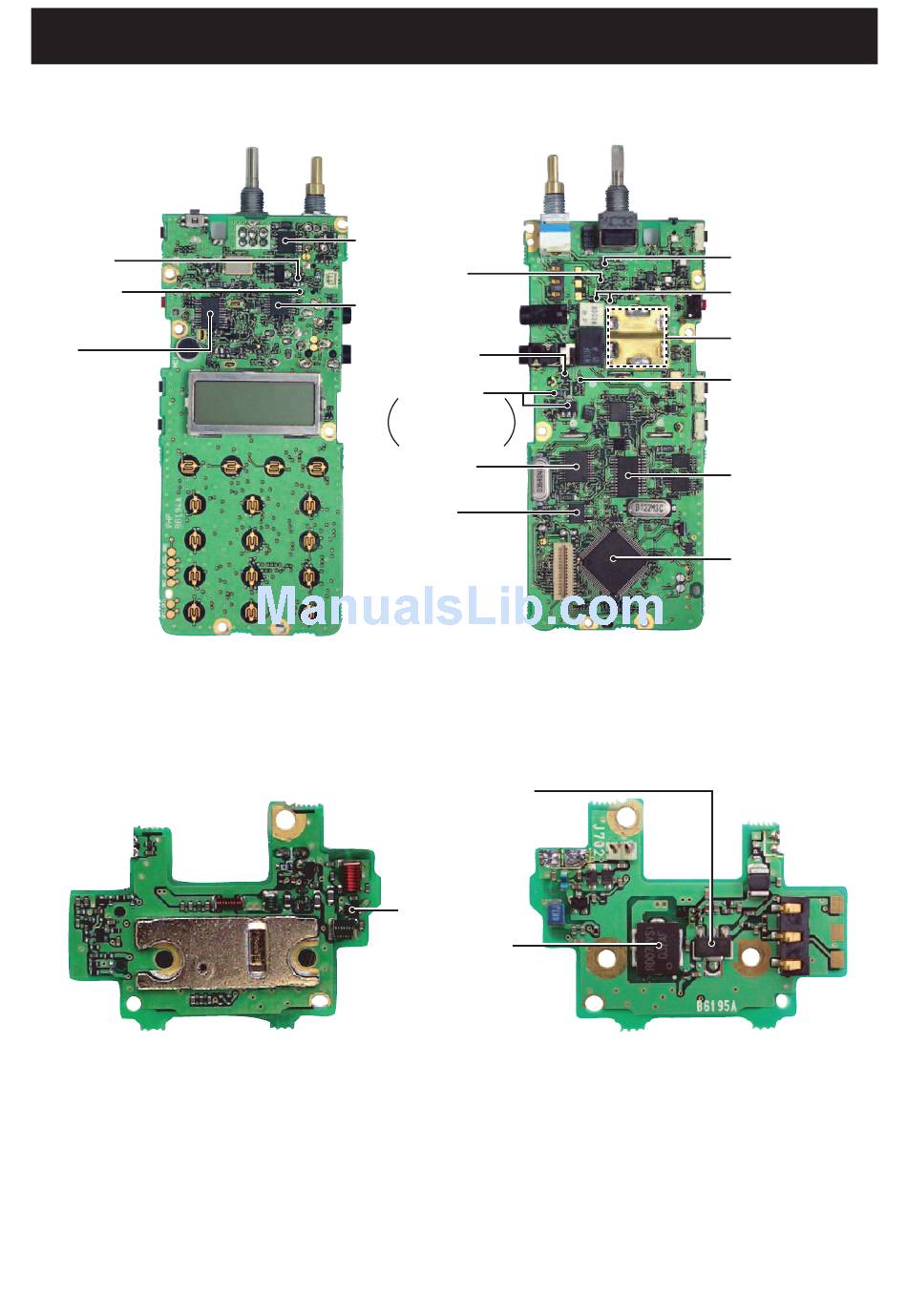

Inside Views - Icom IC-F33GT Service Manual

SECTION 2
• MAIN UNIT
APC amplifier
(IC2: TA75S01F)
TX Mute switch
(Q501: UNR9213J)
PLL IC
(IC21: LMX2352TM)
• PA UNIT
TOP VIEW

INSIDE VIEWS

TOP VIEW
AF amplifier
(IC15: TA7368F)
FM IF IC
(IC9: TA31136FN)
BOTTOM VIEW
IF amplifier
(Q7: 2SC4215)
R5 Regulator
(Q25: 2SA1577)
S5 Regulator
Q26: 2SB1132
Q27: XP6501
Q28: UNR9113 J
Base band IC
(IC14: AK2346)
EEPROM
(IC10: 24LC64T-I/SN)
Drive amplifier
(Q702: RD01MUS1)
Antenna switch
(D701: 1SV307)
Power amplifier
(Q701: RD07MVS1)
2 - 1
+5 Regulator
(IC17: NJM2870)
TX/RX switch
(D16, D17: MA2S077)
VCO circuits
T5 Regulator
(Q24: 2SA1577)
D/A converter
(IC12: M62364FP)
CPU
(IC22: HD64F2238BTF13)
BOTTOM VIEW
