Procom MN180HPA Owner's Operation And Installation Manual page 15
Vent-free natural gas space heater
Hide thumbs
Also See for MN180HPA:
- Owner's operation & installation manual (28 pages) ,
- Owner's operation and installation manual (26 pages) ,
- Owner's operation and installation manual (29 pages)
Table of Contents
Advertisement
Pressure
Regulator
Ground
Joint Union
Test Gauge
Connection*
Sediment
Trap
* Purchase the optional CSA design-certified equipment
shutoff valve from your dealer.
200043-01A
INSTALLATION
Tee Joint
Reducer
Bushing to
1/8" NPT
1/8" NPT
Plug Tap
Tee Joint
Pipe Nipple
Gap

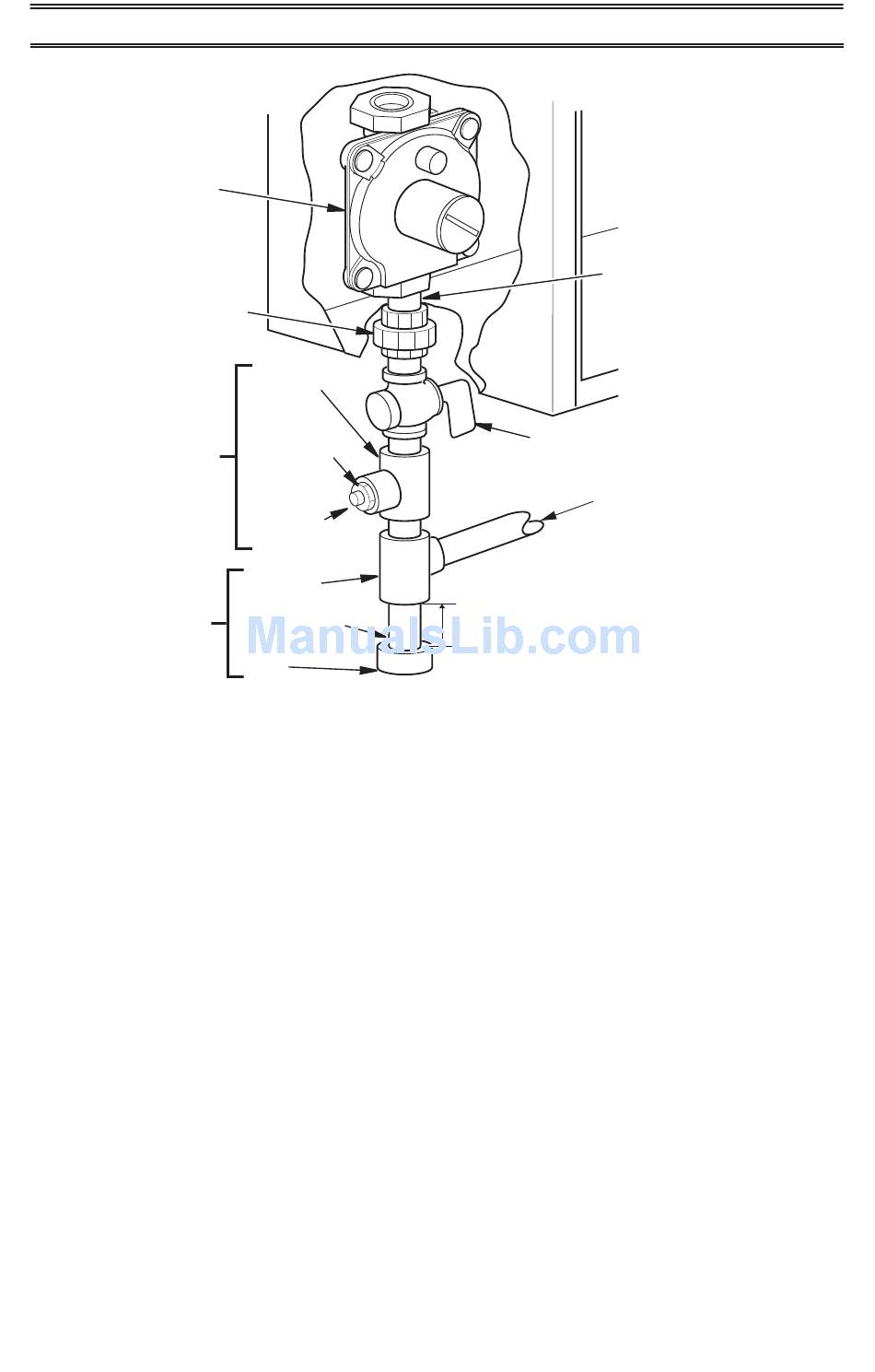

Figure 13 - Gas Connection
www.usaprocom.com
3/8" NPT
Pipe Nipple
Equipment
Shutoff Valve
From Gas Meter
3" Minimum
(7" W.C. to
10.5" W.C.
Pressure)
15
