Methods For Attaching Mounting
Bracket To Wall
Use only the last hole on each end of mount-
ing bracket to attach bracket to wall. Attach
mounting bracket to a wall only in one of two
ways:
1. Attaching to wall stud: This method pro-
vides the strongest hold. Insert mounting
screws through mounting bracket and into
wall studs.
2. Attaching to wall anchor: This method
allows you to attach mounting bracket to
hollow walls (wall areas between studs)
or to solid walls (concrete or masonry).
Decide which method better suits your needs.
Either method will provide a secure hold for
the mounting bracket.
Marking Screw Locations
1. Tape mounting bracket to wall where
heater will be located. Make sure mount-
ing bracket is level.
9"
Min
Only Insert Mounting
Screws Through Last
Hole On Each End
Models: MN180HPA and MN180TPA
12 / "
5
8
Min
Only Insert Mounting
Screws Through Last
Hole On Each End
Models: MN300HPA and MN300TPA

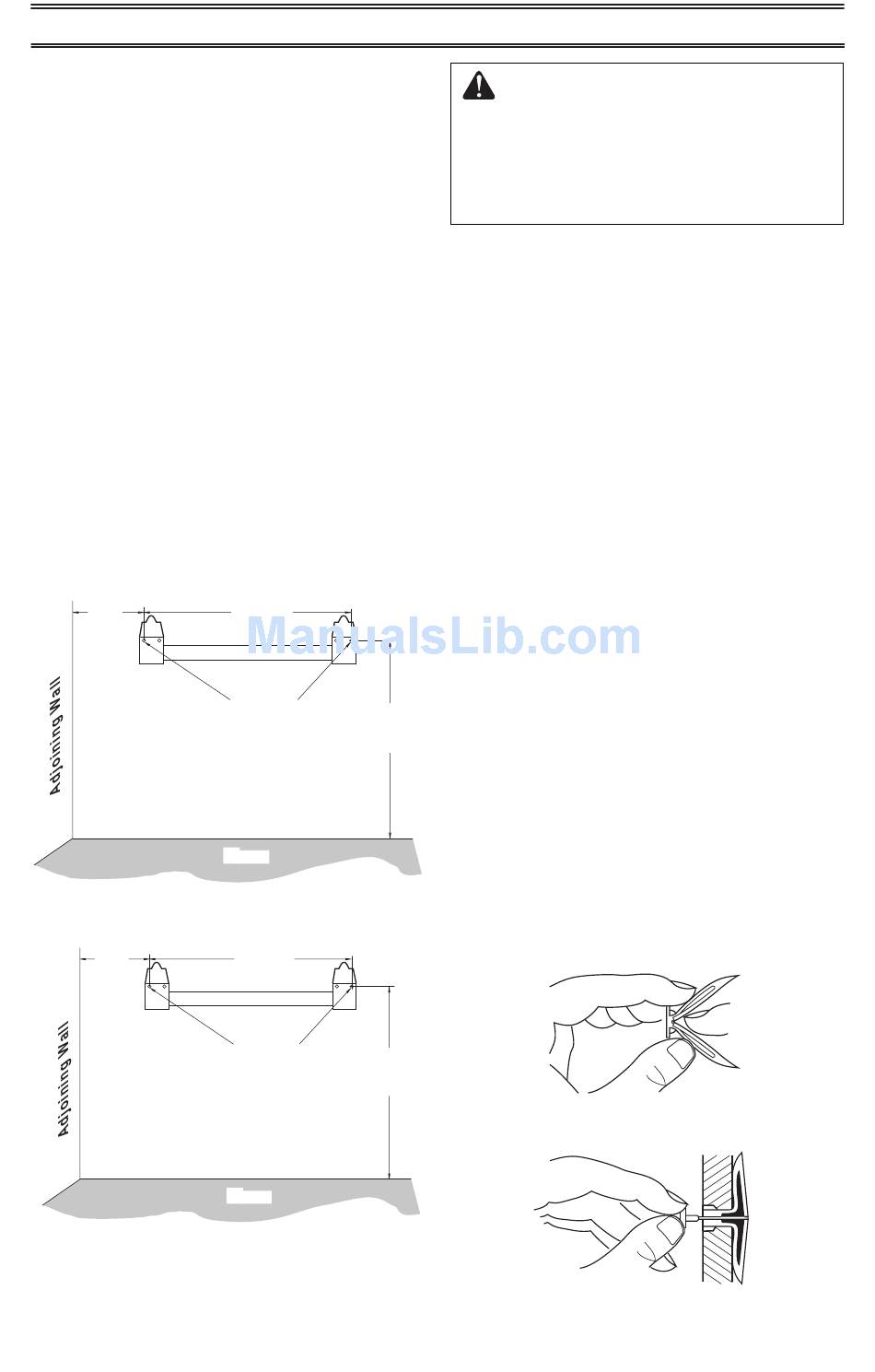

Figure 8 - Mounting Bracket Clearances
12
INSTALLATION
17 / "
3
8
18
Min
Floor
17 / "
3
8
18
Min
Floor
www.usaprocom.com
WARNING: Maintain minimum
clearances shown in Figure
4, page 10. If you can, provide
greater clearances from floor and
joining wall.
2. Mark screw locations on wall (see Figure
8). Note: Mark only last hole on each end
of mounting bracket. Insert mounting
screws through these holes only.
3. Remove tape and mounting bracket from
wall.
Attaching Mounting Bracket To Wall
Note: Wall anchors, mounting screws, and
spacers are in hardware package. The hard-
ware package is provided with heater.
Attaching to Wall Stud Method
For attaching mounting bracket to wall studs:
1. Drill holes at marked locations using 9/64"
drill bit.
2. Place mounting bracket onto wall. Line
up last hole on each end of bracket with
holes drilled in wall.
3. Insert mounting screws through bracket
and into wall studs.
/ "
1
4. Tighten screws until mounting bracket is
2
firmly fastened to wall studs.
Attaching to Wall Anchor Method
For attaching mounting bracket to hollow
walls (wall areas between studs) or solid walls
(concrete or masonry):
1. Drill holes at marked locations using
5/16" drill bit. For solid walls (concrete or
masonry), drill at least 1" deep.
2. Fold wall anchor as shown in Figure 9.
/ "
1
2
Figure 9 - Folding Anchor
Figure 10 - Popping Open Anchor Wings
For Thin Walls
