Plug in the power

Before using the power supply, please connect all peripherals
to the terminal. Not doing so may result in damage to the unit
or connected devices.

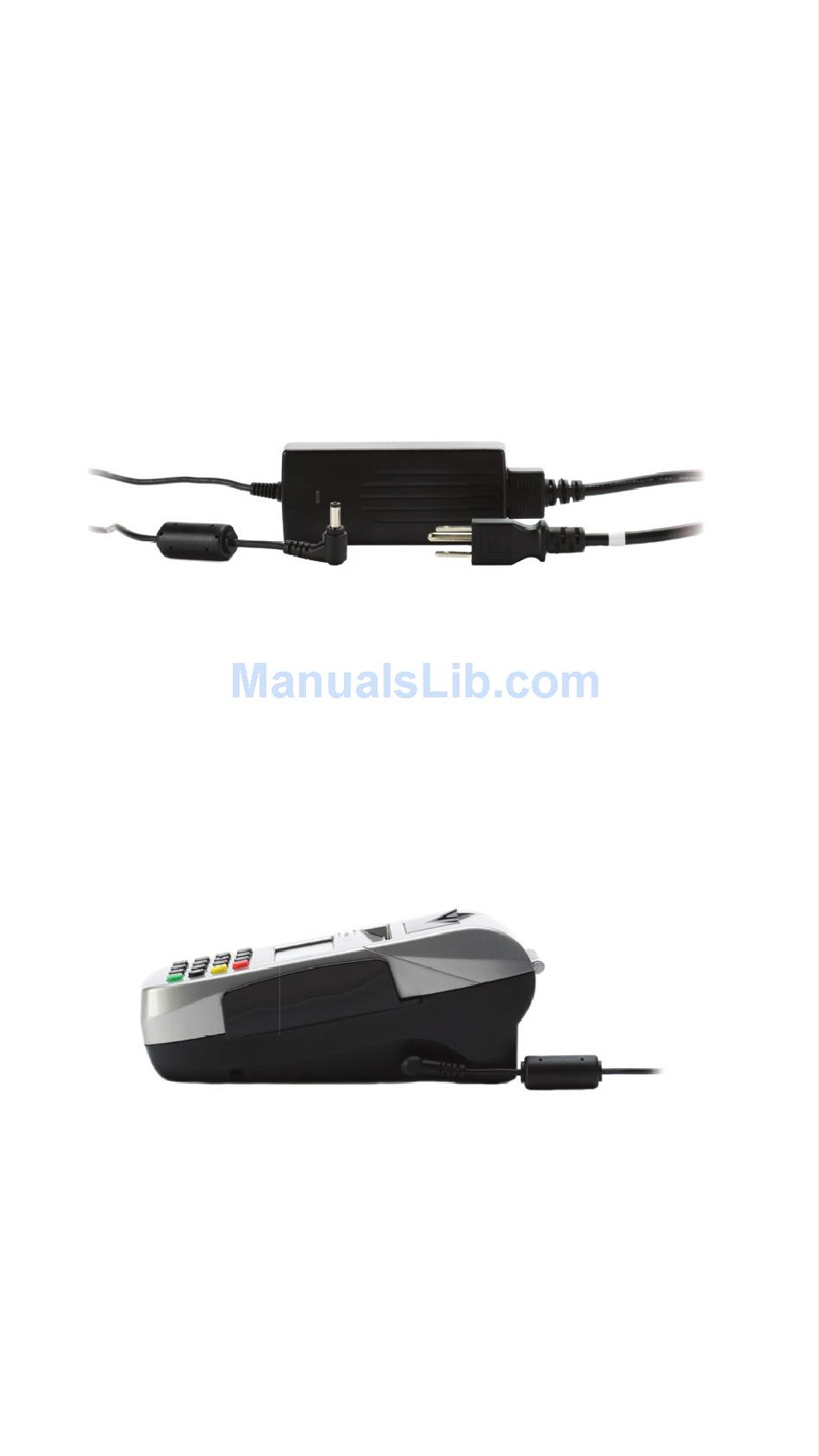

Connect the power cord to the power supply via the three-prong
end and receiver.
Find the power input on the right side of the terminal.
Connect the single-pole AC adapter plug to the power input at
the right side of the terminal. Turn the plug so that cord is directed
toward the back of the terminal.
The power supply should be the last item connected to the unit.
Plug the adapter into a surge protector (strongly recommended)
or a standard 120V electrical outlet.
Adapter spec: LI SHIN INT. / LSE0107A1240: Input: 100-240Vac, 50/60Hz 1A /
Output: 12Vdc, 3.33A
operating Temperature: 0oC to 40oC
Battery spec: 3V, CR2032
Caution: Risk of explosion if the battery is replaced by an incorrect type. Please dispose
used battery according to the local regulations.
Caution: Use only shielded signal cables to connect I/O devices to this equipment.
You are cautioned that changes or modifications not expressly approved by the party
responsible for compliance could void your authority to operate the equipment.
Warning: This is a Class A product. In a domestic environment this product may cause
radio interference in which case the user may be required to take adequate measures.
10
