Related Manuals for First Data FD100

Summary of Contents for First Data FD100

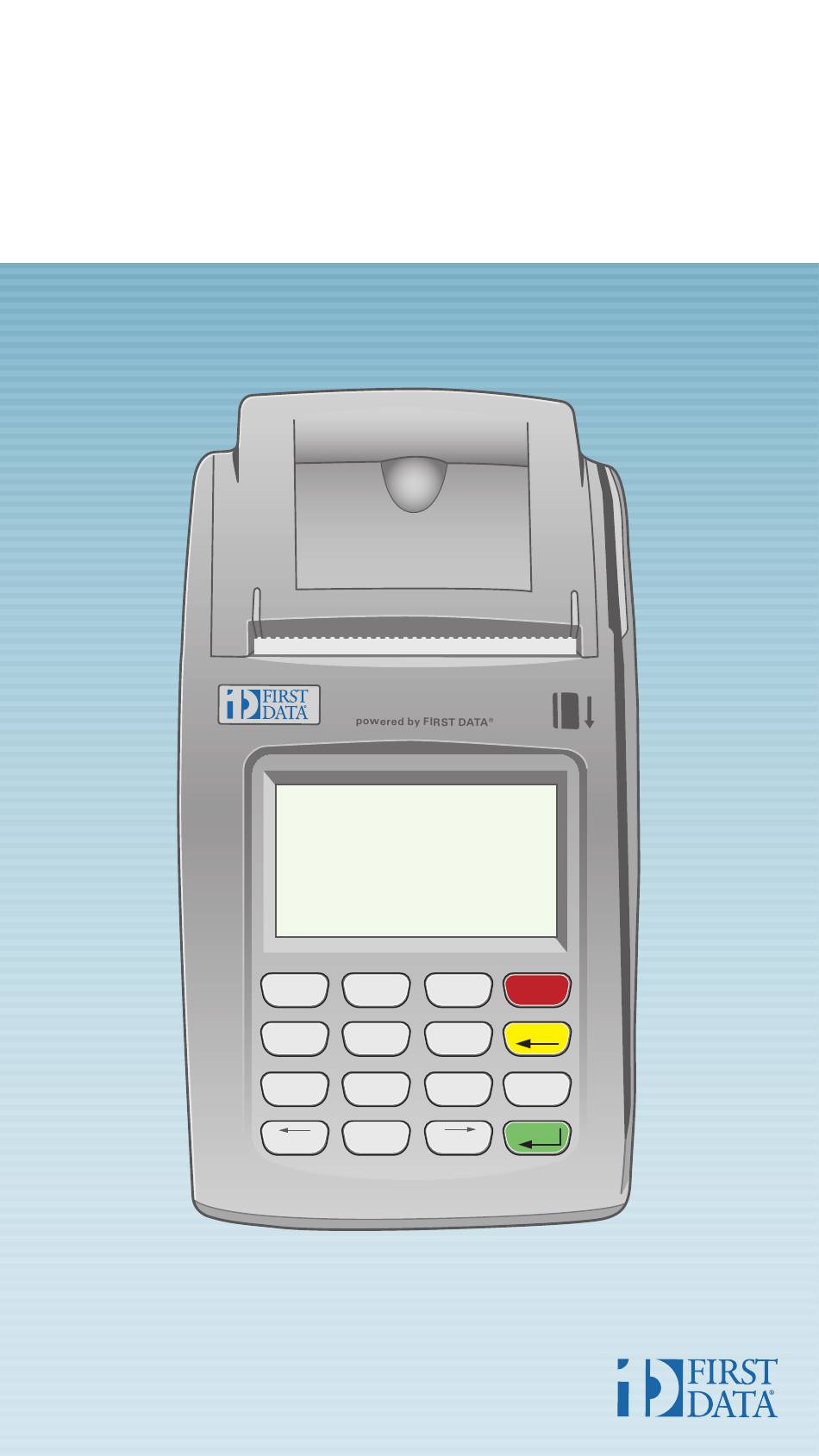

  • Page 1 FD100 Terminal Quick Set-Up Guide FD100 Welcome! CLEAR BACKSPACE ALPHA ENTER -SP\...

  • Page 2: What Else Will You Need

    Thanks for choosing the What else will you need? First Data FD100 Terminal. ™ The FD100 Terminal is one of the fastest, If connecting through Cable: most secure point-of-sale terminals • Router available. Installation is quick and easy. • Modem •...

  • Page 3: Port Connections

    Port connections ® MagTek MICRImage. The ports on the back of the FD100 Terminal enable you to process transactions and add peripherals such as a check reader. Phone (blue) For dial-up transactions using a phone line. USB (gray) and Serial (green) You may connect additional peripherals to the USB or ®...

  • Page 4: Get Connected

    Let’s get started... Typical set-up time: 15-20 minutes Where to put the FD100 Terminal Place the terminal on a desk or tabletop. Avoid areas with direct sunlight or objects that radiate heat, excessive dust, and electrical devices that cause excessive voltage.
  • Page 5 Cable Dial-up (dedicated line) Option 1 WALL JACK COM2 COM1 COM2 COM1 PHONE CORD Dial-up Option 2 CABLE OUTLET WALL JACK COM2 COM1 ROUTER MODEM SPLITTER PHONE CORD ETHERNET CABLE NOTE: You may connect a standard telephone or fax machine COAXIAL CABLE to the other modular jack on the back of the terminal (leftmost blue-colored jack with picture of telephone).

  • Page 6: Plug In The Power

    Plug in the power You’re all set! Ready to make a transaction? Before using the power supply, please connect all peripherals to the terminal. Not doing so may result in damage to the unit or Get your merchant ID number from the connected devices.
  • Page 7 © 2007 FIRST DATA CORPORATION. ALL RIGHTS RESERVED COM2 COM1 MIS-FD100-QSGDE...
