First Data FD130 Quick Setup Manual

Hide thumbs Also See for FD130:

Advertisement

Table of Contents

First Data™
FD130 Terminal
Quick Set-up Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FD130 and is the answer not in the manual?

Questions and answers

Related Manuals for First Data FD130

Summary of Contents for First Data FD130

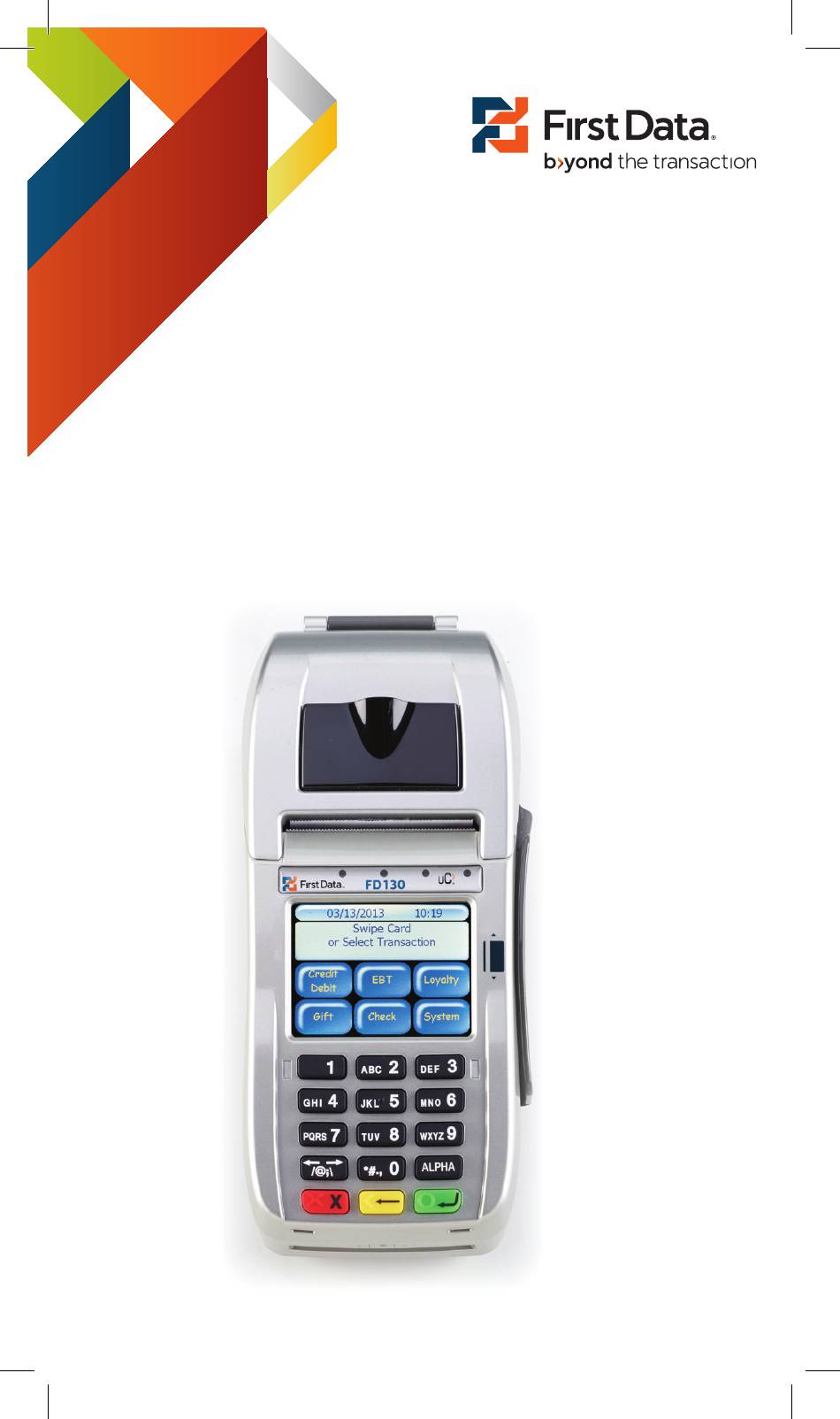

  • Page 1 First Data™ FD130 Terminal Quick Set-up Guide...

  • Page 2: What's In The Box

    Thanks for choosing a First Data™ Terminal. First Data Terminals are some of the fastest, most secure point-of-sale terminals available. Installation is quick and easy. Simply follow the instructions and begin accepting card transactions today. What’s in the box? J First Data™ FD130 Terminal...
  • Page 3 Getting to know the FD130 Port connections The ports on the back enable you to add peripherals such as PIN ads, check readers and contactless readers. Phone (blue) For dial-up transactions using a phone line. USB (gray) and Serial (green)
  • Page 4 Getting to know the FD130 (continued) Note: If you open the cover on the bottom of the terminal, you will find two additional ports. The left is a USB port and the other is a mini USB port. Caution: The USB port cover should be kept closed during normal operation.

  • Page 5: Let's Get Started

    Let’s get started Typical set-up time: 10-15 minutes Where to put the FD130 Terminal Place the terminal on a desk or tabletop. Avoid areas with direct sunlight, objects that radiate heat, excessive dust and other electrical devices that can cause excessive voltage.

  • Page 6: Get Connected

    Get connected You may choose an IP connection, (DSL or cable), Wi-Fi or dial-up. If you choose dial-up, you should use a dedicated phone line. ROUTER MODEM Ethernet Cable OUTLET Phone Cord...
  • Page 7 Cable ROUTER MODEM CABLE Ethernet Cable OUTLET Coaxial Cable Dial-up (dedicated line) PHONE SOCKET Phone Cord...

  • Page 8: Plug In The Power

    Plug in the power Before using the power supply, please connect all peripherals to the terminal. Not doing so may result in damage to the unit or connected devices. Connect the power cord to the power supply via the three-prong end and receiver. Find the power input on the right side of the terminal.
  • Page 9 Plug in the power (continued) Adapter spec: LI SHIN INT. / LSE0107A1240: Input: 100-240Vac, 50/60Hz 1A / Output: 12Vdc, 3.33A Operating Temperature: 0 C to 40 Battery spec: 3V, CR2032 Caution: Risk of explosion if the battery is replaced by an incorrect type.

  • Page 10: Using The Magnetic Stripe Reader

    Contact your sales or customer service representative.) Find the card reader slot at the front of the FD130 and insert the card completely so the microprocessor chip is no longer visible and the front of the card is facing up.

  • Page 11: Using The Keypad

    Using the keypad Through the keypad, the user can select transaction types and enter information. The FD130 has 15 keys that can be used to select numbers, letters, and to enter data. To enter numbers or letters, simply press the appropriate key.
  • Page 12 Ringer Equivalence Numbers of all the devices does not exceed five. © 2013 First Data Corporation. All Rights Reserved. All trademarks, service marks and trade names referenced in this material are the property of their respective owners.
