First Data FD130 Manual

What's in the box?

→ First Data™ FD130 Terminal

→ Thermal Paper Roll

→ Telephone Cord and/or Ethernet Cable

→ Two-piece AC Power Supply

What else will you need?

If connecting through Cable:

→ Router

→ Modem

→ Ethernet Cable

→ Coaxial Cable

If connecting through DSL:

→ Router

→ Modem

→ Ethernet Cable (2)

If connecting through Dial-up:

→ Splitter (optional)

Note:
To prevent damage to the FD Terminals and connected devices, we strongly recommend using a surge protector or UPS (Uninterruptible Power Supply) with a battery backup and phone/fax protection.

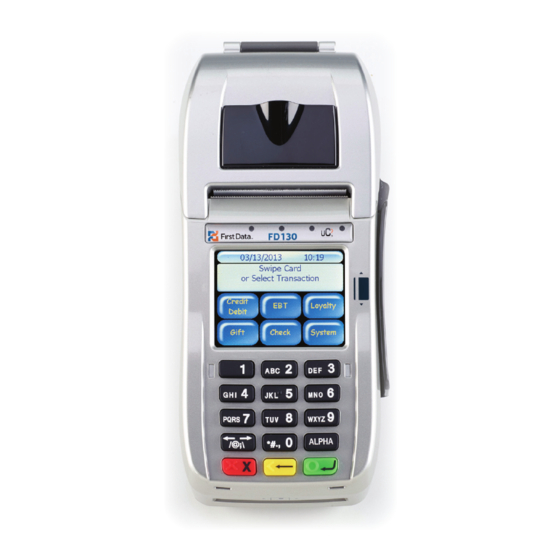

Getting to know the FD130

Port connections
The ports on the back enable you to add peripherals such as PIN ads, check readers and contactless readers.

Phone (blue)
For dial-up transactions using a phone line.

USB (gray) and Serial (green)
You may connect additional peripherals to the USB or COM ports, such as the FD-10, FD-10C or FD35 PIN pads, and/or the MagTek^® MiniMICR Check Reader.

Ethernet (yellow)
For Internet transactions using Cable or DSL.

Note: If you open the cover on the bottom of the terminal, you will find two additional ports. The left is a USB port and the other is a mini USB port.

The USB port cover should be kept closed during normal operation. The USB port cover shall not be removable from other parts of the FIRE ENCLOSURE by the OPERATOR

AC Input
To connect your power supply to a wall outlet.

Let's get started

Typical set-up time: 10-15 minutes

Where to put the FD130 Terminal

Place the terminal on a desk or tabletop. Avoid areas with direct sunlight, objects that radiate heat, excessive dust and other electrical devices that can cause excessive voltage.

Loading the paper

Pop the printer cover's latch to open the cover; then lift the cover. Load a roll of paper (Appleton POS Grade Plus 600-2.4 is recommended) into the printer. The thermal print-side of the paper will feed out facing the operator. Close the cover and tear off any excess paper.

Get connected

You may choose an IP connection, (DSL or cable), Wi-Fi or dial-up. If you choose dial-up, you should use a dedicated phone line.

DSL

Cable

Dial-up (dedicated line)

Plug in the power

Before using the power supply, please connect all peripherals to the terminal. Not doing so may result in damage to the unit or connected devices.

Connect the power cord to the power supply via the three-prong end and receiver.

Find the power input on the right side of the terminal. Connect the single-pole AC adapter plug to the power input at the right side of the terminal. Turn the plug so that cord is directed toward the back of the terminal.

The power supply should be the last item connected to the unit. Plug the adapter into a surge protector (strongly recommended) or a standard 120V electrical outlet.

Adapter spec: LI SHIN INT. / LSE0107A1240: Input: 100-240Vac, 50/60Hz 1A /

Output: 12Vdc, 3.33A

Operating Temperature: 0^oC to 40^oC

Battery spec: 3V, CR2032

Risk of explosion if the battery is replaced by an incorrect type. Please dispose of used battery according to local regulations.

Use only shielded signal cables to connect I/O devices to this equipment. You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.

This is a Class A product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.

Using the magnetic stripe reader

With the idle message displayed, select the desired transaction type. Insert the card into the card reader slot, with the magnetic stripe lying in the slot and facing the terminal.

Slide the card in either direction through the slot without stopping.

If the card swipe fails, check the position of the magnetic stripe and slide the card again. If failure persists, the card's stripe may be damaged, and user will have to manually enter the account number on the keypad.

Follow remaining prompts on the display to complete the transaction. Refer to quick reference guide for details.

Using the chip card reader

(Optional: Smart card capability must be enabled. Contact your sales or customer service representative.)

Find the card reader slot at the front of the FD130 and insert the card completely so the microprocessor chip is no longer visible and the front of the card is facing up. The card must remain inserted throughout the entire transaction.

Using the contactless reader

The card holder will tap his or her contactless card or device against the contactless icon located on the FD130. In some cases, the device may prompt for a second tap to complete the transaction.

Using the keypad

Through the keypad, the user can select transaction types and enter information. The FD130 has 15 keys that can be used to select numbers, letters, and to enter data.

To enter numbers or letters, simply press the appropriate key. For example, to type the letter A, press [ALPHA]; then the number 2 key. For the second letter on the keyboard, such as B, press [ALPHA] twice then [2]. Or for C press [ALPHA] three times then [2].

FCC REQUIREMENTS

This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On the base unit of this equipment is a label that contains, among other information, the FCC Registration Number and Ringer Equivalence Number (REN) for this equipment. IF REQUESTED, THIS INFORMATION MUST BE GIVEN TO THE TELEPHONE COMPANY.
The REN is used to determine the number of devices that may be connected to a telephone line. Excessive RENs on a telephone line may result in the devices not ringing in response to an incoming call. In most but not all areas, the sum of RENs should not exceed five (5.0). To be certain of the number of devices that may be connected to a line, as determined by the total RENs, contact the local telephone company. For products approved after July 23, 2001, the REN for this product is part of the product identifier that has the format US: N7KMM09BT110P. The digits represented by 09B are the REN without a decimal point (e.g., 03 is a REN of 0.3). For earlier products, the REN is separately shown on the label. If your equipment causes harm to the telephone network, the telephone company may discontinue your service. If you experience trouble with this telephone equipment, please contact the following address and phone number for information on obtaining service or repairs. The telephone company may ask that you disconnect this equipment from the network until the problem has been corrected or until you are sure that the equipment is not malfunctioning. This equipment may not be used on coin service provided by the telephone company. Connection to party lines is subject to state tariffs.
TASQ Technology
1169 Canton Road, Marietta, GA 30066 (800) 827-8297 A plug and jack used to connect this equipment to the premises wiring and telephone network must comply with the applicable FCC Part 68 rules and requirements adopted by the ACTA. A compliant telephone cord and modular plug is provided with this product. It is designed to be connected to a compatible modular jack that is also compliant. See installation instructions for details.
NOTICE: The Ringer Equivalence Number (REN) for this terminal equipment is 09B. The REN assigned to each terminal equipment provides an indication of the maximum number of terminals allowed to be connected to a telephone interface. The termination on an interface may consist of any combination of devices subject only to the requirement that the sum of the Ringer Equivalence Numbers of all the devices does not exceed five.

FCC STATEMENT

This Equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

© 2013 First Data Corporation. All Rights Reserved. All trademarks, service marks and trade names referenced in this material are the property of their respective owners.
