4.

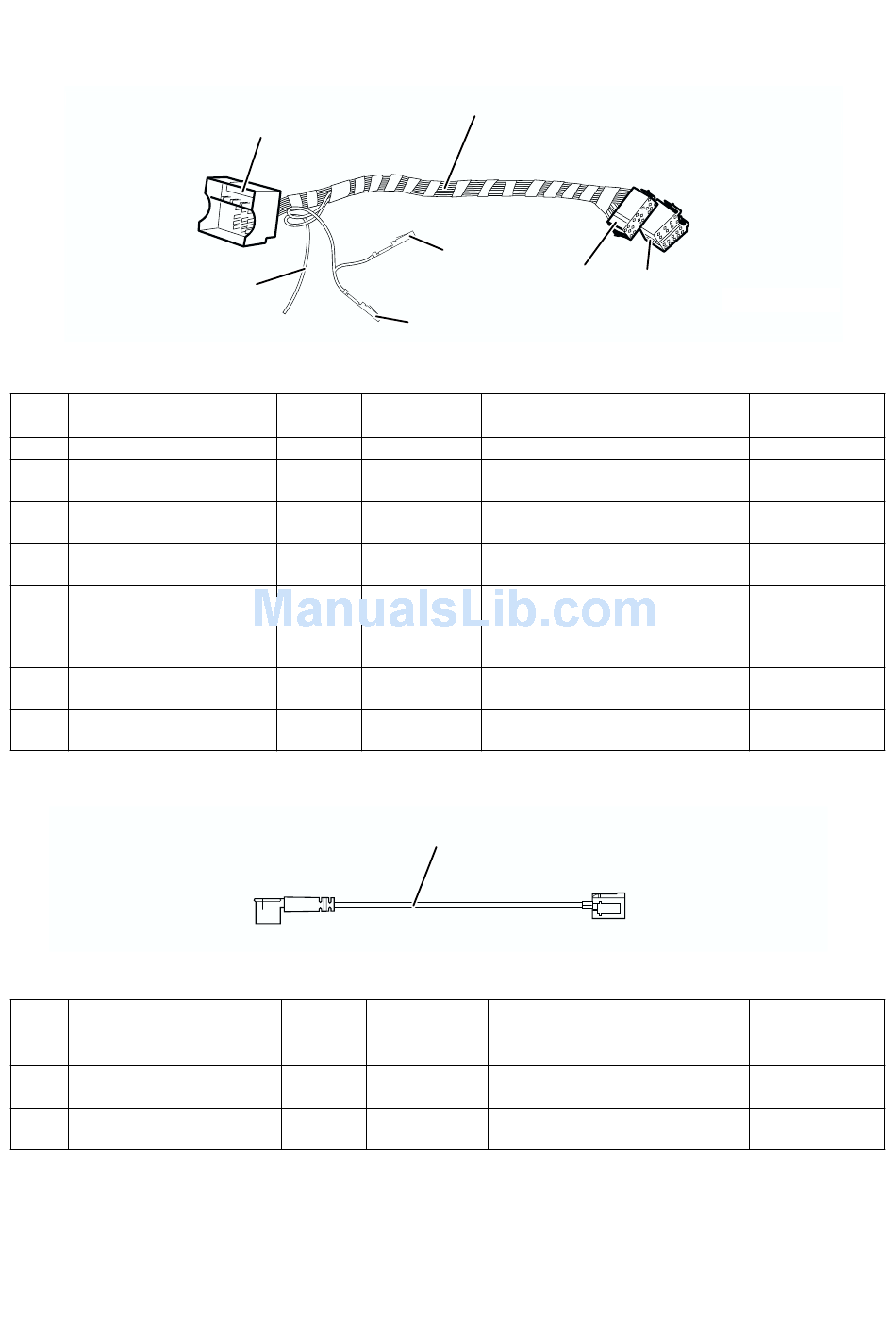

Adapter cable connection diagram

0
0
Item Description
A Adapter cable
A1 Black 16-pin plug casing
A2 Black 16-pin socket casing
A3 Red 20-pin socket casing
A4 Open cable end
A5 Blade terminal contact
A6 Blade terminal contact
Coaxial plug casing
Item Description
B Aerial adapter
B1 Coaxial plug casing
B2 Fakra coaxial plug casing
0
Retrofit / Installation kit No. 65 90 0 027 973 (others see cover sheet)
Installation Instructions No. 01 29 0 140 447
A1
A4
Cable colour /
Signal
Cross-section
---
---
---
---
Reversing BL/GE
light
terminal
Tacho A SW/WS
signal
Tacho A WS
signal
B1
Cable colour /
Signal
Cross-section
---
---
---
Issue date: 06.2001
A
A5
A3
A6
Connection location in the car
---
To black 16-pin plug casing in the
---
centre console
To the navigation radio in the centre
---
console
To the navigation radio in the centre
---
console
To the standard wiring harness, right A
pillar on the light module, using
double insulation-piercing connector
(check whether the signal exists)
To the white 18-pin socket casing on
the instrument cluster
To the white 26-pin socket casing on
the instrument cluster
B
Connection location in the car
---
To the navigation radio in the centre
---
console
To coaxial Fakra aerial plug in the
---
centre console
A2
039 0006 B
Abbreviation /
---
X18126
X10113 PIN3
X11175 PIN14
B2
039 0007 B
Abbreviation /
---
Slot
---
---
---
---
Slot
---
---
---
