10. To install the adapter cable and connect the navigation radio

0
31
0
9
0
40
A1
0
40
A1
Retrofit / Installation kit No. 65 90 0 027 973 (others see cover sheet)
Installation Instructions No. 01 29 0 140 447
32
30
039 0011 B
039 0012 B
A5+A6
A4
039 0013 B
A5+A6
039 0040 B
Issue date: 06.2001
0

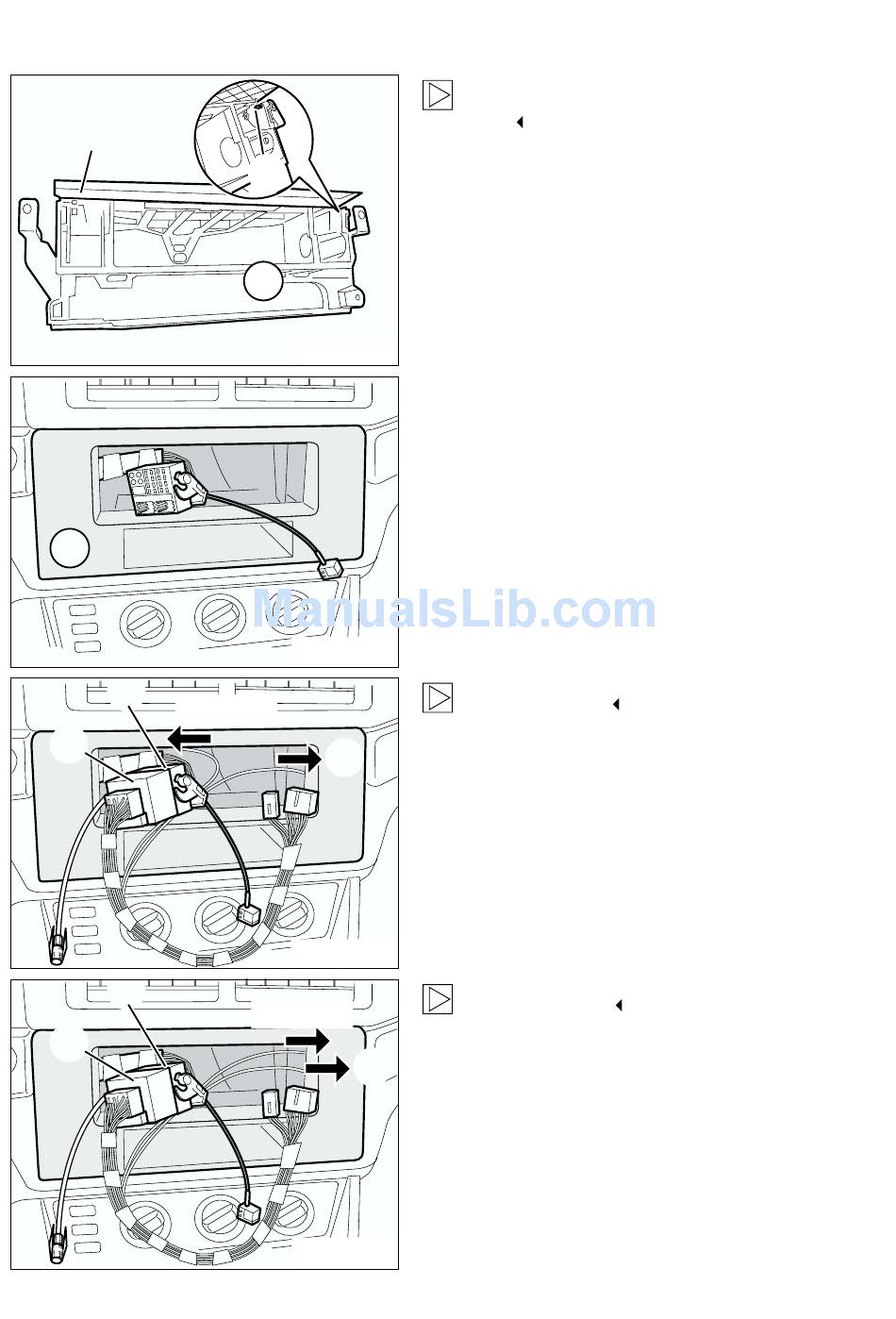

The figure shows the radio module holder
(30).
Remove the flap (31) on the radio module holder
(30) to allow the radio trim (9) to be installed.
Remove the pins (32) for this purpose.
Insert the radio trim (9).
0
The radio trim (9) is held in place later by the
fastening for the navigation radio.
0
LHD cars only.
Connect branch A1 to the new generation radio
connection plug (40).
Lay branch A4, open cable end, blue/yellow cable,
along the standard wiring harness to the bottom
right A pillar and secure it with cable ties.
Lay branches A5+A6 along the standard wiring
harness to the installation site of the instrument
cluster and secure them with cable ties.
0
RHD cars only.
Connect branch A1 to the new generation radio
A4 connection plug (40).
Lay branch A4, open cable end, blue/yellow cable,
along the standard wiring harness to the bottom
right A pillar and secure it with cable ties.
Lay branches A5+A6 along the standard wiring
harness to the installation site of the instrument
cluster and secure them with cable ties.
EN/12
