Installation Instructions
BMW Traffic Pro installation kit
BMW 3 Series Coupé (E 46/2)
BMW 3 Series touring (E 46/3)
BMW 3 Series Saloon (E 46/4)
BMW 3 Series compact (E 46/5)
BMW 3 Series Convertible (E 46/C)
These installation instructions are not valid for cars with SA358 (climate comfort windscreen).
Technical and electrical knowledge required
The installation time is approx. 1.5 hours but this may vary depending on the condition of the
car and the equipment in it.
Retrofit / Installation kit No.65 90 0 027 973
Retrofit / Installation kit No. 65 90 0 027 973
Installation Instructions No. 01 29 0 139 644
ON
ON
ON
Info
Inf nfo
65 90 0 139 839
(others see cover sheet)
Issue date: 10.2001
TP
TP
TP
CD
CD
CD
Rad
Rad
ad
Nav
Nav
BMW
BMW
OK
OK
OK
046 0605 B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the traffic pro and is the answer not in the manual?

Questions and answers

Related Manuals for BMW traffic pro

Summary of Contents for BMW traffic pro

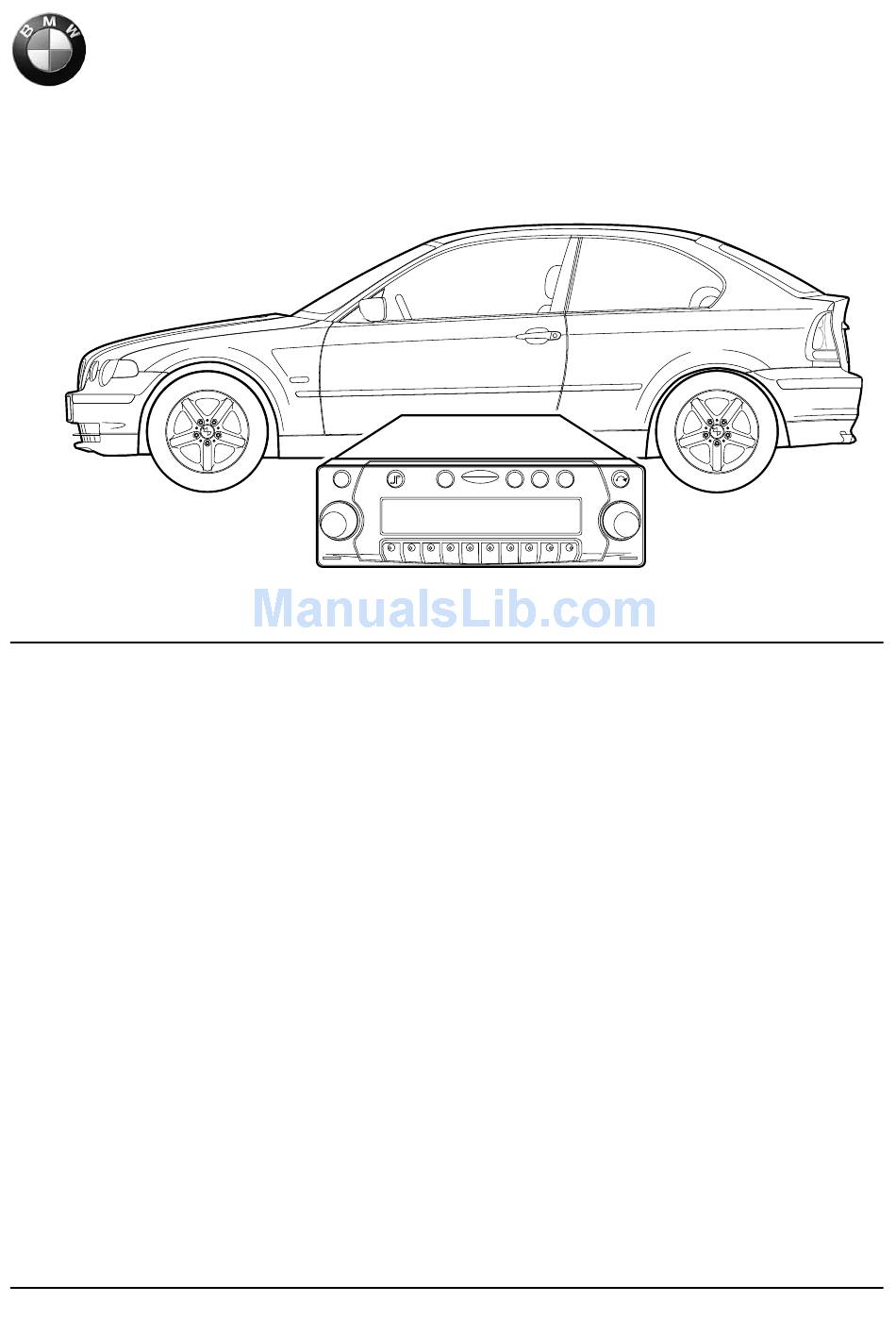

  • Page 1 Inf nfo Info 046 0605 B BMW Traffic Pro installation kit BMW 3 Series Coupé (E 46/2) BMW 3 Series touring (E 46/3) BMW 3 Series Saloon (E 46/4) BMW 3 Series compact (E 46/5) BMW 3 Series Convertible (E 46/C) These installation instructions are not valid for cars with SA358 (climate comfort windscreen).

  • Page 2: Table Of Contents

    Contents Section Page Important information for the installation of the navigation radio ....Preparations ............Parts list .

  • Page 3: Important Information For The Installation Of The Navigation Radio

    Important information for the installation of the navigation radio Only for use in the BMW dealer organisation. The navigation radio may only be installed by a specialist workshop that has the required special tools and manuals. Ensure that the cables/lines are not kinked or damaged as you install them in the car.

  • Page 4: Preparations

    Preparations TIS instruction No. Conduct a brief test Disconnect the battery 12 00 ... Remove the heating control 64 11 748 Remove the décor strip above the radio 51 16 221 Remove the radio 65 11 030 Remove the radio module holder from the instrument panel Remove the glove compartment and bottom right instrument panel 51 16 360 trim...

  • Page 5: Parts List

    Parts list Inf nfo Info Bedienungsanleitung 046 0606 B Legend Adapter cable Aerial adapter (only required for cars with a Fakra aerial connector) Navigation radio Radio retaining pin Double insulation-piercing connector (2x) Cable tie (8x) GPS aerial Hook type Velcro strip* Fleece type Velcro strip* Rattle guard (2x) Radio trim...

  • Page 6: Aerial Adapter Connection Diagram

    Aerial adapter connection diagram 046 0689 B Cable colour / Abbreviation / Item Description Signal Connection location in the car Cross-section Slot Adapter cable Black 17-pin plug casing To black 17-pin socket casing in the X18126 centre console Open cable end Reversing BL/GE To the supply cable, near the front...
  • Page 7 Aerial adapter connection diagram 046 0671 B Aerial adapter cable B is only required for cars with a Fakra aerial connector Cable colour / Abbreviation / Item Description Signal Connection location in the car Cross-section Slot Aerial adapter Black coaxial plug casing To the navigation radio in the centre console Black coaxial Fakra plug...

  • Page 8: Installation And Cabling Diagram (Lhd Cars)

    Installation and cabling diagram (LHD cars) 046 0690 B Lay the adapter cable A, as shown in the figure, and secure it with cable ties. Branch A1 to the black 17-pin socket casing in the centre console Branch A2 to the standard wiring harness at the front right near the door sill using an insulation-piercing connector Branch A3 to the black 26-pin plug X11175 PIN 8 on the instrument cluster Branch A4 to the navigation radio in the centre console...

  • Page 9: Installation And Cabling Diagram (Rhd Cars)

    Installation and cabling diagram (RHD cars) 046 0755 B Lay the adapter cable A, as shown in the figure, and secure it with cable ties. Branch A1 to the black 17-pin socket casing in the centre console Branch A2 to the standard wiring harness at the front right near the door sill using an insulation-piercing connector Branch A3 to the black 26-pin plug X11175 PIN 8 on the instrument cluster Branch A4 to the navigation radio in the centre console...

  • Page 10: Navigation Radio Connection Diagram

    Navigation radio connection diagram 13 16 15 18 14 17 046 0608 B Legend Chamber A Chamber C2 Speed signal (TAA) 7-12 Specific connection for CD changer Signal from reversing light Telephone mute Chamber C3 Continuous positive (terminal 30) Low frequency telephone input Control output for automatic aerial/amplifier 14 Earth telephone input Light (terminal 58G)

  • Page 11: To Install The Gps Aerial

    To install the GPS aerial The figure shows the removed radio module holder. Clean the surface of the radio module holder (20) in the hatched area (21). Affix the Velcro hook strip (6) as close as possible to the front of the radio module holder (20), as shown in the figure.

  • Page 12: To Install The Adapter Cable (Cars Without A Cd Changer Only)

    To install the adapter cable (cars without a CD changer only) Before you install the radio trim cut off the guides (21). Insert the radio trim (9) and secure it with the existing Philips screws (20). 046 0838 B Connect branch A1, black 17-pin plug casing, to X18126 the 17-pin socket casing X18126 on the audio wiring harness.
  • Page 13 To install the adapter cable (cars without a CD changer only) Figure A shows the bottom right A pillar. Connect branch A2, open cable end, blue/yellow cable, to the blue/yellow cable on the reversing light cable (20) on the main wiring harness (21) using an insulation-piercing connector (6) and secure it with cable ties (4).

  • Page 14: To Install The Adapter Cable (Cars With A Cd Changer Only)

    10. To install the adapter cable (cars with a CD changer only) Insert the radio trim (9) and secure it with the existing Philips screws (20). 046 0612 B Disconnect the 10-pin socket casing (20) on the CD changer plug from the black 17-pin socket casing X18126.
  • Page 15 10. To install the adapter cable (cars with a CD changer only) 046 0694 B Push the shrink hose (11) over branch A7, silver 10-pin plug casing on adapter cable A, and connect the silver or black 10-pin socket casing (20) to the CD changer control cable. As you connect (20) to A7 ensure that it is correctly positioned, see figure.
  • Page 16 10. To install the adapter cable (cars with a CD changer only) A1+X18126 Lay the wrapped plug connector A1+X18126 on the left behind the instrument panel so as to enable you to install the navigation radio. 046 0614 B Figure A shows the bottom right A pillar. Connect branch A2, open cable end, blue/yellow cable, to the blue/yellow cable on the reversing light cable (20) on the main wiring harness (21)

  • Page 17: To Connect The Navigation Radio

    To connect the navigation radio Screw the radio retaining pin (2) on to the stud bolt (11). 046 0615 B B Connect branch A4, red 20-pin socket casing and branch A5, black 16-pin socket casing to the navigation radio (1). Connect the coaxial plug (20) on the GPS aerial cable (21) to the navigation radio (1).

  • Page 18: Coding

    Reassemble the car by following the instructions for its dismantling in reverse order Print out error memory 14. Language selection and commissioning See enclosed BMW Traffic Pro operating instructions 15. Owner’s manual See enclosed BMW Traffic Pro operating instructions EN/18 Retrofit / Installation kit No.

  • Page 19: Adapter Wiring Harness Circuit Diagram

    16. Adapter wiring harness circuit diagram EN/19 Retrofit / Installation kit No. 65 90 0 027 973 (others see cover sheet) Installation Instructions No. 01 29 0 139 644 Issue date: 09.2001...
  • Page 20 10-pin plug casing Red 20-pin socket casing The components marked with an asterisk (*) are only valid for this circuit diagram. All the other components and X designations correspond to BMW after-sales circuit diagrams Cable colours = red = black...
