Instructions and Parts Manual
PM1900 Dust Collector

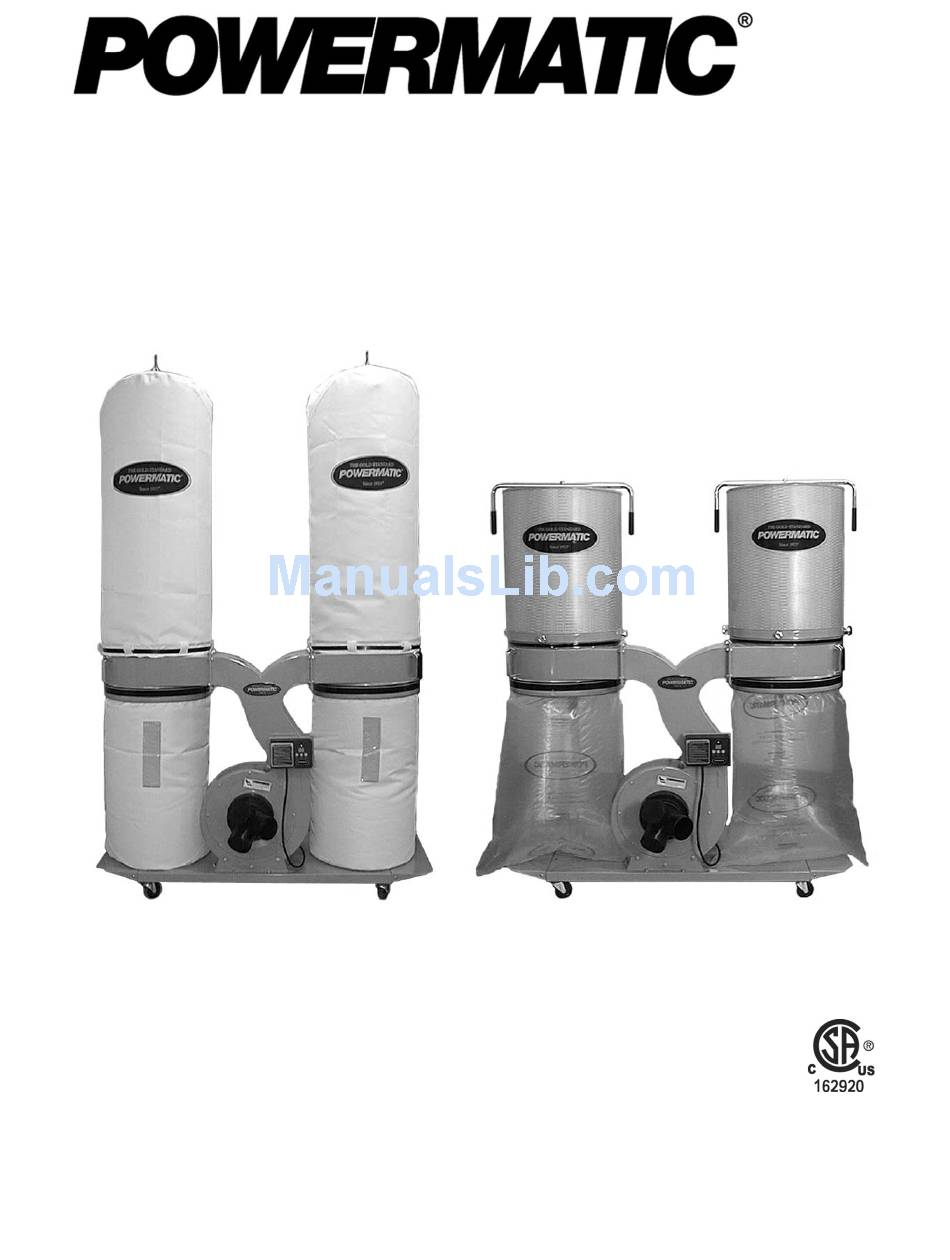

PM1900 with Filter Bag Kit (1791075BK)
PM1900 with Canister Kit (1791075CK)
WMH TOOL GROUP, Inc.
2420 Vantage Drive
Elgin, Illinois 60124
Part No. M-1791075
Ph.: 800-274-6848
Revision A 06/07
www.wmhtoolgroup.com
Copyright © 2007 WMH Tool Group, Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PM1900 and is the answer not in the manual?

Questions and answers

Related Manuals for Powermatic PM1900

Summary of Contents for Powermatic PM1900

  • Page 1 Instructions and Parts Manual PM1900 Dust Collector PM1900 with Filter Bag Kit (1791075BK) PM1900 with Canister Kit (1791075CK) WMH TOOL GROUP, Inc. 2420 Vantage Drive Elgin, Illinois 60124 Part No. M-1791075 Ph.: 800-274-6848 Revision A 06/07 www.wmhtoolgroup.com Copyright © 2007 WMH Tool Group, Inc.

  • Page 2: Warranty And Service

    This warranty covers only the initial purchaser of the product. WHAT IS THE PERIOD OF COVERAGE? The general POWERMATIC warranty lasts for the time period specified in the product literature of each product. WHAT IS NOT COVERED? The Five Year Warranty does not cover products used for commercial, industrial or educational purposes. Products with a Five Year Warranty that are used for commercial, industrial or education purposes revert to a One Year Warranty.

  • Page 3: Table Of Contents

    Breakdown for PM1900 Dust Collector (Base Machine)..............14 Parts List for PM1900 Dust Collector (Base Machine)................. 15 Parts List and Breakdown for PM1900 Filter Bag System ..............17 Breakdown for PM1900 Canister Filter System................... 18 Parts List for PM1900 Canister Filter System..................19...

  • Page 4: Warning

    Warning 1. Read and understand the entire owners manual before attempting assembly or operation. 2. Read and understand the warnings posted on the machine and in this manual. Failure to comply with all of these warnings may cause serious injury. 3.
  • Page 5 20. Make your workshop child proof with padlocks, master switches or by removing starter keys. 21. Give your work undivided attention. Looking around, carrying on a conversation and “horse-play” are careless acts that can result in serious injury. 22. Do not use the dust collector for anything except wood dust. Materials such as liquids, metal shavings, metal dust, screws, glass, plastic or rock can cause sparks and/or damage when coming into contact with any part of the dust collector.

  • Page 6: Introduction

    This machine has been designed and constructed to provide years of trouble free operation if used in accordance with instructions set forth in this manual. If there are any questions or comments, please contact your local supplier or WMH Tool Group; or visit our web site: www.powermatic.com. Specifications Model ............................

  • Page 7: Unpacking

    (not shown) Owner's Manual (not shown) Figure 1: Hardware Bag contents Warranty Card (not shown) * A through G comprise PM1900-BMHP Base Machine Hardware Package Hardware Bag contents: A – M8 x 20 Hex Cap Screws (34)* B – M6 x 12 Pan Head Flange Screws (8)* C –...

  • Page 8: Base Machine Assembly

    Base Machine Assembly 2. Place the connector tube (R) on the impeller housing (N), making sure that the holes of the mating flanges are aligned. The dust collector must not be connected to the power source Note: Refer to Figure 2 to make sure that the during assembly.

  • Page 9: Handles

    (Two handles for each housing.) tighten all four screws on the support bar (W). Filter System 5. Repeat for the other support bar. If your PM1900 Dust Collection system includes filter Handles bags, proceed to Filter Bag System Assembly on page 10.

  • Page 10: Filter Bag System Assembly

    9. Thread the retainer strap (Figure 5) through Filter Bag System Assembly the loops on the filter bag, and fasten it to the collector housing, as shown in Figure 6. Note: If your dust collection system includes the canister kit, proceed to Canister System Assembly on page 11.

  • Page 11: Canister System Assembly

    6. Insert and tighten the four knobs into the Figure 9 threaded holes on the canister (Figure 9). Note: The Powermatic® label on the front of the canister should have a negligible effect upon air flow. However, if zero effect is desired, the label...

  • Page 12: Electrical Connections

    Extension Cords injury. If an extension cord is needed, make sure the The PM1900 is equipped with either a single cord rating is suitable for the amperage listed on phase, 230 volt only motor; or a three phase, the machine’s motor plate. An undersize cord 230/460V motor (pre-wired 230V).

  • Page 13: Setting The Timer (1-Phase Models)

    Properly Contact your nearest Powermatic distributor for discard the plastic bag. a full line of Dust Collector hoses and accessories.

  • Page 14: Replacement Parts

    6848, Monday through Friday (see our website for business hours, www.wmhtoolgroup.com). Having the Model Number and Serial Number of your machine available when you call will allow us to serve you quickly and accurately. Breakdown for PM1900 Dust Collector (Base Machine)

  • Page 15: Parts List For Pm1900 Dust Collector (Base Machine)

    ....PM1900-105-1MFC..Motor Fan Cover (not shown) ..............1 6....998621 ....Strain Relief................... 2 7....PM1900-107 ....Mount Plate ................... 1 8....PM1900-108 ....Remote Control Switch Assembly .......For 3HP, 230V, 1Ph ... 1 8-1.... DCRC-108 ....Switch Box .................... 1 8-2.... PM1900-108-2 ..Circuit Board ..................1 8-3....
  • Page 16 55..... PM1900-108-6 ..Tapping Screw ...........M5x8 ......2 56..... TS-1504021 .....Socket Head Cap Screw........M8x12 ......8 57..... PM1900-157 ....Power Cord.........14AWG x 4C (for 3HP, 3Ph) ....1 58..... PM1900-158 ....Motor Cord........14AWG x 4C (for 3HP, 3Ph) ....1 59..... 998630 ....Strain Relief................... 1 60.....

  • Page 17: Parts List And Breakdown For Pm1900 Filter Bag System

    Parts List and Breakdown for PM1900 Filter Bag System Index No. Part No. Description Size ....1791075B ....Collection and Filter Bag System (includes #1 thru 6) ......1 1....1791075F ....Filter Bag............30 micron ....2 2....430005 ....Retainer Strap ..................2 3....

  • Page 18: Breakdown For Pm1900 Canister Filter System

    Breakdown for PM1900 Canister Filter System...

  • Page 19: Parts List For Pm1900 Canister Filter System

    23..... 331015 ....Plate...................... 2 24..... TS-1482021 .....Hex Cap Screw ..........M6x12 ......4 ....PM1300-PLO ...Powermatic Label (not shown) ......5-1/2x14 Oval ..... 1 ....PM1900-CHP...Canister Hardware Package (not shown) *..........1 * Canister Hardware Package includes index # 2, 8, 9 and 12.

  • Page 20: Electrical Connections

    Electrical Connections...
