Powermatic 1792200HK Operating Instructions And Parts Manual

Mobile cyclone dust collector
Hide thumbs Also See for 1792200HK:
Table of Contents

Advertisement

Quick Links

Download this manual
This .pdf document is bookmarked

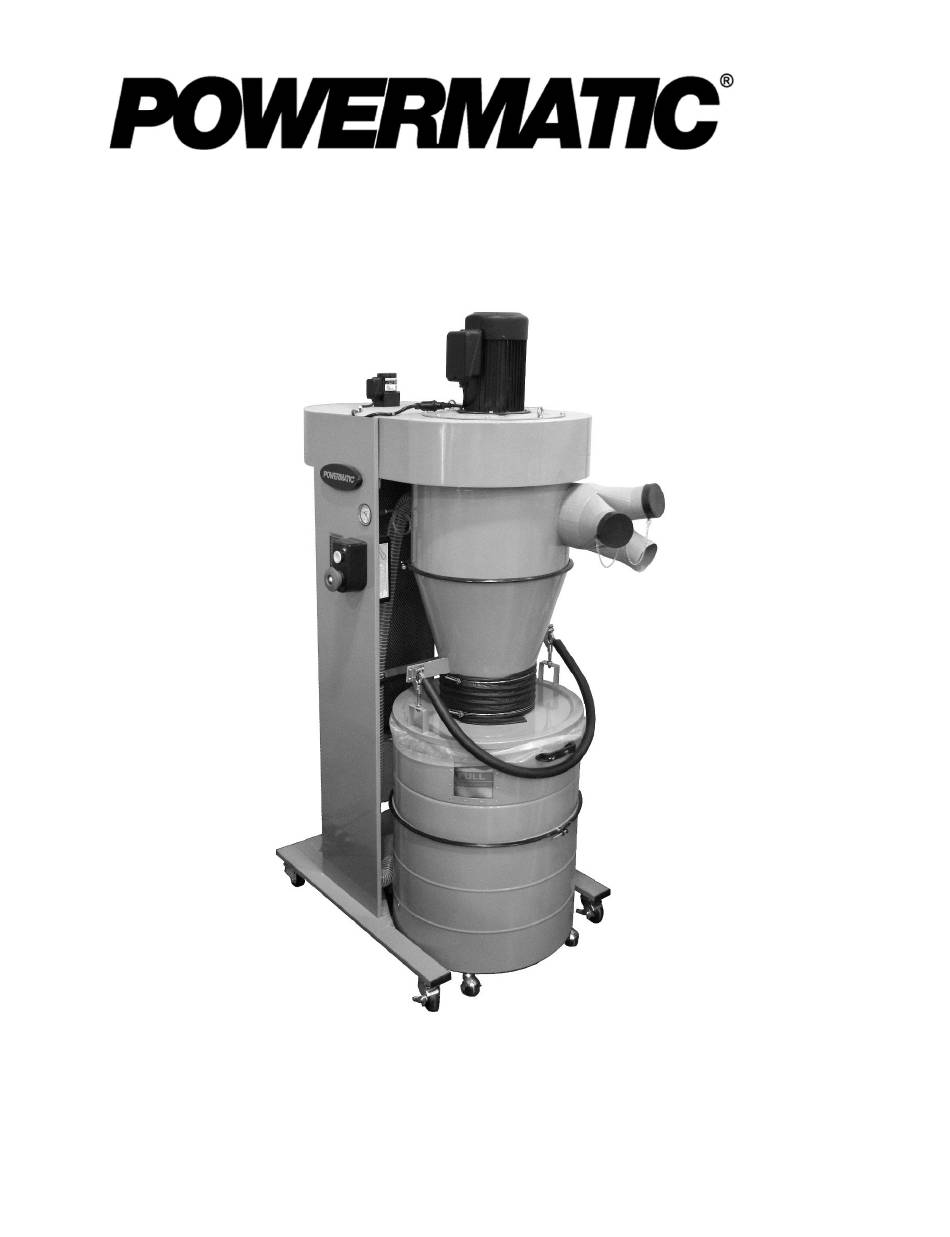

Operating Instructions and Parts Manual
Mobile Cyclone Dust Collector
Model PM2200
For serial # 17090036 and higher
Powermatic
427 New Sanford Road
LaVergne, Tennessee 37086
Part No. M-1792200B
Ph.: 800-274-6848
Edition 5 12/2018
www.powermatic.com
Copyright © 2017 Powermatic

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1792200HK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Powermatic 1792200HK

Summary of Contents for Powermatic 1792200HK

  • Page 1 This .pdf document is bookmarked Operating Instructions and Parts Manual Mobile Cyclone Dust Collector Model PM2200 For serial # 17090036 and higher Powermatic 427 New Sanford Road LaVergne, Tennessee 37086 Part No. M-1792200B Ph.: 800-274-6848 Edition 5 12/2018 www.powermatic.com Copyright © 2017 Powermatic...

  • Page 2: Important Safety Instructions

    19. Make your workshop child proof with padlocks, intended use. If used for other purposes, master switches or by removing starter keys. Powermatic disclaims any real or implied 20. Give your work undivided attention. Looking warranty and holds itself harmless from any around, carrying on a conversation and “horse-...
  • Page 3 26. Do not use this dust collector with a damaged 37. Use proper extension cord. Make sure your cord or plug. If the unit is not working as it extension cord is in good condition. When using should, has been dropped, damaged, left an extension cord, use one heavy enough to outdoors, or dropped into water, return it to a carry the current your product will draw.

  • Page 4: Table Of Contents

    Whatever accepted methods are used, always make personal safety a priority. If there are questions or comments about this product, please contact your local supplier or Powermatic. Powermatic can also be reached at our web site: www.powermatic.com.

  • Page 5: Specifications For Powermatic Cyclone Dust Collector

    4.0 Specifications for Powermatic Cyclone Dust Collector Table 1 Model number PM2200 Complete kit with HEPA filter 1792200HK Main unit 1792200B Stock numbers Stand 1792200S HEPA canister filter 1792200H Motor and electrical Motor type totally enclosed fan cooled, induction, capacitor start Horsepower 3HP (2.2kW)
  • Page 6 PM22002 Collection drum Capacity 63 gal. (75.7 L) Diameter 24-1/2 in. (622 mm) Height 32-1/2 in. (825 mm) Material steel Main materials Frame steel tubing, sheet metal Body/housing sheet metal Paint finish powder coat Dimensions Footprint/base dimensions (LxW) 54-1/2 x 31-7/8 (1385 x 810/mm) Overall dimensions, assembled (LxWxH) 54-1/2 x 31-7/8 x 85-1/4 in.

  • Page 7: Setup And Assembly

    Phillips pan hd screw, 1/4x1/2 – HP3 Read and understand the Hex flange hd screw, 5/16x3/4 – HP4 entire contents of this manual before attempting Phillips pan hd screw, M5x8 – HP5 assembly or operation. Failure to comply may Open end wrench, 10/12mm – HP6 cause serious injury.

  • Page 8: Tools Required For Assembly

    5.3 Tools required for assembly 12mm wrench (provided) Cross-point (Phillips) screwdriver 5.4 Assembly Install fixed casters (Q, Figure 4) and swivel casters (R) to threaded holes in base (B), with hex flange bolts (HP1). Note that fixed casters are mounted below platform side of base, as shown.
  • Page 9 15. Push inlet adaptor (F, Figure 9) onto housing port and tighten with screw (F Figure 7 Assemble cone (L, Figure 8) to housing (A) and secure with cone clamp (P). Tighten screw on clamp. Figure 9 10. Paste 1-inch wide strip of foam tape (FT1) around cone (L) just above bottom lip.

  • Page 10: Electrical Connections

    Figure 13 Figure 11 21. Apply 3/4-in. wide strip of foam tape (FT3/4, Figure 12) to lower end of canister filter, just above the lip. 22. Install canister collection bag (T) beneath Figure 14 canister filter and secure with bag clamp (M). 6.0 Electrical connections All electrical connections must be done by a qualified electrician in compliance...

  • Page 11: Grounding Instructions

    6.1 GROUNDING INSTRUCTIONS 6.2 Extension cords This appliance must be grounded. If it should The use of extension cords is discouraged; try to malfunction or breakdown, grounding provides a position machines near the power source. If an path of least resistance for electric current to reduce extension cord is necessary, make sure it is in good the risk of electric shock.

  • Page 12: Safety Key

    2 AAA batteries (included). The batteries will efficiency, and may create a safety hazard. need replacing periodically. The remote controller Contact your nearest Powermatic distributor for a has an effective range up to approximately 50 feet line of Dust Collector hoses and accessories. You (15 meters).

  • Page 13: User-Maintenance

    8.2 Cleaning and bag inspection 8.0 User-maintenance Empty or replace canister and drum collection bags when full. Turn OFF dust collector and remove plug from power source before 8.3 Motor inspection performing any adjustments or maintenance. Make frequent inspections of motor fan, and blow Failure to comply may result in serious injury.

  • Page 14: Troubleshooting Pm2200 Cyclone Dust Collector

    10.0 Troubleshooting PM2200 Cyclone Dust Collector 10.1 Electrical and motor problems Symptom Possible Cause Correction* Motor will not start. No incoming current. Check connections at plug or circuit panel. Safety key missing from switch. Install safety key. Motor overheated, relay tripped. Allow machine to cool, then press reset button and restart.

  • Page 15: Performance Problems

    Non-proprietary parts, such as fasteners, can be found at local hardware stores, or may be ordered from Powermatic. Some parts are shown for reference only, and may not be available individually.

  • Page 16: Pm2200 Cyclone Dust Collector - Exploded View

    11.1.1 PM2200 Cyclone Dust Collector – Exploded View 31-5 31-1 31-2 31-4 31-3 21-1 51-1...

  • Page 17: Pm2200 Cyclone Dust Collector - Parts List

    ............ Battery (not shown) ..........AAA, 1.5V ..... 2 38 ....TS-081F032 ....Pan HD Phillips Machine Screw ......1/4”-20x1/2” ....2 39 ....3520B-140 ....Powermatic Logo ................... 1 40 ....5512797 ....Pan HD Phillips Machine Screw ......M5-0.8x25 ..... 2 41 ....
  • Page 18 Index No Part No Description Size 46 ....JCDC3-33 ....Swivel Caster ............3” ........2 47 ....JCDC3-33-1 ....Swivel Caster w/ Brake ..........3” ........2 48 ....717531 ...... Drum Collection Bag (pkg. of 5) ......980 x 1200 /mm .... 1 49 ....

  • Page 19: Electrical Connections For Pm2200 Cyclone Dc

    12.0 Electrical Connections for PM2200 Cyclone DC...

  • Page 20: Warranty And Service

    Powermatic sells through distributors only. The specifications listed in Powermatic printed materials and on the official Powermatic website are given as general information and are not binding. Powermatic reserves the right to effect at any time, without prior notice, those alterations to parts, fittings, and accessory equipment which they may deem necessary for any reason whatsoever.
