This .pdf document is bookmarked

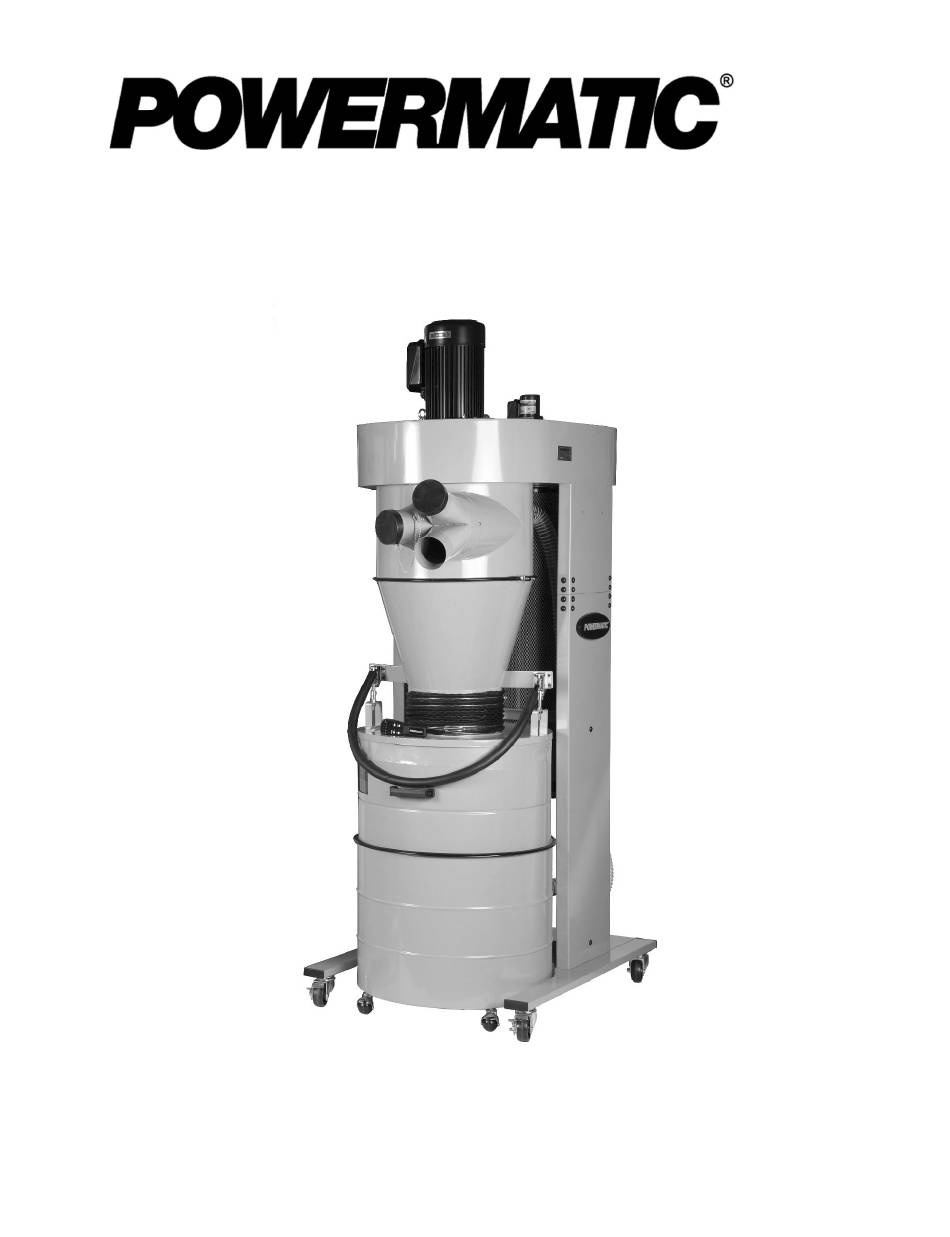

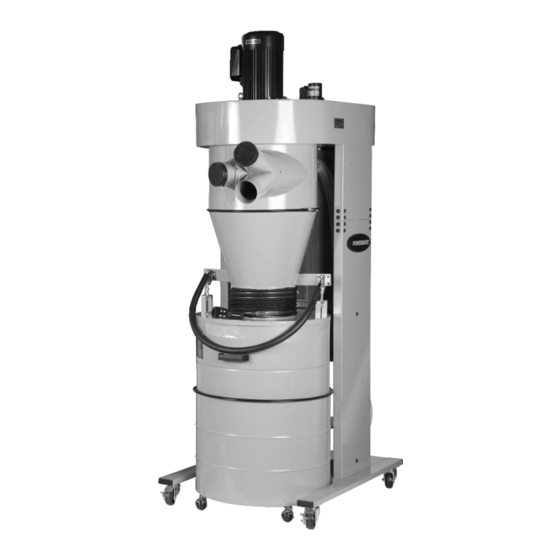

Operating Instructions and Parts Manual
Mobile Cyclone Dust Collector
Model PM2200HK
for serial no. 2006001 and higher.
Powermatic
427 New Sanford Road
LaVergne, Tennessee 37086
Document No. M-1792200B
Ph.: 800-274-6848
Edition 6 06/2021
www.powermatic.com
Copyright © 2017 Powermatic
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Powermatic PM2200HK
Summary of Contents for Powermatic PM2200HK
- Page 1 This .pdf document is bookmarked Operating Instructions and Parts Manual Mobile Cyclone Dust Collector Model PM2200HK for serial no. 2006001 and higher. Powermatic 427 New Sanford Road LaVergne, Tennessee 37086 Document No. M-1792200B Ph.: 800-274-6848 Edition 6 06/2021 www.powermatic.com Copyright © 2017 Powermatic...
-
Page 2: Important Safety Instructions
19. Make your workshop child proof with padlocks, intended use. If used for other purposes, master switches or by removing starter keys. Powermatic disclaims any real or implied 20. Give your work undivided attention. Looking warranty and holds itself harmless from any around, carrying on a conversation and “horse-... - Page 3 26. Do not use this dust collector with a damaged 37. Use proper extension cord. Make sure your cord or plug. If the unit is not working as it extension cord is in good condition. When using should, has been dropped, damaged, left an extension cord, use one heavy enough to outdoors, or dropped into water, return it to a carry the current your product will draw.
-
Page 4: Table Of Contents
Whatever accepted methods are used, always make personal safety a priority. If there are questions or comments about this product, please contact your local supplier or Powermatic. Powermatic can also be reached at our web site: www.powermatic.com. -
Page 5: Specifications For Pm2200 Cyclone Dust Collector
4.0 Specifications for PM2200HK Cyclone Dust Collector Table 1 Model number PM2200HK Stock number 1792200HK Motor and electrical Motor type totally enclosed fan cooled, induction, capacitor start Horsepower 3HP (2.2kW) Phase Single Voltage 230 V Cycle 60 Hz Listed FLA (full load amps) - Page 6 PM2200 Collection drum Capacity 63 gal. (75.7 L) Diameter 24-1/2 in. (622 mm) Height 32-1/2 in. (825 mm) Material steel Main materials Frame steel tubing, sheet metal Body/housing sheet metal Paint finish powder coat Dimensions Footprint/base dimensions (LxW) 54-1/2 x 31-7/8 (1385 x 810 mm) Overall dimensions, assembled (LxWxH) 54-1/2 x 31-7/8 x 85-1/4 in.
-
Page 7: Setup And Assembly
Read and understand the entire contents of this manual before attempting assembly or operation. Failure to comply may cause serious injury. 5.0 Setup and assembly 5.1 Unpacking Remove all items from the pallet and inspect for damage. If any is discovered, contact your distributor. -
Page 8: Tools Required For Assembly
5.3 Tools required for assembly Use hoist or forklift with hooks 12mm wrench (provided) through the eyebolts near the motor, to raise 4mm, 5mm hex keys (provided) housing assembly. Lifting equipment must be Cross-point (Phillips) screwdriver properly rated for the load. If neither is available, use at least 4 persons to Note: A ratcheting socket wrench, and hand drill lift housing and set it upon the stand. - Page 9 Turn cone upside down. See Figure 5-6. 15. Turn drum over and install casters (T) into threaded holes beneath drum. Use the provided Paste 1Wx38L inch foam tape (FT138) around wrench to tighten. bottom lip of cone. Trim excess. 10. Work the hose (J) onto the cone, and secure with clamp (P).
-
Page 10: Electrical Connections
Failure to comply may result in serious injury. The PM2200HK Dust Collector is rated at single- phase, 230-volt power only. The dust collector comes with a plug designed for use on a circuit with a grounded outlet that looks like the one pictured in Figure 6-1. -
Page 11: Extension Cords
Do not rely that no light means no power to the machine. Always check for power first. Failure to comply may cause serious injury! Refer to Figure 7-1: Start (A) – Press the green start switch. When power is connected to the machine, the green light is always on regardless of whether the collector is running or not. -
Page 12: Dust Hose Connection
(no timer) select infinity ( capped. An open port will diminish the machine’s position. efficiency, and may create a safety hazard. Contact your nearest Powermatic distributor for a line of Dust Collector hoses and accessories. You customize your... -
Page 13: Consumable Parts Replacement
9.0 Consumable parts replacement Part no. Description 717511 Canister Collection Bag (pkg. of 5) 717531 Drum Collection Bag (pkg. of 5) Table 3... -
Page 14: Troubleshooting Pm2200 Cyclone Dust Collector
10.0 Troubleshooting PM2200HK Cyclone Dust Collector 10.1 Electrical and motor problems Symptom Possible Cause Correction* Motor will not start. No incoming current. Check connections at plug or circuit panel. Safety key missing from switch. Install safety key. Motor overheated, relay tripped. -
Page 15: Performance Problems
Non-proprietary parts, such as fasteners, can be found at local hardware stores, or may be ordered from Powermatic. Some parts are shown for reference only, and may not be available individually. -
Page 16: Pm2200 Cyclone Dust Collector - Exploded View
11.1.1 PM2200HK Cyclone Dust Collector – Exploded View... -
Page 17: Pm2200 Cyclone Dust Collector - Parts List
11.1.2 PM2200HK Cyclone Dust Collector – Parts List Index No Part No Description Size 1 ....PM2200-001 ....Motor ............... 3HP, 230V ....1 ....PM2200-01SC ... Start Capacitor (not shown) ........250MFD, 250VAC ..1 ....PM2200-01RC ..Running Capacitor (not shown) ....... 35F, 400V ....1 .... - Page 18 Index No Part No Description Size 46 ....JCDC3-33 ....Swivel Caster ............3” ........2 47 ....JCDC3-33-1 ....Swivel Caster w/ Brake ..........3” ........2 48 ....717531 ...... Drum Collection Bag (pkg. of 5) ......980 x 1200 /mm .... 1 49 ....
-
Page 19: Electrical Connections For Pm2200 Cyclone Dc
12.0 Electrical Connections for PM2200HK Cyclone DC... -
Page 20: Warranty And Service
Powermatic sells through distributors only. The specifications listed in Powermatic printed materials and on the official Powermatic website are given as general information and are not binding. Powermatic reserves the right to effect at any time, without prior notice, those alterations to parts, fittings, and accessory equipment which they may deem necessary for any reason whatsoever.
