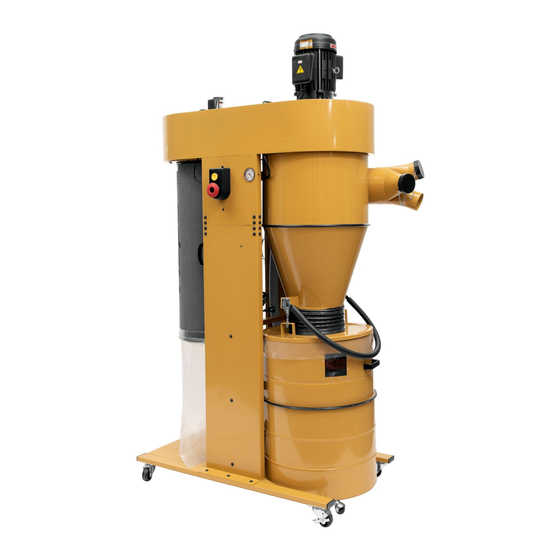

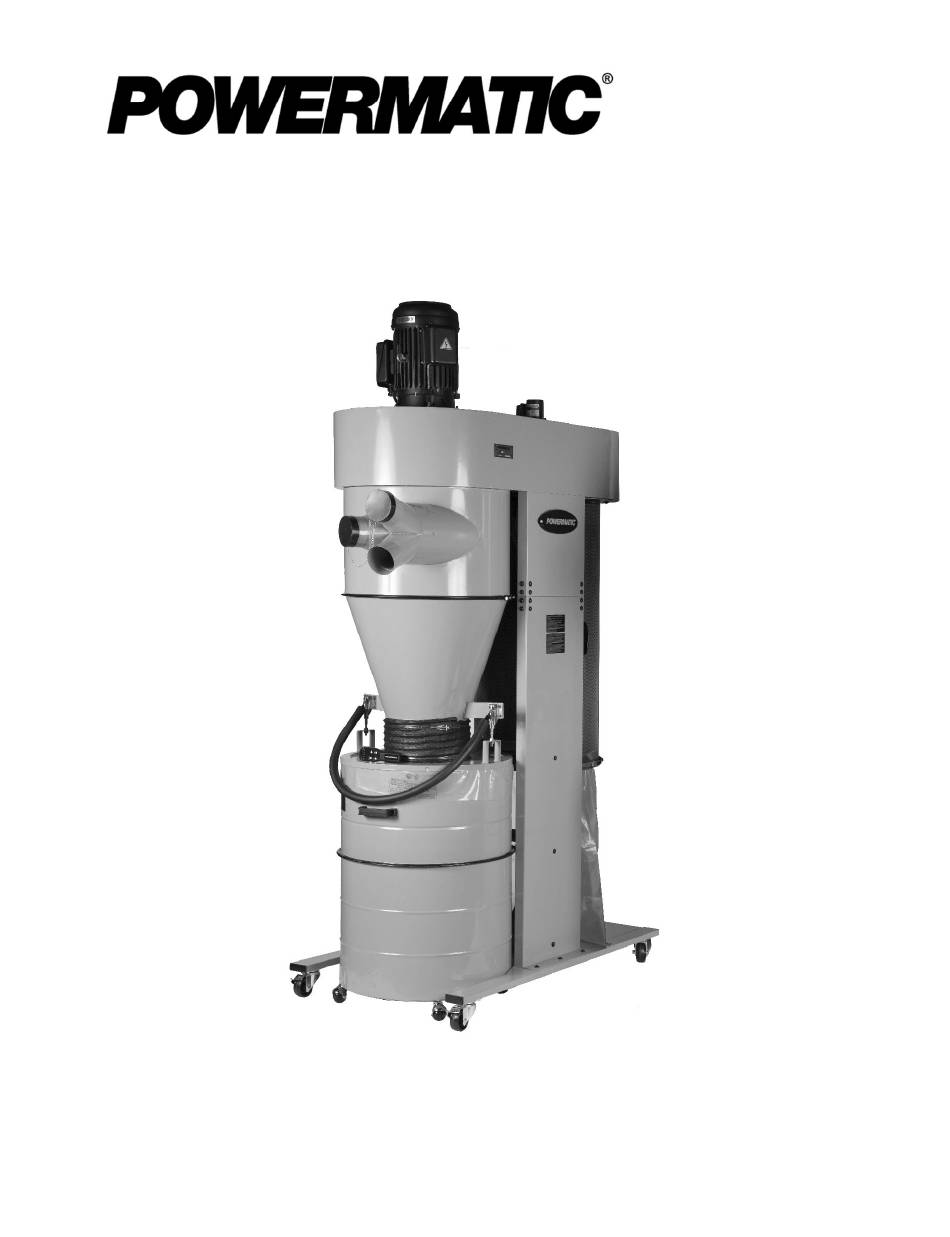

- Page 1 This .pdf document is bookmarked Operating Instructions and Parts Manual 5HP Mobile Cyclone Dust Collector Model PM2205 Powermatic 427 New Sanford Road LaVergne, Tennessee 37086 Document No. M-1792205HK Ph.: 800-274-6848 Edition 1 12/2020 www.powermatic.com Copyright © 2020 Powermatic...
-
Page 2: Important Safety Instructions
19. Make your workshop child proof with padlocks, intended use. If used for other purposes, master switches or by removing starter keys. Powermatic disclaims any real or implied 20. Give your work undivided attention. Looking warranty and holds itself harmless from any around, carrying on a conversation and “horse-... - Page 3 26. Do not use this dust collector with a damaged 37. Use proper extension cord. Make sure your cord or plug. If the unit is not working as it extension cord is in good condition. When using should, has been dropped, damaged, left an extension cord, use one heavy enough to outdoors, or dropped into water, return it to a carry the current your product will draw.
-
Page 4: Table Of Contents
10.2 Performance problems (PM2205) ......................16 11.0 Replacement Parts ............................. 16 11.1.1 PM2205 Cyclone Dust Collector – Exploded View ................17 11.1.2 PM2205 Cyclone Dust Collector – Parts List ..................18 12.0 Electrical Connections for PM2205 Cyclone DC ..................20 ... -
Page 5: About This Manual
Whatever accepted methods are used, always make personal safety a priority. If there are questions or comments about this product, please contact your local supplier or Powermatic. Powermatic can also be reached at our web site: www.powermatic.com. -
Page 6: Specifications For Pm2205 Cyclone Dust Collector
4.0 Specifications for PM2205 Cyclone Dust Collector Table 1 Model number PM2205 Complete kit with HEPA filter 1792205HK Stock Main unit (without filter) 1792205B numbers HEPA canister filter 1792205H Motor and electrical Motor type totally enclosed fan cooled, induction, capacitor start Horsepower 5HP (3.7kW) - Page 7 PM2205HK Collection drum Capacity 63 gal. (75.7 L) Diameter 24-1/2 in. (622 mm) Height 32-1/2 in. (825 mm) Material steel Body construction Frame steel tubing, sheet metal Body/housing sheet metal Paint finish powder coat Dimensions Footprint/base dimensions (LxW) 63 x 28-15/16 in. (1600 x 735 mm) Overall dimensions, assembled (LxWxH) 63 x 28-15/16 x 97-7/8 in.
-
Page 8: Setup And Assembly
Drum casters – T PE bag, large (for drum) – U Drum clamp – V Figure 5-2: # PM2205-HP hardware package Roll foam tape, 3/4x50L (20x1265mm) – FT3/4 contents (not to scale) Rolls foam tape, 1x38L in. (30x970mm) – FT138 Handles –... -
Page 9: Tools Required For Assembly
5.3 Tools required for assembly Use hoist or forklift with hooks 12mm wrench (provided) through the eyebolts near the motor, to raise 4mm, 5mm hex keys (provided) housing assembly. Lifting equipment must be Cross-point (Phillips) screwdriver properly rated for the load. If neither is available, use at least 4 persons to Note: A ratcheting socket wrench, and hand drill lift housing and set it upon the stand. - Page 10 Turn cone upside down. See Figure 5-6. 10. Paste 1Wx38L inch foam tape (FT138) around bottom lip of cone. Trim excess. 11. Work the hose (J) onto the cone, and secure with clamp (P). Figure 5-8 Figure 5-6 16. The upper drum is nested within the lower drum.
-
Page 11: Electrical Connections
25. Push quick connectors (A1) into the 2-inch The PM2205 Dust Collector is rated at single-phase, hoses, tighten with hose clamps, and place 230-volt power only. connectors onto ports at back of drum (B1). -
Page 12: Extension Cords
Reset – If the dust collector stops without pressing The conductor with insulation having an outer surface that is green with or without yellow stripes is the stop button, as the result of a tripped fuse or the equipment-grounding conductor. circuit breaker: If repair or replacement of the electric cord or is Press red button (C) to reset. -
Page 13: Dust Hose Connection
If an inlet port is not being used, it should remain capped. An open port will diminish the machine’s Figure 7-4 efficiency, and may create a safety hazard. Contact your nearest Powermatic distributor for a line of Dust Collector hoses and accessories. You customize your... -
Page 14: User-Maintenance
8.2 Cleaning and bag inspection 8.0 User-maintenance Empty or replace canister and drum collection bags when full. Turn OFF dust collector and remove plug from power source before 8.3 Motor inspection performing any adjustments or maintenance. Make frequent inspections of motor fan, and blow Failure to comply may result in serious injury. -
Page 15: Troubleshooting Pm2205 Cyclone Dust Collector
10.0 Troubleshooting PM2205 Cyclone Dust Collector WARNING: Some corrections may require a qualified electrician. 10.1 Electrical and motor problems (PM2205) Symptom Possible Cause Correction Motor will not start. No incoming current. Check connections at plug or circuit panel. Safety key missing from switch. -
Page 16: Performance Problems (Pm2205)
10.2 Performance problems (PM2205) Symptom Possible Cause Correction Poor performance; lack Hose improperly secured at dust Inspect and remedy. of suction. origination point. Inlet port is open. Cap unused inlet ports. Collection bag is full. Empty bag (check sight window). -
Page 17: Pm2205 Cyclone Dust Collector - Exploded View
11.1.1 PM2205 Cyclone Dust Collector – Exploded View... -
Page 18: Pm2205 Cyclone Dust Collector - Parts List
21 ....JBTS10MJS-620 ..Pan Head Screw ............M4 x 60 ......4 22 ....PM2200-021B ... Reducing Motor Cord ................... 1 23 ....PM2205-023 ....Control Box Assembly (#23-1 thru #23-5) ............. 1 23-1 ... PM2205-023-1 ..Control Box Back Cover ................1 23-2 ... - Page 19 56 ....PM2205-056 ....Negative Pressure Gauge ................1 57 ....PM2205-057 ....Clear Hose ............... Dia. 6mm ...... 1 58 ....PM2205-058 ....Pan HD Phillips Machine Screw ......3/16”x½” ......1 59 ....PM2205-059 ....Cone Clamp ....................1 60 ....
-
Page 20: Electrical Connections For Pm2205 Cyclone Dc
12.0 Electrical Connections for PM2205 Cyclone DC... -
Page 21: Warranty And Service
Powermatic sells through distributors only. The specifications listed in Powermatic printed materials and on the official Powermatic website are given as general information and are not binding. Powermatic reserves the right to effect at any time, without prior notice, those alterations to parts, fittings, and accessory equipment which they may deem necessary for any reason whatsoever. - Page 22 This page intentionally left blank.
- Page 23 This page intentionally left blank.
- Page 24 427 New Sanford Road LaVergne, Tennessee 37086 Phone: 800-274-6848 www.jettools.com...
