Summary of Contents for Sapling SBD 3000 Series

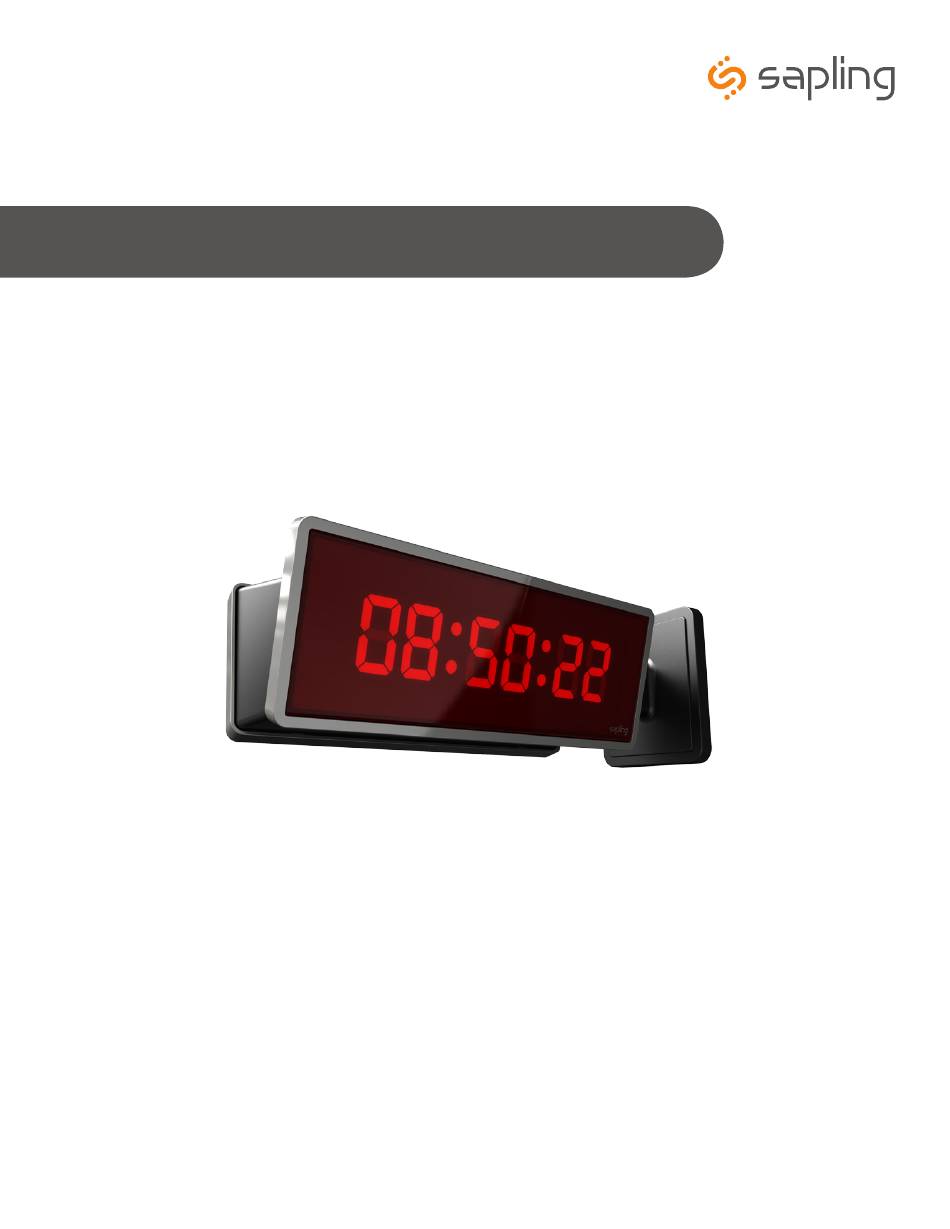

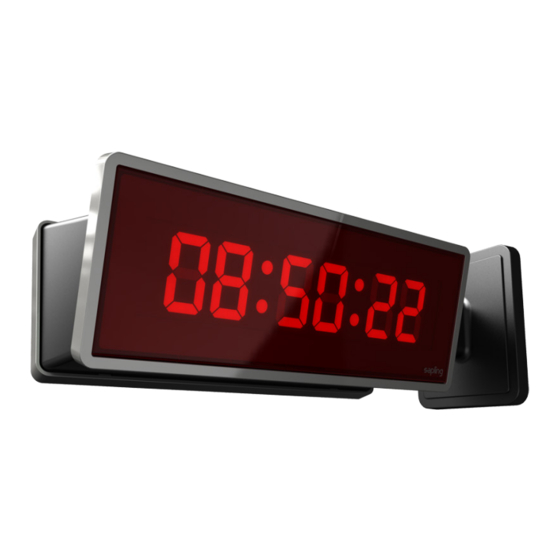

- Page 1 Installation and Programming Manual V8 SBD 3000 Series Wired Clock The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com...
-
Page 2: Table Of Contents
The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com SBD 3000 Series Wired Clock Table of Contents Table of Contents—2 Installation Included in the Kit—3 Flush Mount Installation—4 ABS Surface (Wall) Mount Installation—5 ABS Surface (Wall) Mount Installation (continued)—6... -
Page 3: Included In The Kit-3
The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Included in the Kit Below is a list of all the items included in the SBD 3000 installation kit. The items in the kit will correspond to the type of mounting and voltage option chosen. -
Page 4: Flush Mount Installation-4
The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Flush Mount Installation 1. Mount the flush mount box into the wall. 2. Connect the ground wire into the flush mount box using the tooth lockwasher and the machine screw nut (included in the kit). -
Page 5: Abs Surface (Wall) Mount Installation-5
The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com ABS Surface (Wall) Mount Installation... -
Page 6: Abs Surface (Wall) Mount Installation (Continued)-6
The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com ABS Surface (Wall) Mount Installation (continued) Mount Housing to Wall and/or Gang Box - To mount the housing to the wall, install two (2) wall anchors into the wall (not supplied in kit) and take two pan head screws no larger than #8 (also not supplied in kit) and drive them into the anchors leaving an 1/8th inch gap between the head of the screw and the wall. -
Page 7: Abs Double Mount Installation-7
The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com ABS Double Mount Installation... -
Page 8: Abs Double Mount Installation (Continued)-8
The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com ABS Double Mount Installation (continued) *For metal mounting bracket: Use a wall anchor that can support 50 lbs or more with a maximum screw size of #8 Screw both housings together - Using the two (2) self tapping, 6-19 x 7/16”... -
Page 9: Abs Double Mount Installation (Continued)-9
The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com ABS Double Mount Installation (continued) Feed wiring through base and pole - Take the wiring coming from the switch box and begin to feed it through the center of the base of the mounting assembly until it emerges from the hole in the center of the clock housing. -
Page 10: Wiring And Jumper Settings (3100 Series)-10
The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Wiring Information Wiring and Jumper Settings (3100 Series) - Page 11 The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Wiring Information Wiring and Jumper Settings (3200 Series)
- Page 12 The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Wiring Information Wiring and Jumper Settings (3300 Series)
-
Page 13: 2-Wire Digital Communication - Slave Mode-13
2-Wire Digital Communication - Slave Mode SMA 2000 or 3000 Series Master Clock White 120VAC or 240VAC Black 24VAC SAM Series Wired Clock Orange Yellow 24V SBD 3000 Series Wired Clock 120VAC or 240VAC White Black 24VAC SAM Series Wired Clock... -
Page 14: Rs485 Communication - Slave Mode-14
The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Wiring Information RS485 Communication - Slave Mode SMA 2000 or 3000 Series Master Clock Black White 24VAC or 120VAC or 240VAC 24VAC or 120VAC or 240VAC SRM Series RS485 Clock... -
Page 15: 2-Wire Digital Communication - Master Mode-15
2-Wire Digital Communication - Master Mode SBD 3300 Series Wired Clock P7-4 P7-3 Gray White 120VAC or 240VAC Black 24VAC SAM Series Wired Clock Orange Yellow 24V SBD 3000 Series Wired Clock 120VAC or 240VAC Gray White Black 24VAC SAM Series Wired Clock... -
Page 16: Rs485 Communication - Master Mode-16
The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Wiring Information RS485 Communication - Master Mode SBD 3300 Series Wired Clock P7-3 P7-4 Black White 24VAC or 120VAC or 240VAC 24VAC or 120VAC or 240VAC SRM Series RS485 Clock... -
Page 17: 3-Wire Synchronous (Sync-Wire) Communication 24 Volt Wiring Information-17
The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Wiring Information 3-Wire Synchronous (Sync-Wire) Communication 24 Volt Wiring Information SMA 2000 or 3000 Series Master Clock 24VAC 24VAC SAM Series Analog Clock... -
Page 18: 3-Wire Synchronous (Sync-Wire) Communication 120 Volt Wiring Information-18
The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Wiring Information 3-Wire Synchronous (Sync-Wire) Communication 120 Volt Wiring Information SMA 2000 or 3000 Series Master Clock 120VAC 120VAC SAM Series Analog Clock... -
Page 19: 3-Wire Synchronous (Sync-Wire) Communication 240 Volt Wiring Information-19
The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Wiring Information 3-Wire Synchronous (Sync-Wire) Communication 240 Volt Wiring Information SMA 2000 or 3000 Series Master Clock 240VAC 240VAC SAM Series Analog Clock... - Page 20 The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Wiring Information Using the Output Relays on the SBD 3300 Output Relay (Relay 1) P3 - 1 & 2 (Relay 2) P3 - 3 & 4...
- Page 21 The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Temperature Sensor Wiring (Optional) If you ordered a Temperature Sensor with your SBD 3200/3300 clock, it must be connected to a terminal on the Clock.
- Page 22 The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Interfacing with Other Systems (Inputs) 59 Minute Correction 1 2 3 4 5 6 7 1 2 3 4 5 6 7 8 9...
- Page 23 The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Interfacing with Other Systems (Inputs) National Time/Rauland 1 2 3 4 5 6 7 1 2 3 4 5 6 7 8 9...
- Page 24 The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Interfacing with Other Systems (Inputs) Rauland Digital 1 2 3 4 5 6 7 8 9 Description: Applying a half second pulse for every minute to the Dig. Line will bring the clock to the correct time. The clock will jump to the correct time at the end of the correction pulse.
-
Page 25: Programming
The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Programming Setting the Time on the SBD 3300 1. To set the time, press the top button to set the hour and the bottom button to set the minute. - Page 26 The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com SETTING OPTION Option 3 - Set Day: This option will allow the user to set the current date. Press the bottom button to scroll between “01-31” on the display to set the date.
- Page 27 Options 9 also allows a user to address a specific clock for displaying messages, such as 911, BELL or FiRE using a Sapling Master Clock. Option 9 sets the clock number. This is step 1 of 2. Step 2 of this process can be completed in Option 10.
- Page 28 The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com SETTING OPTION Option 11 - RS485 Data Rate: This options allows a user to set the RS485 Data Rate. The RS485 Data Rate is the rate at which data (for example the time and/or date) is sent to the clock.
- Page 29 The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com OPTION SETTING Option 15 - Enable Jumpers: This option will allow the user to enable or disable the jumpers. There are 3 jumpers located inside the clock that are associated with this option: Press the bottom button to scroll between “E-d.”...
- Page 30 The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com SETTING OPTION Option 21 - Once a Day Pulse Output - Hour: If the Once a Day Pulse setting is selected in Option 20, a user will need to set the hour for relay closure.
- Page 31 The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com OPTION SETTING Option 30 - Auxiliary Input Control: This option allows the user to choose which time protocol input the clock will receive. Press the bottom button to scroll between “d” and “01-09.”...
- Page 32 The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com SETTING OPTION Option 40 - Activation Diagnostic Mode: This option allows a user to choose which diagnostic mode they would like to send to all applicable clocks.
-
Page 33: Installing The Sbdconfig.exe Software-33-36
The sbdconfig.exe software only works with the SBD 3200 or 3300 series. • Sapling’s USB to RS485 converter needs to be purchased separately. Other USB to RS485 converters will not work. • When using the SBDConfig software, move JP6 to Pins 2&3 on the back of the digital clock board. - Page 34 The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Installing the sbdconfig.exe Software (continued) 8. Scroll down to Universal Serial Bus controllers and click the + sign to open. 9. Double-click on the USB Serial Converter. A new window will open.
- Page 35 The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Installing the sbdconfig.exe Software (continued) 11. Remove RS485 device from the USB port, wait 5 seconds, and plug back into USB port.
- Page 36 The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Installing the sbdconfig.exe Software (continued) 15. Make sure that the Com port number matches the number you saw on the Device Manager, then click apply. The SBD settings are ready to be configured.
-
Page 37: Sbdconfig Software - Task Bar Functionality-37-38
The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Sbdconfig Software - Task Bar Functionality Located on the task bar of the Sbdconfig software, there are five options to choose from: Serial Port, Read Clock, Load Clock, Configurations, and Version. - Page 38 The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Sbdconfig Software - Task Bar Functionality (continued) 2. Read Clock • If a user has a previously configured clock and connects it to a computer, this option will read and upload the settings to the Sbdconfig software program.
-
Page 39: Sbdconfig Software - Display Settings-39
The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Sbdconfig Software - Display Settings 1. Clicking on the Display Settings tab will allow a user to program the following settings: •... -
Page 40: Sbdconfig Software - Brightness Schedule-40
The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Sbdconfig Software - Brightness Schedule Clicking on the Brightness Schedule tab will allow a user to establish a Brightness Schedule for the digital clock(s). This includes choosing the day(s) of the week to set alternate brightness levels, the time of day that the brightness level will change, and the level of brightness the clock will display (High, Medium, Low or Off). -
Page 41: Sbdconfig Software - Clock Settings-41
The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Sbdconfig Software - Clock Settings 1. Clicking on the Clock Settings tab will allow a user to program the following settings: •... -
Page 42: Sbdconfig Software - Outputs-42
1. Clicking on the Outputs tab will allow a user to program the following settings: • RS485 Data Rate: This option determines how often data (time and date) is sent to the clock(s) or other Sapling devices, such as Wireless Repeaters, Converter Boxes, or other Master Clocks. - Page 43 The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Sbdconfig Software - Elapsed Timer (3200/3300 Versions) On the Elapsed Timer tab, there are four buttons available to program. Each option has different functionality to meet your needs.
- Page 44 The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Sbdconfig Software - Elapsed Timer (3200/3300 Versions) (continued) • On countdown complete, close: This option allows a user to choose how many seconds the relay will be closed for. The maximum number of seconds is 9.
- Page 45 The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Sbdconfig Software - Elapsed Timer (3200/3300 Versions) (continued) 2. Program the ‘Lights’ settings. These control which colored light will display on the Elapsed Timer when a particular button has been pushed.
- Page 46 The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Sbdconfig Software - Inputs (3300 Series) 1. The ‘Inputs’ tab allows a user to program the clock to perform a certain function through a switch or relay contact closure from an outside device such as Code Blue, Nurses Call, etc.
- Page 47 The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Sbdconfig Software - Inputs (continued) • On countdown complete, close: This option allows a user to choose how many seconds a relay will be closed for.
-
Page 48: Sbdconfig Software - Dst-48-49
The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Sbdconfig Software - DST • Select Method for Defining DST: This drop down allows a user to choose between four options for Daylight Savings Time. - Page 49 The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Sbdconfig Software - DST (continued) • By Country: When this option is selected, Daylight Saving Time can be chosen by country. For example, Daylight Saving Time can be selected to follow the DST rules established in the United States.
-
Page 50: Support
The Sapling Company, Inc. +1 215.322.6063 P. 1633 Republic Road +1 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Support Reading the Display The digital clock is designed to display time in either a 12-hour or 24-hour format. When the display is set to the 12-hour format, a circular light will appear in the top left corner of the display to indicate PM, or disappear to indicate AM. -
Page 51: Frequently Asked Questions-51
How can I display “BELL” and “FirE” on the clock? “BELL” displays can be programmed by either the Sapling 2000 or 3000 Series Master Clocks. To display “FirE”, a 3000 Series Master Clock, which receives a signal from an existing alarm system, must be used . - Page 52 SBD 3200/3300 clocks shipped before March 27, 2014 require an older version of the SBDConfig software, while SBD 3200/3300 clocks shipped after March 27, 2014 require a newer version of the SBDConfig software. If your clock does not respond to your version of SBDConfig, you may download both versions of the program at: http://www.sapling-inc.com/digital-clock-programming/.
