Summary of Contents for Husqvarna Viking Designer SE

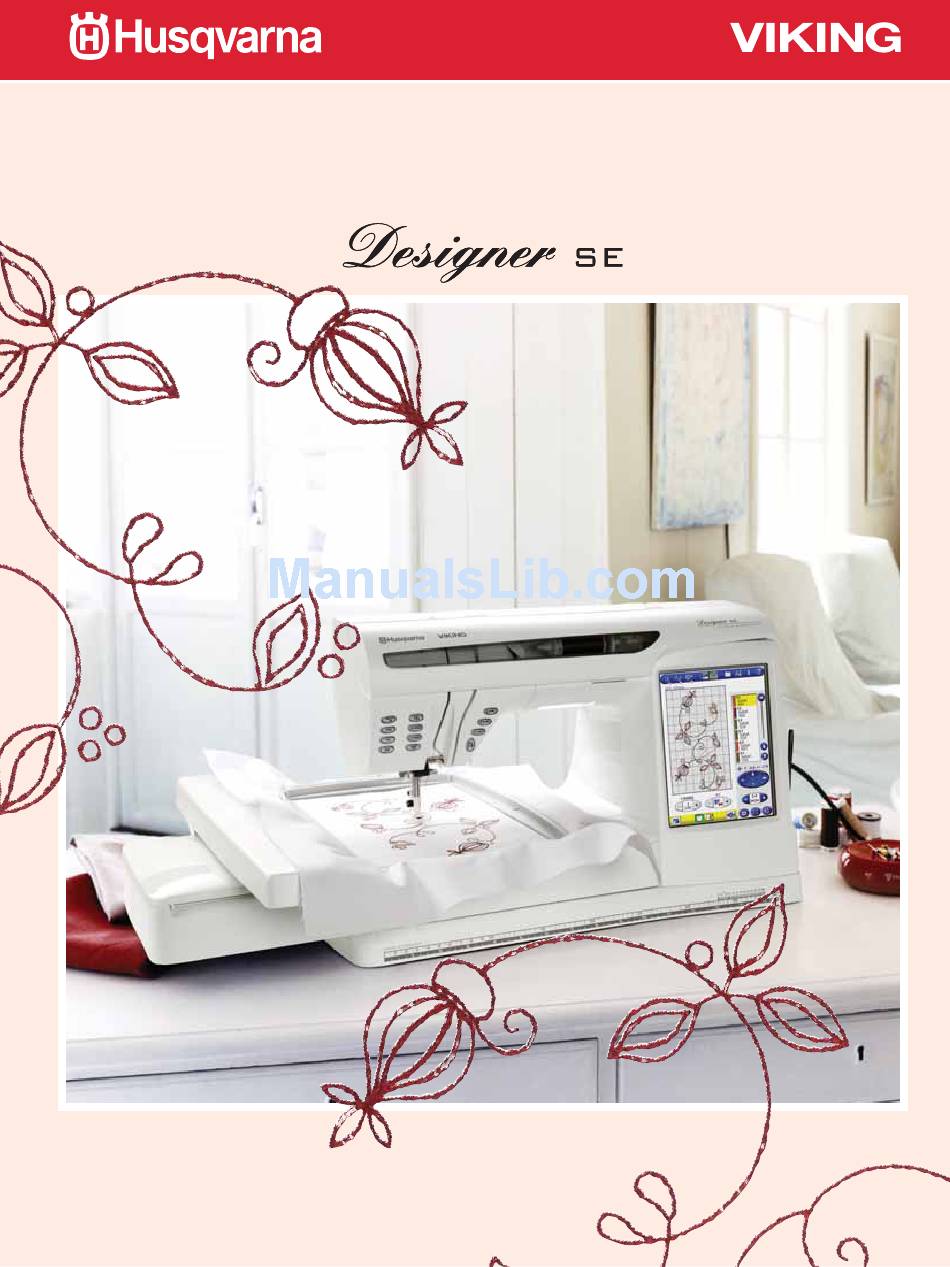

- Page 1 User’s Guide K E E P I N G T H E W O R L D S E W I N G...
-
Page 2: Important Safety Instructions
This houshold sewing machine is designed to comply with IEC/EN 60335-2-28 and UL1594 IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic safety precautions should always be followed, including the following: Read all instructions before using this household Sewing machine. DANGER –... - Page 3 Embroidery set-up Page 3-1 - 3-8 Embroidery Mode Explore the on-screen embroidery functions Page 4-1 - 4-22 File Manager Organize all fi les for Designer SE Page 5-1 - 5-10 Care of Designer SE Stitch Overview Index Page 6-1 - 6-12...
-
Page 4: Table Of Contents
USB Ports ............1-21 Designer SE Designs ......... 3-2 USB Embroidery Stick ........1-21 Designer SE Sampler ......... 3-2 Designer SE to Computer Connection ... 1-21 Mega Hoop ............3-3 Interactive Designer Screen ......1-22 Connect the Embroidery Unit ......3-3 Toolbar .......... - Page 5 Park and Easy Thread Trims ......4-8 Cleaning ............. 6-2 On Screen Design Options ....... 4-9 Trouble Shooting ........6-3 – 6-4 Resize ............ 4-10 – 4-11 How to upgrade Designer SE ......6-4 Save Designs ............ 4-12 Stitch Overview 6-5 – 6-8 Interactive Designer Embroidery...
- Page 6 Set it Up 28. 29. Overview – Front side 1. Lid 22. Needle clamp screw 23. Reverse button 2. Thread take-up lever 3. Thread tension discs 24. Sensor foot down button 4. Pre-tension 25. Sensor foot pivot button 5. Stitch Re-Start button 26.
-
Page 7: Set It Up 1-6
Set it Up Rear side 50. Handle 51. Thread cutter 52. Embroidery unit connection socket Accessory Tray The accessory tray features special compartments for presser feet and bobbins, plus space for needles and other accessories. Store the accessories in the tray so they are easily accessible. -
Page 8: Accessories
Set it Up Accessories Pictogram pen – a special pen with which you can mark directly on the fabric. The color disappears after some hours. You can also use cold water to completely remove the markings before ironing. Needles Thread spool Presser feet (see page 1-18 - 1-19 for presser feet overview) Extra spool holders, one large, one small... -
Page 9: Connect To The Power Supply
Set it Up Connect to the Power Supply Among the accessories you will fi nd the power cord. On the underside of the machine is information about the power supply (V) and the frequency (Hz). For this sewing machine, foot control type “FR3” must be used. -
Page 10: Spool Pins
Set it Up Spool Pins Your Designer SE has two spool pins, a main spool pin and an auxiliary spool pin. The spool pins are designed for all types of thread. The main spool pin (a) is adjustable and can be used... -
Page 11: Threading The Upper Thread
Set it Up Auxiliary Spool Pin The auxiliary spool pin is used when winding a bobbin from a second spool of thread or for a second spool when sewing with a twin needle. Pull the auxiliary spool pin towards you and down. -
Page 12: Needle Threader
Set it Up Needle Threader The needle must be in the up position to use the built-in needle threader. We also recommend lowering the presser foot. Touch 1. Use the handle to pull the needle threader all the way down, catching the thread under the guide (a). -
Page 13: Threading For Twin Needle
1. Place an empty bobbin on the bobbin spindle at the front of the machine (the markafacing up). Use only the original Husqvarna Viking green bobbins. 2. Thread the machine with the main spool pin in horizontal position. : If the thread spool is too large to be in... -
Page 14: Winding Specialty Threads
: Do not lower the winding speed too much NOTE the bobbin thread cutter (c). when winding through the needle. The resistance will be too high and Designer SE cannot wind. Winding Specialty Threads We do not recommend winding speciality threads such as “invisible” or other stretchy threads, metallic or fl... -
Page 15: Placing The Bobbin In The Machine
Set it Up Placing the Bobbin in the Machine 1. Remove the bobbin cover by sliding it 10 15 towards you. 2. Place the bobbin in the bobbin case with the markafacing up and the thread to the left of the bobbin. The bobbin will then rotate counter clockwise when pulling out the thread. -
Page 16: Function Buttons
IN EMBROIDERY MODE see page 3-7. STOP STOP is used to conclude a stitch. Your Designer SE fi xes the thread and stops automatically when one stitch or stitch program has been completed. The button lights up when you touch it. STOP is cancelled when you touch the button again or by selecting a new stitch. -
Page 17: Exclusive Sensor System
When you stop with the needle in the down quick succession before starting to sew. The position, the pres ser foot is automatically lifted button will be lit and the Designer SE sews to pivot position. in reverse until you touch the button again to cancel. -
Page 18: Presser Feet
Presser Feet There are a number of presser feet for different : Always use the recommended presser foot NOTE purposes supplied with your Designer SE. supplied with the machine! Utility Foot A Fitted on the machine upon delivery. This foot is used mainly for straight stitching and zigzag stitching with a stitch length longer than 1.0. -
Page 19: Changing The Presser Foot
Set it Up Quilter’s 1/4" Piecing Foot P This foot is used when piecing quilt blocks. The foot has distance marks 1/4" (6 mm) and 1/8" (3 mm). Embroidery Foot R This foot is for free motion embroidery/quilting/ stitching and hoop embroidery. Decorative Side motion Foot S This foot is used for side-motion/omnimotion stitches. -
Page 20: Needles
Set it Up Needles The needle package included with Designer SE contains needles of the most used types and sizes for sewing in woven and stretch fabrics – Universal, Stretch, Embroidery and Wing needles. : Change the needle often. Always use a straight NOTE You will fi... -

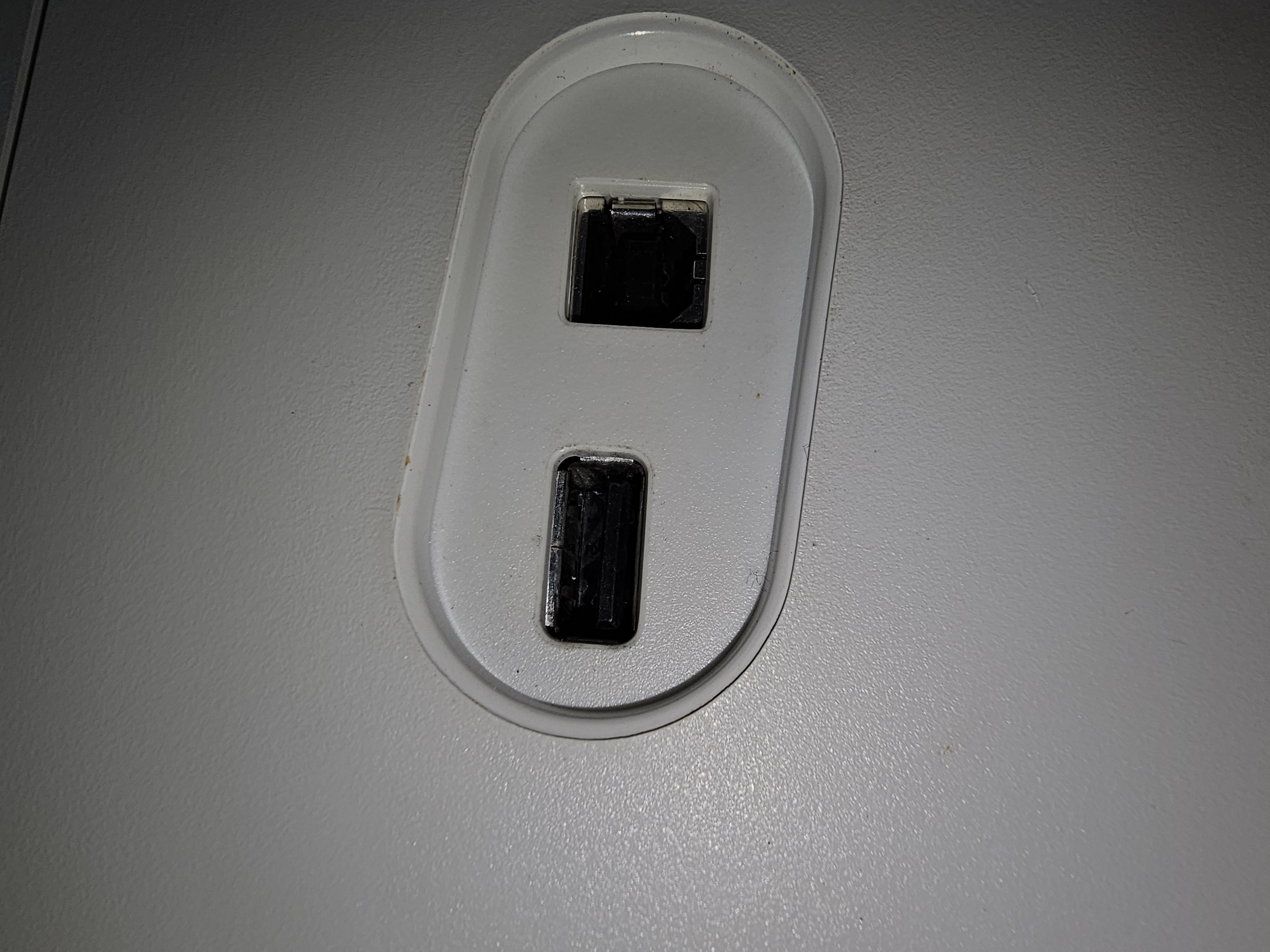

Page 21: Usb Ports
Set it Up USB Ports Your Designer SE has two USB ports – one to connect the sewing machine to your computer, and one to connect either your USB Embroidery Stick, optional CD-drive, optional fl oppy disk drive or optional mouse. -
Page 22: Interactive Designer Screen
The toolbar at the top of the screen includes the basic functions and help at a touch. On/Off When your Designer SE is turned off, the screen is dark grey. When it is turned on, you will fi rst see a Welcome Screen, then the Sewing Mode or, when the embroidery unit is on, the Embroidery Mode screen will appear. - Page 23 Set it Up Sewing and Embroidery Mode Your Designer SE has two main modes, Sewing Mode and Embroidery Mode. Toggle between the two modes by touching the button in the toolbar at the top of the screen. The symbol for the active mode has a green background.
-
Page 24: Index Help
Quick Help Your Designer SE has a built in Quick Help, which gives you instant information about everything you see on the Interactive Designer Screen. Touch in the top right corner of the screen. -
Page 25: Set Menu
On auto (default) setting, each stitch begins with fi x tie-off stitches. On manual, touch tie off. FIX Auto is always active when Designer SE is turned on. Selective Thread Cutter Auto On auto (default) setting, the threads are cut... - Page 26 This setting is saved when Designer SE is turned off. When turning on the machine again, and for every stitch selection that is not a straight stitch, a pop-up informs you that it is set to straight stitch.
- Page 27 Designer SE. Simply touch a language to select it. SE! Light Adjust the brightness and the color temperature of the lights on your Designer SE to make it perfect for all types of fabric and the light conditions in your sewing room. Touch Screen Adjust...
- Page 28 Lift Height In Embroidery Mode or when Designer SE is set for free motion sewing, the icon changes and + and − adjust the lift height of the presser foot.
-
Page 29: Sewing Mode 2-1
Sewing Mode... -
Page 30: Overview
Sewing Advisor, save and go to the Programming Mode. In the left part of the screen your Designer SE displays the selected stitch in full scale together with recommended presser foot and needle. The number of the selected stitch (A1:2 is default) is shown... -
Page 31: Sewing Advisor
Sewing Mode Sewing Advisor Your Designer SE features the exclusive Husqvarna Viking Sewing Advisor. It is always active and is located at the bottom of the Interactive Designer screen. Touch fabric type and technique desired. The Sewing Advisor sets the best stitch, stitch... -
Page 32: Sewing Techniques
: creates an invisible hem on garments. Is not recommended for light weight fabric or BLIND HEM for leather/vinyl, but your Designer SE selects the best stitch possible. : selects the best visible or top stitch hem for your fabric type and weight. -
Page 33: Select A Stitch
When a stitch menu is selected, all stitches in that menu are shown in the stitch selection area. Simply select a stitch by touching it. Your Designer SE confi rms your choice by highlighting the selected stitch in white. The selected stitch is displayed in actual size to... -
Page 34: Stitch And Alphabet Menus
Sewing Mode Stitch and Alphabet Menus Your Designer SE has 16 stitch menus and 4 font menus for all types of sewing projects. For an overview of all the stitch menus, see pages 6-5 - 6-8. Utility Stitches Menu A features stitches for your garment sewing, mending and darning. -
Page 35: What Is A Stitch
(Heart, Feather Stitch, etc.). Adjust Stitches When selecting a stitch, your Designer SE automatically sets the best stitch length and width for the fabric selected in the Sewing Advisor. Use the buttons below and beside the... - Page 36 Sewing Mode Stitch Density Satin and Scallop Stitches When certain satin or scallop stitches are selected, a button for adjusting stitch density appears. Stitch Density adjusts the density (closeness of the satin stitches that make up the complete stitch) of satin type Pictogram elements and satin decorative stitches without changing the length of the actual complete stitch (Pictogram element or satin decorative stitch).
-
Page 37: Buttonholes
After setting the size, line up white area on the side of the wheel with the white marking line on the foot. For more information on how to sew buttonholes, see your Designer SE Handbook and your Instruction CD. -
Page 38: Alphabet Fonts
Learn more about embroidery fonts on page 4-14. Programming With your Designer SE you can program stitches and letters into combinations. Each program can be up to approximately 500 millimeters (20") long. Save the program in “My Stitches” or “My Files”, see page 2-15. - Page 39 Sewing Mode How to Program Stitches and Letters To program a combination, simply touch your desired stitch and it appears under the presser foot on the screen. Touch another stitch and it will appear below the previous one. Continue selecting stitches and letters. Font Style Menus For each font there are different style menus, for example: upper case letters A.., lower case...
- Page 40 Sewing Mode : Mirror stitches side to side with MIRRORING and end to end with : Decrease or increase the STITCH LENGTH stitch length using the − and +. : Decrease or increase the STITCH WIDTH stitch width using the − and +. : Move the needle left NEEDLE POSITION by touching −...
-
Page 41: Programming
Sewing Mode Practice Programming Stitches and Letters Follow the step by step instructions to program “Linda” combined with decorative stitches. In Sewing Mode view, touch to enter Programming. Touch in the toolbar and select menu D. The stitches appear in the stitch selection area. -
Page 42: Sew Your Program
To enter another decorative stitch, touch and select menu D. Select stitch 20. Touch function button on the machine to sew your program only once. Designer SE will tie off the thread and stop when your program is fi nished. Touch... -
Page 43: Save On Free Position
Sewing Mode Save in “ My Stitches” Touch to open the dialogue for saving a stitch program or an adjusted stitch in “My Stitches”, the U-menu. There are three U-menus, which you can scroll between using the arrows. Save on Free Position Previously saved stitches or stitch programs are shown in the U-menu. -
Page 44: Sewing Pop-Up Windows
Just continue sewing without closing the pop-up. Presser foot too high Your Designer SE will not sew if there is too much fabric under the presser foot. Remove sensor buttonhole foot When the Sensor Buttonhole Foot is inserted you can not select •... - Page 45 When trying to save a stitch or program with the same name as a fi le that already exists in “My Files” or on an external device, your Designer SE will prompt you to confi rm this. Insert Sensor Buttonhole Foot...
- Page 46 Sewing Mode 2-18...
-
Page 47: Set To Embroider 3-1
Set to Embroider... -
Page 48: Embroidery Unit Overview
• Embroidery Collection Booklet carrying case to prevent misplacing them. Designer SE Designs 71 brand new designs are included in the Designer SE built in memory, and 4 designs are stored on your USB Embroidery Stick. All these designs are also... -
Page 49: Mega Hoop
Follow the instructions included with your Mega Hoop. Designs for the Mega Hoop are included with your Designer SE and pictured full size in the Designer SE Sampler booklet. Connect the Embroidery Unit 1. Press button at left end of accessory tray and slide it off. -
Page 50: Remove The Embroidery Unit
Set to Embroider Remove the Embroidery Unit 1. To store the embroidery unit in the embroidery case, touch . The embroidery arm will move to the park po si tion. under the Embroidery Color Control tab, , has the same function (see page 4- 8). -
Page 51: Embroidery Template
Set to Embroider Embroidery Template Because the embroidery designs are pic tured actual size in the booklet, it is easy to place the embroidery in the desired position on your garment or project. 1. Place the template over the picture of the selected design in the booklet. -
Page 52: Getting Started
6 above. 8. When the embroidery is completed, your Designer SE stops and a pop-up informs you that your embroidery is fi nished. Touch to remove your design from the screen or... -
Page 53: Embroidery Functions
Embroidery Functions Bobbin Access When the bobbin is almost empty, your Designer SE stops automatically and a pop-up is shown. To access the bobbin area with the embroidery hoop attached, touch the hoop will move away so that you can slide open the bobbin cover. -
Page 54: Park Position /Easy Thread Trims
Start and Stop Embroidering Touch to begin embroidering and touch again to stop. Designer SE stops automatically at color changes and when the embroidery is fi nished. Sensor Foot Up and Extra Lift Touch to lift pres ser foot to up po si tion. -
Page 55: Interactive 3D Embroidery - Embroidery Mode Embroidery Mode
Interactive 3D Embroidery – Embroidery Mode... -
Page 56: Embroidery Mode 4-1
Embroidery Mode Embroidery Mode Embroidering your favorite designs is fun and easy with Designer SE! With a simple touch on the Interactive Designer screen you can combine and customize designs, scale and rotate them any way you wish, and stitch them out to embellish your favorite garments or sewing projects. Combine your designs with text or other designs and save them in the built in machine memory or on your USB Embroidery Stick. -
Page 57: Overview
Embroidery Mode Overview With Interactive Designer Customizing you can adjust, combine, save, restore and delete designs. You also have access to the Embroidery Advisor. In the embroidery area the loaded designs are displayed in 3D. You can customize your designs with or without the embroidery unit attached. -
Page 58: Select Design(S)
Embroidery Mode Load from other Location You can also load a design from another location by touching (see page 4-3) at the bottom of the “My Designs” drop down menu. A Load dialogue will open, allowing you to load designs or combinations. By default “ My Files” is opened, or you can choose to load a design from your USB Embroidery Stick or another device connected to the USB port. -
Page 59: Adjust Designs
Embroidery Mode Adjust Designs There are many options to adjust your designs. Always adjust fi rst before beginning to embroider. There are three sets of control buttons which are displayed by touching one of the three tabs at the bottom right of the screen – embroidery design functions (1), embroidery text functions Hoop Selection (2) and color functions (3). -
Page 60: Embroidery Text Control Tab
: If a program includes a font not installed on the NOTE Designer SE, a pop up will inform you that you cannot edit the text. Install the used font. Text Size Adjustment Touch − or + in to reduce or enlarge the selected text up to 20% proportionally. -
Page 61: Embroidery Color Control Tab
Embroidery Mode From left: Change thread Embroidery Color Control Tab color, Change background Color List color and One color embroidery All colors in all loaded designs are displayed in the order they will be stitched. Each listed color shows design and color number, and gives Color list abbreviated information on thread manufacturer, Example: 1:2, SuRa 40,... -
Page 62: Grid
Embroidery Mode Grid Touch to activate/deactivate a grid on the embroidery area to use as a guide when combining designs. The distance between the grid lines correspond to 20 mm on the fabric. When you zoom in on the embroidery area with , thinner grid lines appear, distance between the lines correspond to 10 mm and 5 mm. -
Page 63: On Screen Design Options
Embroidery Mode On Screen Design Options With the On Screen Design options you can touch and drag your designs on the Interactive Designer screen. There are two ways to select a design, touch or touch design on screen (see page 4-4). Select and Position Touch to activate the function. -
Page 64: Resize
Screen will display the resized design in 3D. To return to the customizing screen without accepting the resize changes, touch : Designer SE allows resize 50% smaller in width and length and larger to the size of the Mega Hoop. If NOTE... - Page 65 • It does not matter in what order you adjust the message “Design outside hoop area”. size, rotate, mirror etc. When you touch Designer SE always resizes fi rst, and then adds • When enlarging a design a great deal you may the rotation, mirroring etc.
-
Page 66: Save Designs
Embroidery Mode Save Designs Touch to save the design you are working on. Select to save in “ My Files”, save in “ My Designs” or to save on a USB device (if inserted) by touching corresponding button. File Name The default fi... -
Page 67: Interactive Designer Embroidery
Embroidery Mode Interactive Designer Embroidery Touch the toggle button at the bottom of the screen when your design is ready. New functions, used when stitching out a design, are displayed. Cursor When embroidering, a cursor + indicates the needle position in the design. The cursor follows the needle through the design when sewing or when stepping through stitches or colors, so you can always see on screen your exact position in... -
Page 68: Embroidery Fonts
Embroidery Mode Embroidery Fonts Your Designer SE is delivered with 4 embroidery fonts, Clarendon, Kalligraphia, Meza and Palace Script, each in three different sizes. Touch and a drop down menu displays the embroidery fonts in the “ My Fonts” folder below the stitch fonts. -
Page 69: Load Text To Embroidery
Embroidery Mode Change a Letter To change a letter, delete it and insert the letter you want instead. See Add and Delete above. Change Font A sample of the selected font is displayed in the editing window. Touch next to “Change Font”... -
Page 70: Embroider Stitches And Stitch Fonts
Embroidery Mode Embroider Stitches and Stitch Fonts In Embroidery Mode stitch programs can be sewn in the hoop. Touch and select a stitch menu or touch and select a stitch font. A window for programming opens. Add, change and delete letters and stitches in the same way as described on the previous pages. -
Page 71: Load Stitch Program To Embroidery
Embroidery Mode Preview View your stitch program horizontally by touching . A pop-up displays your program in actual size. If the program is too long to be shown in total, use the cursor arrows to scroll through the program. To view the whole program, touch . - Page 72 Embroidery Mode 3. Touch and select the single rose bud, . Rotate it 260°. Place it next to the single rose leaf. 4. Touch several times for a close up look. To pan the zoom to see the area joining the bud and the leaf, touch and touch and drag on screen.
- Page 73 Embroidery Mode 6. Touch M to enter a capital M. Touch a.. to change the letters to lower case. Touch “a”, “r” and “y”. Touch to close the text editor and load “Mary” to the embroidery area. Touch and move the text where you want it.
-
Page 74: Embroidery Pop-Up Windows
This menu also reminds you to snap on the R foot for embroidery. Delete selected Your Designer SE will ask you to confi rm when you have selected to delete all designs. Attach correct hoop When the size of the hoop on the machine does not match the size displayed on the screen, your Designer SE will not sew. - Page 75 The fi rst time you try to save a design with the same name as a design fi le that already exists, your Designer SE will prompt you to confi rm this. If you keep working on the same design and save again, Designer SE will not ask again.
- Page 76 These are available from your Husqvarna Viking Dealer as an accessory. Cannot resize selected object(s) Designer SE cannot resize stitch programs or embroidery texts. If either of these are selected, alone or together with a design, you cannot open the resize window.
-
Page 77: File Manager 5-1
File Manager... -
Page 78: Overview
File Manager Your Designer SE has a built in File Manager which helps you add, move, remove and copy designs, fonts and stitch fi les in an easy way. Work with the built in memory, or external devices connected to the USB-ports, such as your computer or the USB Embroidery Stick delivered with the Designer SE. -
Page 79: Browsing
fi les. Upon delivery this folder is empty. Fill it with purchased designs and fonts, your customized designs, stitch programs, text fi les or any fi le you want to store in your Designer SE. Use Cut , Copy and Paste (see page 5-8) to move other fi... -
Page 80: My Designs
: Load or copy fi les from a CD. DRIVE : Connect a fl oppy disk LOPPY RIVE drive to read fl oppy disks directly from your Designer SE. : Contact your dealer for USB devices for your NOTE Designer SE. -
Page 81: Select And Load A File
File Manager Select and Load a File Select which device or folder you want to load from by touching the corresponding button. All included folders and fi les are displayed in the center window. Simply touch the icon for the desired design, stitch or font. -
Page 82: Supported File Formats
File Manager Text Files You can open and read text and HTML-fi les on your Designer SE. Just select the text fi le and touch . The text is displayed in the Text View which opens automatically. The Text View is also found under in the toolbar. - Page 83 File Manager Open Folder To open a folder, select it and touch . The contents of the folder are shown in the center window. : If a fi le is selected instead of a folder, this NOTE button will change to say Step Up One Folder Level Touch to step up through the levels of...
-
Page 84: Move, Copy And Delete Folders And Files
File Manager Move, Copy and Delete Folders and Files You can move, copy and delete fi les and folders by using the buttons Cut , Copy , Paste and Delete Move a File or Folder 1. Select a fi le or folder by touching it, then touch 2. -
Page 85: Pop-Up Windows In File Manager
Memory full Your Designer SE can store up to 5 MB in the built in memory. When the memory is full you have to delete fi les to be able to load another fi... - Page 86 File Manager Not possible to store in this folder Only design fi les can be stored in “My Designs” and only embroidery font fi les can be stored in “My Fonts”. Select another folder to store in. 5-10...
-
Page 87: Care Of Your Designer Se 6-1
Care of your Designer SE... -
Page 88: Care Of The Machine
Turn off at the main power switch. Cleaning Wipe the exterior surfaces of your Designer SE with a soft cloth to remove any dust or lint built 10 15 Wipe the Interactive Designer Screen with a soft 10 15 damp cloth. -
Page 89: Trouble Shooting
Bobbin alarm does not work? • Turn machine off and on to reset automatic • Clean lint from bobbin area. tension. • Use only authentic Husqvarna Viking green • Consult your dealer for service. style bobbins. Needle breaks? Bobbin winds irregularly? •... -
Page 90: How To Upgrade Designer Se
Buttons on Interactive Designer Screen are not activated when touched? All information in this Husqvarna Viking • Calibrate the Interactive Designer Screen. See Designer SE User’s Guide is current at the time of printing. instructions on page 1-27. We constantly receive feedback from Designer SE... -
Page 91: Stitch Overview 6-5
Stitch overview Stitch Overview A – Utility Stitches B – Buttonhole Stitches C – Pictogram Stitches D – Heirloom Stitches... - Page 92 Stitch overview E – Quilt Stitches G – Children Stitches F – Appliqué Stitches H – Scallop Stitches...
- Page 93 Stitch overview K – Omnimotion Stitches L – Decorative Stitches M – Crafting Stitches N – Fashion Stitches...
- Page 94 Stitch overview S – 4-way Stitches T – 8-way Stitches V – Special Stitches U – My Stitches For saving your own adjusted stitches or stitch programs. Brush Line Alphabet Block Alphabet Outline Block Alphabet Cyrillic Alphabet Hiragana Alphabet Script Alphabet...
- Page 95 Button Size .............2-9 Embroidery Getting Started Embroidery Advisor..........4-3 Calibrate the Screen ..........1-27 Embroidery Booklet ..........3-2 Care of your Designer SE .......6-1–6-4 Embroidery Color Control Tab ......4-7 Category Help ............1-24 Embroidery Design Function Tab ......4-5 CD-drive ..............5-4 Embroidery Fonts ..........4-14 Change a Stitch or Letter in Stitch Program ..2-11 Embroidery Functions ...........3-7...
- Page 96 Index Load Design Files Fabric Selection .............2-3 Font Files Favorite Stitches .............2-6 Stitch Files Feed Teeth, Lowering.........1-20, 1-26 Text Files File Info ..............5-6 Load a Design ............4-3 File Manager ........1-23, 5-1–5-10 Load a File .............5-5 File Manager Pop-Up Windows ....5-9–5-10 Load Design from other Location ......4-4 Fix..........
- Page 97 Index Presser Foot Pressure ..........1-28 Set Menu .............1-25–1-28 Preview ............2-12, 4-17 Set to Embroider ..........3-1–3-8 Programming ..........2-10–2-15 Sewing Advisor ..........2-3–2-4 Fabric Selection Sewing Techniques Sewing Mode ........1-23, 2-1–2-18 Quick Help ............1-24 Sewing Pop-Up Windows ......2-16–2-17 Sewing Techniques..........2-4 Remove Accessory Tray ........1-7 Sewing with Embroidery Unit on .......1-23 Remove the Embroidery Unit .......3-4 Sew your Program ..........2-14...
- Page 98 Touch Screen Adjust ..........1-27 Trimming Thread in Hoop ........3-8 Trouble Shooting ..........6-3–6-4 Twin Needle Settings ..........1-25 Twin Needle Threading ........1-13 Unpacking Designer SE ........1-8 Upgrade Designer SE ..........6-4 USB Device ............5-4 USB Embroidery Stick ....1-21, 3-2, 4-4, 5-4, 5-6 USB Ports .............1-21...
- Page 99 We reserve the right to change the machine equipment and the ass ort ment of accessories without prior notice, or make modifi cations to the performance or design. Such modifi cations, however, will always be to the benefi t of the user and the product.
- Page 100 VSM Group AB • SE-561 84 Huskvarna, Sweden www.husqvarnaviking.com...
Need help?
Do you have a question about the Designer SE and is the answer not in the manual?
Questions and answers
Husqvarna Viking Designer SE
@Louise Girard
The Husqvarna Viking Designer SE sewing machine has the following features:
- Smart technology with an intuitive interface
- Sewing Advisor that suggests the correct stitching technique
- LCD screen to select thread color and choose from 700 stitches
- Two USB ports (USB cable and stick not included)
- Built-in File Manager for managing designs, fonts, and stitch files
- Ability to work with built-in memory or external USB devices
- Interactive Designer Screen with adjustable contrast and screen saver settings
- Sensor Foot lift with auto setting in the Set Menu
Embroidery resizing is limited; stitch programs and embroidery texts cannot be resized directly on the machine.
This answer is automatically generated
I cannot get the foot of the sewing machine to go down on top of the throat plate. It will not go up or down.
To fix the foot on the Husqvarna Viking Designer SE sewing machine that is stuck and won't move up or down, follow these steps:
1. Check the Free Motion Setting: If Free Motion mode is activated, the foot may behave differently. In Free Motion, the foot raises and lowers with each stitch below 200 stitches per minute and floats over the fabric above that speed. Turn off Free Motion mode if it's not needed.
2. Sensor Q-Foot Mode: If the machine is set for the Sensor Q-foot, it limits stitch width and may affect foot movement. Turn off this setting if you are not using the Sensor Q-foot.
3. Power Cycle the Machine: Turn off the machine using the ON/OFF switch, unplug it from the wall and the machine, then plug it back in and turn it on again. This may reset the foot positioning mechanism.
4. Check for Obstructions: Ensure there is no fabric, thread, or debris blocking the foot mechanism.
If the foot still does not move after these steps, there may be an internal mechanical or electronic issue requiring service.
This answer is automatically generated
@Mr. Anderson thank you for your help. Much appreciaated
how to thread machine for bobbin winding
To thread the Husqvarna Designer SE for bobbin winding:
1. Place the spool on the auxiliary spool pin.
2. Ensure the main spool pin is in horizontal position.
3. Guide the thread down around the thread tension disc (a).
4. Then pass the thread through the thread guide (b).
5. Wind the thread clockwise a few turns around the bobbin.
6. Insert the thread into the thread cutter (c).
7. Depending on the thread type, wrap the thread one or two turns around the bobbin thread tension disc.
8. Use two turns for embroidery weight bobbin thread.
The machine has a separate motor that allows bobbin winding while embroidering or sewing.
This answer is automatically generated
I have a Husqvarna Designer SE. I cannot get the machine to lower the walking foot to machine quilt. Can you help me?
To lower the walking foot (Sensor Foot) on the Husqvarna Viking Designer SE for machine quilting, press the "Sensor Foot Down" button. This will completely lower the presser foot. For thick fabrics, first press the "Sensor Foot Up and Extra Lift" button to raise the foot and lower the feed teeth, then position the fabric and press "Sensor Foot Down."
This answer is automatically generated
how do i outline letters
To outline letters with the Husqvarna Designer SE, follow these steps:
1. Select the Outline block alphabet.
2. Touch the letter you want (e.g., L) in the stitch selection area. The letter will appear on the screen and be highlighted in red, indicating it is active.
3. To add more letters (e.g., "inda"), switch to lower case letters by touching "a.." in the stitch selection area.
4. Touch each desired letter (i, n, d, a) to add them. The active letter is highlighted in red; others are dark grey. Jumpstitches between letters appear in lighter grey.
5. To sew the outlined letters, press the function button to sew the program once. The machine will tie off the thread and stop.
6. Press the function button again to cut the threads and raise the presser foot.
This answer is automatically generated
How do I know what embroidery unit to buy?
The compatible embroidery unit for the Husqvarna Designer SE is the one specifically designed for the Designer SE model. It calibrates automatically when attached and should not be interchanged with units from other models like the Viking Rose, as compatibility is not guaranteed.
This answer is automatically generated
can i service the tensioner on a husquavarna designer se machine and am i able to make adjustments?
I have a Husqvarna Designer Viking diamond embroidery machine and I need to find a proper cable so I may plug it in to my laptop from my Husqvarna where can I find one of these cables and what kind of cable would I use? I've been told just to use a USB to USB cable a USB to a printer cable I'm confused I'm new at this if you can please help me I'd appreciate it send me a picture of what kind of cable I need something please
I want to buy or download a manual for a viking husqvarna 960, I cannot find one to download or buy
