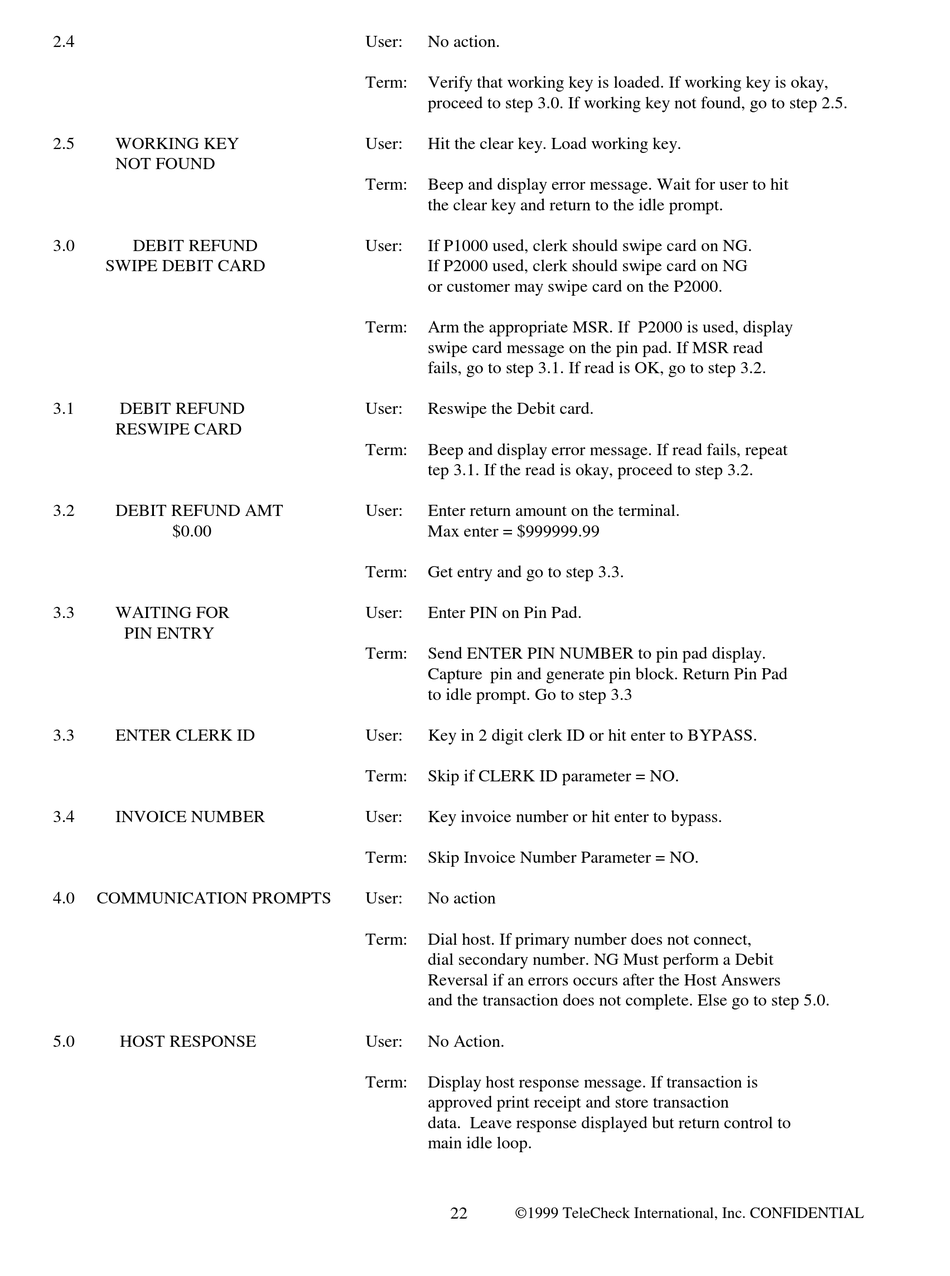

TeleCheck Eclipse Reference Manual page 22

2.4
2.5 WORKING KEY
NOT FOUND
3.0 DEBIT REFUND
SWIPE DEBIT CARD
3.1 DEBIT REFUND
RESWIPE CARD
3.2 DEBIT REFUND AMT
$0.00
3.3 WAITING FOR
PIN ENTRY
3.3 ENTER CLERK ID
3.4 INVOICE NUMBER
4.0 COMMUNICATION PROMPTS
5.0 HOST RESPONSE
User: No action.
Term: Verify that working key is loaded. If working key is okay,
proceed to step 3.0. If working key not found, go to step 2.5.
User: Hit the clear key. Load working key.
Term: Beep and display error message. Wait for user to hit
the clear key and return to the idle prompt.
User: If P1000 used, clerk should swipe card on NG.
If P2000 used, clerk should swipe card on NG
or customer may swipe card on the P2000.
Term: Arm the appropriate MSR. If P2000 is used, display
swipe card message on the pin pad. If MSR read
fails, go to step 3.1. If read is OK, go to step 3.2.
User: Reswipe the Debit card.
Term: Beep and display error message. If read fails, repeat
tep 3.1. If the read is okay, proceed to step 3.2.
User: Enter return amount on the terminal.
Max enter = $999999.99
Term: Get entry and go to step 3.3.
User: Enter PIN on Pin Pad.
Term: Send ENTER PIN NUMBER to pin pad display.
Capture pin and generate pin block. Return Pin Pad
to idle prompt. Go to step 3.3
User: Key in 2 digit clerk ID or hit enter to BYPASS.
Term: Skip if CLERK ID parameter = NO.
User: Key invoice number or hit enter to bypass.
Term: Skip Invoice Number Parameter = NO.
User: No action
Term: Dial host. If primary number does not connect,
dial secondary number. NG Must perform a Debit
Reversal if an errors occurs after the Host Answers
and the transaction does not complete. Else go to step 5.0.
User: No Action.
Term: Display host response message. If transaction is
approved print receipt and store transaction
data. Leave response displayed but return control to
main idle loop.
