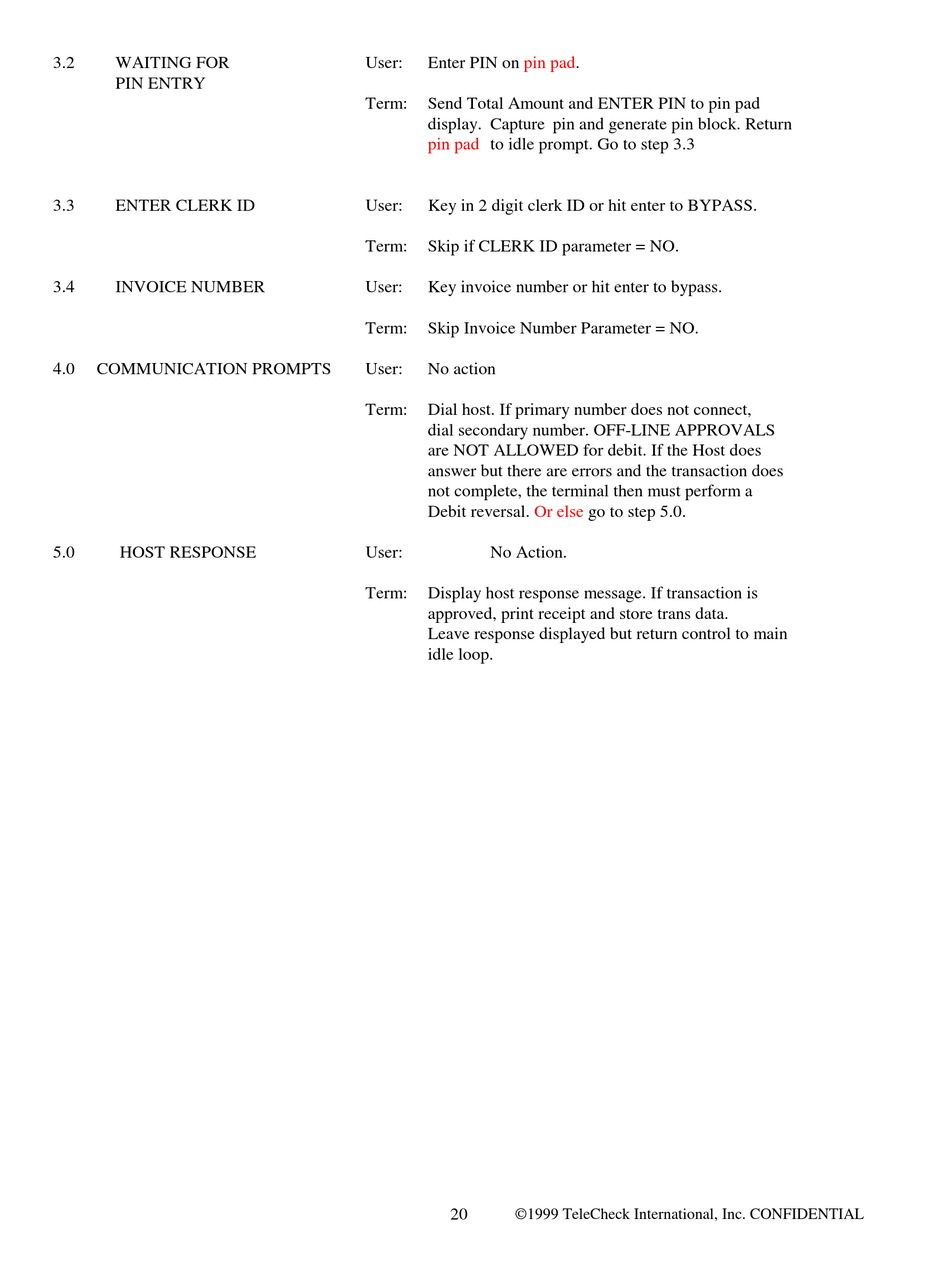

TeleCheck Eclipse Reference Manual page 20

3.2 WAITING FOR
PIN ENTRY
3.3 ENTER CLERK ID
3.4 INVOICE NUMBER
4.0 COMMUNICATION PROMPTS
5.0 HOST RESPONSE
User: Enter PIN on pin
Term: Send Total Amount and ENTER PIN to pin pad
display. Capture pin and generate pin block. Return
pin pad to idle prompt. Go to step 3.3
User: Key in 2 digit clerk ID or hit enter to BYPASS.
Term: Skip if CLERK ID parameter = NO.
User: Key invoice number or hit enter to bypass.
Term: Skip Invoice Number Parameter = NO.
User: No action
Term: Dial host. If primary number does not connect,
dial secondary number. OFF-LINE APPROVALS
are NOT ALLOWED for debit. If the Host does
answer but there are errors and the transaction does
not complete, the terminal then must perform a
Debit reversal. Or else
User: No Action.
Term: Display host response message. If transaction is
approved, print receipt and store trans data.
Leave response displayed but return control to main
idle loop.
1999 TeleCheck International, Inc. CONFIDENTIAL
20
pad.
go to step 5.0.
